NSN 5310-01-589-7139 BACN10YT3CD, 01-589-7139, 015897139
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-589-7139 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: BACN10YT3CD, 5310-01-589-7139, 01-589-7139, 5310015897139, 015897139
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 NOV 2010 | 01-589-7139 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

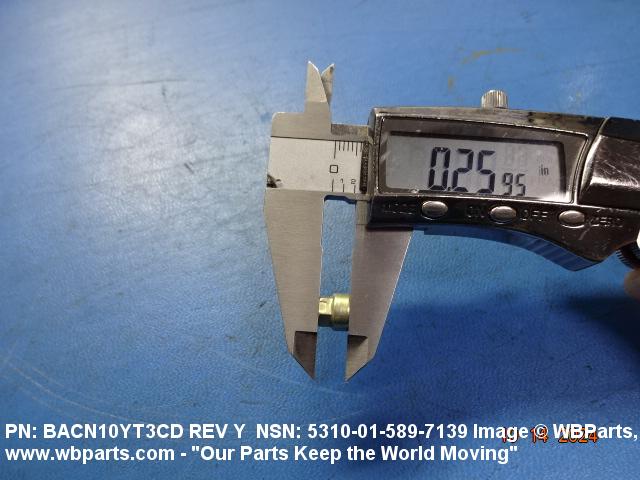

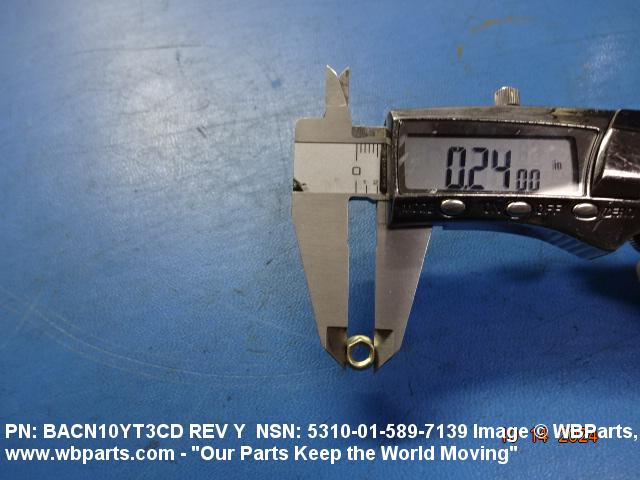

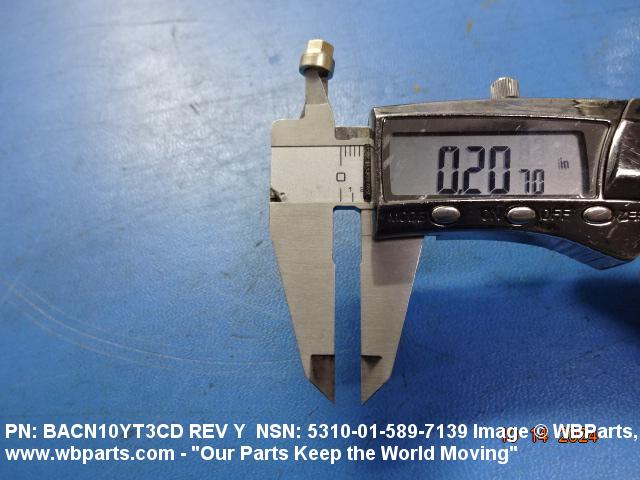

Drawings & Photos | NSN 5310-01-589-7139
Demand History | NSN 5310-01-589-7139
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-589-7139 | 2024-09-263 | 1000 | United States |
| BACN10YT3CD | 2023-04-116 | 1000 | United States |
| BACN10YT3CD | 2012-06-167 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-589-7139
Technical Data | NSN 5310-01-589-7139
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| WIDTH ACROSS FLATS | 0.243 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2 OR 8 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| THREAD QUANTITY PER INCH | 32 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5639 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5697 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5685 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5686 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| THREAD SERIES | UNJF |
| COUNTERBORE DIAMETER | 0.224 INCHES MINIMUM OVERALL AND 0.228 INCHES MAXIMUM OVERALL |
| NUT COUNTERBORE DEPTH | 0.102 INCHES MINIMUM OVERALL AND 0.112 INCHES MAXIMUM OVERALL |
| NUT HEIGHT | 0.280 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| MATERIAL | STEEL COMP 304 OVERALL OR STEEL COMP 305 OVERALL OR IRON ALLOY 660 OVERALL |
| THREAD CLASS | 3B |
Restrictions/Controls & Freight Information | NSN 5310-01-589-7139
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
