NSN 5310-01-463-3960 M45938/9-23, M45938923, NASM45938/9
Product Details | CLINCH SELF-LOCKING NUT
5310-01-463-3960 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: M45938/9-23, M45938923, NASM45938/9, NASM459389, MIL-N-45938/9, MILN459389, 5310-01-463-3960, 01-463-3960, 5310014633960, 014633960
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 MAR 1999 | 01-463-3960 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

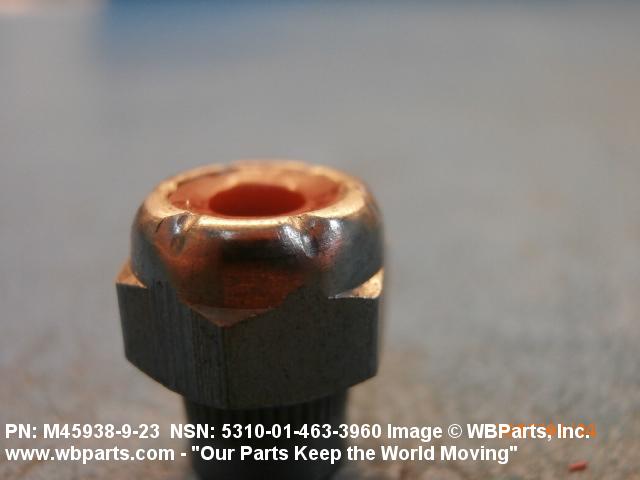

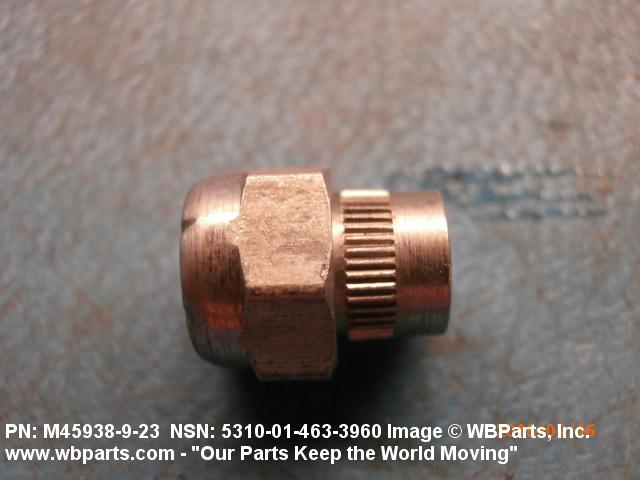

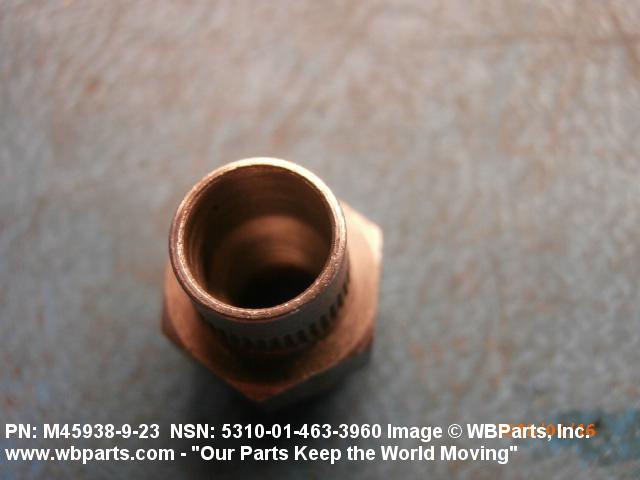

Drawings & Photos | NSN 5310-01-463-3960
Demand History | NSN 5310-01-463-3960
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-463-3960 | 2022-04-110 | 2 | US |
| 5310-01-463-3960 | 2018-05-124 | 30 | United States |
| 5310-01-463-3960 | 2017-06-170 | 24 | US |
| 5310-01-463-3960 | 2017-02-46 | 130 | United States |
| 5310-01-463-3960 | 2014-10-279 | 1500 | United States |
| 5310-01-463-3960 | 2014-10-279 | 2000 | United States |
| M45938923 | 2014-09-253 | 1200 | United States |
| M45938923 | 2014-05-134 | 5290 | United States |
| 5310-01-463-3960 | 2010-03-63 | 15 | US |
| M45938923 | 2009-09-244 | 850 | United States |
| M45938923 | 2009-08-218 | 50 | United States |
| 5310-01-463-3960 | 2009-02-33 | 100 | DIBBS |
| M45938923 | 2008-06-156 | 130 | US |
Cross Reference | NSN 5310-01-463-3960
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M45938/9-23 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| M45938/9-23 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-N-45938/9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NASM45938/9 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-463-3960
Related Products | NSN 5310-01-463-3960
Technical Data | NSN 5310-01-463-3960
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A581 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A51 CLINCH |

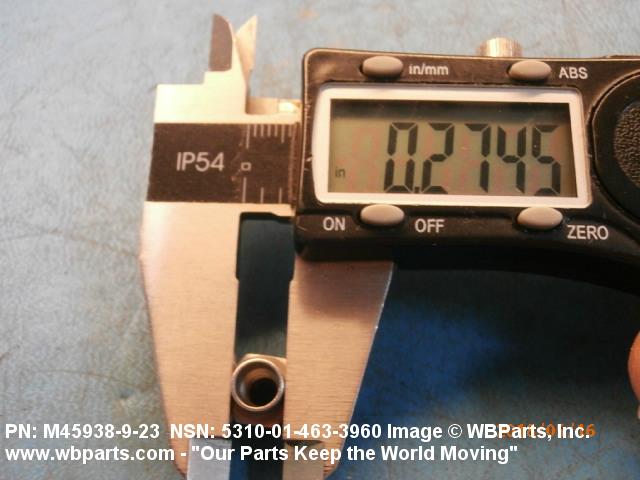

| PILOT DIAMETER | 0.273 INCHES MINIMUM AND 0.277 INCHES MAXIMUM |
| PILOT LENGTH | 0.189 INCHES MINIMUM AND 0.201 INCHES MAXIMUM |
| NUT HEIGHT | 0.415 INCHES NOMINAL |

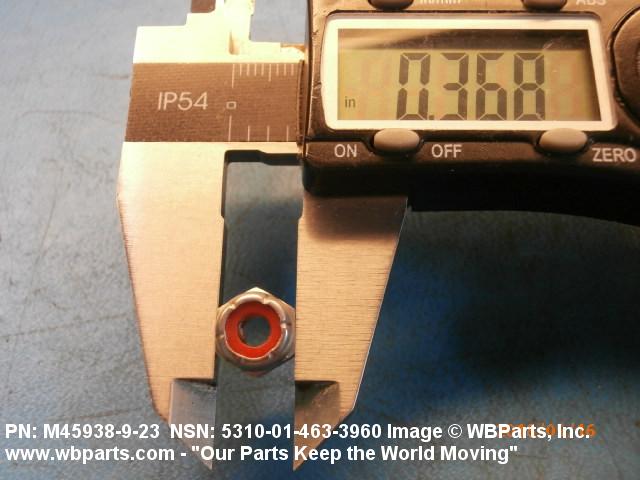

| WIDTH ACROSS FLATS | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |

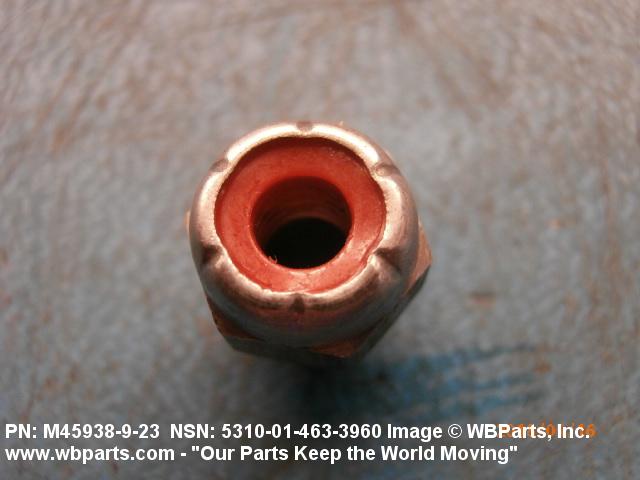

| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-N-45938/9 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M45938/9-23 |
Restrictions/Controls & Freight Information | NSN 5310-01-463-3960
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-463-3960
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
