Product Details | CLINCH SELF-LOCKING NUT

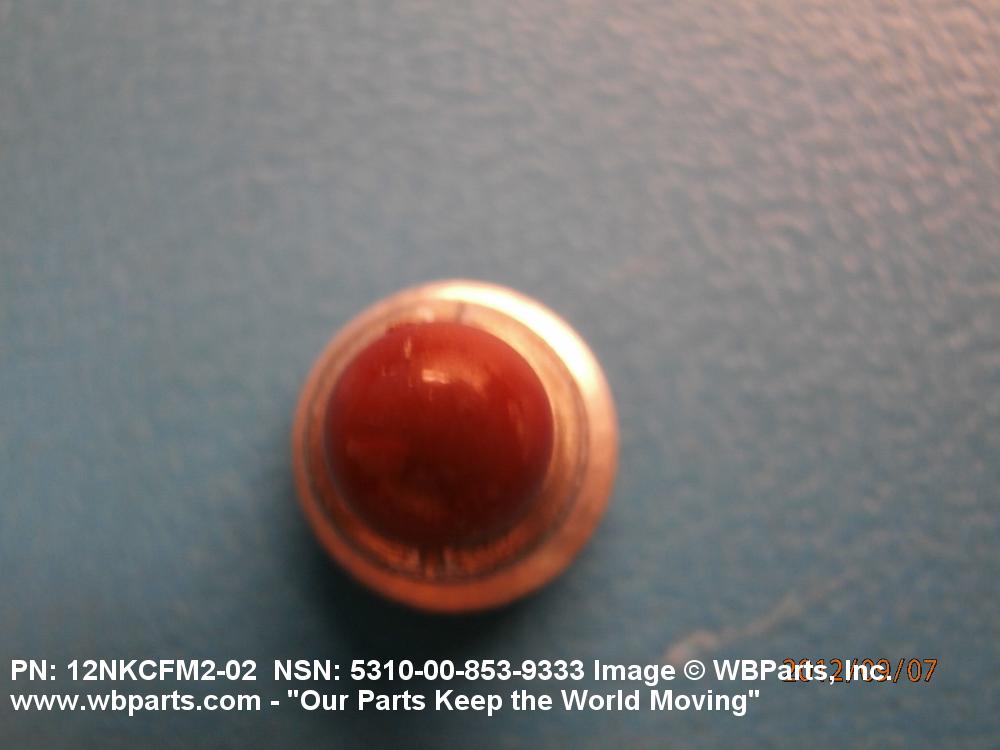

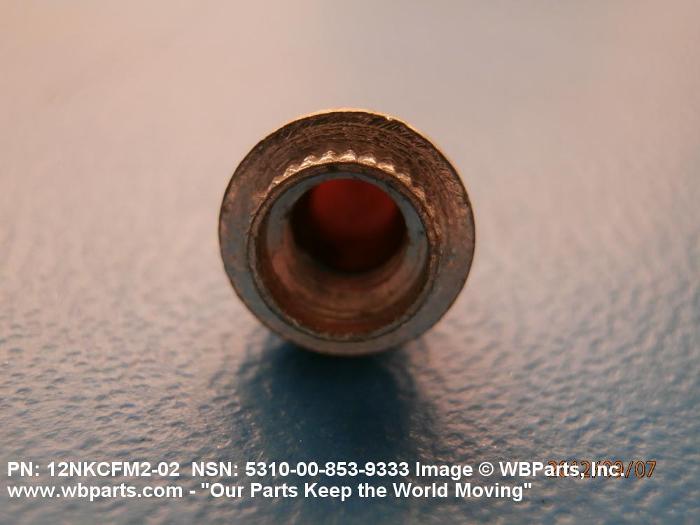

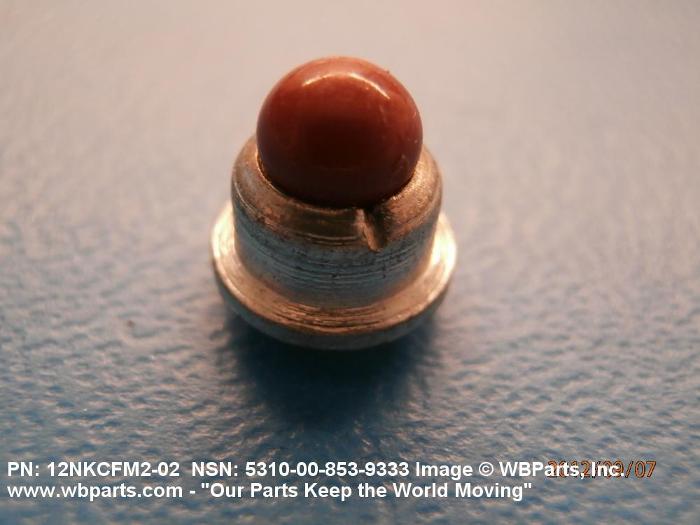

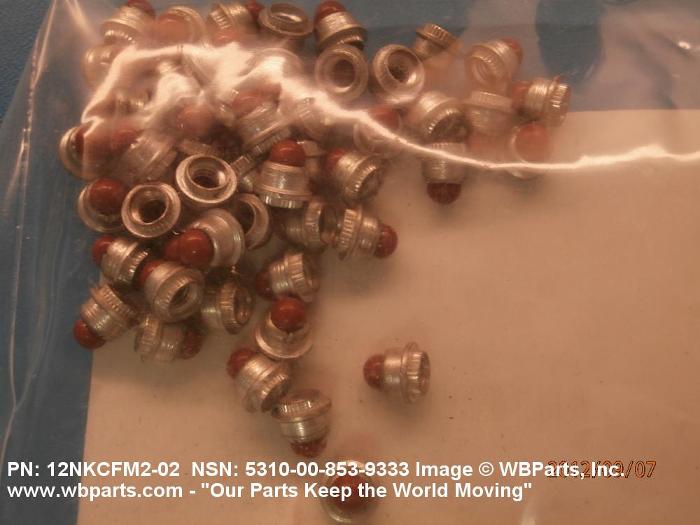

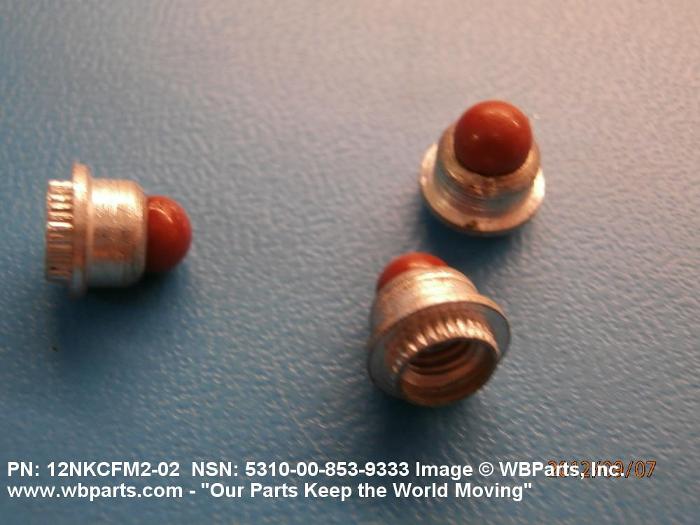

5310-00-853-9333 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.

Part Alternates: 12NKCFM202, 12NKCFM2-02, 5310-00-853-9333, 00-853-9333, 5310008539333, 008539333

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 18 JAN 1967 00-853-9333

Drawings & Photos | NSN 5310-00-853-9333


Demand History | NSN 5310-00-853-9333

Part Number Request Date QTY Origin
5310-00-853-9333 2012-08-244 50 United States
5310-00-853-9333 2012-01-25 40 US

Cross Reference | NSN 5310-00-853-9333

Part Number Cage Code Manufacturer
12NKCFM2-02 019L2 MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
12NKCFM2-02 72962 HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-853-9333

Technical Data | NSN 5310-00-853-9333

Characteristic Specifications
THREAD SERIES UNF
NOMINAL THREAD SIZE 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL PLASTIC POLYHEXAMETHYLENE AMIDE OR PLASTIC POLYCAPROLACTAM CAP PLASTIC POLYHEXAMETHYLENE AMIDE OR PLASTIC POLYCAPROLACTAM LOCKING INSERT STEEL COMP 4130 NUT
MATERIAL DOCUMENT AND CLASSIFICATION MIL-M-20693 MIL SPEC ALL MATERIAL RESPONSES CAP MIL-M-20693 MIL SPEC ALL MATERIAL RESPONSES LOCKING INSERT 66 FED STD SINGLE MATERIAL RESPONSE NUT
SURFACE TREATMENT CADMIUM NUT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE NUT
HARDNESS RATING NOT RATED

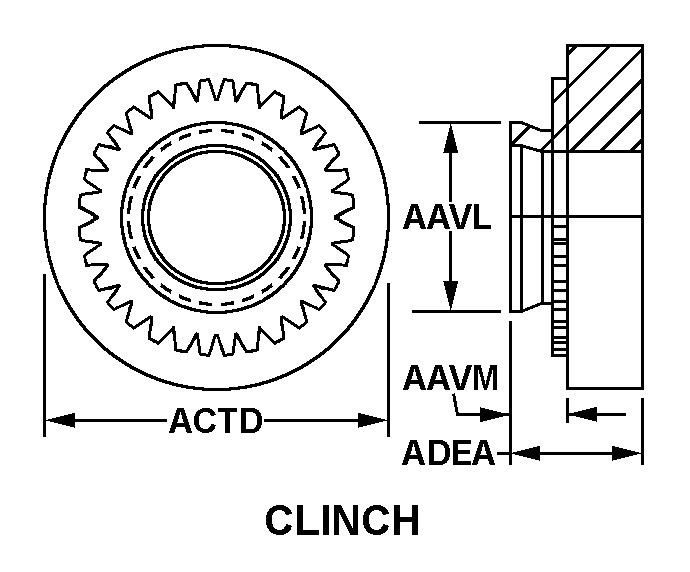

NUT STYLE A57 CLINCH
PILOT DIAMETER 0.252 INCHES MINIMUM AND 0.256 INCHES MAXIMUM
PILOT LENGTH 0.057 INCHES MINIMUM AND 0.063 INCHES MAXIMUM
NUT DIAMETER 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
NUT HEIGHT 0.347 INCHES MINIMUM AND 0.353 INCHES MAXIMUM
LOCKING FEATURE PREVAILING TORQUE WITH NONMETALLIC INSERT
NUT COUNTERBORE DEPTH 0.060 INCHES NOMINAL NUT
COUNTERBORE DIAMETER 0.210 INCHES MINIMUM AND 0.215 INCHES MAXIMUM NUT
TEMP RATING 350.0 DEG FAHRENHEIT NOMINAL
MANUFACTURERS CODE 72962
DESIGN CONTROL REFERENCE 12NKCFM2-02
