NSN 5310-01-367-4719 2663254PIECE13, 2663254-PIECE-13, 4961512X8IT13
Product Details | SLEEVE NUT

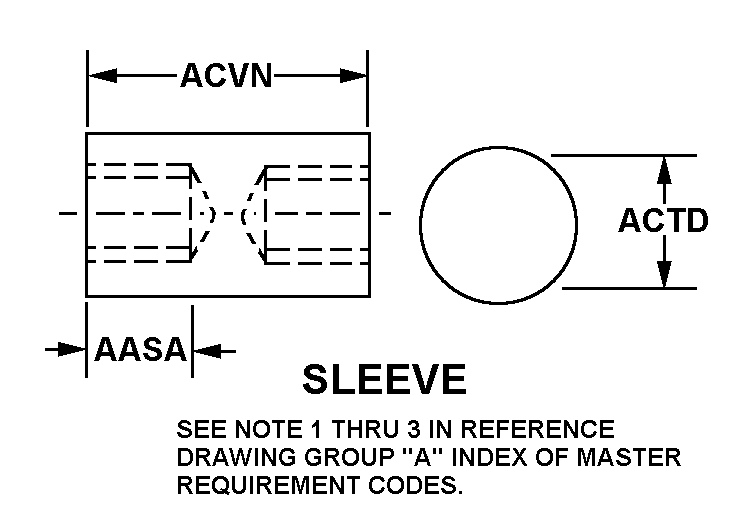

5310-01-367-4719 An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY.
Part Alternates: 2663254PIECE13, 2663254-PIECE-13, 4961512X8IT13, 49615-12X8-IT-13, 5310-01-367-4719, 01-367-4719, 5310013674719, 013674719
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 13 NOV 1992 | 01-367-4719 | 29735 ( NUT, SLEEVE ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5310-01-367-4719
Technical Data | NSN 5310-01-367-4719
Characteristic | Specifications |
---|---|
THREAD SERIES | UNC |
NOMINAL THREAD SIZE | 0.500 INCHES |
THREAD QUANTITY PER INCH | 13 |
THREAD CLASS | 2B |
THREAD DIRECTION | RIGHT-HAND |
MATERIAL | STEEL OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-20166 TY 2 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
HARDNESS RATING | NOT RATED |
NUT STYLE | A26B SLEEVE |
THREAD LENGTH | 1.250 INCHES NOMINAL |
NUT DIAMETER | 1.250 INCHES NOMINAL |
NUT LENGTH | 1.250 INCHES NOMINAL |
HOLE CONFIGURATION STYLE | H7 CONFIGURATION G |
HOLE TYPE AND QUANTITY | 1 DRILLED |
DRILLED HOLE DIAMETER | 0.530 INCHES NOMINAL |
COUNTERSINK ANGLE | 90.0 DEGREES NOMINAL BOTH ENDS |
CROSS-SECTIONAL SHAPE | ROUND BOTH ENDS |
TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-367-4719
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 024850 | BOAT HATCH COVER |
Less than car load rating | ||
Less than truck load rating | R | 65.0 |
Water commodity Code | 576 | unknown |
Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-367-4719
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
