NSN 5310-01-323-2920 MS14183LC4, MS14183L-C4, 5D0009C4
Product Details | RECESSED WASHER
5310-01-323-2920 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: MS14183LC4, MS14183L-C4, 5D0009C4, 4D0009C4, 5310-01-323-2920, 01-323-2920, 5310013232920, 013232920
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JUL 1990 | 01-323-2920 | 15933 ( WASHER, RECESSED ) |

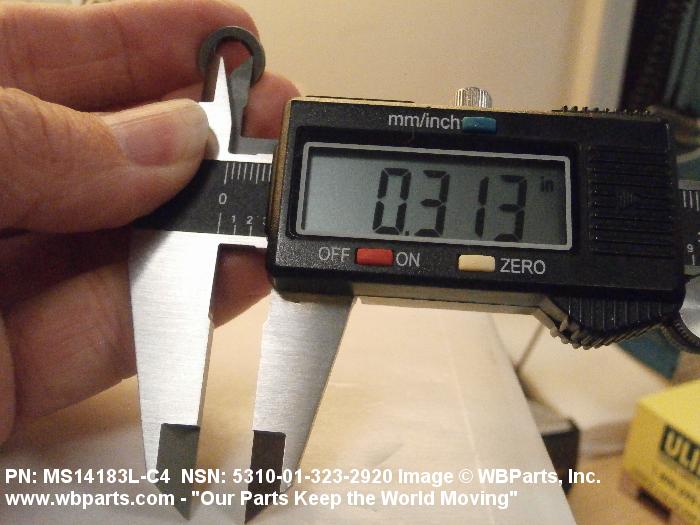

Drawings & Photos | NSN 5310-01-323-2920
Demand History | NSN 5310-01-323-2920
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS14183LC4 | 2024-02-32 | 2 | US |
| MS14183LC4 | 2022-09-244 | 100 | us |
| MS14183LC4 | 2022-07-193 | 18 | PL |
| 5310-01-323-2920 | 2022-04-111 | 3121 | DIBBS |
| 5310-01-323-2920 | 2021-09-252 | 3545 | DIBBS |
| MS14183LC4 | 2021-05-124 | 12 | US |
| MS14183LC4 | 2020-05-142 | 8 | United States |
| MS14183LC4 | 2020-01-03 | 36 | US |
| 5310-01-323-2920 | 2018-01-31 | 1731 | DIBBS |
| 5310-01-323-2920 | 2018-01-18 | 2930 | DIBBS |
| MS14183LC4 | 2015-06-169 | 32 | United States |
| 5310-01-323-2920 | 2015-03-83 | 6053 | DIBBS |
| MS14183LC4 | 2013-09-248 | 10 | United States |
| MS14183LC4 | 2013-08-233 | 10 | United States |
| MS14183LC4 | 2013-08-233 | 250 | United States |
| 5310-01-323-2920 | 2009-02-42 | 7607 | DIBBS |
| 5310-01-323-2920 | 2008-12-339 | 100 | US |
| MS14183LC4 | 2008-09-273 | 10 | India |
| 5310-01-323-2920 | 2008-07-190 | 709 | DIBBS |
| 5310-01-323-2920 | 2008-06-168 | 1888 | DIBBS |
Cross Reference | NSN 5310-01-323-2920
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4D0009C4 | 10630 | ANILLO INDUSTRIES, INC. DBA ANILLO INDUSTRIES |
| 4D0009C4 | 58009 | MOELLER MANUFACTURING & SUPPLY INC. |
| 4D0009C4 | 88277 | BOEING COMPANY, THE DBA BOEING |
| 5D0009C4 | 88277 | BOEING COMPANY, THE DBA BOEING |
| MS14183L-C4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS14183L-C4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-323-2920
Related Products | NSN 5310-01-323-2920
Technical Data | NSN 5310-01-323-2920
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5596 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5597 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5662 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 15 RECESS |
| HOLE DIAMETER | 0.251 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.460 INCHES MINIMUM AND 0.470 INCHES MAXIMUM |
| RECESS DIAMETER | 0.310 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.057 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| RECESS ANGLE | 90.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14183L-C4 |
Restrictions/Controls & Freight Information | NSN 5310-01-323-2920
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139820 | NICKEL BOLTS/NAILS/NUTS/RIVETS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-323-2920
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
