NSN 5310-01-317-7224 SLN40406M30X1.5C-V-RH, SLN40406M30X15CVRH, 01-317-7224
Product Details | ROUND SELF-LOCKING NUT
5310-01-317-7224 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protusions, slots or splines in or on the periphery or in the face opposite the bearing surface. An integral feature is incorporated for locking on the threads of a mating member. Do not use if a more specific item name applies. Excludes COLLAR, PIN-RIVET, THREADED; INSERT, SCREW THREAD; NUT (1), SLEEVE; NUT(1), PLAIN, CAP; and TURNBUCKLE BODY.
Part Alternates: SLN40406M30X1.5C-V-RH, SLN40406M30X15CVRH, 5310-01-317-7224, 01-317-7224, 5310013177224, 013177224
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 APR 1990 | 01-317-7224 | 15895 ( NUT, SELF-LOCKING, ROUND ) |

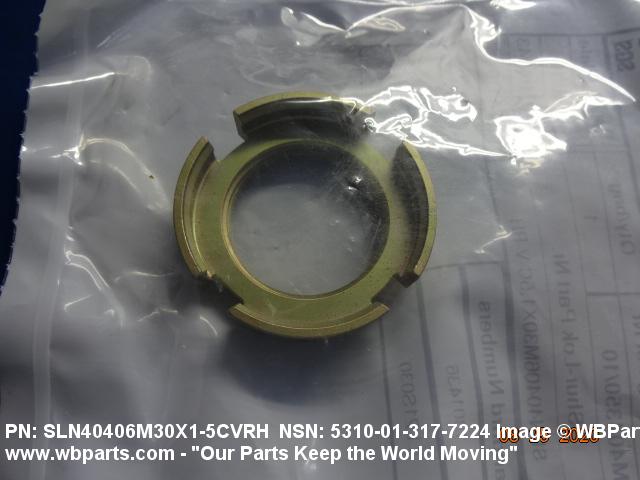

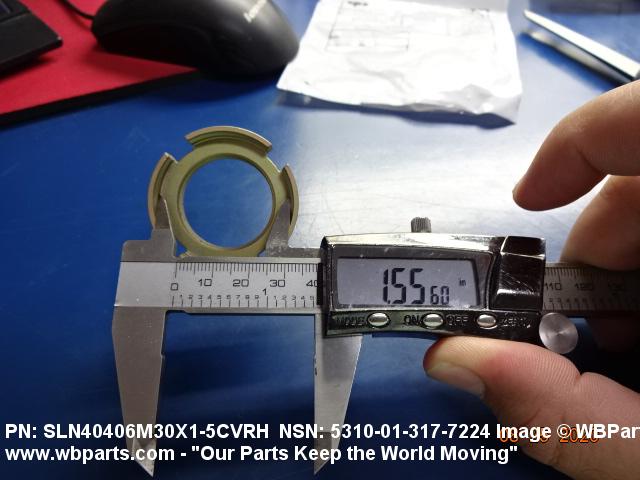

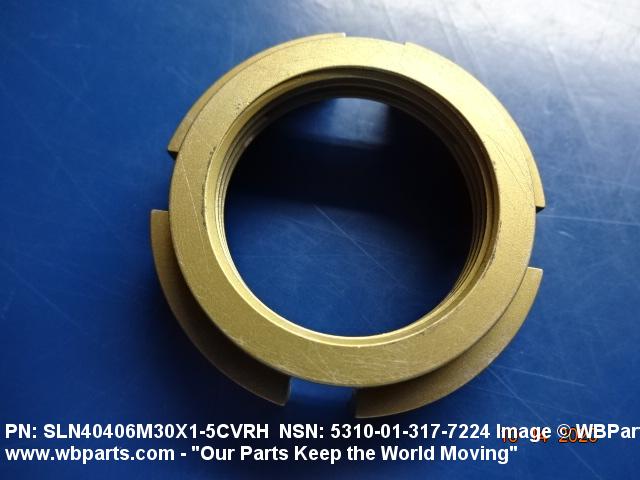

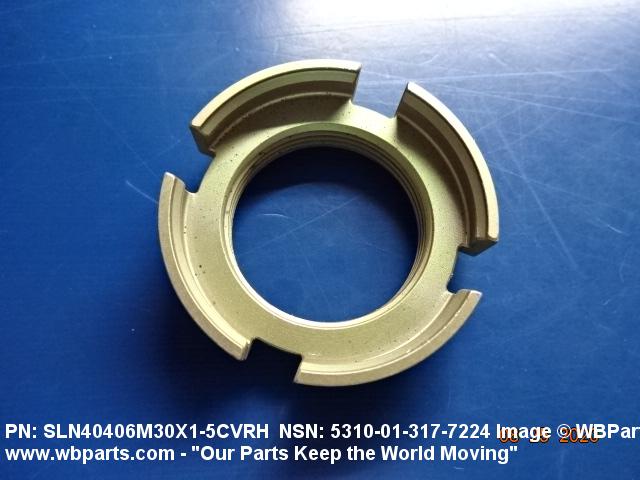

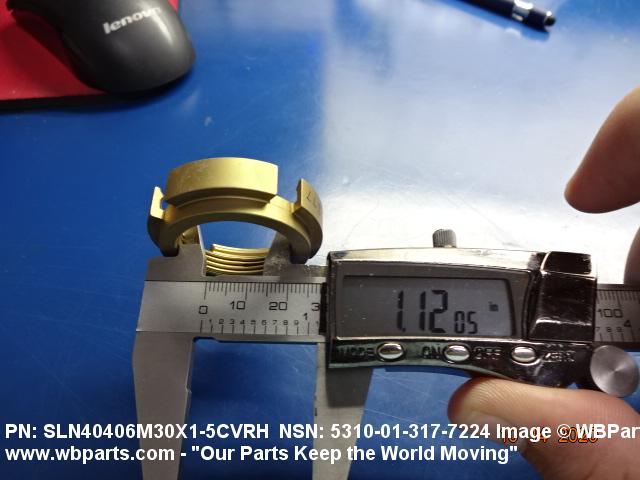

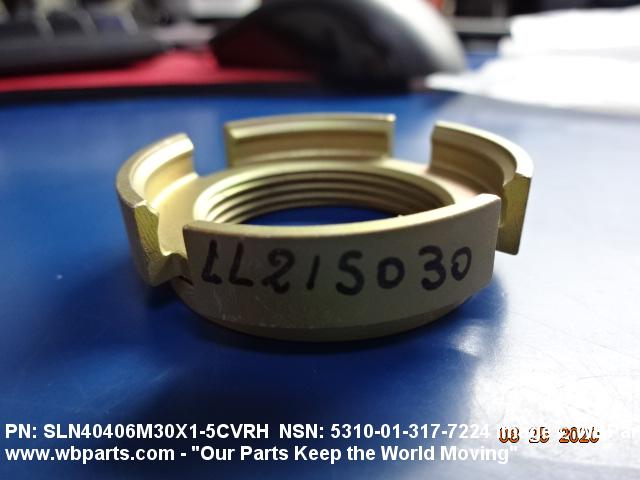

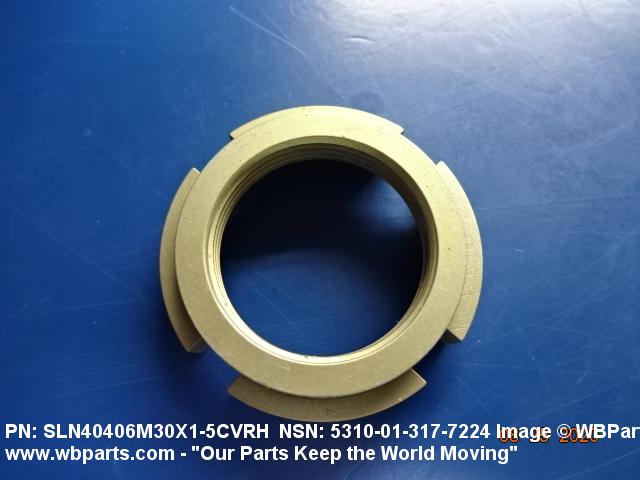

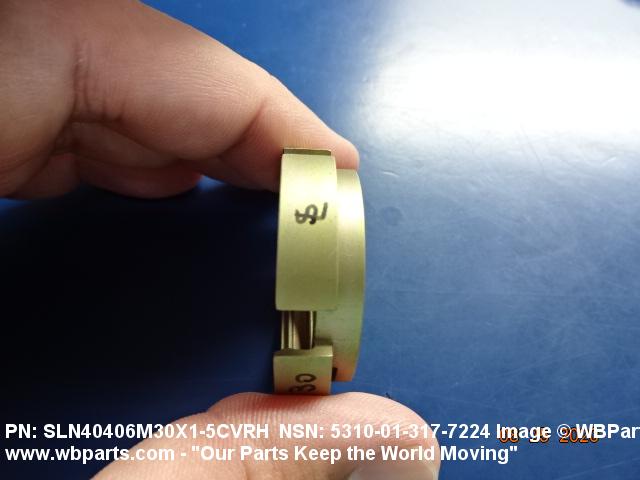

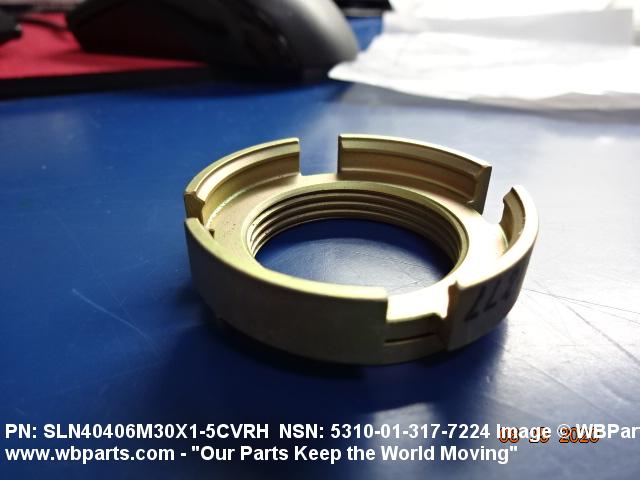

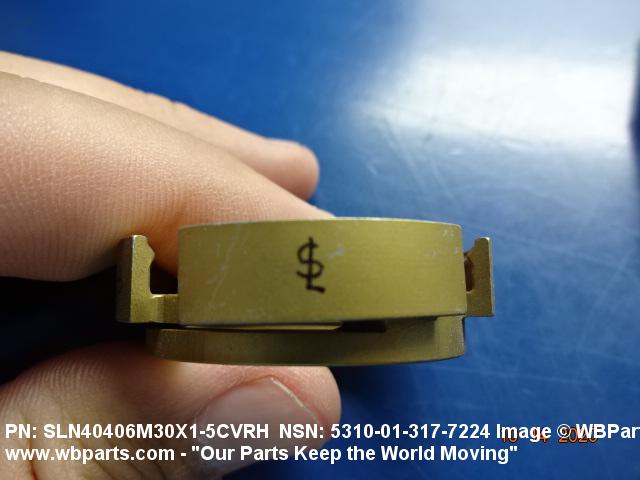

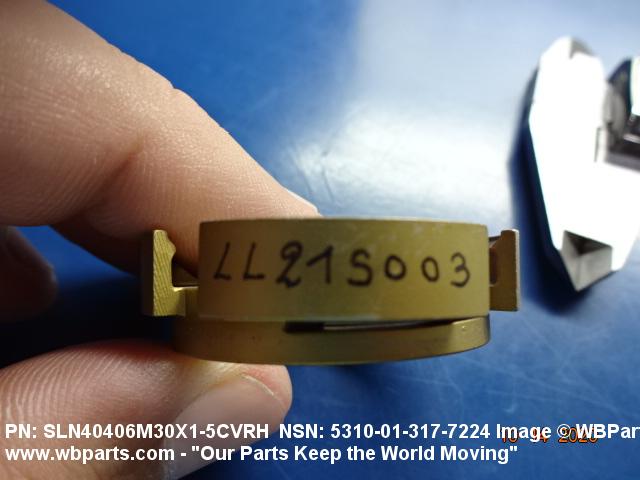

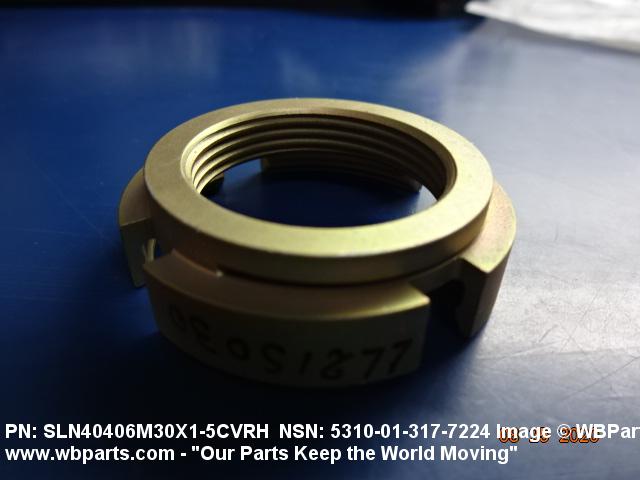

Drawings & Photos | NSN 5310-01-317-7224
Demand History | NSN 5310-01-317-7224
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-317-7224 | 2020-09-254 | 50 | Hong Kong |
| SLN40406M30X15CVRH | 2020-07-198 | 50 | Hong Kong |
Cross Reference | NSN 5310-01-317-7224
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SLN40406M30X1.5C-V-RH | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-317-7224
Technical Data | NSN 5310-01-317-7224
| Characteristic | Specifications |
|---|---|
| NOMINAL THREAD SIZE | 30.0 MILLIMETERS |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| NUT STYLE | A76 ROUND |

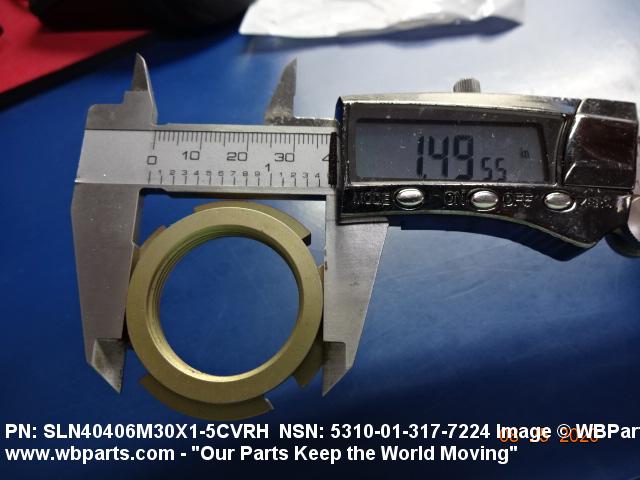

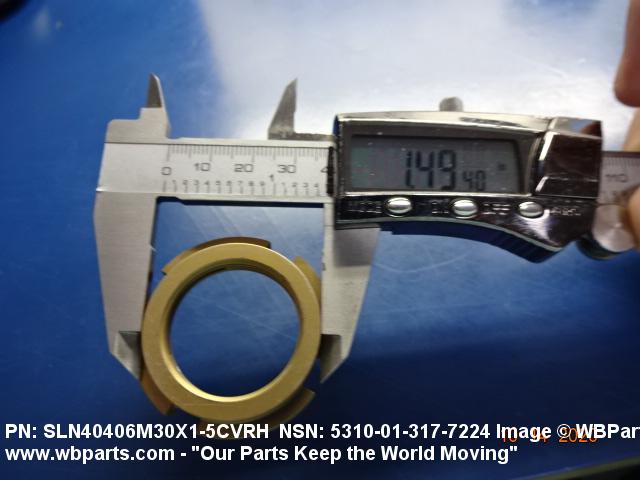

| SMALL END DIAMETER | 1.493 INCHES NOMINAL |
| DRIVE POINT DEPTH | 0.125 INCHES NOMINAL |

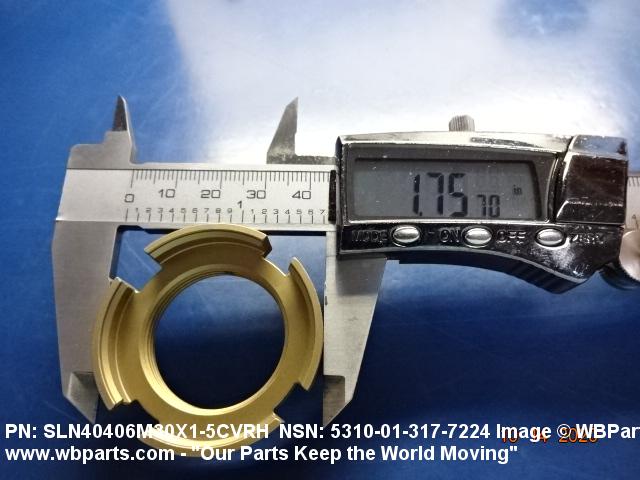

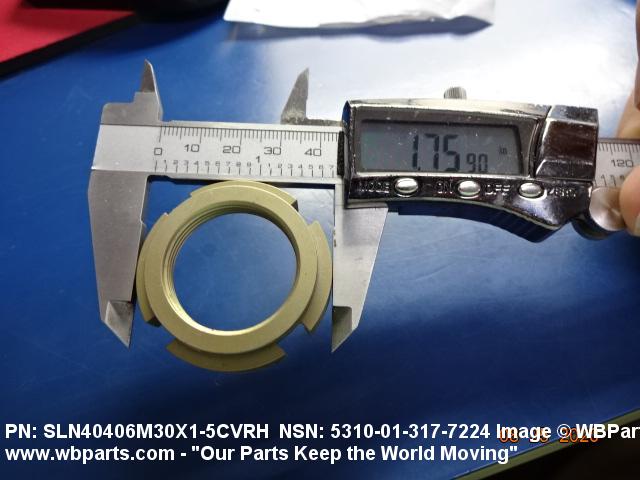

| NUT DIAMETER | 1.756 INCHES NOMINAL |

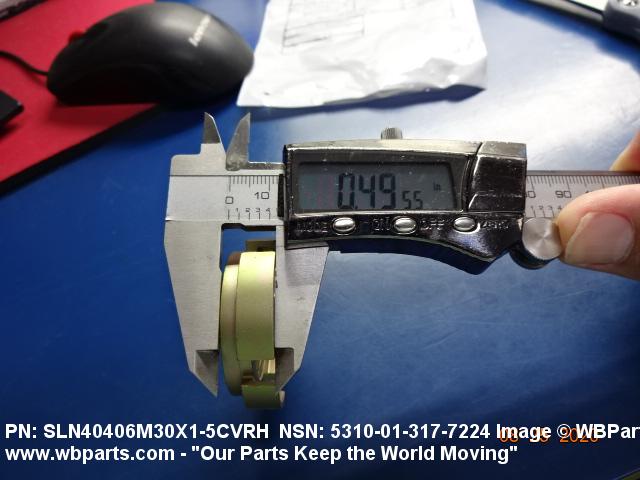

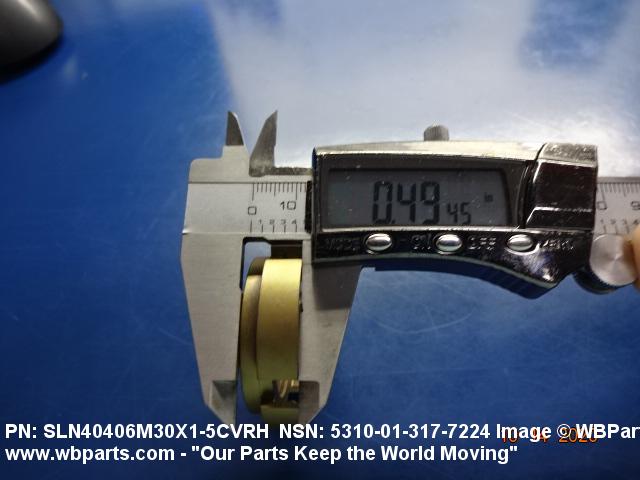

| NUT THICKNESS | 0.494 INCHES NOMINAL |

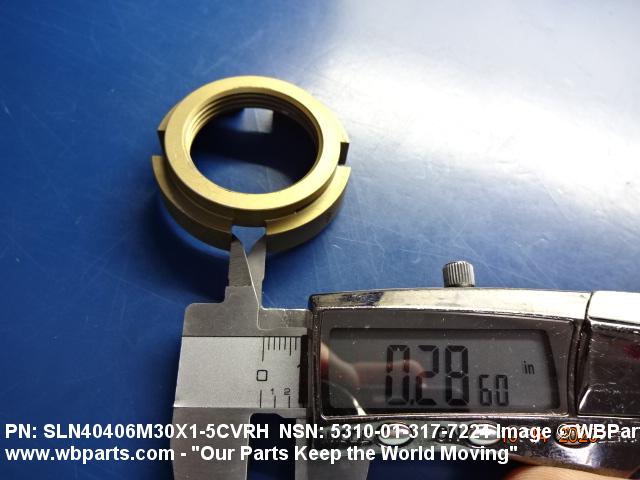

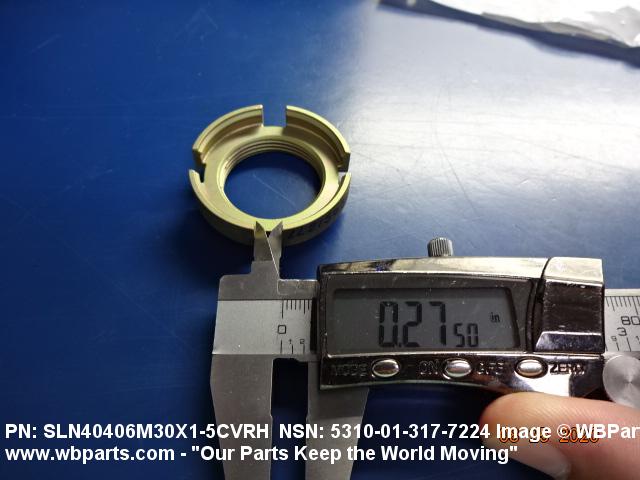

| DRIVE POINT WIDTH | 0.280 INCHES NOMINAL |
| UNDERCUT THICKNESS | 0.168 INCHES NOMINAL |
| DRIVE POINT QUANTITY | 4 |
| SPECIAL FEATURES | 1.043 IN. LONG SLOT CUT THROUGH AROUND SMALL END DIAMETER INTO THREADS |
| MANUFACTURERS CODE | 97393 |
| DESIGN CONTROL REFERENCE | SLN40406M30X1.5C-V-RH |
Restrictions/Controls & Freight Information | NSN 5310-01-317-7224
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-317-7224
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
