Product Details | ROUND SELF-LOCKING NUT

5310-00-894-6594 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protusions, slots or splines in or on the periphery or in the face opposite the bearing surface. An integral feature is incorporated for locking on the threads of a mating member. Do not use if a more specific item name applies. Excludes COLLAR, PIN-RIVET, THREADED; INSERT, SCREW THREAD; NUT (1), SLEEVE; NUT(1), PLAIN, CAP; and TURNBUCKLE BODY.

Part Alternates: 1-030-118-02, 5310-00-894-6594, 00-894-6594, 5310008946594, 103011802, 008946594

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-894-6594

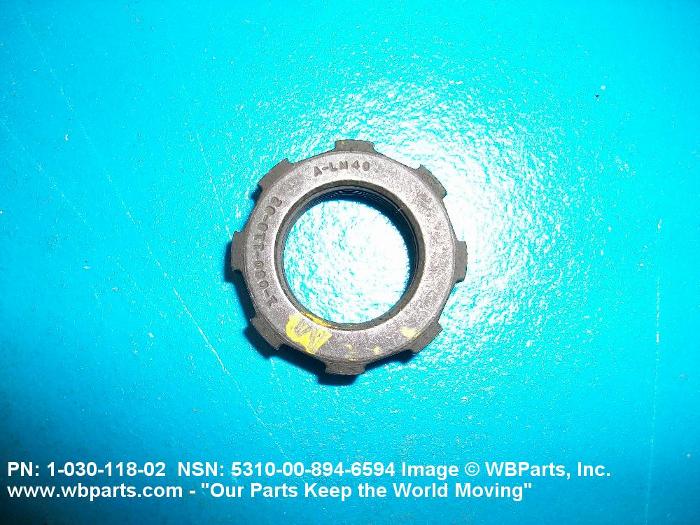

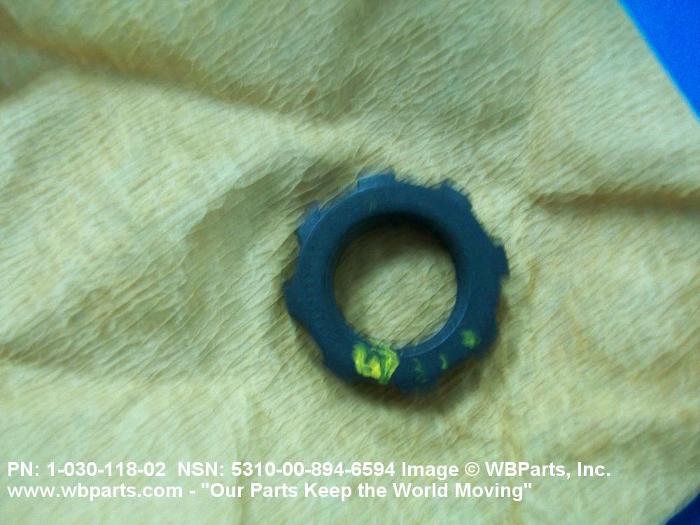

Drawings & Photos | NSN 5310-00-894-6594


Demand History | NSN 5310-00-894-6594

Part Number Request Date QTY Origin
103011802 2011-07-193 3 United States

Cross Reference | NSN 5310-00-894-6594

Part Number Cage Code Manufacturer
1-030-118-02 99193 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-894-6594

Technical Data | NSN 5310-00-894-6594

Characteristic Specifications
THREAD SERIES UNEF
NOMINAL THREAD SIZE 0.625 INCHES
THREAD QUANTITY PER INCH 24
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL COMP 4140 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS 6382 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM
NUT STYLE A71 ROUND
DRIVE POINT DEPTH 0.210 INCHES MINIMUM AND 0.230 INCHES MAXIMUM
NUT DIAMETER 1.020 INCHES MINIMUM AND 1.030 INCHES MAXIMUM
NUT THICKNESS 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
DRIVE POINT WIDTH 0.210 INCHES MINIMUM AND 0.230 INCHES MAXIMUM
WIDTH ACROSS FLATS 0.910 INCHES MINIMUM AND 0.930 INCHES MAXIMUM
DRIVE POINT QUANTITY 8
LOCKING FEATURE ANY ACCEPTABLE
COUNTERSINK ANGLE 88.0 DEGREES MINIMUM AND 92.0 DEGREES MAXIMUM NUT
TEMP RATING NOT RATED

Restrictions/Controls & Freight Information | NSN 5310-00-894-6594

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating U 50
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-00-894-6594

Category Code Description
Cognizance Codes9WNavy-owned stocks of material managed by the Army within the Army Troop Support and Aviation Materiel Readiness Command
Naval Inventory Control Point, Mechanicsburg
Source of SupplyB17US Army Aviation and Missile Command (Air)
ATTN: AMSMI-LC-MM-C
Redstone Arsenal, AL 35898-5230
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
A
EA : Each
