NSN 5310-00-894-8416 BACN10MK345, BACN10MK3-45, RM52LHA71402
Product Details | PLATE SELF-LOCKING NUT

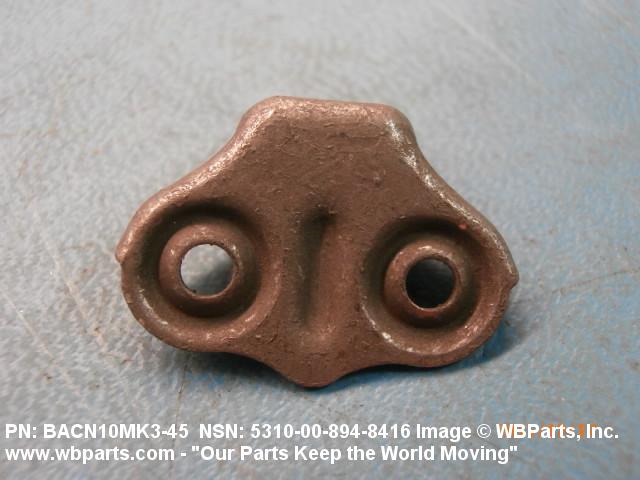

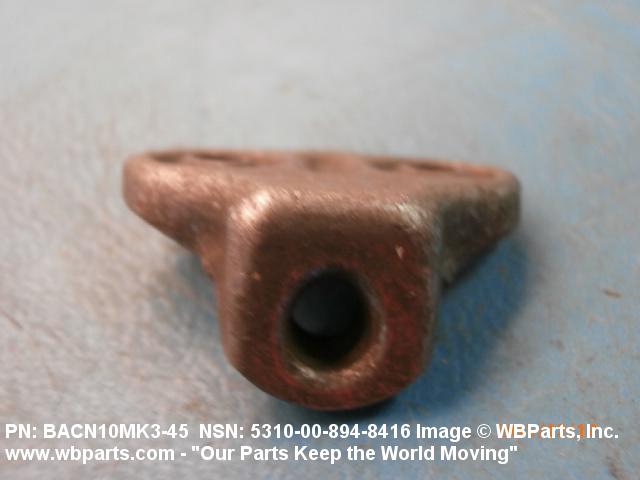

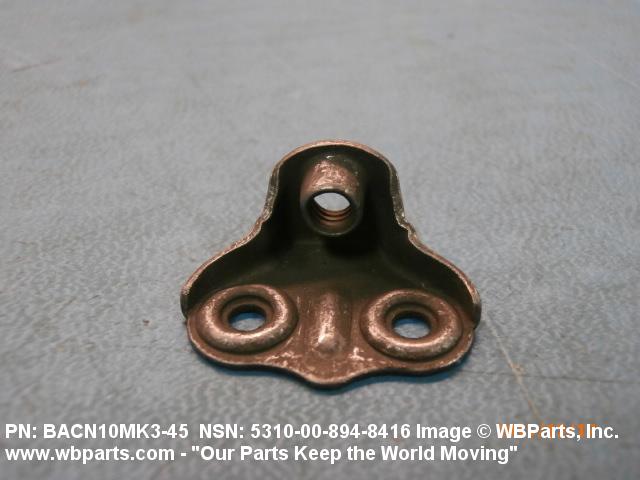

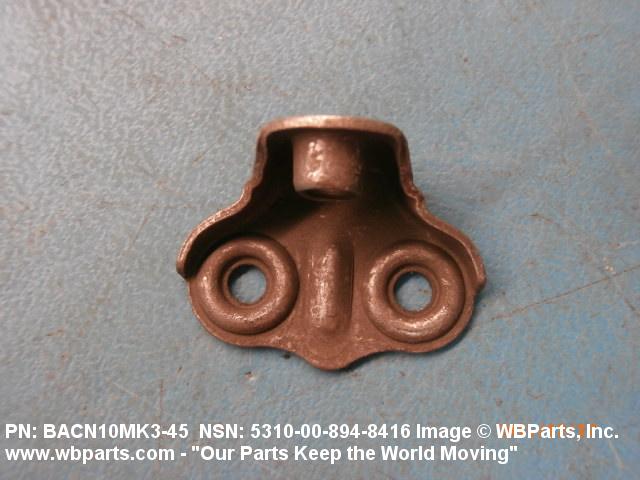

5310-00-894-8416 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10MK345, BACN10MK3-45, RM52LHA71402, RM52LHA71-4-02, T8059S1032B1, T8059S1032-B1, 05853901, 058539-01, 5310-00-894-8416, 00-894-8416, 5310008948416, 008948416
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-894-8416 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-00-894-8416
Demand History | NSN 5310-00-894-8416
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-894-8416 | 2024-08-215 | 80 | United States |
| 5310-00-894-8416 | 2024-04-102 | 200 | US |
| BACN10MK3-45 | 2022-12-348 | 1589 | DIBBS |
| BACN10MK3-45 | 2022-02-48 | 1450 | DIBBS |
| BACN10MK345 | 2021-01-12 | 38 | United States |
| BACN10MK345 | 2021-01-12 | 63 | United States |
| 5310-00-894-8416 | 2019-03-79 | 30 | US |
| BACN10MK345 | 2015-12-336 | 100 | United States |
| RM52LHA71402 | 2015-12-336 | 100 | United States |
| BACN10MK345 | 2011-02-46 | 50 | United States |
| RM52LHA71402 | 2011-02-46 | 50 | United States |
| 5310-00-894-8416 | 2011-01-20 | 100 | United States |
| RM52LHA71402 | 2010-03-76 | 100 | United States |
| 5310-00-894-8416 | 2009-10-281 | 70 | US |
| 5310-00-894-8416 | 2008-10-291 | 5000 | United Kingdom |
| T8059S1032B1 | 2008-10-282 | 82 | US |
| 5310-00-894-8416 | 2008-04-106 | 1084 | DIBBS |
| BACN10MK345 | 2008-03-65 | 100 | US |
| BACN10MK345 | 2006-09-258 | 20 | US |
Cross Reference | NSN 5310-00-894-8416
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 058539-01 | 89305 | SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED |
| BACN10MK3-45 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| BACN10MK3-45 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BACN10MK3-45 | 81205 | THE BOEING COMPANY DBA BOEING |
| RM52LHA71-4-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RM52LHA71-4-02 | 72962 | HARVARD INDUSTRIES INC |
| T8059S1032-B1 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-894-8416
Related Products | NSN 5310-00-894-8416
Technical Data | NSN 5310-00-894-8416
| Characteristic | Specifications |
|---|---|

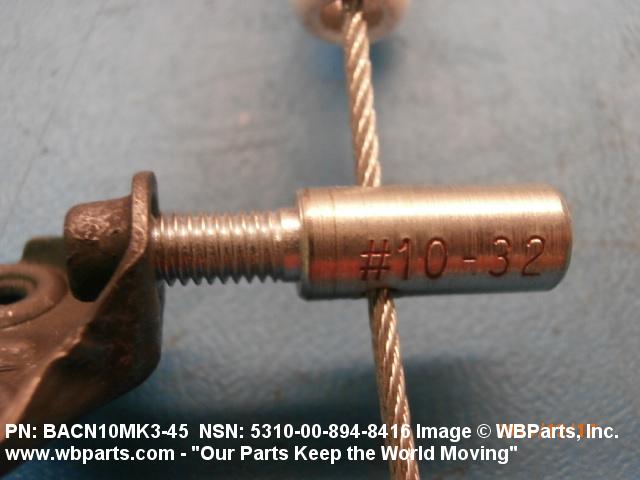

| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A122 PLATE |

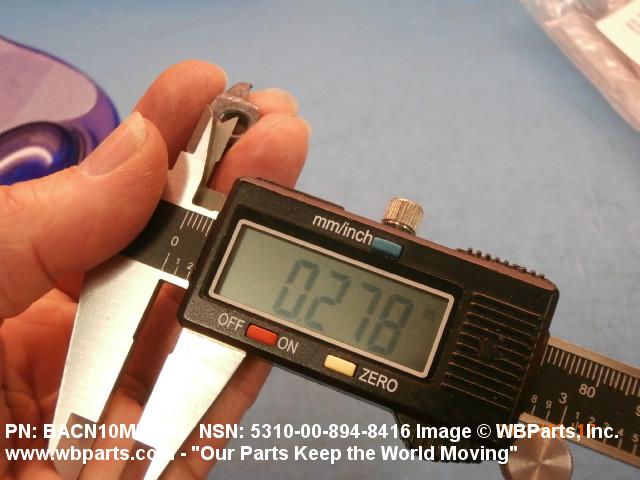

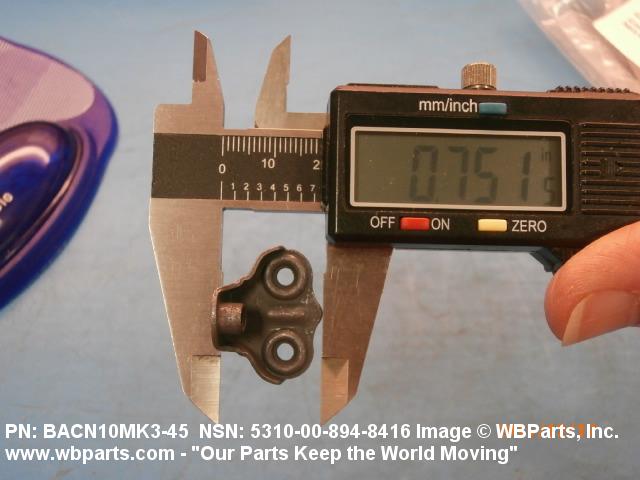

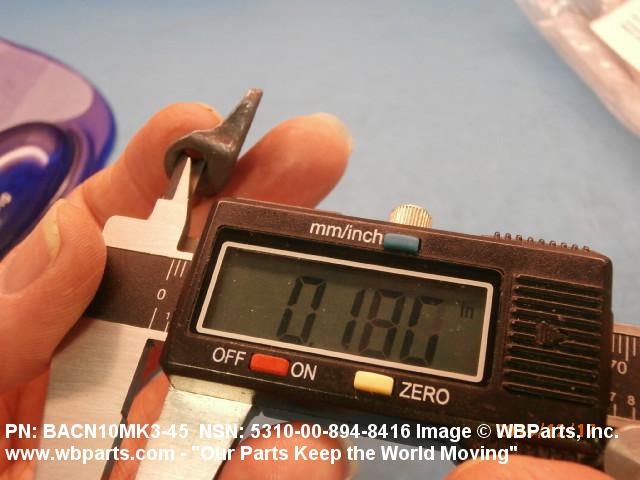

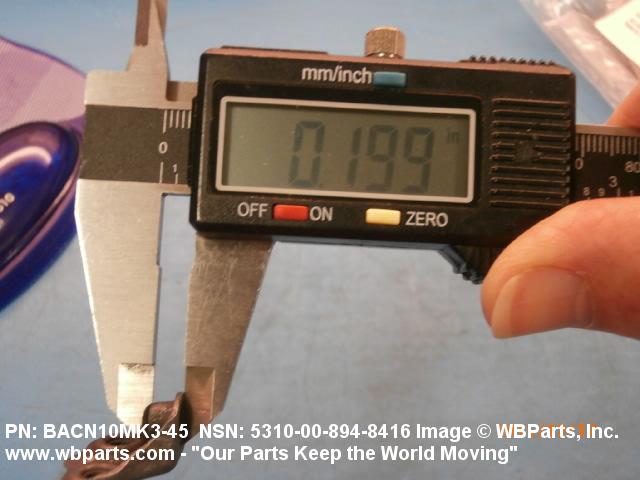

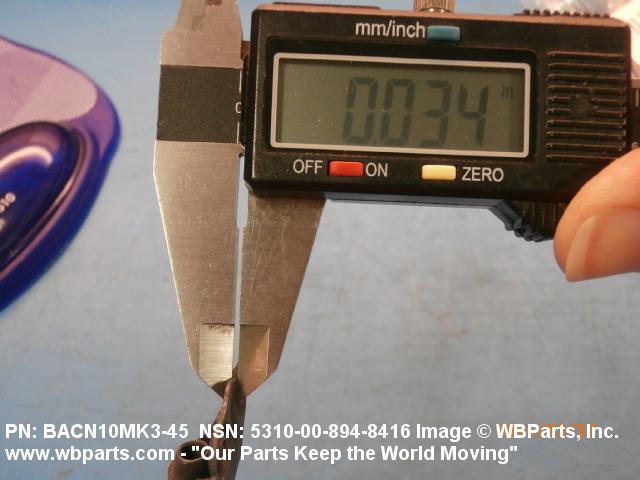

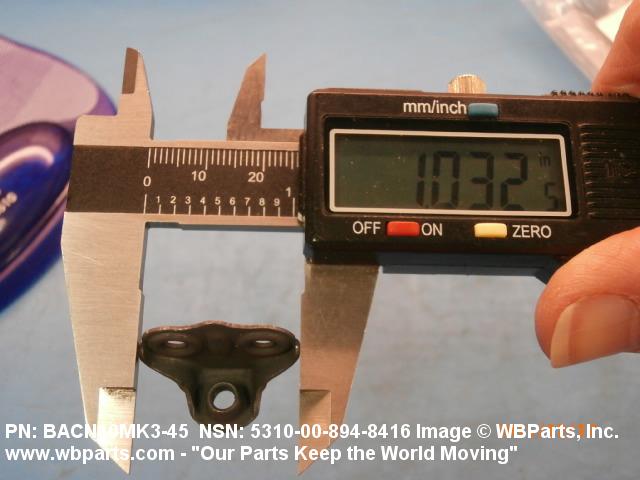

| NUT LENGTH | 0.730 INCHES NOMINAL |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.281 INCHES NOMINAL |
| NUT HEIGHT | 0.200 INCHES NOMINAL |
| PLATE THICKNESS | 0.032 INCHES MINIMUM AND 0.037 INCHES MAXIMUM |
| PLATE WIDTH | 1.038 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.062 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.194 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |

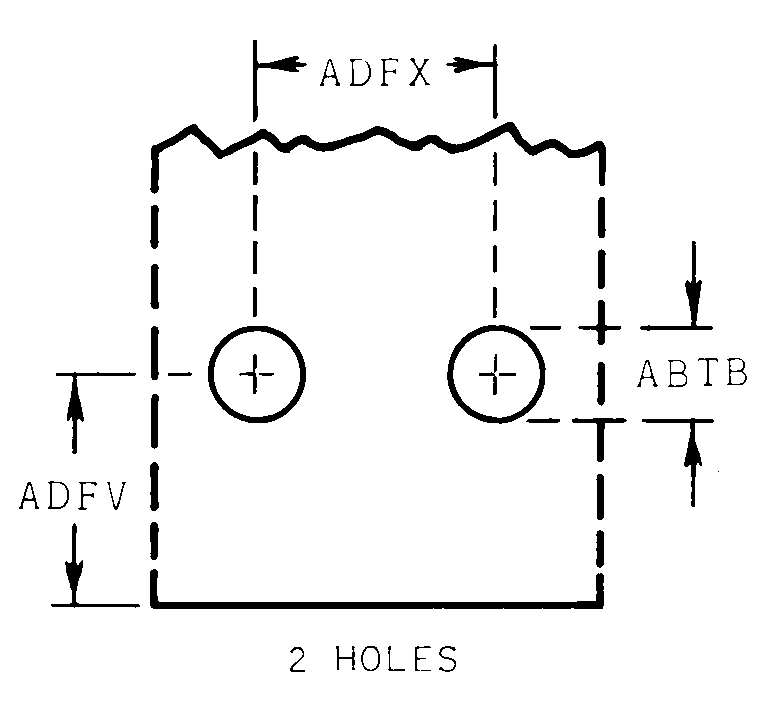

| MOUNTING HOLE ARRANGEMENT STYLE | F2 2 HOLES |

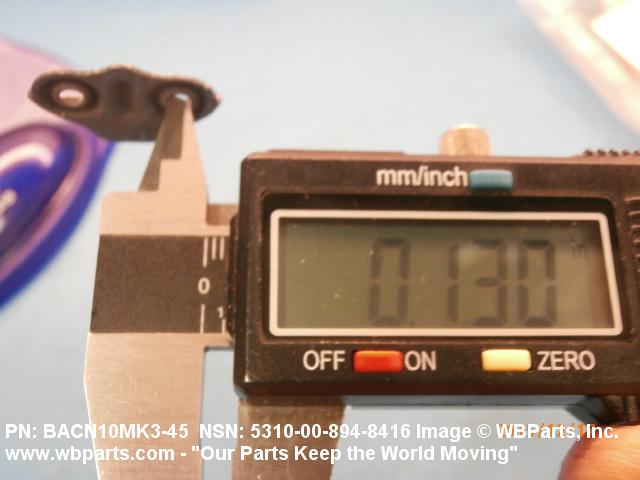

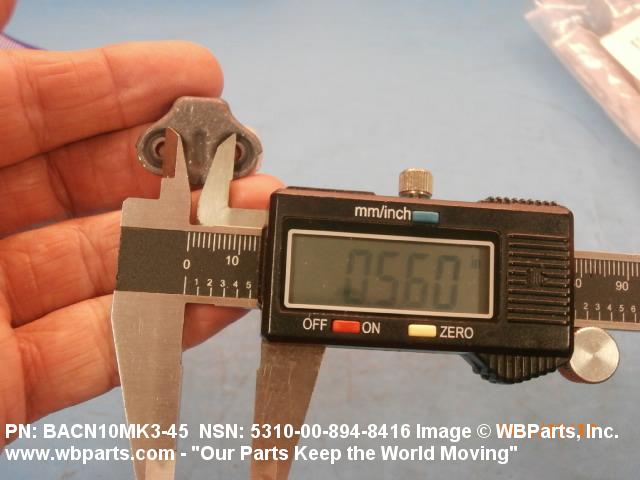

| MOUNTING HOLE DIAMETER | 0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO BASE | 0.450 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 0.560 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| SPECIAL FEATURES | PLATING TO MEET SALT SPRAY RQMTS OF TYPE 2; NO EMBRITTLEMENT TEST |
