NSN 5310-01-281-1182 13075534, 01-281-1182, 012811182
Product Details | SLEEVE NUT
5310-01-281-1182 An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY.
Part Alternates: 13075534, 5310-01-281-1182, 01-281-1182, 5310012811182, 012811182
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 JUN 1988 | 01-281-1182 | 29735 ( NUT, SLEEVE ) |

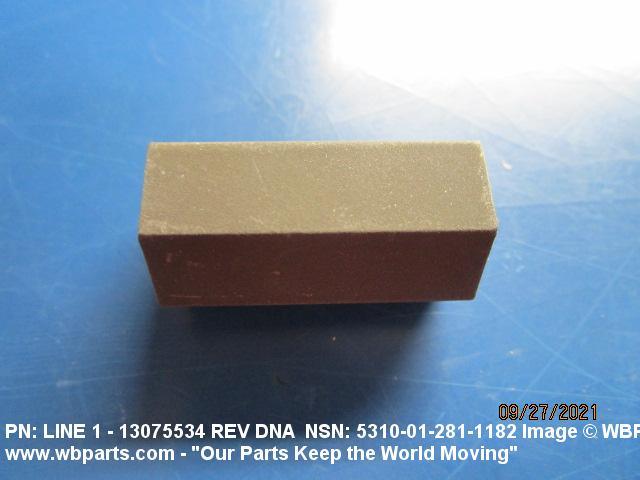

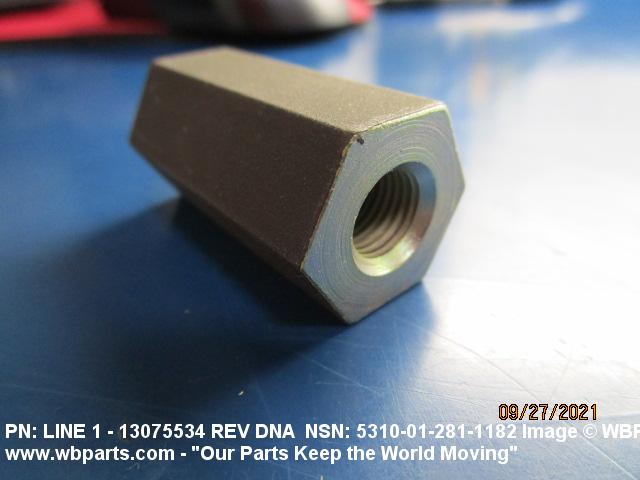

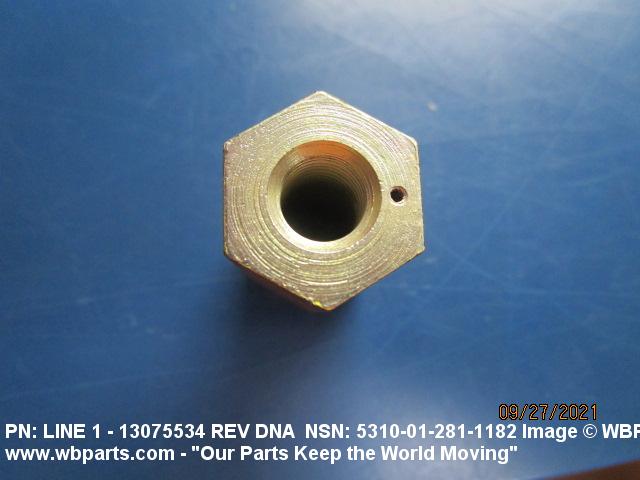

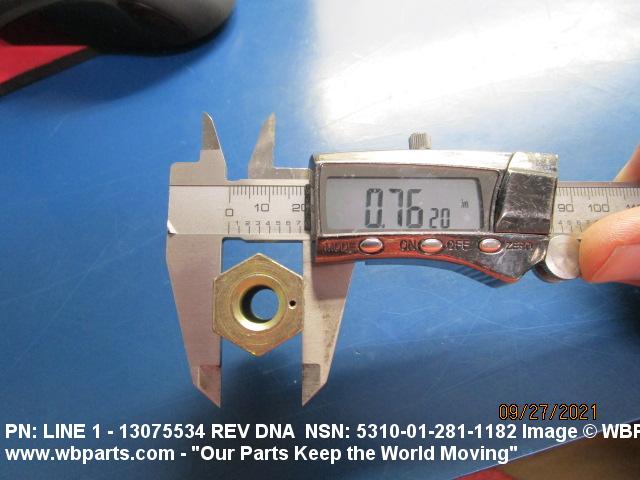

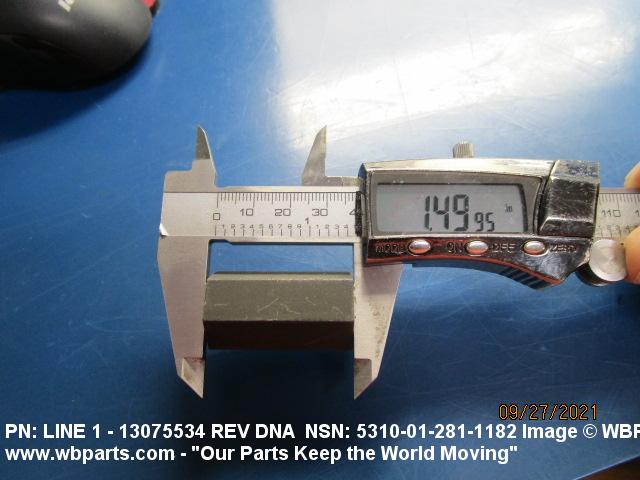

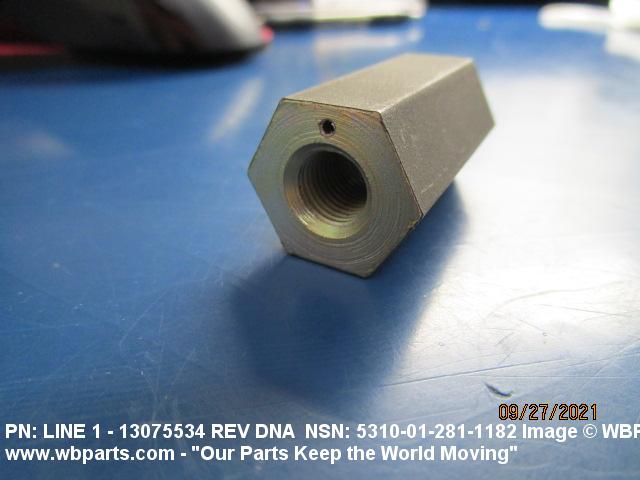

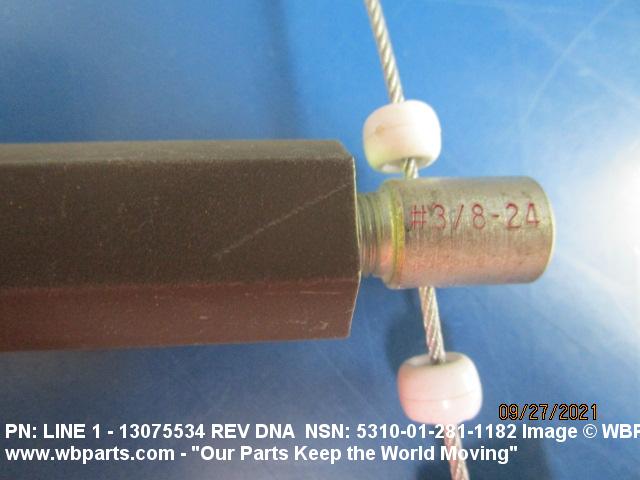

Drawings & Photos | NSN 5310-01-281-1182
Demand History | NSN 5310-01-281-1182
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-281-1182 | 2021-08-231 | 2 | United States |
| 13075534 | 2021-08-217 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-281-1182
Technical Data | NSN 5310-01-281-1182
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| CROSS-SECTIONAL SHAPE | HEXAGONAL OVERALL |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 04939 |
| DESIGN CONTROL REFERENCE | 13075534 |
Restrictions/Controls & Freight Information | NSN 5310-01-281-1182
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-281-1182
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | C | Other Aircraft Categories |
| Weapons Systems/End Item or Homogeneous Group | CD | Target Acquisition Designation Sight (TADS) and Pilot Night Vision Sensor |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
