NSN 5310-01-213-7630 BACN10YD1, 130120, 01-213-7630

Product Details | CLIP-ON NUT

5310-01-213-7630 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.

Part Alternates: BACN10YD1, 130120, 5310-01-213-7630, 01-213-7630, 5310012137630, 012137630

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	30 JUL 1985	01-213-7630	35871 ( NUT, CLIP-ON )

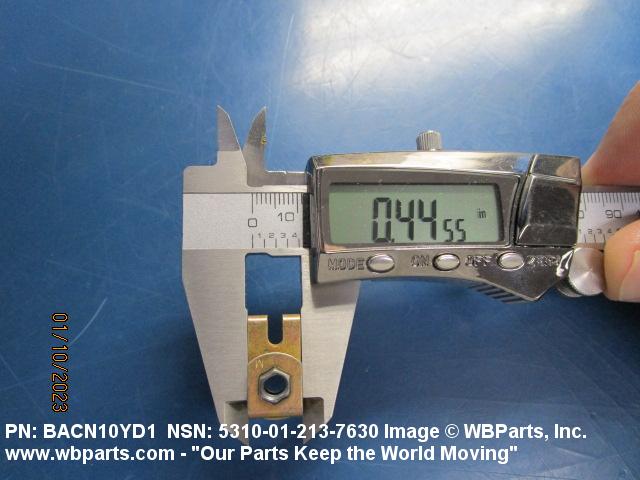

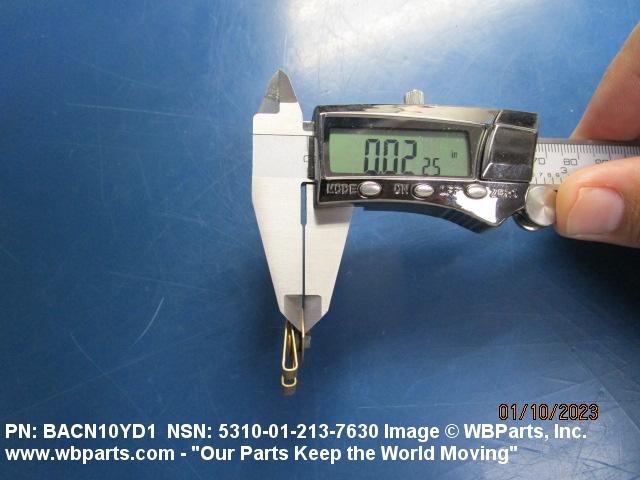

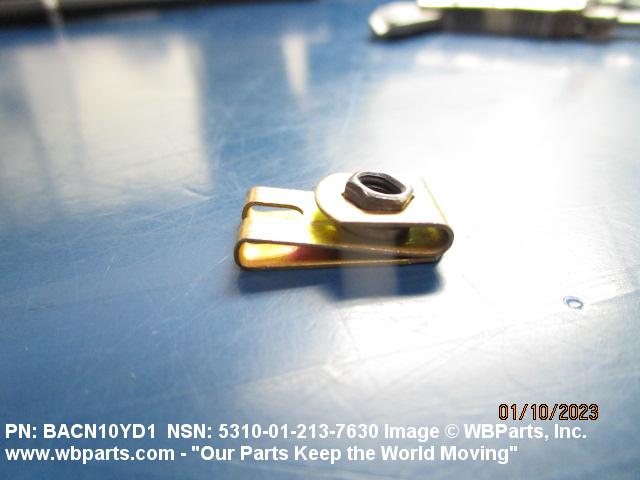

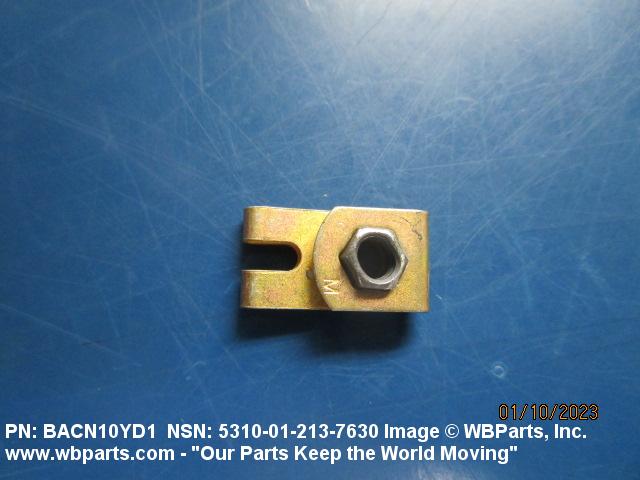

Drawings & Photos | NSN 5310-01-213-7630

Part Number	Request Date	QTY	Origin
BACN10YD1	2024-04-113	6	United States
BACN10YD1	2024-02-60	98	US
130120	2020-10-281	207	DIBBS
BACN10YD1	2020-10-281	207	DIBBS
130120	2020-06-166	277	DIBBS
BACN10YD1	2020-06-166	277	DIBBS
130120	2020-03-83	333	DIBBS
BACN10YD1	2020-03-83	333	DIBBS
130120	2019-09-266	483	DIBBS
BACN10YD1	2019-09-266	483	DIBBS
BACN10YD1	2014-11-330	25	United States
BACN10YD1	2014-11-330	100	United States
BACN10YD1	2014-11-330	500	United States
5310-01-213-7630	2013-08-240	296	DIBBS
5310-01-213-7630	2013-06-175	11144	DIBBS
5310-01-213-7630	2012-11-331	24	US
BACN10YD1	2008-09-247	400	us
5310-01-213-7630	2008-07-211	250	us

Cross Reference | NSN 5310-01-213-7630

Part Number	Cage Code	Manufacturer
130120	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
BACN10YD1	52828	REPUBLIC FASTENER MFG. CORP.
BACN10YD1	81205	THE BOEING COMPANY DBA BOEING
BACN10YD1	Z03F0	BOEING DEFENCE AUSTRALIA LTD
BACN10YD1	Z8T75	BOEING DEFENCE AUSTRALIA LTD

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-213-7630

Compare

Related Products | NSN 5310-01-213-7630

5310-01-213-7631, 5310-01-213-7637, 5310-01-213-7638, 5310-01-213-7929, 5310-01-213-8325

Technical Data | NSN 5310-01-213-7630

Characteristic	Specifications
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD SIZE	0.190 INCHES
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY2,CL1 FED SPEC SINGLE TREATMENT RESPONSE CLIP
MATERIAL	STEEL COMP 1050 CLIP
THREAD QUANTITY PER INCH	32
NUT STYLE	FLOATING
SURFACE TREATMENT	CADMIUM AND CHROMATE WASHER
MATERIAL	STEEL NUT
THREAD SERIES	UNF
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY2,CL2 FED SPEC SINGLE TREATMENT RESPONSE NUT
OVERALL WIDTH	0.427 INCHES MINIMUM AND 0.447 INCHES MAXIMUM
SURFACE TREATMENT	CADMIUM AND CHROMATE NUT
DISTANCE FROM BASE TO CENTER OF APERTURE	0.500 INCHES MINIMUM AND 0.530 INCHES MAXIMUM
MATERIAL	PLASTIC ACETAL LOCKING INSERT
LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
FEATURES PROVIDED	FLOATING NUT
PANEL THICKNESS	0.095 INCHES MINIMUM
THREAD CLASS	3B
HARDNESS RATING	46.0 ROCKWELL C MAXIMUM

Restrictions/Controls & Freight Information | NSN 5310-01-213-7630

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-213-7630

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
