NSN 5310-01-209-7251 NAS14933, NAS1493-3, 01-209-7251
Product Details | ROUND PLAIN NUT
5310-01-209-7251 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery or in the face opposite the bearing surface. For items having a thickness (or height) exceeding two times the outside diameter, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, KNURLED. (When height or thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: NAS14933, NAS1493-3, 5310-01-209-7251, 01-209-7251, 5310012097251, 012097251
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 04 JUN 1985 | 01-209-7251 | 15887 ( NUT, PLAIN, ROUND ) |
Demand History | NSN 5310-01-209-7251
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5310-01-209-7251 | 2024-12-358 | 30 | US |
5310-01-209-7251 | 2023-03-73 | 27 | DIBBS |
NAS14933 | 2012-07-206 | 25 | United States |
Cross Reference | NSN 5310-01-209-7251
Part Number | Cage Code | Manufacturer |
---|---|---|
NAS1493-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-209-7251
Related Products | NSN 5310-01-209-7251
Technical Data | NSN 5310-01-209-7251
Characteristic | Specifications |
---|---|
THREAD SERIES | UNS |
NOMINAL THREAD SIZE | 0.586 INCHES |
THREAD QUANTITY PER INCH | 32 |
THREAD CLASS | 3B |
THREAD DIRECTION | RIGHT-HAND |
MATERIAL | STEEL COMP 4130 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 3.0 ROCKWELL C MAXIMUM |

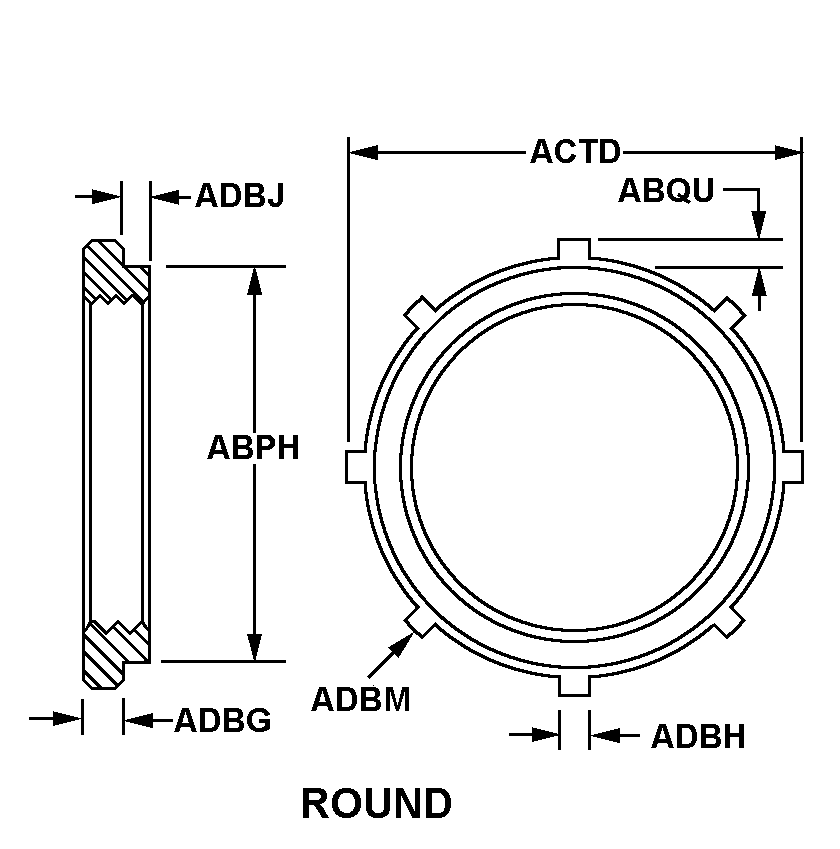

NUT STYLE | A81 ROUND |
SMALL END DIAMETER | 0.725 INCHES MINIMUM AND 0.730 INCHES MAXIMUM |
DRIVE POINT DEPTH | 0.050 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |
NUT DIAMETER | 0.812 INCHES MINIMUM AND 0.822 INCHES MAXIMUM |
NUT THICKNESS | 0.219 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
DRIVE POINT WIDTH | 0.125 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
UNDERCUT THICKNESS | 0.100 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
DRIVE POINT QUANTITY | 8 |
SPECIFICATION/STANDARD DATA | 80205-NAS1493 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-209-7251
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 573 | unknown |
Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-209-7251
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Price Validation | E | The current standard price is an estimated price.
|
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
