NSN 5310-00-164-1123 123149, 12314-9, 00-164-1123
Product Details | ROUND PLAIN NUT
5310-00-164-1123 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery or in the face opposite the bearing surface. For items having a thickness (or height) exceeding two times the outside diameter, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, KNURLED. (When height or thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: 123149, 12314-9, 5310-00-164-1123, 00-164-1123, 5310001641123, 001641123
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 FEB 1973 | 00-164-1123 | 15887 ( NUT, PLAIN, ROUND ) |

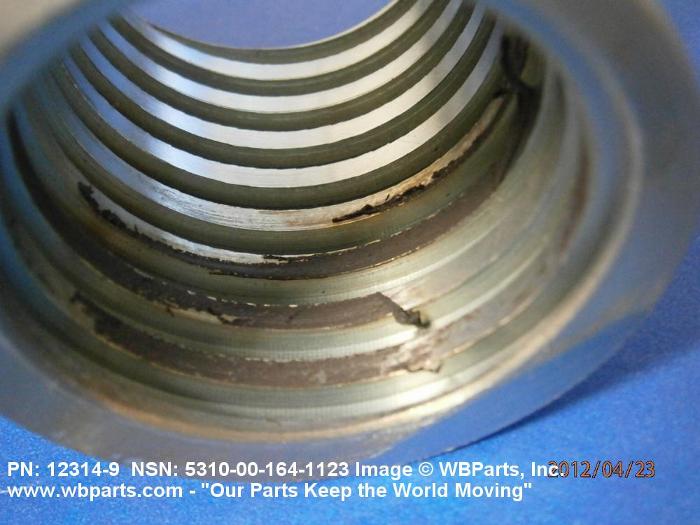

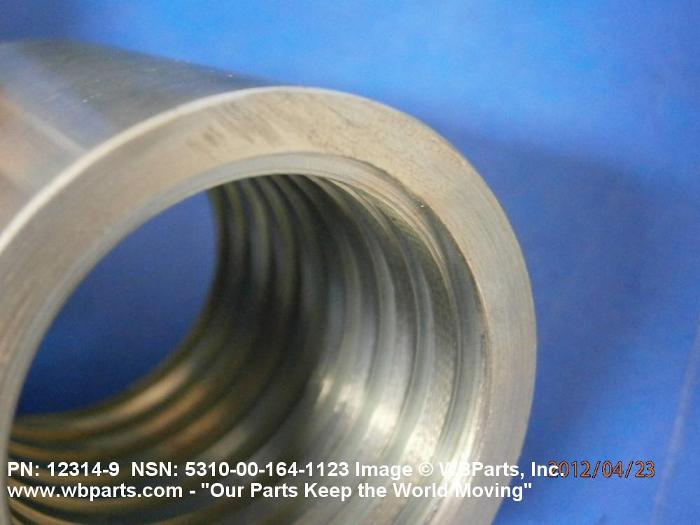

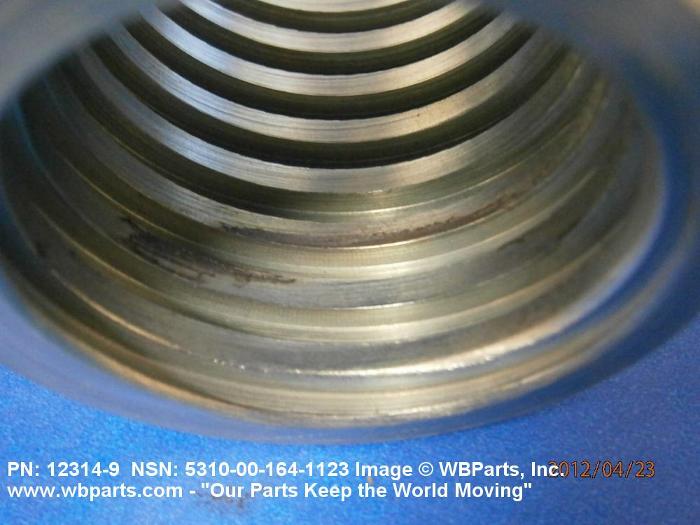

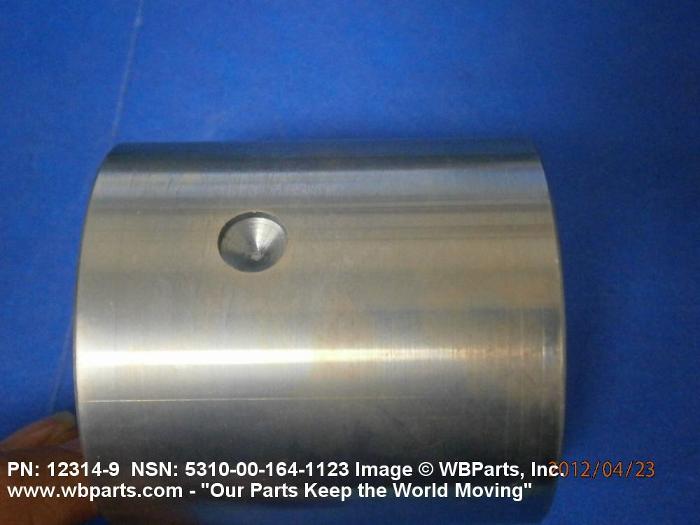

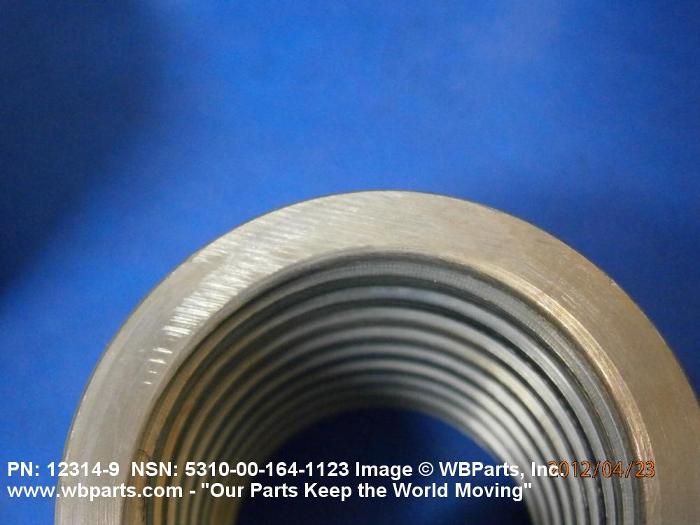

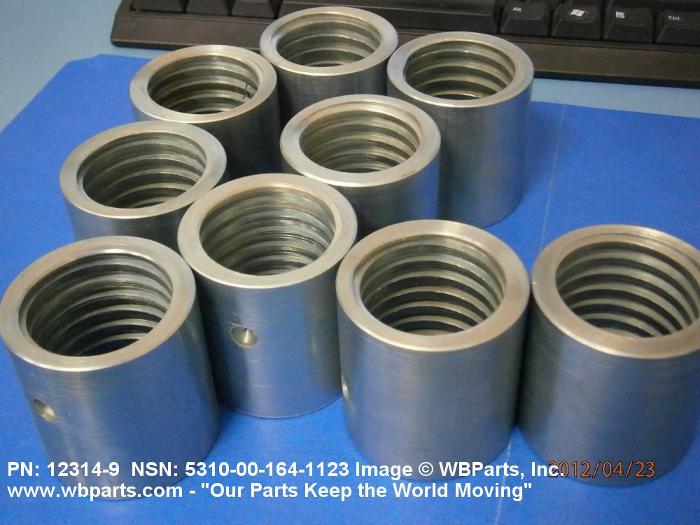

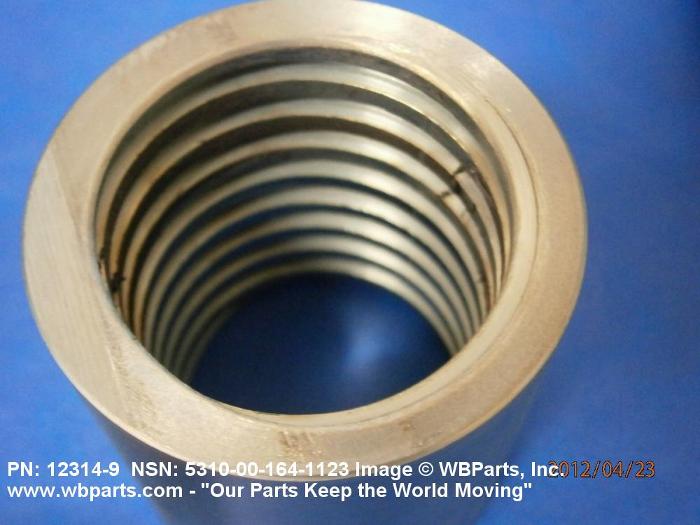

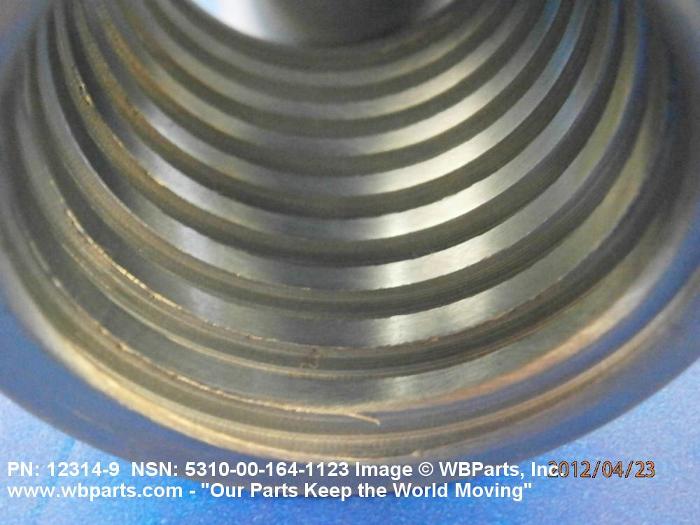

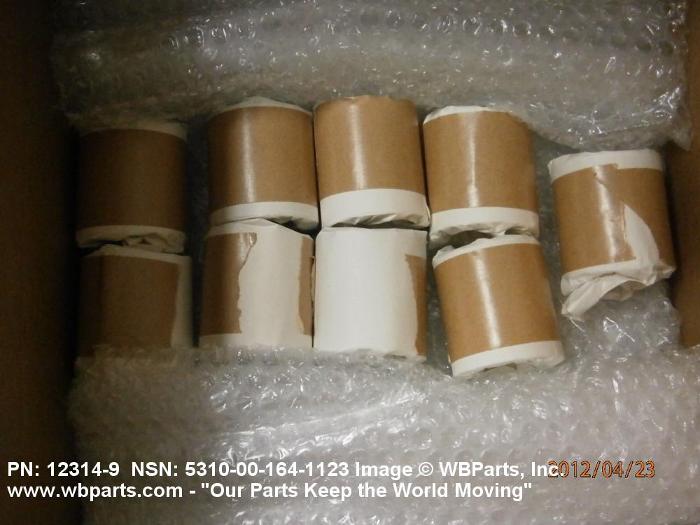

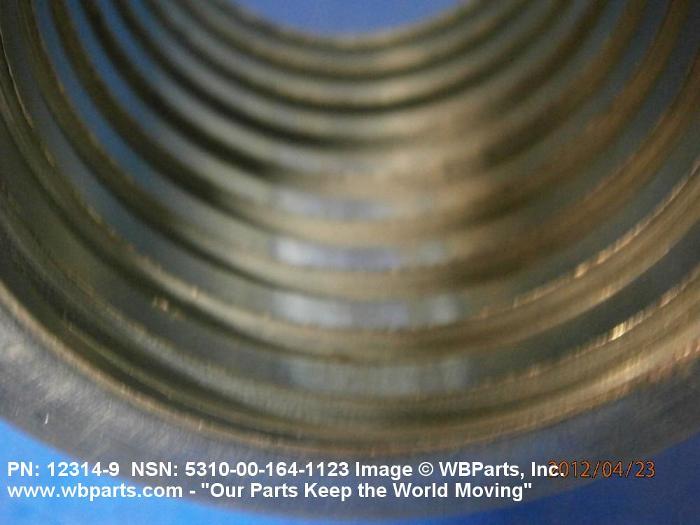

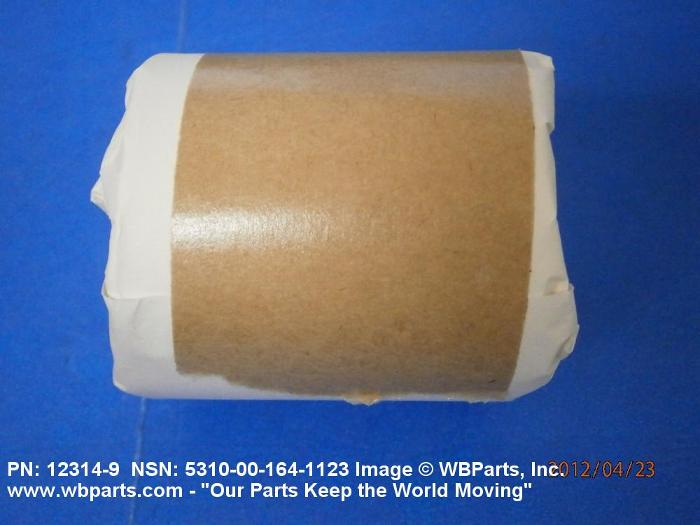

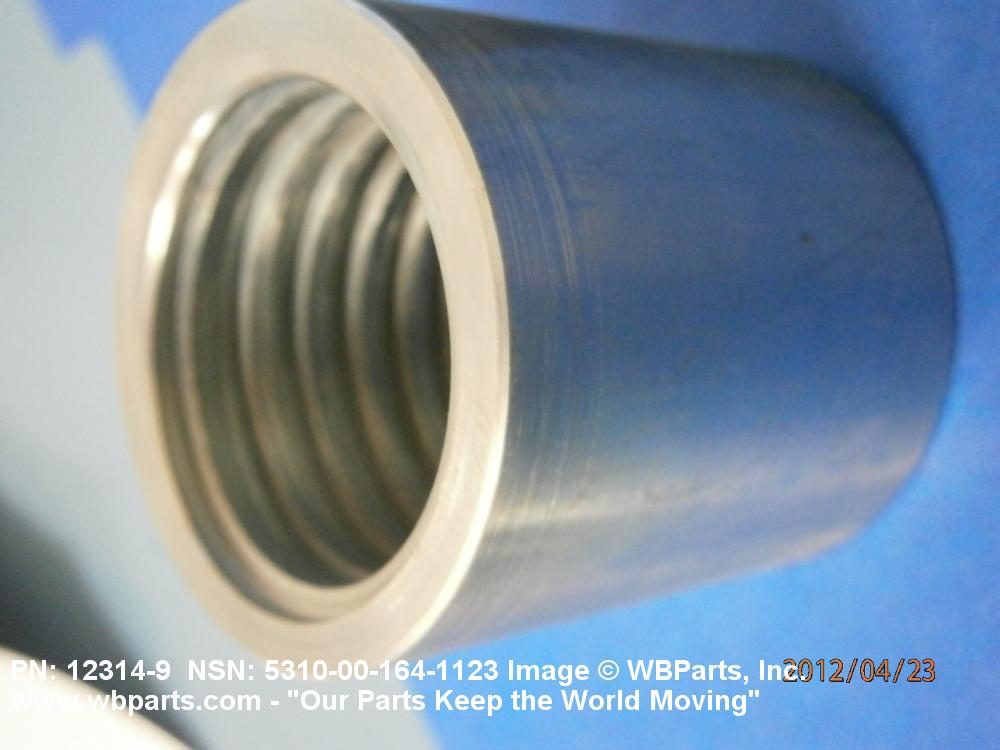

Drawings & Photos | NSN 5310-00-164-1123
Demand History | NSN 5310-00-164-1123
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 123149 | 2024-05-145 | 1 | US |
| 5310-00-164-1123 | 2024-02-46 | 48 | DIBBS |
| 5310-00-164-1123 | 2016-04-101 | 25 | DIBBS |
| 5310-00-164-1123 | 2016-03-63 | 25 | DIBBS |
| 5310-00-164-1123 | 2012-03-75 | 22 | DIBBS |
| 5310-00-164-1123 | 2012-02-45 | 0 | United States |
| 5310-00-164-1123 | 2012-01-13 | 9 | DIBBS |
| 5310-00-164-1123 | 2011-12-341 | 9 | DIBBS |
| 5310-00-164-1123 | 2011-09-256 | 16 | DIBBS |
| 5310-00-164-1123 | 2011-02-54 | 4 | DIBBS |
| 5310-00-164-1123 | 2009-08-215 | 3 | DIBBS |
| 5310-00-164-1123 | 2009-05-151 | 3 | DIBBS |
| 5310-00-164-1123 | 2008-12-352 | 3 | DIBBS |
Cross Reference | NSN 5310-00-164-1123
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12314-9 | 94861 | MALABAR DBA MALABAR INTERNATIONAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-164-1123
Related Products | NSN 5310-00-164-1123
Technical Data | NSN 5310-00-164-1123
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 1.750 INCHES |
| THREAD QUANTITY PER INCH | 4 |
| THREAD CLASS | 2G |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1018 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-Z-325,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A70 ROUND |
| DRIVE POINT DEPTH | 0.062 INCHES NOMINAL |
| NUT DIAMETER | 2.120 INCHES MINIMUM AND 2.122 INCHES MAXIMUM |
| NUT THICKNESS | 2.250 INCHES NOMINAL |
| DRIVE POINT DIAMETER | 0.312 INCHES NOMINAL |
| DRIVE POINT QUANTITY | 1 |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 94861 |
| DESIGN CONTROL REFERENCE | 12314-9 |
Restrictions/Controls & Freight Information | NSN 5310-00-164-1123
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-164-1123
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QS | TG:AIRCRAFT GROUND SERVICES EQUIPMENT |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
