NSN 5310-01-169-7242 BGC464N213, BGC464N2-13, C1704213
Product Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY
5310-01-169-7242 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Part Alternates: BGC464N213, BGC464N2-13, C1704213, C170-4-2-13, G18421JL2413, G18421JL2-4-13, G49439E4213, G49439E4-2-13, 10109984 , 3M464N13A442, 3M464N13A44-2 , 5310-01-169-7242, 01-169-7242, 5310011697242, 011697242
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JAN 1984 | 01-169-7242 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |

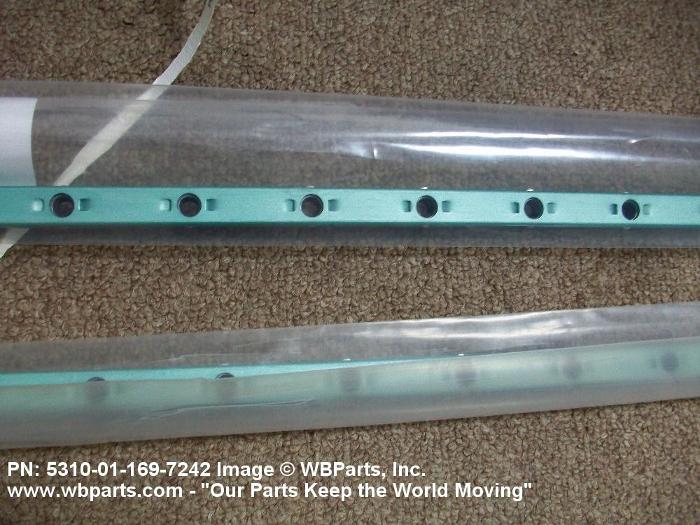

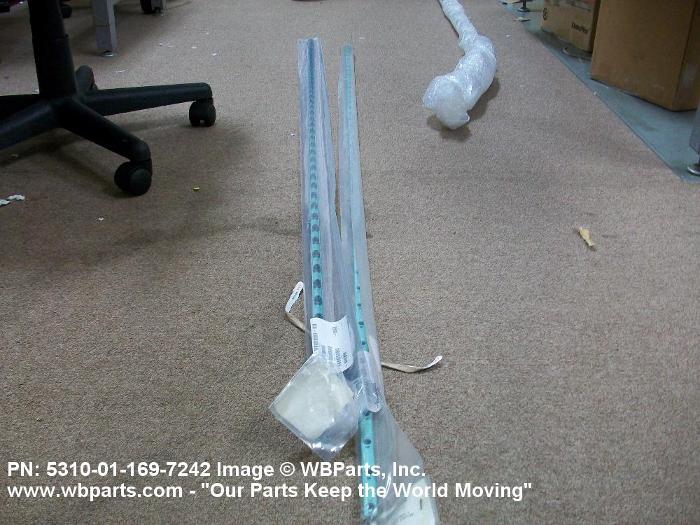

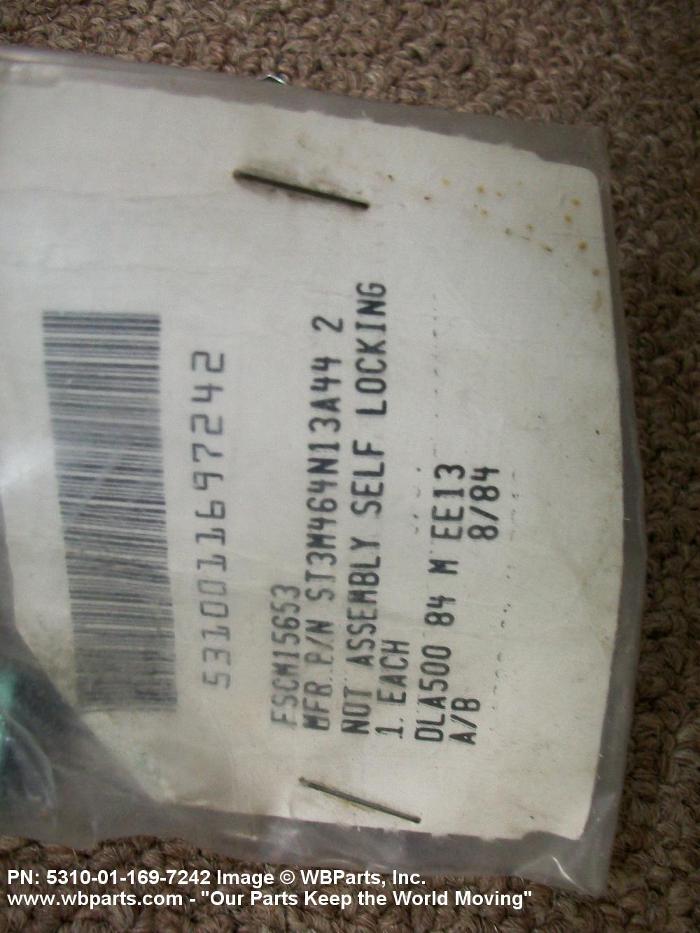

Drawings & Photos | NSN 5310-01-169-7242
Demand History | NSN 5310-01-169-7242
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| G18421JL2413 | 2015-05-121 | 1 | Australia |
| 5310-01-169-7242 | 2013-06-161 | 14 | DIBBS |
| 3M464N13A442 | 2011-07-185 | 2 | United States |
| 5310-01-169-7242 | 2011-05-130 | 2 | DIBBS |
Cross Reference | NSN 5310-01-169-7242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M464N13A44-2 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| 3M464N13A44-2 | 27238 | BRISTOL INDUSTRIES |
| 3M464N13A44-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M464N13A44-2 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BGC464N2-13 | 27238 | BRISTOL INDUSTRIES |
| C170-4-2-13 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| G18421JL2-4-13 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| G18421JL2-4-13 | 72962 | HARVARD INDUSTRIES INC |
| G49439E4-2-13 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-169-7242
Related Products | NSN 5310-01-169-7242
Technical Data | NSN 5310-01-169-7242
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 7075 CHANNEL IRON ALLOY 660 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/13,T6 FED SPEC SINGLE MATERIAL RESPONSE CHANNEL AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | ANODIZE CHANNEL NICKEL OR COPPER NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE CHANNEL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
| BASE WIDTH | 0.395 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| NUT LENGTH | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
| BASE THICKNESS | 0.040 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| NUT HEIGHT | 0.305 INCHES MAXIMUM |
| REMOVABLE NUT MANUFACTURER CODE | 76301 |
| REMOVABLE NUT MANUFACTURER PART NUMBER | ST3M445C4M2 |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| CHANNEL STYLE | C1 STRAIGHT TYPE |
| OVERALL LENGTH | 71.675 INCHES NOMINAL |
| OVERALL WIDTH | 0.552 INCHES MAXIMUM |
| ASSEMBLY OVERALL HEIGHT | 0.351 INCHES MAXIMUM |
| CHANNEL HEIGHT | 0.298 INCHES MAXIMUM |
| NUT SPACING | 1.625 INCHES NOMINAL |
| NUT QUANTITY | 44 |
| NUT COUNTERBORE DEPTH | 0.125 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.254 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-169-7242
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-169-7242
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
