NSN 5310-01-209-7233 G11192J53L32, G11192J5-3L32, 01-209-7233
Product Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY

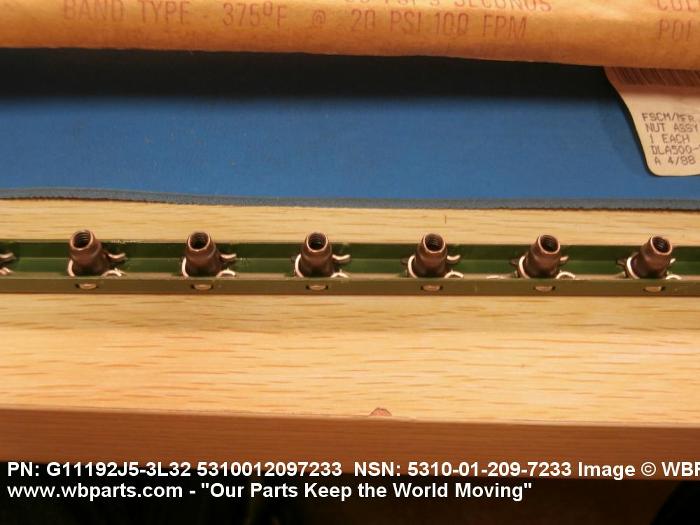

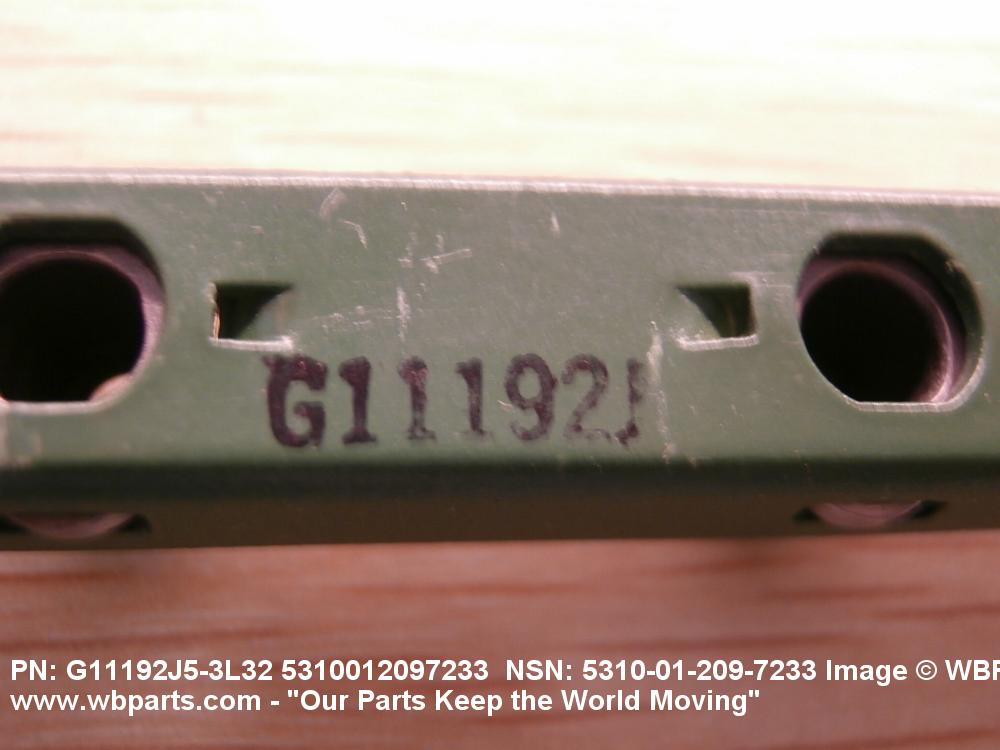

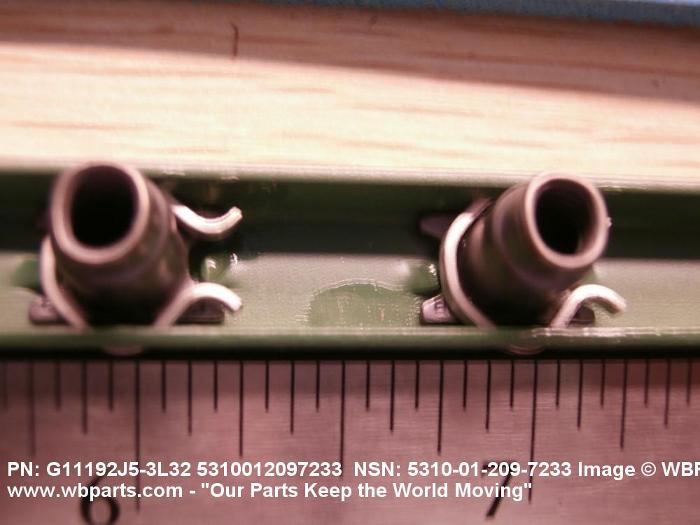

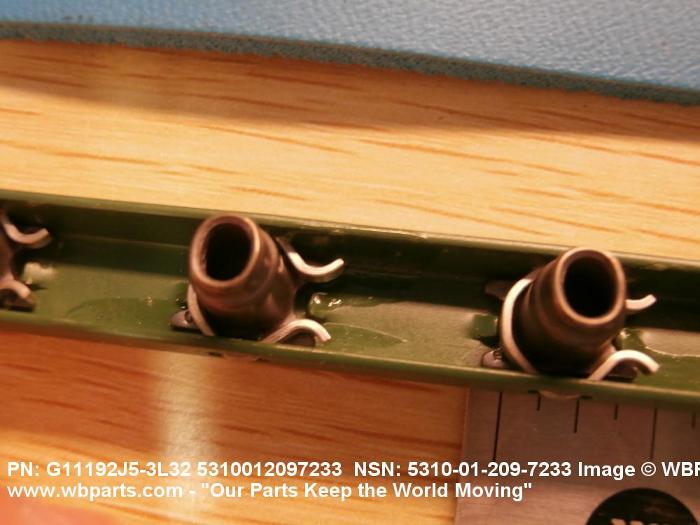

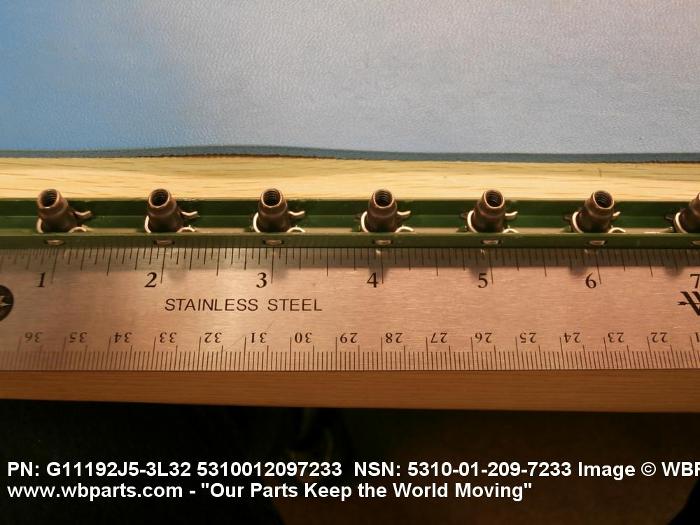

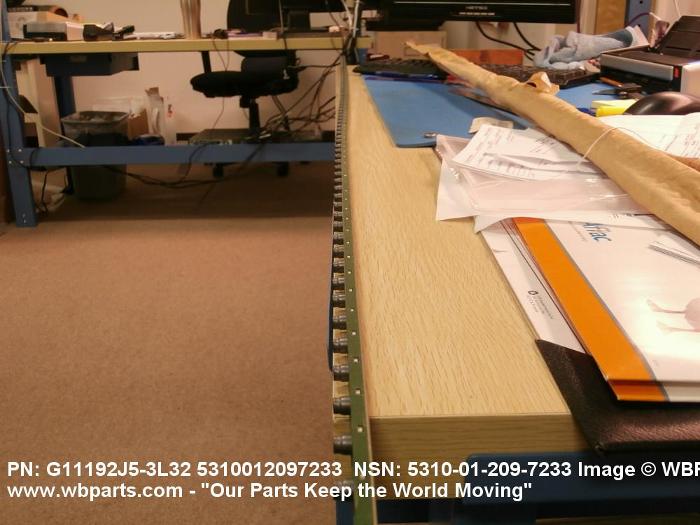

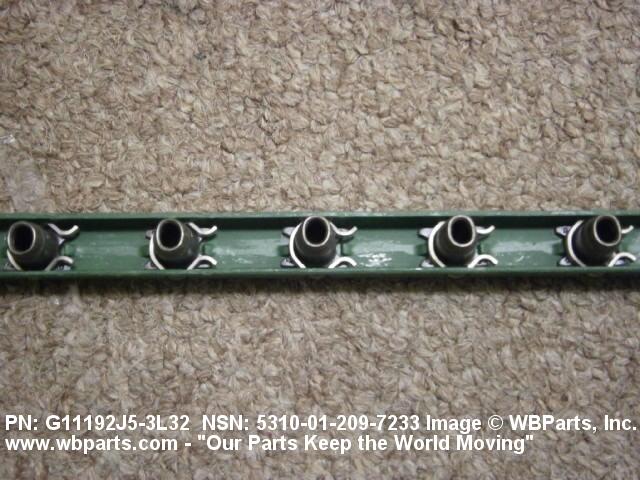

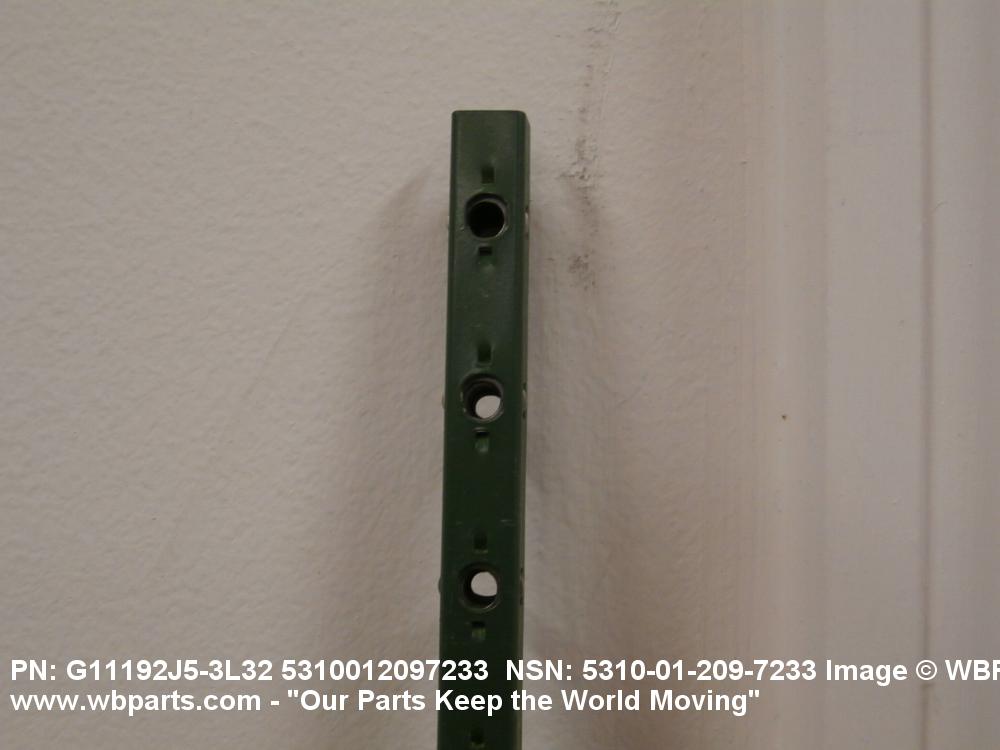

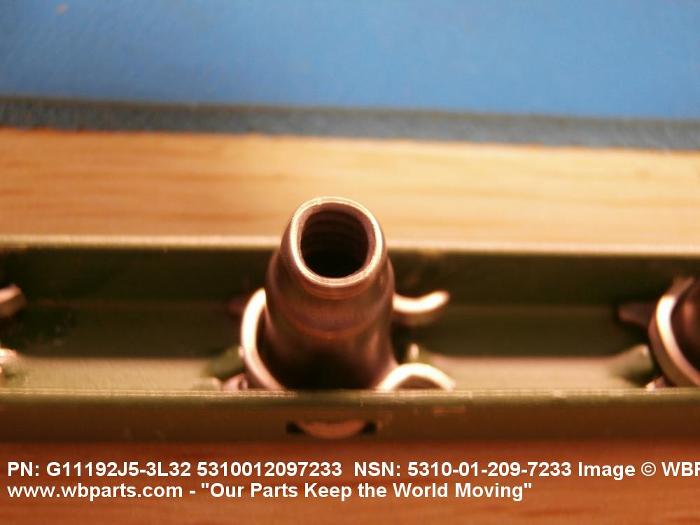

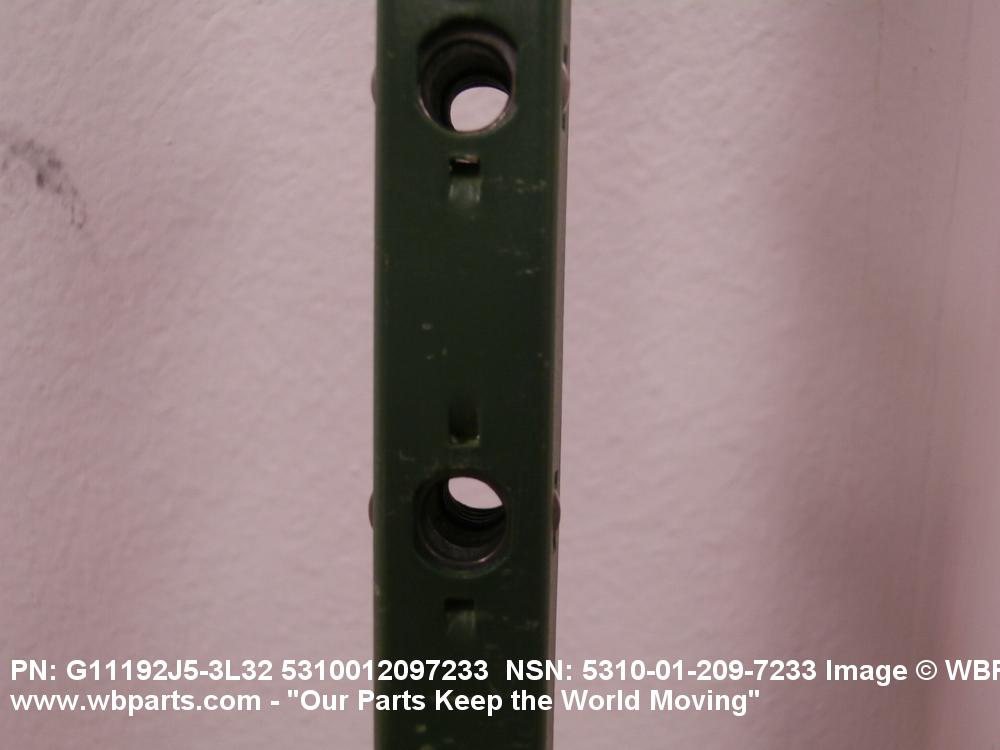

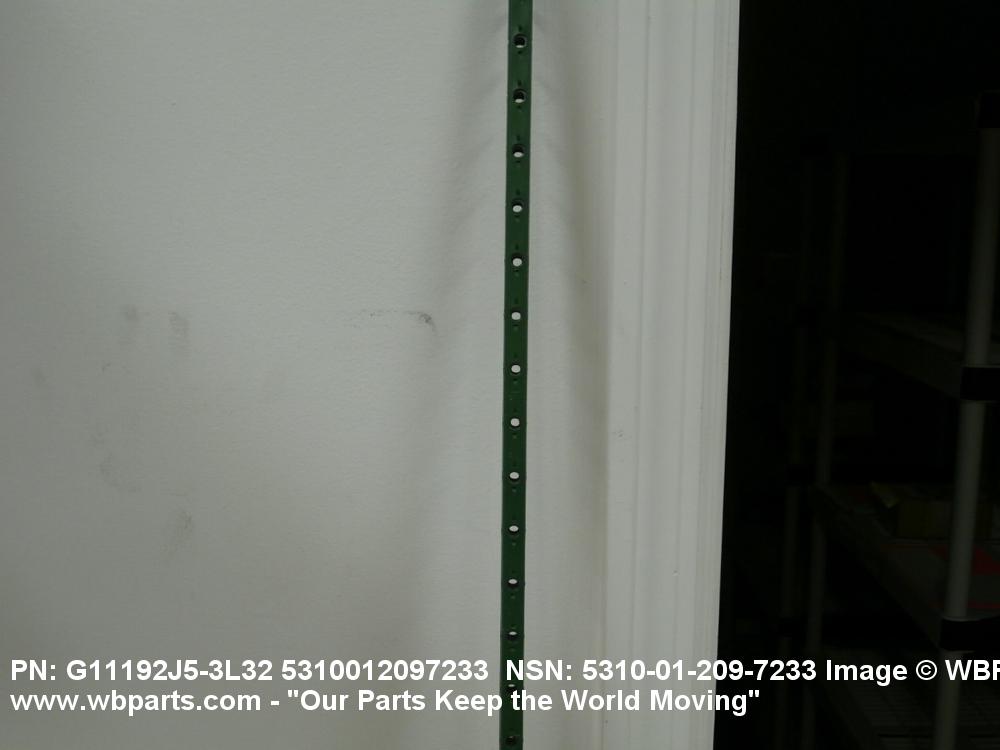

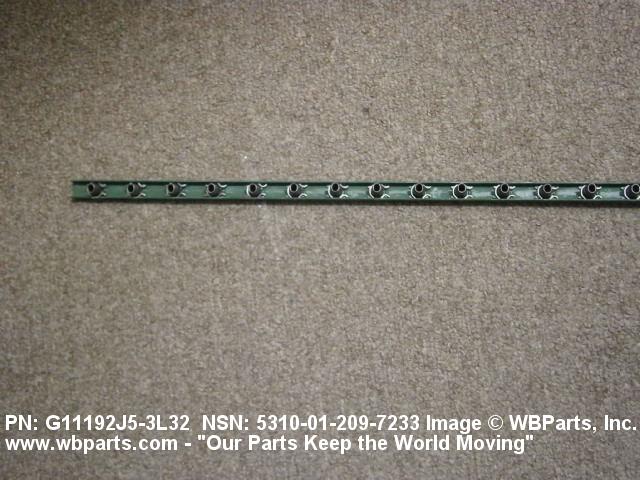

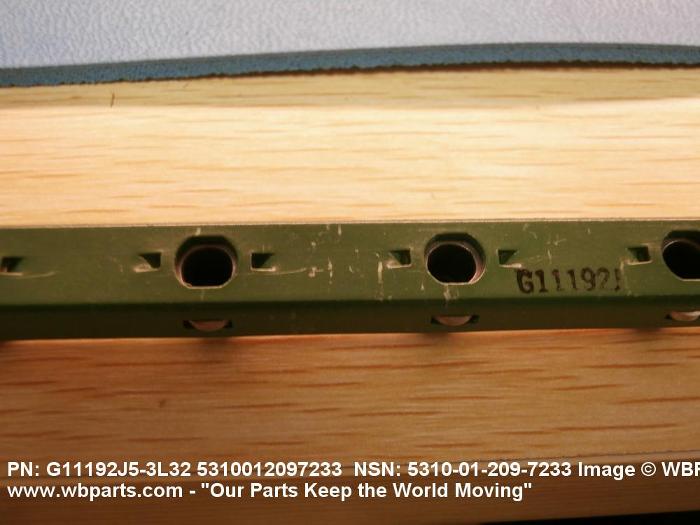

5310-01-209-7233 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Part Alternates: G11192J53L32, G11192J5-3L32, 5310-01-209-7233, 01-209-7233, 5310012097233, 012097233
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 04 JUN 1985 | 01-209-7233 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |
Demand History | NSN 5310-01-209-7233
Part Number | Request Date | QTY | Origin |
---|---|---|---|
G11192J5-3L32 | 2023-01-08 | 2 | DIBBS |
G11192J5-3L32 | 2022-07-188 | 2 | DIBBS |
G11192J5-3L32 | 2022-06-173 | 2 | DIBBS |
G11192J5-3L32 | 2020-04-107 | 3 | DIBBS |
G11192J5-3L32 | 2020-04-99 | 3 | DIBBS |
5310-01-209-7233 | 2018-05-130 | 1 | DIBBS |
5310-01-209-7233 | 2018-05-122 | 1 | DIBBS |
5310-01-209-7233 | 2018-02-52 | 1 | DIBBS |
5310-01-209-7233 | 2018-02-44 | 1 | DIBBS |
5310-01-209-7233 | 2017-07-183 | 1 | DIBBS |
5310-01-209-7233 | 2016-02-56 | 2 | DIBBS |
5310-01-209-7233 | 2015-10-289 | 2 | DIBBS |
5310-01-209-7233 | 2015-10-277 | 2 | DIBBS |
5310-01-209-7233 | 2015-05-132 | 5 | DIBBS |
5310-01-209-7233 | 2015-04-120 | 5 | DIBBS |
5310-01-209-7233 | 2012-12-347 | 1 | United States |
5310-01-209-7233 | 2012-11-313 | 6 | DIBBS |
5310-01-209-7233 | 2012-01-05 | 0 | United States |
5310-01-209-7233 | 2011-11-334 | 2 | DIBBS |
5310-01-209-7233 | 2011-03-73 | 2 | DIBBS |
5310-01-209-7233 | 2010-11-314 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-209-7233
Related Products | NSN 5310-01-209-7233
Technical Data | NSN 5310-01-209-7233
Characteristic | Specifications |
---|---|
THREAD SERIES | UNJF |
NOMINAL THREAD SIZE | 0.190 INCHES |
THREAD QUANTITY PER INCH | 32 |
THREAD CLASS | 3B |
THREAD DIRECTION | RIGHT-HAND |
MATERIAL | ALUMINUM ALLOY 7075 CHANNEL IRON ALLOY 660 NUT |
SURFACE TREATMENT | PLASTIC MOUNTING |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-27752,TYPE 2,CLASS B MIL SPEC SINGLE TREATMENT RESPONSE CHANNEL |
NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
REMOVABLE NUT MANUFACTURER CODE | 72962 |
REMOVABLE NUT MANUFACTURER PART NUMBER | G11370-5-3 |
LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
CHANNEL STYLE | C1 STRAIGHT TYPE |
OVERALL LENGTH | 72.180 INCHES NOMINAL |
OVERALL WIDTH | 0.442 INCHES MAXIMUM |
ASSEMBLY OVERALL HEIGHT | 0.500 INCHES MAXIMUM |
CHANNEL HEIGHT | 0.250 INCHES MAXIMUM |
NUT SPACING | 1.000 INCHES NOMINAL |
NUT QUANTITY | 72 |
NUT COUNTERBORE DEPTH | 0.312 INCHES MINIMUM NUT |
COUNTERBORE DIAMETER | 0.194 INCHES MINIMUM NUT |
LUBRICATION | DRY FILM LUBRICANT |
TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
FEATURES PROVIDED | FLOATING NUT |
SPECIAL FEATURES | TENSILE STRENGTH 160 KSI NOM.; DRY FILM LUBRICANT |
