NSN 5310-01-148-1707 64357-07022-104, 01-148-1707, 6435707022104
Product Details | ROUND SELF-LOCKING NUT
5310-01-148-1707 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protusions, slots or splines in or on the periphery or in the face opposite the bearing surface. An integral feature is incorporated for locking on the threads of a mating member. Do not use if a more specific item name applies. Excludes COLLAR, PIN-RIVET, THREADED; INSERT, SCREW THREAD; NUT (1), SLEEVE; NUT(1), PLAIN, CAP; and TURNBUCKLE BODY.
Part Alternates: 64357-07022-104, 5310-01-148-1707, 01-148-1707, 5310011481707, 6435707022104, 011481707
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 MAR 1983 | 01-148-1707 | 15895 ( NUT, SELF-LOCKING, ROUND ) |

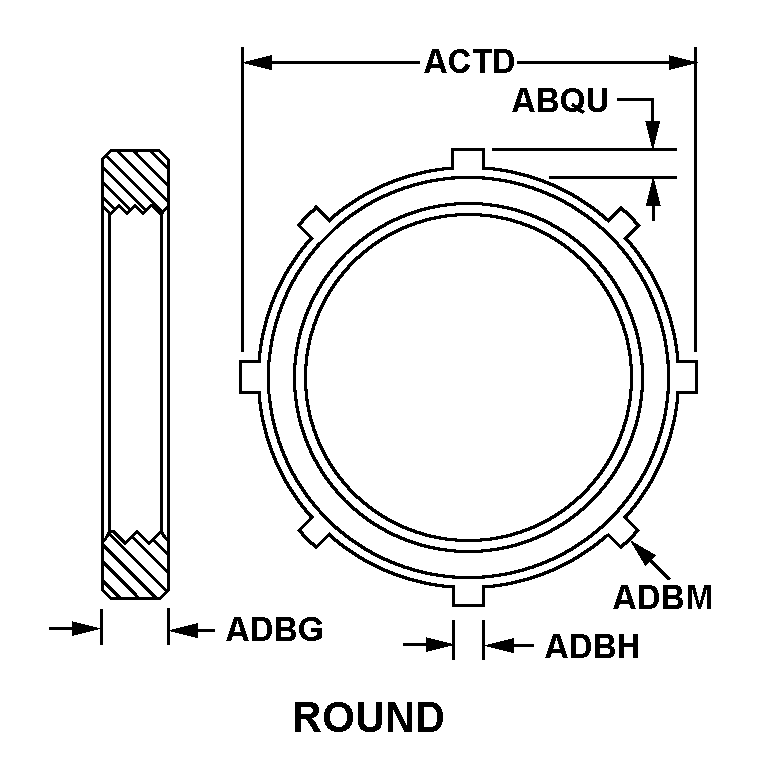

Drawings & Photos | NSN 5310-01-148-1707
Cross Reference | NSN 5310-01-148-1707
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 64357-07022-104 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-148-1707
Technical Data | NSN 5310-01-148-1707
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 3.500 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | LEFT-HAND |
| MATERIAL | STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AIL-S-5000 COND C MIL SPEC 10TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER THREADS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE THREADS |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 33.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A82 ROUND |
| DRIVE POINT DEPTH | 0.250 INCHES NOMINAL |
| NUT DIAMETER | 4.156 INCHES NOMINAL |
| NUT THICKNESS | 0.600 INCHES NOMINAL |
| DRIVE POINT WIDTH | 0.250 INCHES NOMINAL |
| DRIVE POINT QUANTITY | 8 |
| LOCKING FEATURE | ANY ACCEPTABLE |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 64357-07022-104 |
Restrictions/Controls & Freight Information | NSN 5310-01-148-1707
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-148-1707
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
