NSN 5310-01-134-2733 SS5086C07S, EWSN26AGC07S , 01-134-2733
Product Details | DOUBLE HEXAGON SELF-LOCKING NUT
5310-01-134-2733 A nut having 12 drive points and 24 sides. The bearing surface may be washer faced. An integral locking feature is incorporated in the design of the head or in the threads.
Part Alternates: SS5086C07S, EWSN26AGC07S , 5310-01-134-2733, 01-134-2733, 5310011342733, 011342733
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 JUL 1982 | 01-134-2733 | 05276 ( NUT, SELF-LOCKING, DOUBLE HEXAGON ) |

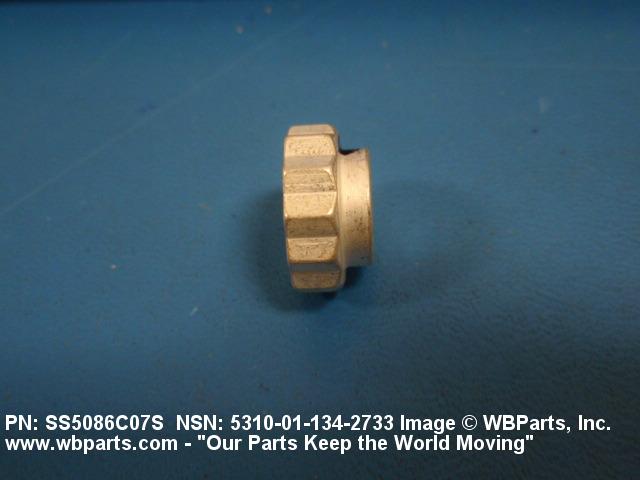

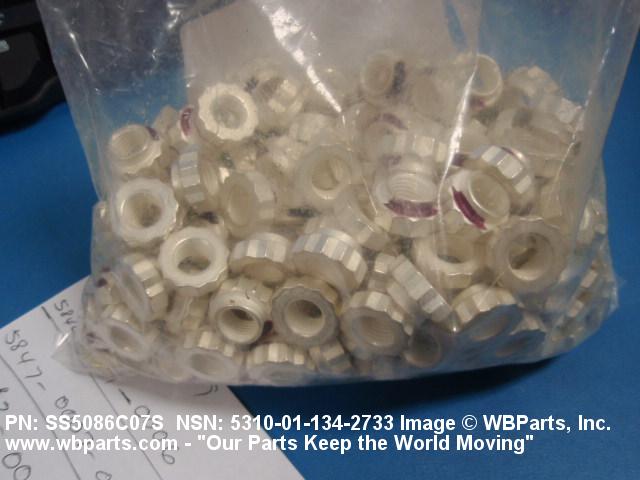

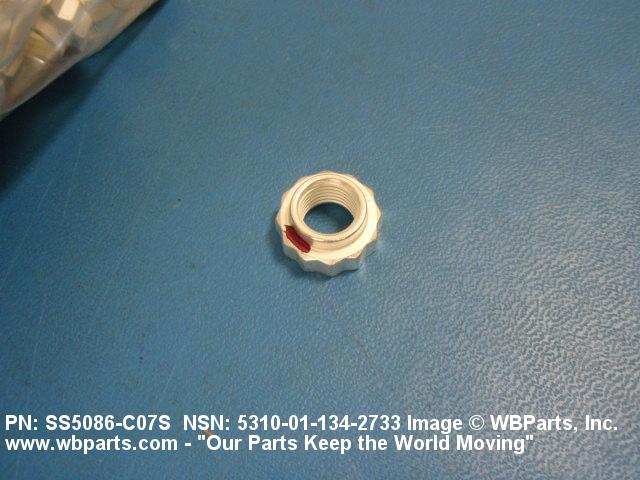

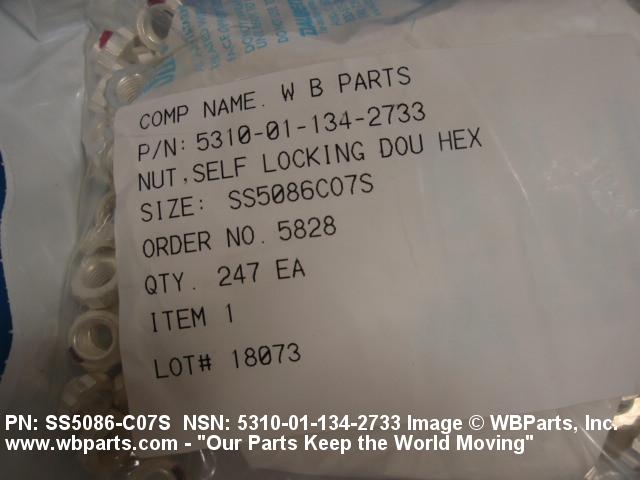

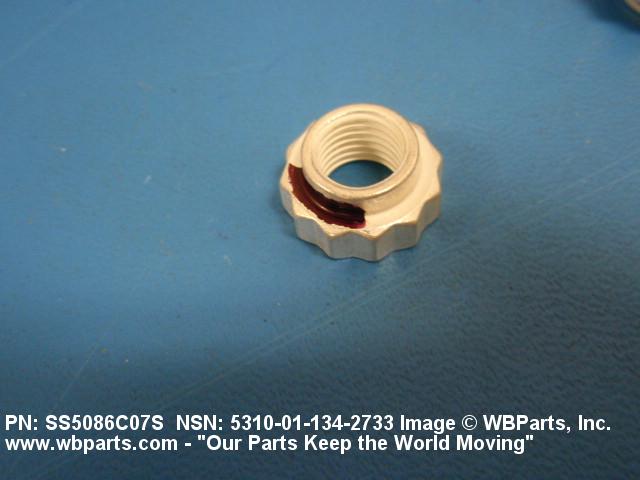

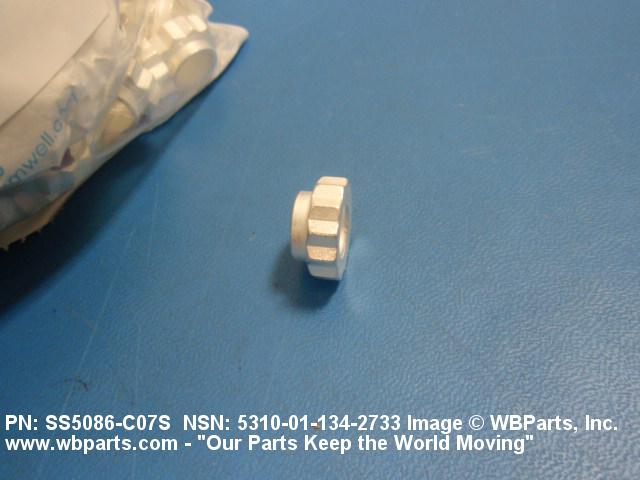

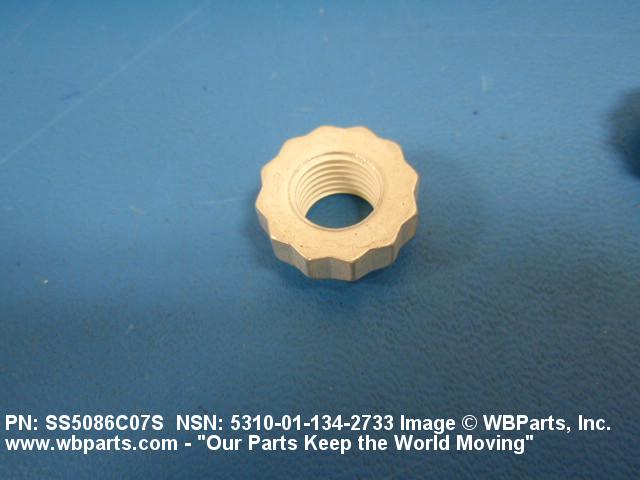

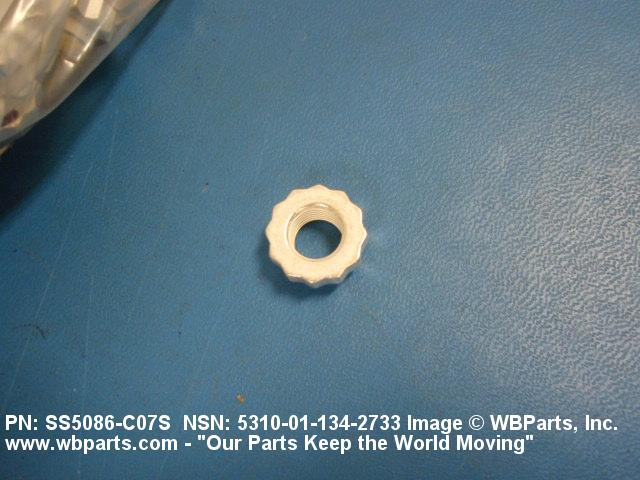

Drawings & Photos | NSN 5310-01-134-2733
Demand History | NSN 5310-01-134-2733
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-134-2733 | 2023-09-249 | 50 | United States |
| EWSN26AGC07S | 2023-01-25 | 1487 | DIBBS |
| SS5086C07S | 2023-01-25 | 1487 | DIBBS |
| EWSN26AGC07S | 2022-11-319 | 2250 | DIBBS |
| SS5086C07S | 2022-11-319 | 2250 | DIBBS |
| EWSN26AGC07S | 2021-12-342 | 290 | DIBBS |
| SS5086C07S | 2021-12-342 | 290 | DIBBS |
| EWSN26AGC07S | 2021-11-330 | 100 | DIBBS |
| SS5086C07S | 2021-11-330 | 100 | DIBBS |
| EWSN26AGC07S | 2021-11-319 | 100 | DIBBS |
| SS5086C07S | 2021-11-319 | 100 | DIBBS |
| EWSN26AGC07S | 2021-11-312 | 182 | DIBBS |
| SS5086C07S | 2021-11-312 | 182 | DIBBS |
| EWSN26AGC07S | 2021-10-299 | 182 | DIBBS |
| SS5086C07S | 2021-10-299 | 182 | DIBBS |
| EWSN26AGC07S | 2021-09-263 | 1602 | DIBBS |
| SS5086C07S | 2021-09-263 | 1602 | DIBBS |
| EWSN26AGC07S | 2021-09-252 | 1602 | DIBBS |
| SS5086C07S | 2021-09-252 | 1602 | DIBBS |
| EWSN26AGC07S | 2021-02-41 | 1248 | DIBBS |
| SS5086C07S | 2021-02-41 | 1248 | DIBBS |
| EWSN26AGC07S | 2020-10-300 | 2000 | DIBBS |
| SS5086C07S | 2020-10-300 | 2000 | DIBBS |
| EWSN26AGC07S | 2020-10-292 | 2000 | DIBBS |
| SS5086C07S | 2020-10-292 | 2000 | DIBBS |
| EWSN26AGC07S | 2020-08-243 | 602 | DIBBS |
| SS5086C07S | 2020-08-243 | 602 | DIBBS |
| 5310-01-134-2733 | 2020-06-156 | 110 | United States |
| EWSN26AGC07S | 2020-03-75 | 995 | DIBBS |
| SS5086C07S | 2020-03-75 | 995 | DIBBS |
| EWSN26AGC07S | 2019-11-329 | 2370 | DIBBS |
| SS5086C07S | 2019-11-329 | 2370 | DIBBS |
| EWSN26AGC07S | 2019-11-311 | 2370 | DIBBS |
| SS5086C07S | 2019-11-311 | 2370 | DIBBS |
| 5310-01-134-2733 | 2019-10-281 | 1342 | DIBBS |
| 5310-01-134-2733 | 2019-09-249 | 1331 | DIBBS |
| 5310-01-134-2733 | 2019-08-217 | 1331 | DIBBS |
| 5310-01-134-2733 | 2018-09-246 | 1342 | DIBBS |
| 5310-01-134-2733 | 2017-03-89 | 8 | US |
| 5310-01-134-2733 | 2014-03-85 | 132 | United States |
| 5310-01-134-2733 | 2013-12-359 | 4500 | DIBBS |
| 5310-01-134-2733 | 2013-10-291 | 1 | DIBBS-RFPs |
| 5310-01-134-2733 | 2013-09-246 | 1 | DIBBS-RFPs |
| 5310-01-134-2733 | 2013-08-220 | 4105 | DIBBS |
| 5310-01-134-2733 | 2013-05-150 | 3410 | DIBBS |
| 5310-01-134-2733 | 2013-01-24 | 3200 | DIBBS |
| 5310-01-134-2733 | 2012-12-353 | 3648 | DIBBS |
| 5310-01-134-2733 | 2012-12-341 | 600 | US |
| 5310-01-134-2733 | 2012-06-181 | 3659 | DIBBS |
| 5310-01-134-2733 | 2012-05-146 | 470 | DIBBS |
| 5310-01-134-2733 | 2011-12-361 | 344 | DIBBS |
| 011342733 | 2009-06-169 | 400 | United States |
| SS5086C07S | 2009-06-161 | 800 | United States |
| SS5086C07S | 2007-10-275 | 68 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-134-2733
Related Products | NSN 5310-01-134-2733
Technical Data | NSN 5310-01-134-2733
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365,TYPE 1,GRADE A FED SPEC SINGLE TREATMENT RESPONSE OR AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 42.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A16 DOUBLE HEXAGON |
| NUT HEIGHT | 0.373 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.680 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| BEARING SURFACE TYPE | FLAT OR WASHER FACED |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERBORE DIAMETER | 0.467 INCHES MAXIMUM FIRST END |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | ALL SURFACES SILVER |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | SS5086C07S |
Restrictions/Controls & Freight Information | NSN 5310-01-134-2733
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-134-2733
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
