NSN 5310-01-121-8186 RY-173734 ITEM 8 , RY173734ITEM8, 38233901
Product Details | ROUND PLAIN NUT
5310-01-121-8186 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery or in the face opposite the bearing surface. For items having a thickness (or height) exceeding two times the outside diameter, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, KNURLED. (When height or thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: RY-173734 ITEM 8 , RY173734ITEM8, 38233901, 382339-01, 3823391, 382339-1, 3823391PH, 382339-1PH, 552201824A, 55-22018-24A, 5310-01-121-8186, 01-121-8186, 5310011218186, 011218186
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 NOV 1981 | 01-121-8186 | 15887 ( NUT, PLAIN, ROUND ) |

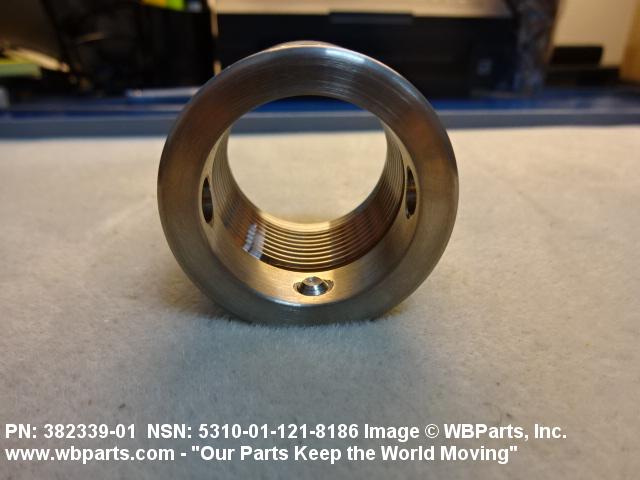

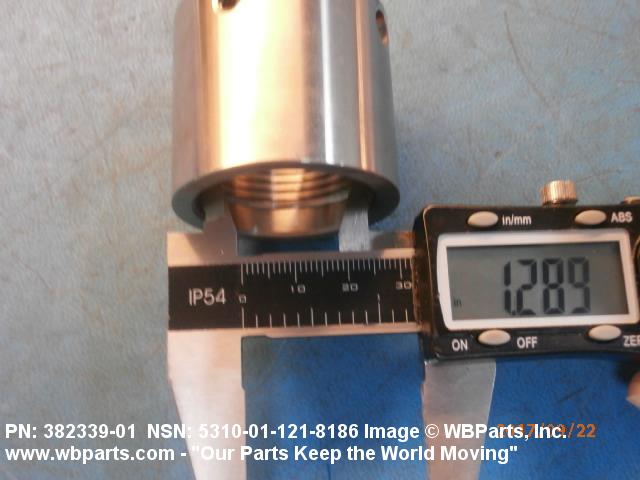

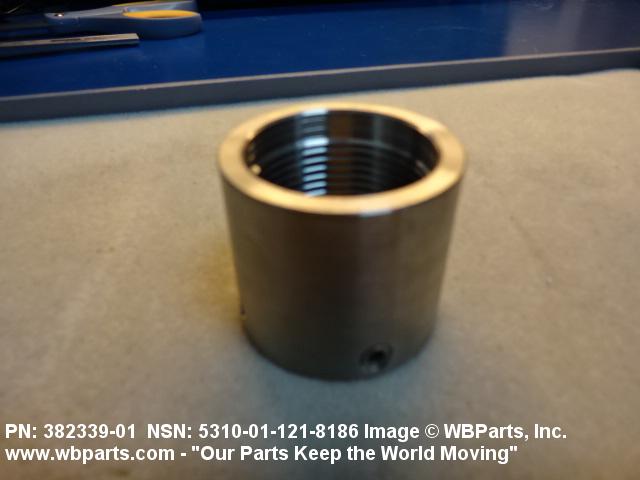

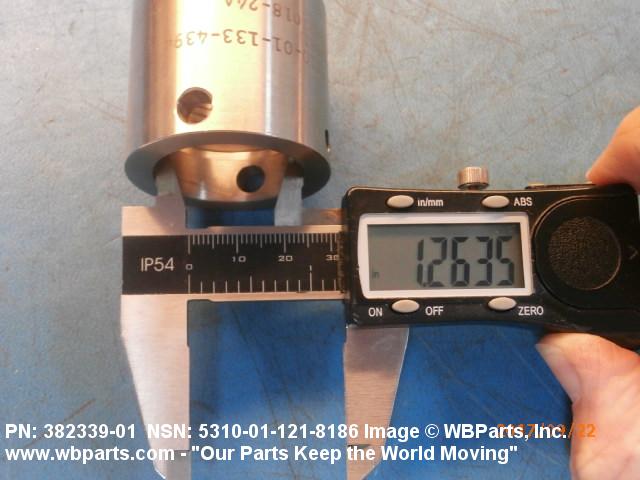

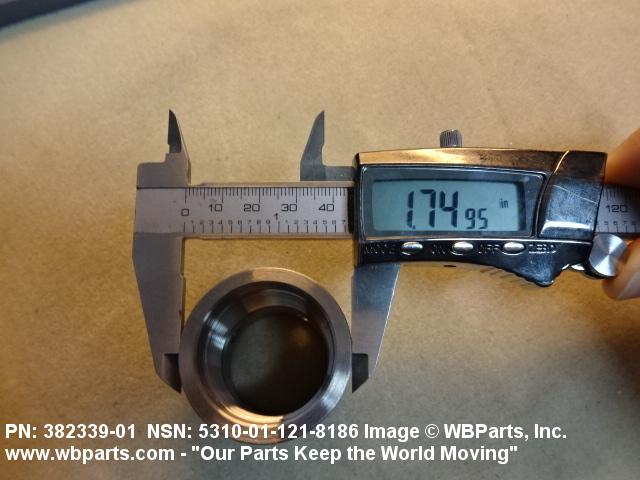

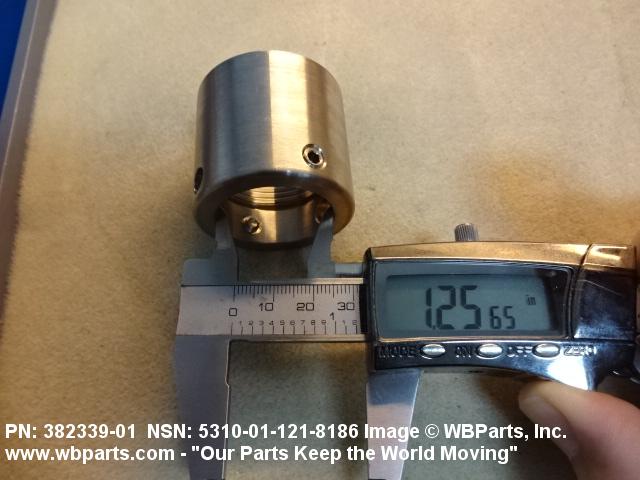

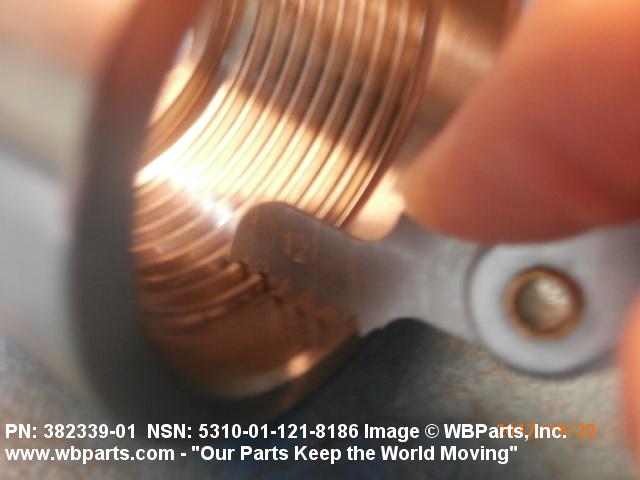

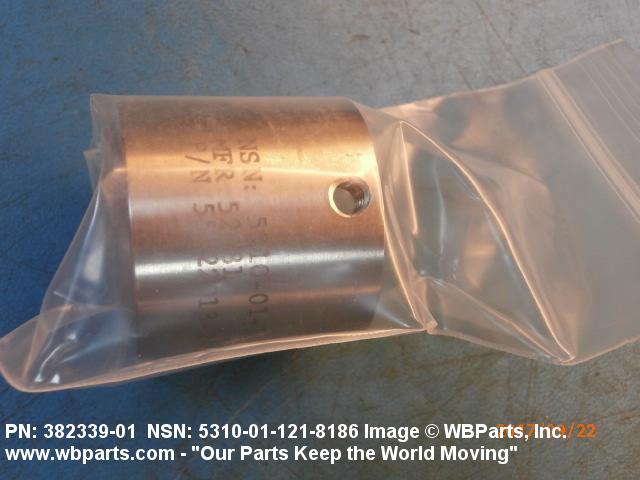

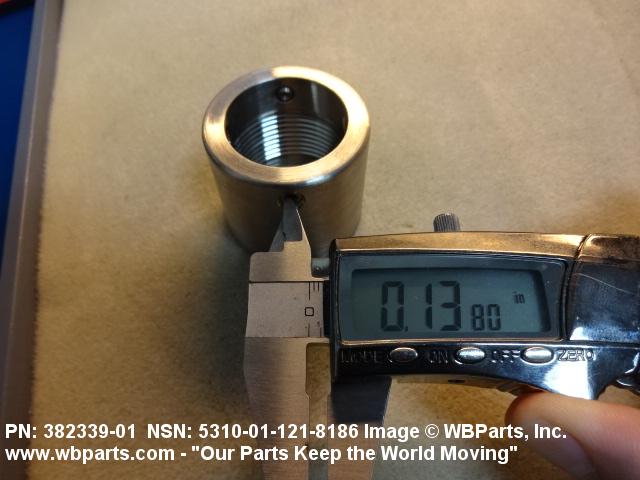

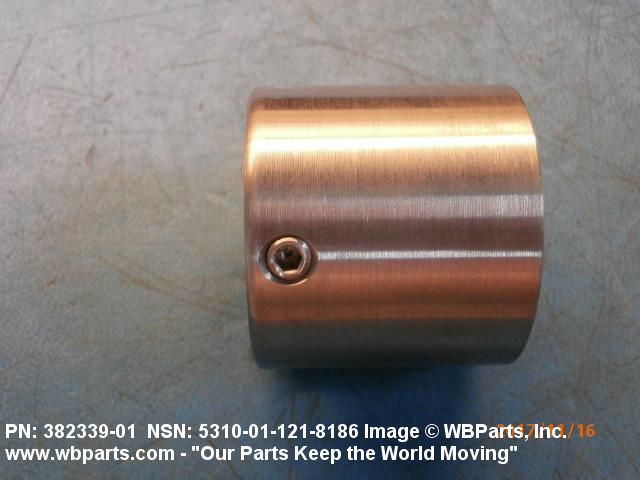

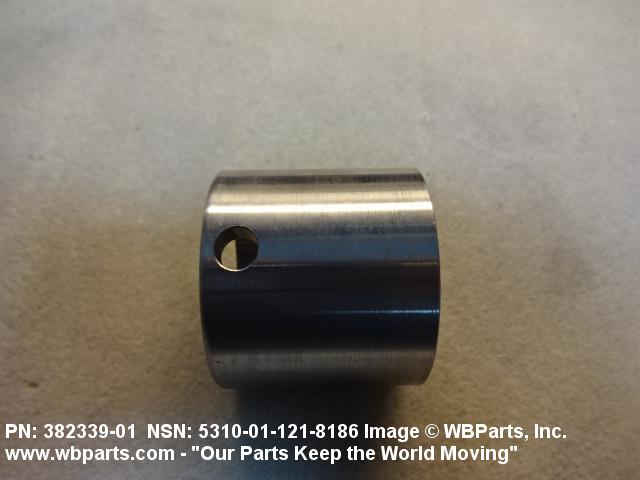

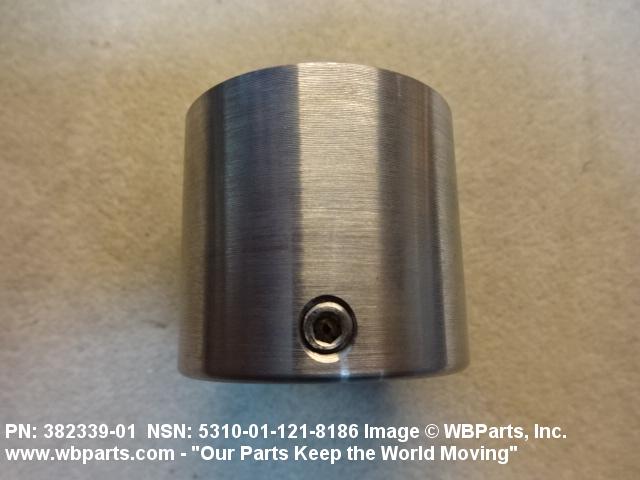

Drawings & Photos | NSN 5310-01-121-8186
Demand History | NSN 5310-01-121-8186
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 382339-01 | 2021-10-286 | 1 | DIBBS |
| 382339-01AP | 2021-10-286 | 1 | DIBBS |
| 382339-1PH | 2021-10-286 | 1 | DIBBS |
| RY-173734 ITEM 8 | 2021-10-286 | 1 | DIBBS |
| 382339-01 | 2021-07-188 | 1 | DIBBS |
| 382339-01AP | 2021-07-188 | 1 | DIBBS |
| 382339-1PH | 2021-07-188 | 1 | DIBBS |
| RY-173734 ITEM 8 | 2021-07-188 | 1 | DIBBS |
| 382339-01 | 2021-04-103 | 1 | DIBBS |
| 382339-01AP | 2021-04-103 | 1 | DIBBS |
| 382339-1PH | 2021-04-103 | 1 | DIBBS |
| RY-173734 ITEM 8 | 2021-04-103 | 1 | DIBBS |
| 382339-01 | 2020-07-205 | 1 | DIBBS |
| 382339-01AP | 2020-07-205 | 1 | DIBBS |
| 382339-1PH | 2020-07-205 | 1 | DIBBS |
| RY-173734 ITEM 8 | 2020-07-205 | 1 | DIBBS |
| 382339-01 | 2019-02-57 | 1 | DIBBS |
| 382339-01AP | 2019-02-57 | 1 | DIBBS |
| 382339-01 | 2019-02-49 | 1 | DIBBS |
| 382339-01AP | 2019-02-49 | 1 | DIBBS |
| 382339-01 | 2019-01-18 | 1 | DIBBS |
| 382339-01AP | 2019-01-18 | 1 | DIBBS |
| 5310-01-121-8186 | 2017-12-353 | 2 | DIBBS |
| 5310-01-121-8186 | 2017-11-312 | 1 | United States |
| 5310-01-121-8186 | 2017-10-293 | 1 | United States |
| 5310-01-121-8186 | 2017-10-293 | 1 | United States |
| 5310-01-121-8186 | 2017-09-262 | 1 | United States |
| 5310-01-121-8186 | 2017-08-241 | 1 | DIBBS |
| 5310-01-121-8186 | 2017-08-241 | 2 | DIBBS |
| 5310-01-121-8186 | 2017-07-212 | 1 | DIBBS |
| 5310-01-121-8186 | 2017-07-212 | 2 | DIBBS |
| 5310-01-121-8186 | 2016-02-43 | 1 | DIBBS |
| 5310-01-121-8186 | 2016-02-35 | 1 | DIBBS |
| 5310-01-121-8186 | 2011-11-319 | 2 | DIBBS |
| 5310-01-121-8186 | 2011-04-105 | 2 | DIBBS |
| 5310-01-121-8186 | 2010-04-104 | 4 | DIBBS |
| 5310-01-121-8186 | 2010-03-78 | 2 | DIBBS |
Cross Reference | NSN 5310-01-121-8186
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 382339-01 | 52081 | RAM CENTRIFUGAL PRODUCTS, INC. |
| 382339-01 | 54402 | R. P. S. INC |
| 382339-01 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 382339-1 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 382339-1PH | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 55-22018-24A | 52081 | RAM CENTRIFUGAL PRODUCTS, INC. |
| RY-173734 ITEM 8 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-121-8186
Related Products | NSN 5310-01-121-8186
Technical Data | NSN 5310-01-121-8186
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 1.375 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | LEFT-HAND |
| MATERIAL | NICKEL ALLOY 400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281, CL A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A77 ROUND |

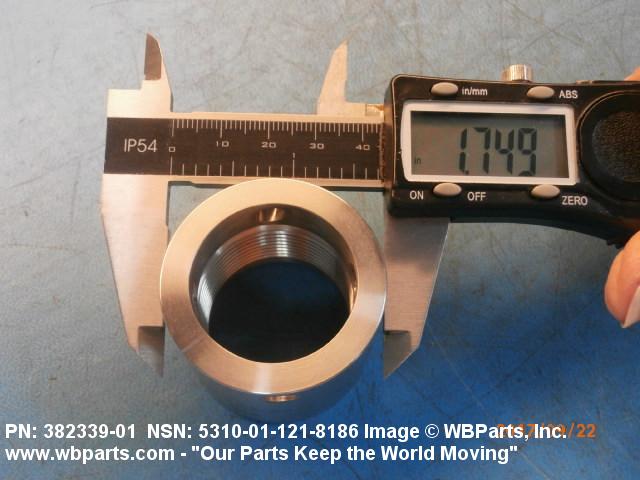

| NUT DIAMETER | 1.748 INCHES MINIMUM AND 1.750 INCHES MAXIMUM |

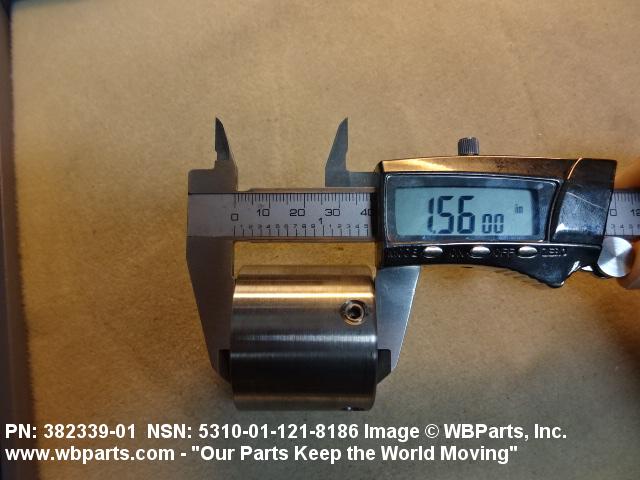

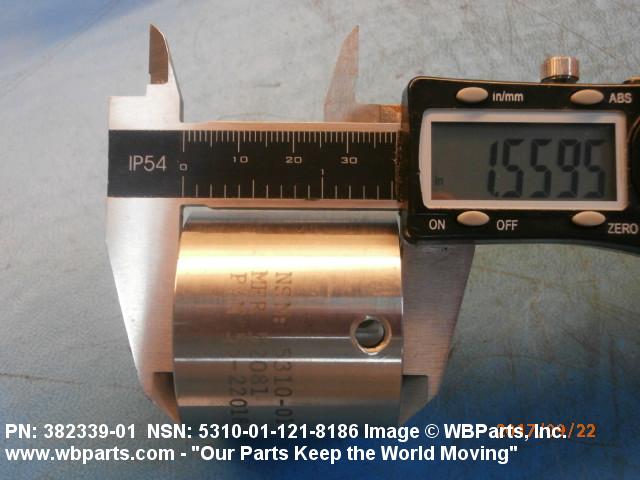

| NUT THICKNESS | 1.562 INCHES NOMINAL |
| HOLE CONFIGURATION STYLE | H6 CONFIGURATION F |
| HOLE TYPE AND QUANTITY | 2 DRILLED AND 2 TAPPED |

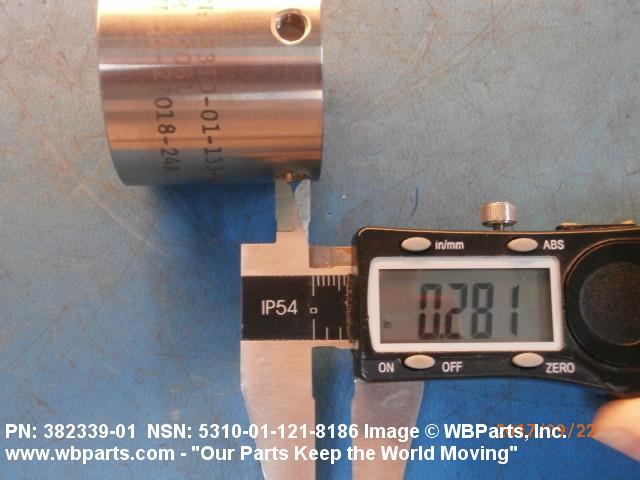

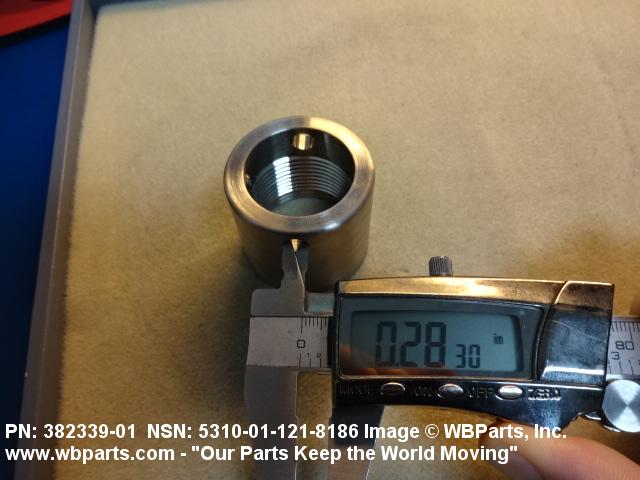

| DRILLED HOLE DIAMETER | 0.281 INCHES NOMINAL |

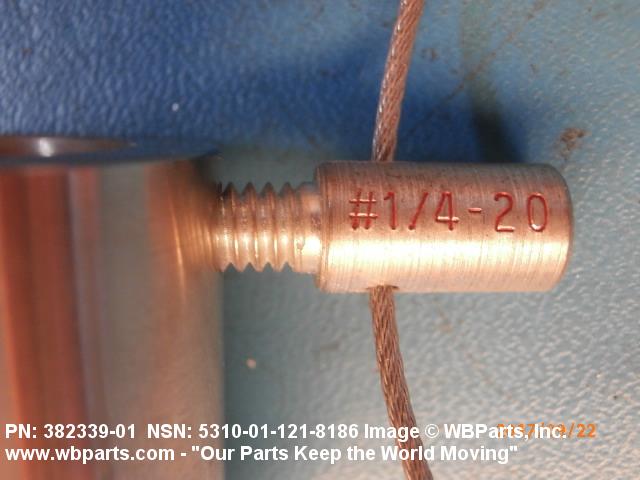

| HOLE NOMINAL THREAD DIAMETER | 0.250 INCHES |
| HOLE THREAD QUANTITY PER INCH | 20 |

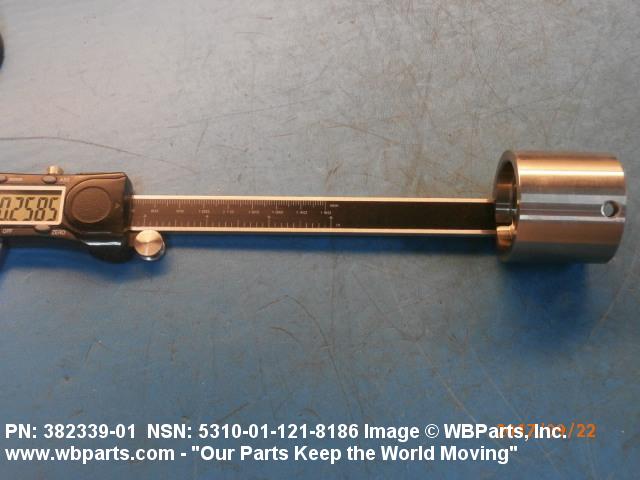

| NUT COUNTERBORE DEPTH | 0.250 INCHES NOMINAL SECOND END |

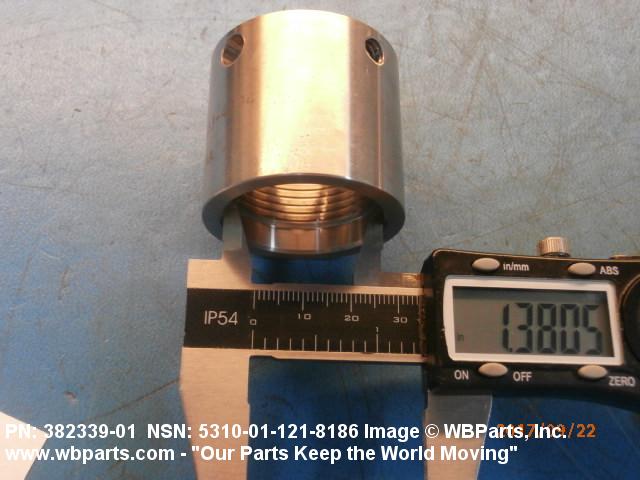

| COUNTERBORE DIAMETER | 1.265 INCHES MINIMUM AND 1.267 INCHES MAXIMUM FIRST END 1.380 INCHES MINIMUM AND 1.382 INCHES MAXIMUM SECOND END |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-121-8186
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139820 | NICKEL BOLTS/NAILS/NUTS/RIVETS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-121-8186
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
