NSN 5310-01-119-6796 MS21299C8, MS21299-C8, 10109334
Product Details | RECESSED WASHER

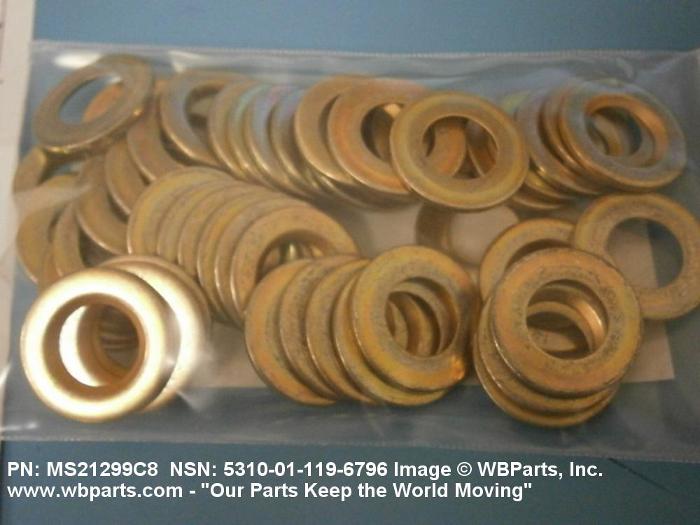

5310-01-119-6796 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: MS21299C8, MS21299-C8, 10109334 , 5310-01-119-6796, 01-119-6796, 5310011196796, 011196796
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 SEP 1981 | 01-119-6796 | 15933 ( WASHER, RECESSED ) |
Drawings & Photos | NSN 5310-01-119-6796
Demand History | NSN 5310-01-119-6796
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21299C8 | 2024-11-313 | 38 | United States |
| MS21299C8 | 2021-06-167 | 40 | MY |
| MS21299C8 | 2021-06-167 | 40 | TR |
| MS21299C8 | 2021-06-165 | 40 | US |
| 5310-01-119-6796 | 2019-01-30 | 2022 | DIBBS |
| 5310-01-119-6796 | 2018-11-305 | 6240 | DIBBS |
| 5310-01-119-6796 | 2018-10-276 | 9375 | DIBBS |
| 5310-01-119-6796 | 2018-01-15 | 4171 | DIBBS |
| MS21299-C8 | 2016-11-334 | 608 | United States |
| 5310-01-119-6796 | 2013-10-304 | 7782 | DIBBS |
| 5310-01-119-6796 | 2013-06-176 | 3377 | DIBBS |
| 5310-01-119-6796 | 2012-07-212 | 52 | US |
| MS21299C8 | 2011-11-313 | 50 | US |
| MS21299C8 | 2011-11-313 | 50 | US |
| MS21299C8 | 2011-10-284 | 50 | United States |
| MS21299C8 | 2011-04-110 | 7 | United Kingdom |
| 5310-01-119-6796 | 2009-07-191 | 9400 | DIBBS |
| 5310-01-119-6796 | 2008-02-36 | 5478 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-119-6796
Related Products | NSN 5310-01-119-6796
Technical Data | NSN 5310-01-119-6796
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-18729 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 15 RECESS |
| HOLE DIAMETER | 0.501 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.940 INCHES MINIMUM AND 0.950 INCHES MAXIMUM |
| RECESS DIAMETER | 0.622 INCHES MINIMUM AND 0.632 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.071 INCHES MINIMUM AND 0.085 INCHES MAXIMUM |
| RECESS ANGLE | 89.0 DEGREES MINIMUM AND 91.0 DEGREES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-119-6796
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
