NSN 5310-01-108-2676 ST3M797C5, 79219524, 79219-524
Product Details | ROUND EXTENDED WASHER SELF-LOCKING NUT
5310-01-108-2676 A nut, circular in shape, having wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery. It has an integral washer which extends beyond the wrenching element periphery and an integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: ST3M797C5, 79219524, 79219-524, 10122152 , 5310-01-108-2676, 01-108-2676, 5310011082676, 011082676
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 FEB 1981 | 01-108-2676 | 36744 ( NUT, SELF-LOCKING, EXTENDED WASHER, ROUND ) |
Drawings & Photos | NSN 5310-01-108-2676
Demand History | NSN 5310-01-108-2676
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST3M797C5 | 2024-08-229 | 4 | us |
| 5310-01-108-2676 | 2024-06-171 | 1 | us |
| 5310-01-108-2676 | 2016-09-258 | 1 | DIBBS-RFPs |
| 5310-01-108-2676 | 2015-08-233 | 620 | DIBBS |
| 5310-01-108-2676 | 2015-07-209 | 620 | DIBBS |
| 5310-01-108-2676 | 2013-10-291 | 1 | DIBBS-RFPs |
| 5310-01-108-2676 | 2013-09-246 | 1 | DIBBS-RFPs |
| 5310-01-108-2676 | 2010-04-109 | 361 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-108-2676
Technical Data | NSN 5310-01-108-2676
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5662 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |

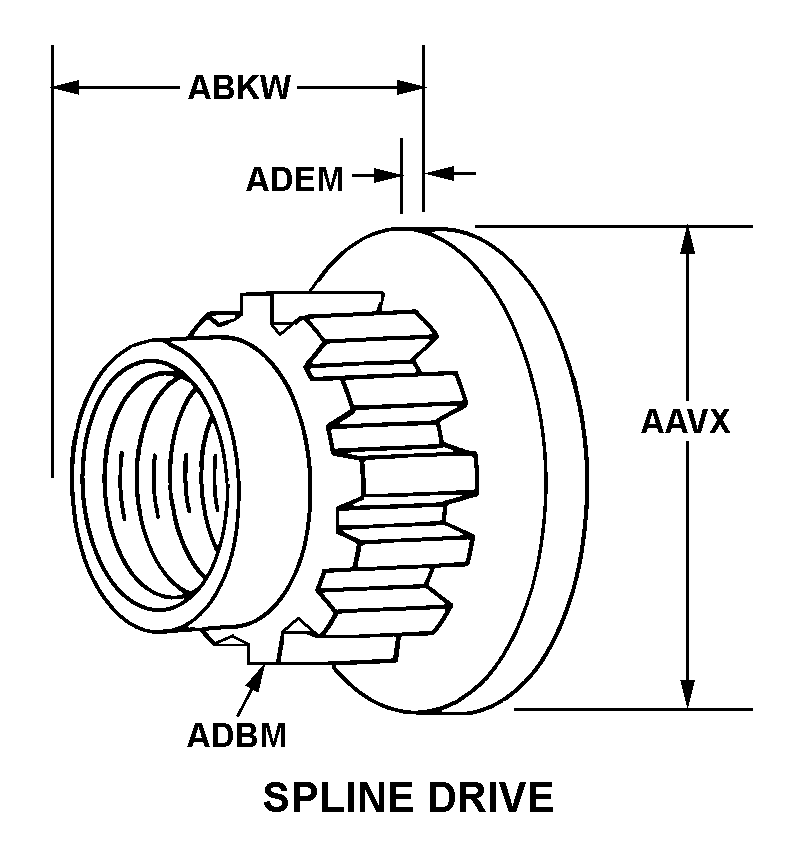

| NUT STYLE | A292 SPLINE DRIVE |
| WASHER OUTSIDE DIAMETER | 0.541 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.367 INCHES MAXIMUM |
| WASHER THICKNESS | 0.070 INCHES NOMINAL |
| DRIVE POINT QUANTITY | 12 |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-108-2676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139820 | NICKEL BOLTS/NAILS/NUTS/RIVETS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-108-2676
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
