NSN 5310-01-499-3270 MS14182L12, 01-499-3270, 014993270
Product Details | ROUND EXTENDED WASHER SELF-LOCKING NUT
5310-01-499-3270 A nut, circular in shape, having wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery. It has an integral washer which extends beyond the wrenching element periphery and an integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS14182L12, 5310-01-499-3270, 01-499-3270, 5310014993270, 014993270
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUL 2002 | 01-499-3270 | 36744 ( NUT, SELF-LOCKING, EXTENDED WASHER, ROUND ) |

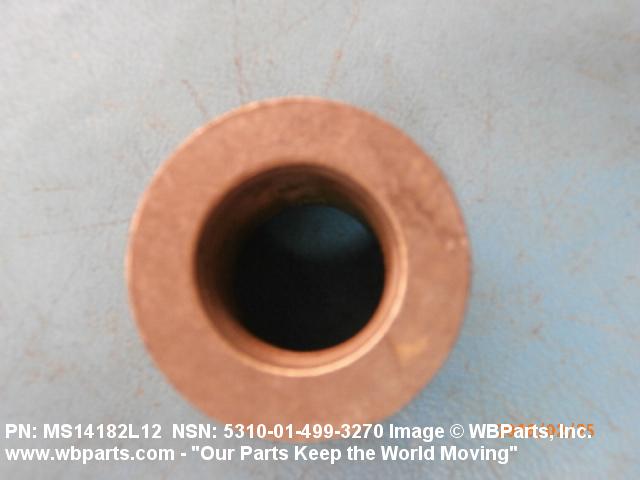

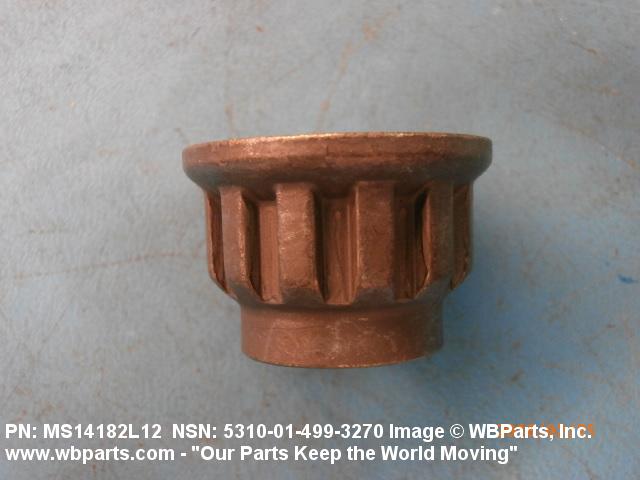

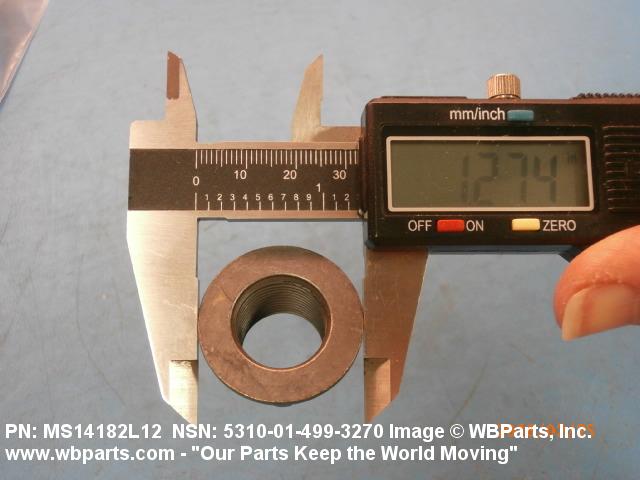

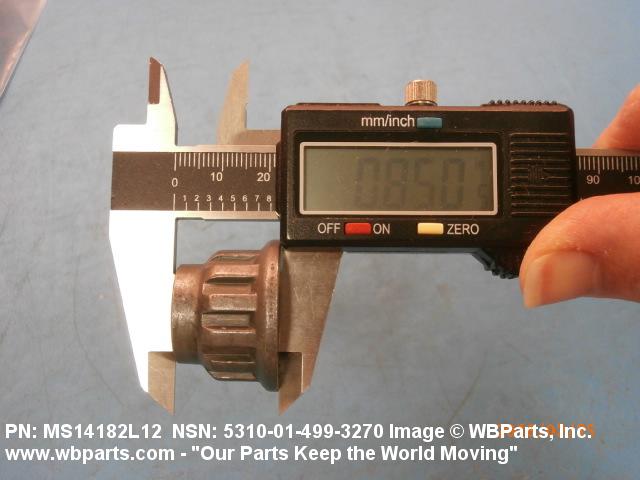

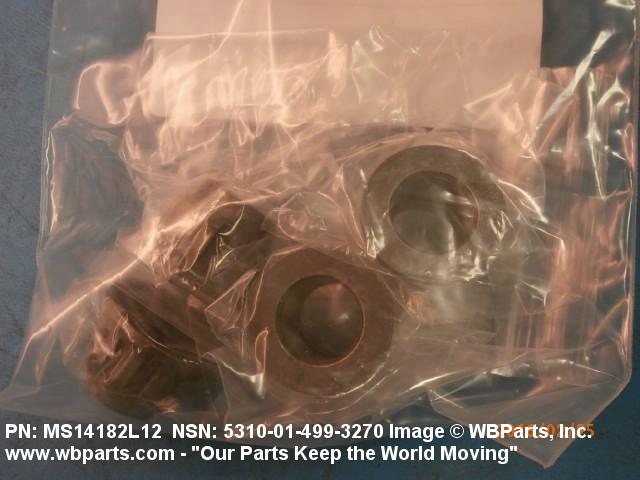

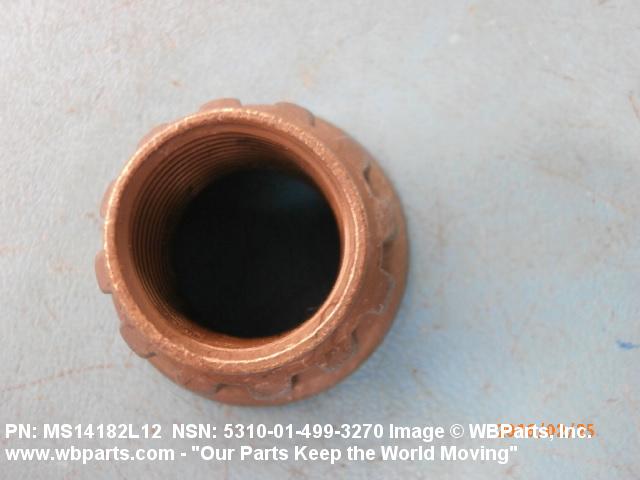

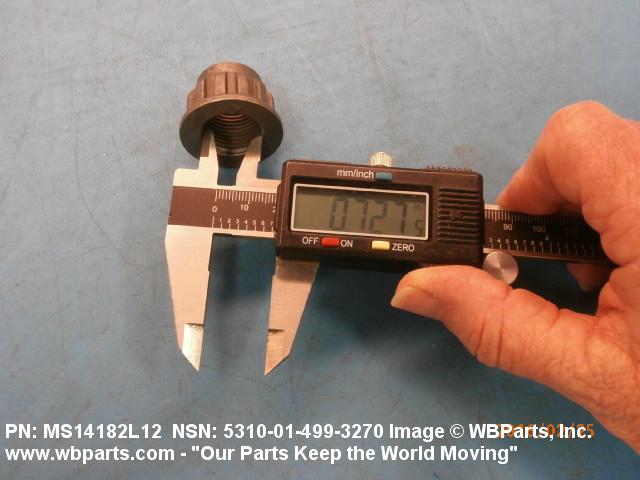

Drawings & Photos | NSN 5310-01-499-3270
Demand History | NSN 5310-01-499-3270
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS14182L12 | 2024-07-185 | 20 | Germany |
| MS14182L12 | 2024-06-163 | 40 | Germany |
| MS14182L12 | 2024-06-163 | 40 | Germany |
| 5310-01-499-3270 | 2024-02-57 | 261 | United States |
| MS14182L12 | 2023-12-362 | 40 | Germany |
| 5310-01-499-3270 | 2019-04-100 | 955 | DIBBS |
| 5310-01-499-3270 | 2018-11-332 | 2000 | DIBBS |
| 5310-01-499-3270 | 2018-10-284 | 829 | DIBBS |
| MS14182L12 | 2018-10-277 | 7 | United States |
| MS14182L12 | 2018-10-274 | 7 | United States |
| 5310-01-499-3270 | 2018-08-226 | 633 | DIBBS |
| 5310-01-499-3270 | 2018-05-142 | 574 | DIBBS |
| 5310-01-499-3270 | 2018-03-65 | 555 | DIBBS |
| 5310-01-499-3270 | 2018-01-31 | 1500 | DIBBS |
| MS14182L12 | 2017-10-299 | 100 | United States |
| 5310-01-499-3270 | 2017-10-288 | 582 | DIBBS |
| 5310-01-499-3270 | 2017-07-183 | 800 | DIBBS |
| 5310-01-499-3270 | 2017-04-100 | 551 | DIBBS |
| 5310-01-499-3270 | 2016-06-161 | 225 | DIBBS |
| 5310-01-499-3270 | 2016-05-129 | 645 | DIBBS |
| 5310-01-499-3270 | 2016-04-97 | 2000 | DIBBS |
| 5310-01-499-3270 | 2016-03-83 | 1320 | DIBBS |
| 5310-01-499-3270 | 2016-03-83 | 518 | DIBBS |
| MS14182L12 | 2016-02-35 | 4 | United States |
| 5310-01-499-3270 | 2015-09-250 | 1320 | DIBBS |
| 5310-01-499-3270 | 2015-06-179 | 548 | DIBBS |
| 5310-01-499-3270 | 2015-03-83 | 654 | DIBBS |
| 5310-01-499-3270 | 2014-11-306 | 513 | DIBBS |
| 5310-01-499-3270 | 2012-08-226 | 12 | DIBBS |
| 5310-01-499-3270 | 2012-04-110 | 3383 | DIBBS |
| 5310-01-499-3270 | 2011-11-311 | 713 | DIBBS |
| 5310-01-499-3270 | 2011-05-147 | 519 | DIBBS |
| 5310-01-499-3270 | 2011-03-84 | 270 | DIBBS |
| 5310-01-499-3270 | 2011-01-21 | 215 | DIBBS |
| 5310-01-499-3270 | 2010-06-174 | 261 | DIBBS |
| 5310-01-499-3270 | 2010-03-81 | 201 | DIBBS |
| 5310-01-499-3270 | 2010-01-26 | 210 | DIBBS |
| 5310-01-499-3270 | 2008-11-311 | 150 | DIBBS |
| 5310-01-499-3270 | 2008-08-241 | 600 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-499-3270
Related Products | NSN 5310-01-499-3270
Technical Data | NSN 5310-01-499-3270
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5662 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5663 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A292 SPLINE DRIVE |
| WASHER OUTSIDE DIAMETER | 1.296 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.860 INCHES MAXIMUM |
| WASHER THICKNESS | 0.090 INCHES MINIMUM |
| DRIVE POINT QUANTITY | 12 |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| III END ITEM IDENTIFICATION | USED ON F-22 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5310-01-499-3270
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-499-3270
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
