NSN 5310-01-102-7965 ST3M448N3M14, G10851J314, G10851J3-14
Product Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY
5310-01-102-7965 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Part Alternates: ST3M448N3M14, G10851J314, G10851J3-14, G49461314, G49461-3-14, 10122143 , 3M448N3M14, 5310-01-102-7965, 01-102-7965, 5310011027965, 011027965
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 OCT 1980 | 01-102-7965 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |

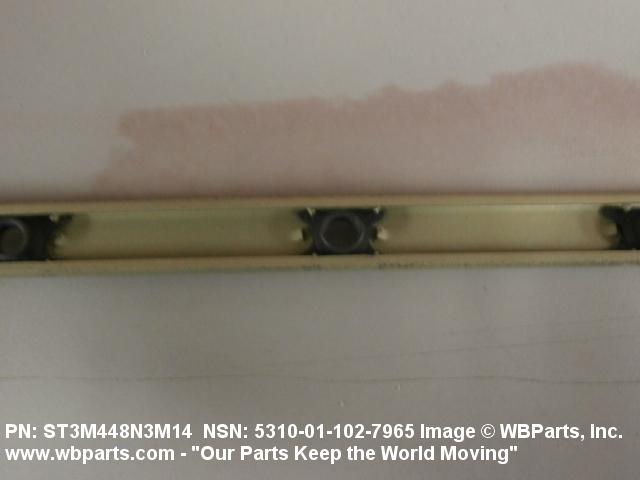

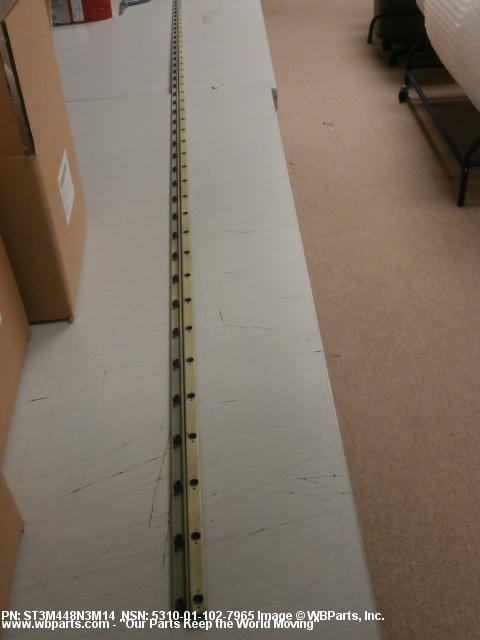

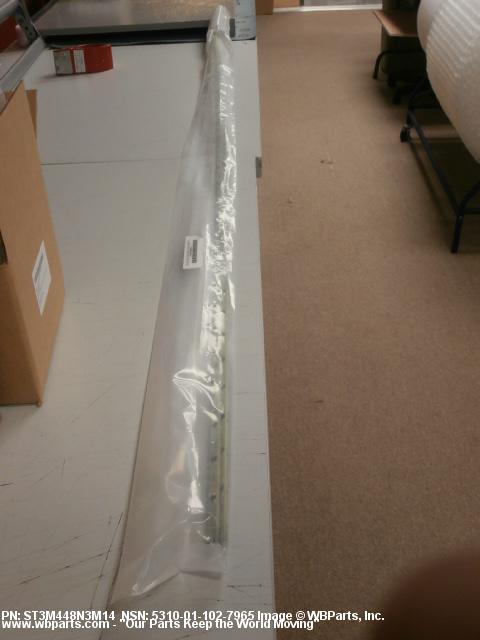

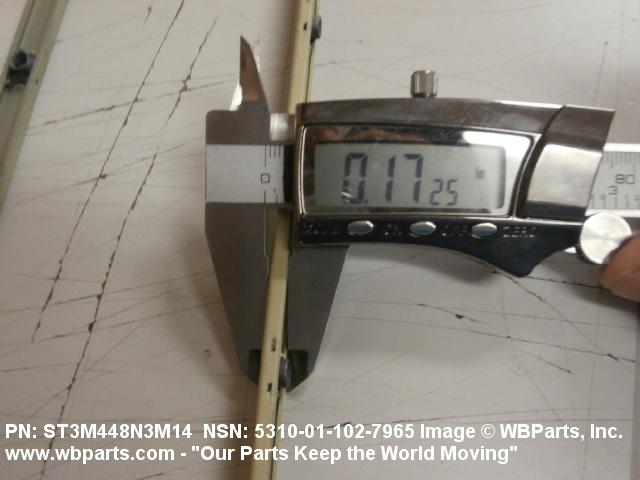

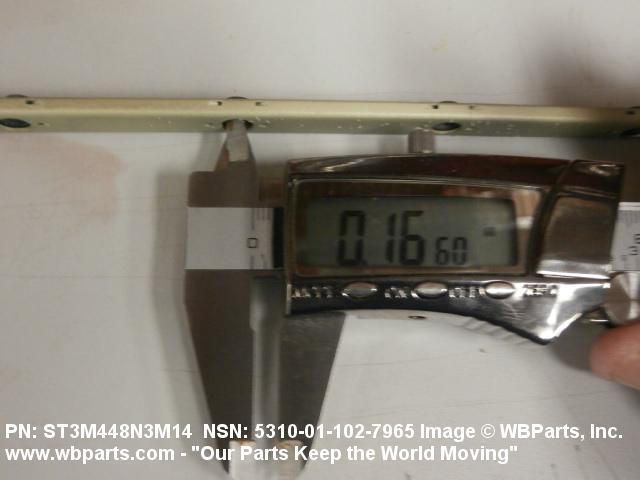

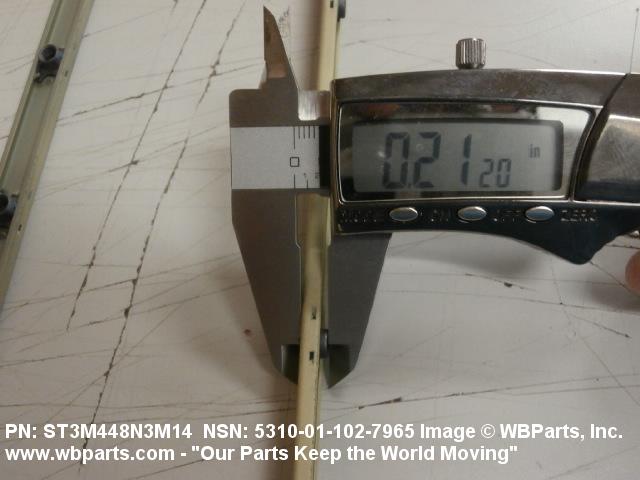

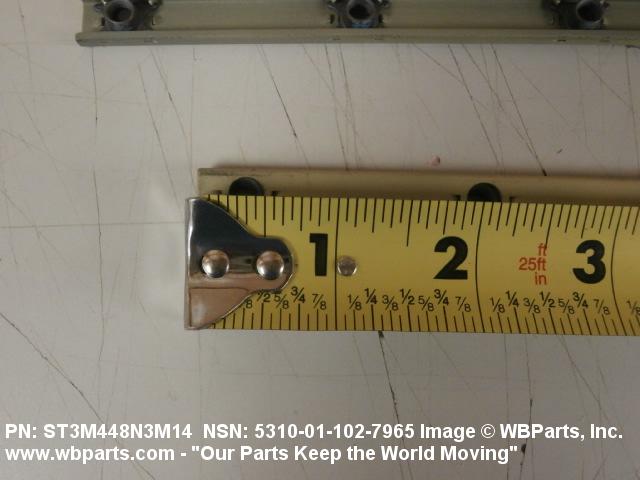

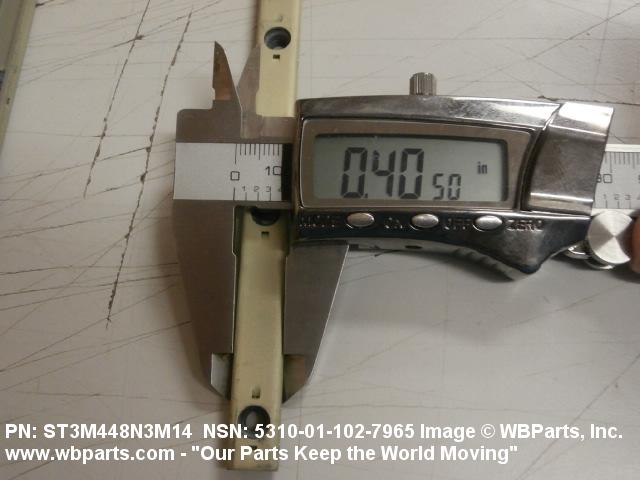

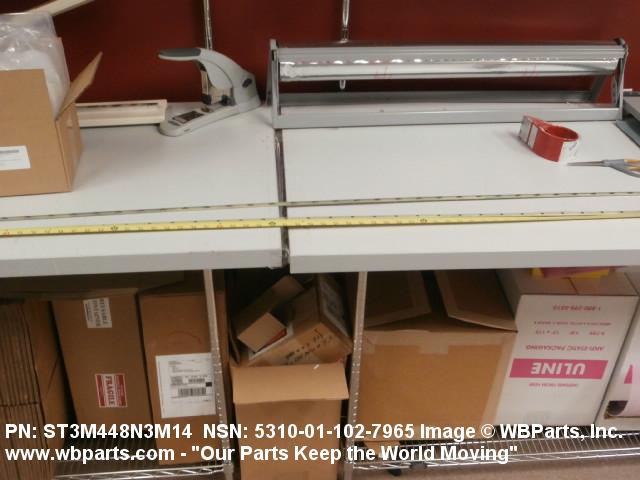

Drawings & Photos | NSN 5310-01-102-7965
Demand History | NSN 5310-01-102-7965
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| G49461-3-14 | 2020-04-02 | 25 | DIBBS |
| ST3M448N3M14 | 2020-04-02 | 25 | DIBBS |
| 5310-01-102-7965 | 2015-12-21 | 2 | us |
| 5310-01-102-7965 | 2014-04-01 | 32 | DIBBS |
| 5310-01-102-7965 | 2012-04-25 | 14 | DIBBS |
| 5310-01-102-7965 | 2012-03-21 | 8 | DIBBS |
| 5310-01-102-7965 | 2011-04-12 | 2 | DIBBS |
| 5310-01-102-7965 | 2011-01-10 | 2 | DIBBS |
| 5310-01-102-7965 | 2009-10-02 | 7 | DIBBS |
| 5310-01-102-7965 | 2009-09-02 | 2 | DIBBS |
| 5310-01-102-7965 | 2009-08-05 | 3 | DIBBS |
Cross Reference | NSN 5310-01-102-7965
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M448N3M14 | 76301 | BOEING COMPANY, THE DBA BOEING |
| G10851J3-14 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| G10851J3-14 | 72962 | HARVARD INDUSTRIES INC |
| G49461-3-14 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| ST3M448N3M14 | 27238 | BRISTOL INDUSTRIES |
| ST3M448N3M14 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M448N3M14 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-102-7965
Related Products | NSN 5310-01-102-7965
Technical Data | NSN 5310-01-102-7965
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | ANODIZE CHANNEL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE CHANNEL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
| BASE WIDTH | ANY ACCEPTABLE |
| NUT LENGTH | ANY ACCEPTABLE |
| BASE THICKNESS | ANY ACCEPTABLE |
| NUT HEIGHT | ANY ACCEPTABLE |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| CHANNEL STYLE | C1 STRAIGHT TYPE |

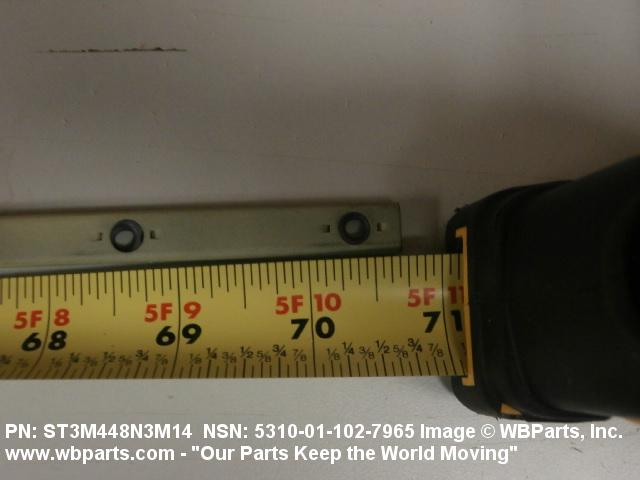

| OVERALL LENGTH | 72.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.416 INCHES MAXIMUM |
| ASSEMBLY OVERALL HEIGHT | 0.250 INCHES MAXIMUM |
| CHANNEL HEIGHT | ANY ACCEPTABLE |
| NUT SPACING | 1.740 INCHES MINIMUM AND 1.760 INCHES MAXIMUM |
| NUT QUANTITY | 41 |
| NUT COUNTERBORE DEPTH | 0.062 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | ANY ACCEPTABLE NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
Restrictions/Controls & Freight Information | NSN 5310-01-102-7965
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-102-7965
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
