NSN 5310-01-093-2480 70361-05010-102, 70361-05010-103, 01-093-2480

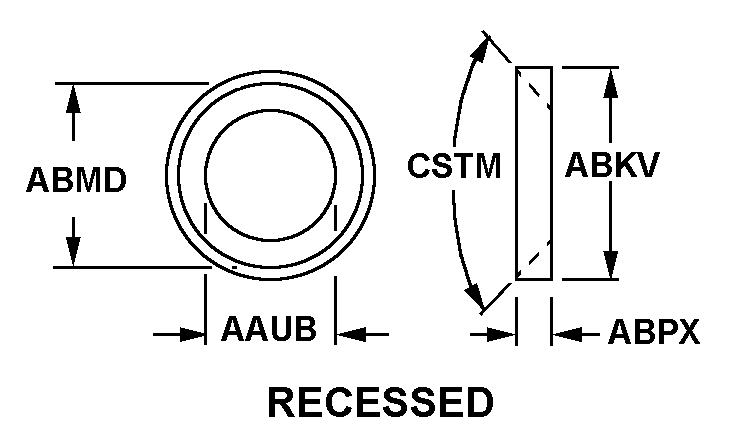

Product Details | RECESSED WASHER
5310-01-093-2480 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: 70361-05010-102, 70361-05010-103, 5310-01-093-2480, 01-093-2480, 5310010932480, 7036105010102, 7036105010103, 010932480
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 APR 1980 | 01-093-2480 | 15933 ( WASHER, RECESSED ) |

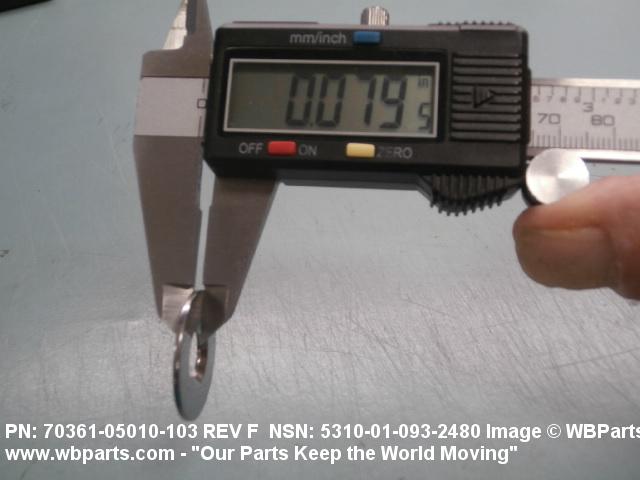

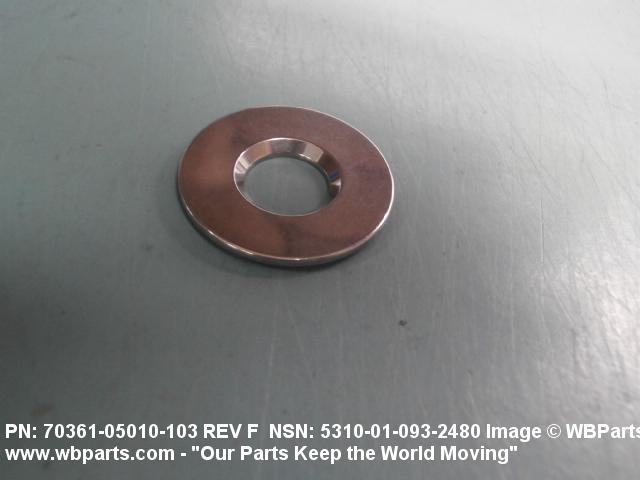

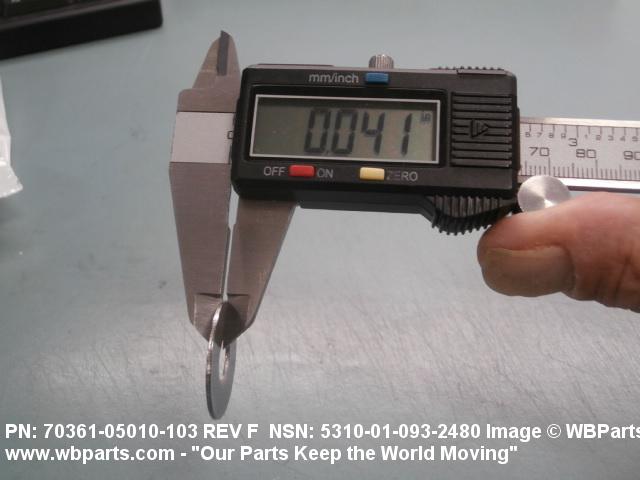

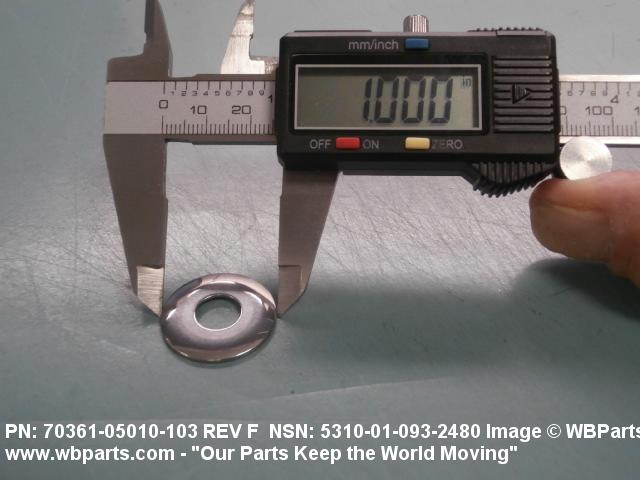

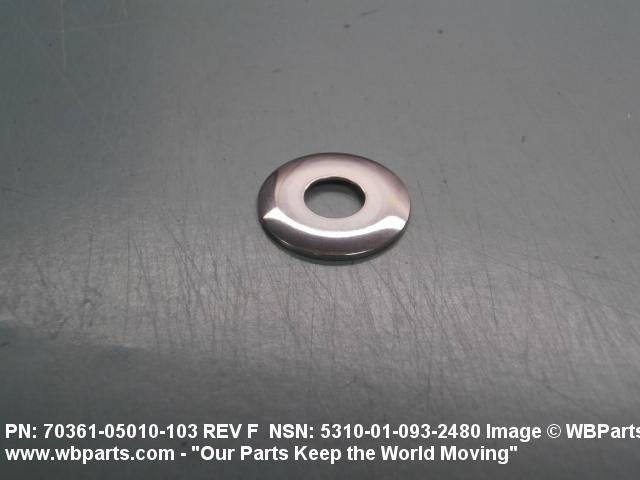

Drawings & Photos | NSN 5310-01-093-2480
Demand History | NSN 5310-01-093-2480
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-093-2480 | 2022-10-16 | 15029 | DIBBS |
| 5310-01-093-2480 | 2022-08-24 | 14 | US |
| 7036-10-501-0103 | 2022-02-08 | 4 | United States |
| 7036-10-501-0103 | 2020-09-18 | 30 | us |
| 7036-10-501-0103 | 2019-03-28 | 134 | US |
| 5310-01-093-2480 | 2018-06-22 | 1 | DIBBS-RFPs |
| 5310-01-093-2480 | 2017-03-20 | 3 | US |
| 7036-10-501-0103 | 2016-06-20 | 12 | United States |
| 5310-01-093-2480 | 2015-12-07 | 9902 | DIBBS |
| 5310-01-093-2480 | 2015-10-19 | 18893 | DIBBS |
| 5310-01-093-2480 | 2015-08-11 | 13321 | DIBBS |
| 5310-01-093-2480 | 2015-06-23 | 12091 | DIBBS |
| 5310-01-093-2480 | 2015-04-07 | 13746 | DIBBS |
| 7036-10-501-0103 | 2014-10-24 | 50 | United States |
| 7036-10-501-0103 | 2014-01-24 | 20 | United States |
| 5310-01-093-2480 | 2013-10-18 | 1 | DIBBS-RFPs |
| 5310-01-093-2480 | 2013-09-03 | 1 | DIBBS-RFPs |
| 7036-10-501-0103 | 2013-03-19 | 250 | United States |
| 5310-01-093-2480 | 2012-10-22 | 20437 | DIBBS |
| 5310-01-093-2480 | 2012-09-28 | 7989 | DIBBS |
| 5310-01-093-2480 | 2010-09-01 | 15 | Canada |
| 5310-01-093-2480 | 2009-05-22 | 25000 | DIBBS |
| 5310-01-093-2480 | 2008-10-28 | 25000 | DIBBS |
