NSN 5310-01-059-1124 MF10314BAC, MF1031-4BAC, NS103218S048

Product Details | PLATE SELF-LOCKING NUT

5310-01-059-1124 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MF10314BAC, MF1031-4BAC, NS103218S048, NS103218S-048, BACN10JN4C, BRFM20C4, T8126C4C, VN252B048, VN252B-048, 101F9201M4, 101F9201M-4, 5310-01-059-1124, 01-059-1124, 5310010591124, 010591124

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 APR 1978	01-059-1124	05280 ( NUT, SELF-LOCKING, PLATE )

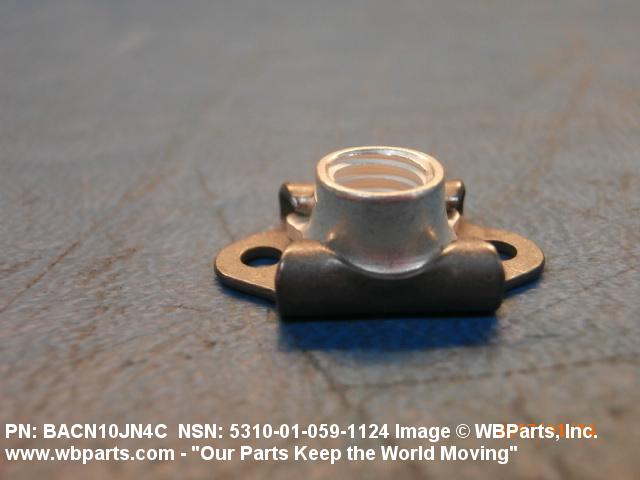

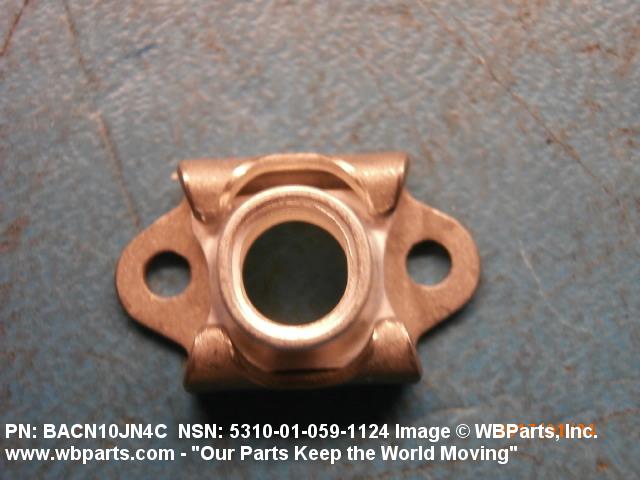

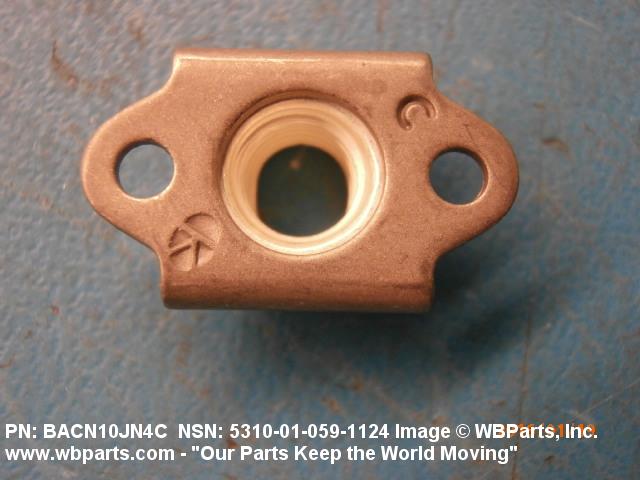

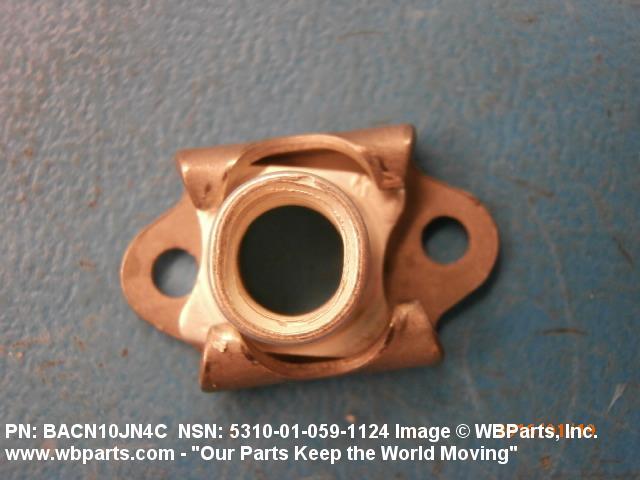

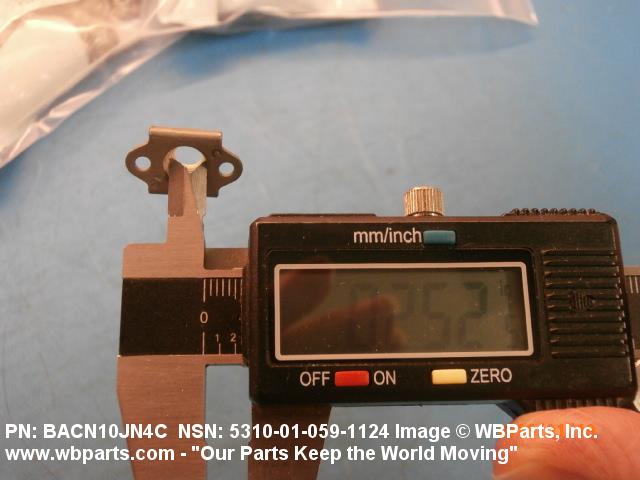

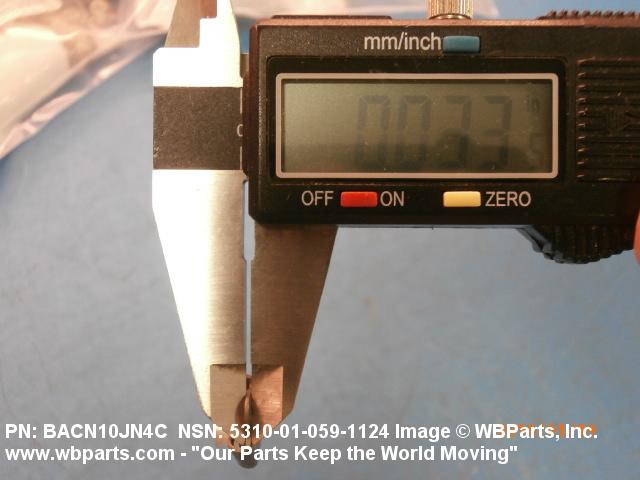

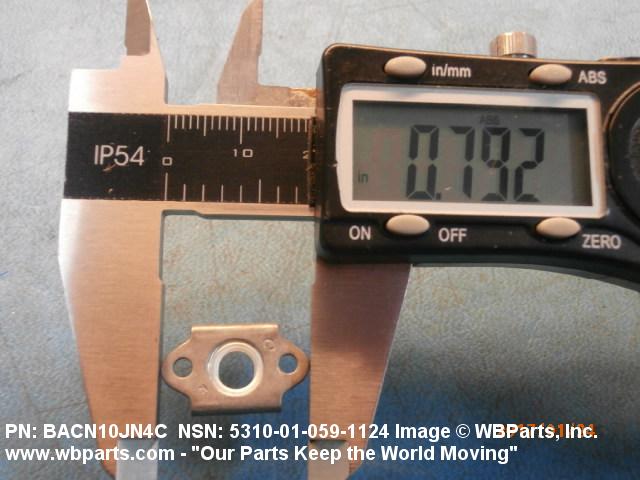

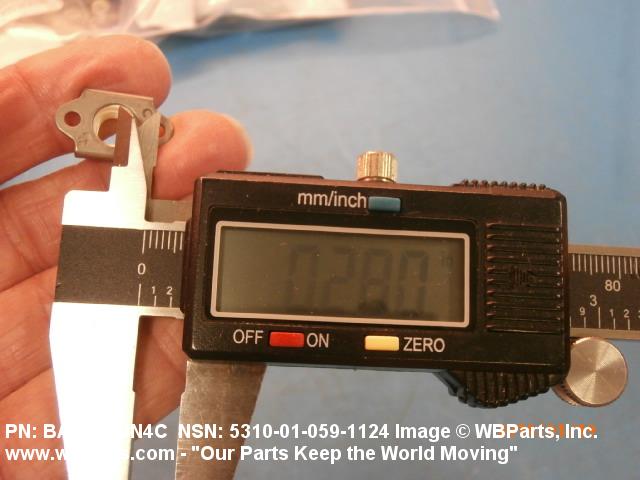

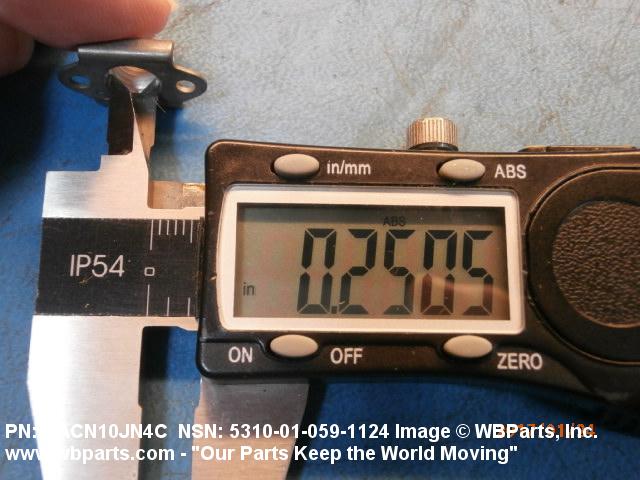

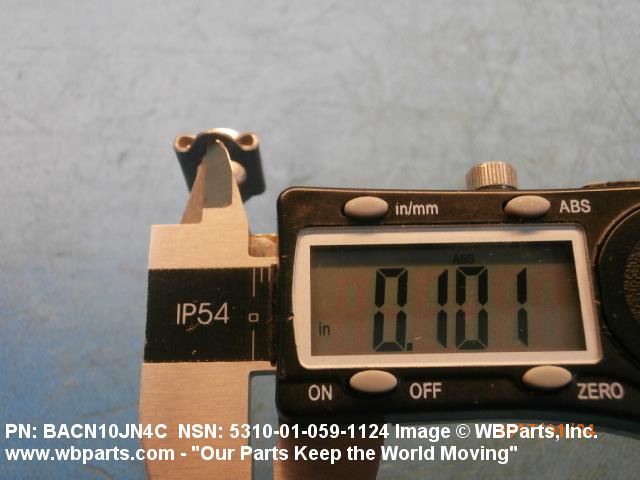

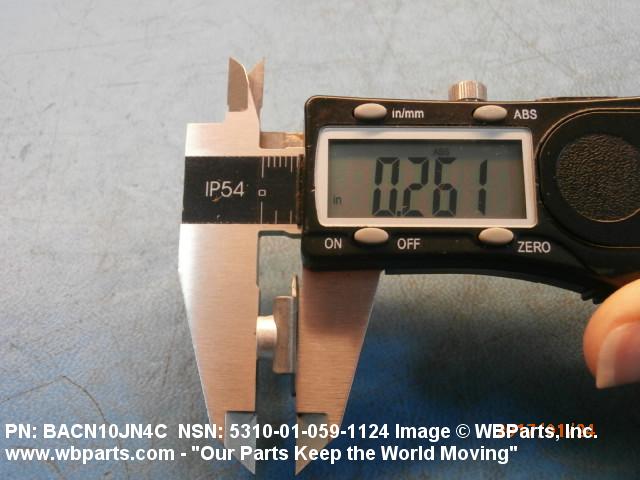

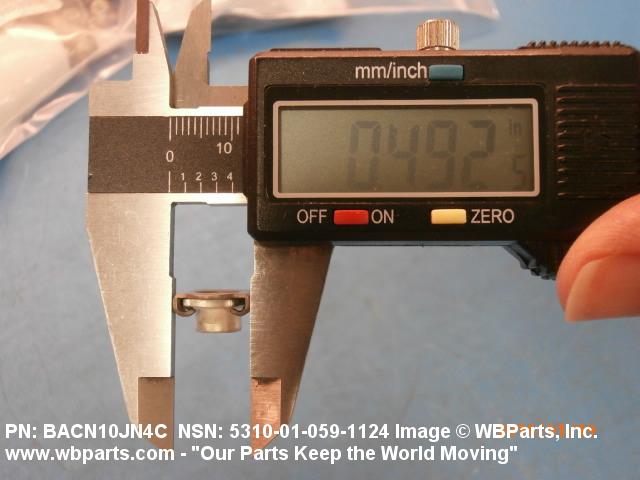

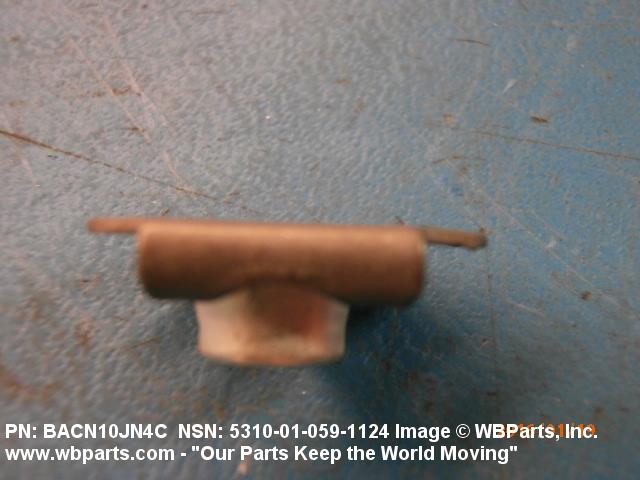

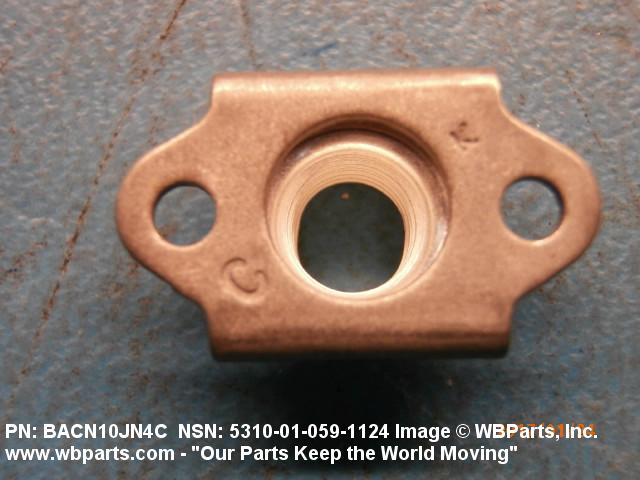

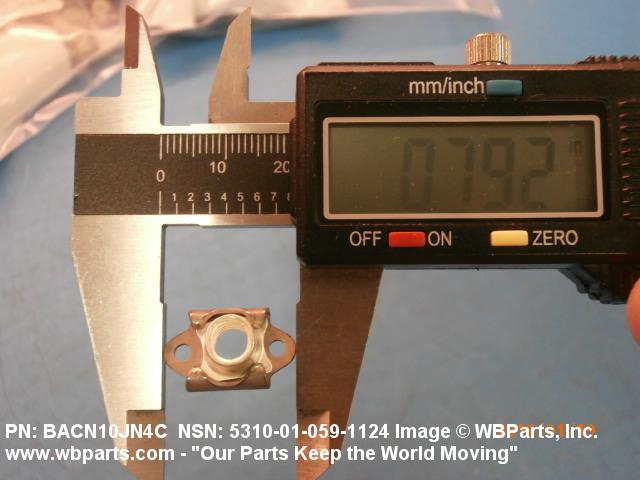

Drawings & Photos | NSN 5310-01-059-1124

Part Number	Request Date	QTY	Origin
BACN10JN4C	2024-08-225	100	United States
BACN10JN4C	2024-08-225	200	United States
BACN10JN4C	2023-09-263	640	us
5310-01-059-1124	2021-02-47	210	US
101F9201M-4	2021-02-46	210	DIBBS
BACN10JN4C	2021-02-46	210	DIBBS
BRFM20C4	2021-02-46	210	DIBBS
MF1031-4BAC	2021-02-46	210	DIBBS
NS103218S-048	2021-02-46	210	DIBBS
T8126C4C	2021-02-46	210	DIBBS
VN252B-048	2021-02-46	210	DIBBS
BACN10JN4C	2019-12-344	640	United States
5310-01-059-1124	2019-08-234	163	United States
101F9201M-4	2019-08-231	163	DIBBS
BACN10JN4C	2019-08-231	163	DIBBS
BRFM20C4	2019-08-231	163	DIBBS
MF1031-4BAC	2019-08-231	163	DIBBS
NS103218S-048	2019-08-231	163	DIBBS
T8126C4C	2019-08-231	163	DIBBS
VN252B-048	2019-08-231	163	DIBBS
BACN10JN4C	2018-12-351	640	United States
BACN10JN4C	2018-10-284	40	United States
BACN10JN4C	2018-10-284	60	United States
BACN10JN4C	2018-10-284	80	United States
BACN10JN4C	2018-10-284	100	United States
BACN10JN4C	2018-10-284	120	United States
BACN10JN4C	2018-10-284	640	United States
BACN10JN4C	2018-07-205	640	United States
BACN10JN4C	2018-04-115	640	United States
BACN10JN4C	2018-02-40	640	United States
BACN10JN4C	2017-11-325	640	United States
BACN10JN4C	2017-09-256	640	United States
BACN10JN4C	2017-07-187	640	United States
BACN10JN4C	2017-05-123	640	United States
BACN10JN4C	2017-03-79	640	United States
BACN10JN4C	2017-01-18	640	United States
BACN10JN4C	2016-01-13	640	United States
5310-01-059-1124	2015-08-216	250	DIBBS
BACN10JN4C	2014-12-350	20	United States
BACN10JN4C	2013-11-311	640	United States
BACN10JN4C	2010-11-326	100	United States
BACN10JN4C	2010-11-326	840	United States
BACN10JN4C	2010-11-307	640	United States
BACN10JN4C	2008-12-351	20	United States
5310-01-059-1124	2008-12-351	20	United States
5310-01-059-1124	2008-12-350	20	United States
5310-01-059-1124	2008-12-347	20	United States
5310-01-059-1124	2008-10-294	20	United States
5310-01-059-1124	2008-07-210	50	us
5310-01-059-1124	2008-07-206	250	us

Cross Reference | NSN 5310-01-059-1124

Part Number	Cage Code	Manufacturer
101F9201M-4	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
101F9201M-4	72962	HARVARD INDUSTRIES INC
BACN10JN4C	81205	THE BOEING COMPANY DBA BOEING
BRFM20C4	52828	REPUBLIC FASTENER MFG. CORP.
MF1031-4BAC	15653	ALCOA GLOBAL FASTENERS, INC.
NS103218S-048	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
T8126C4C	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
VN252B-048	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-059-1124

Compare

Related Products | NSN 5310-01-059-1124

5310-01-059-1125, 5310-01-059-1127, 5310-01-059-1130, 5310-01-059-1851, 5310-01-059-1853

Technical Data | NSN 5310-01-059-1124

Characteristic	Specifications

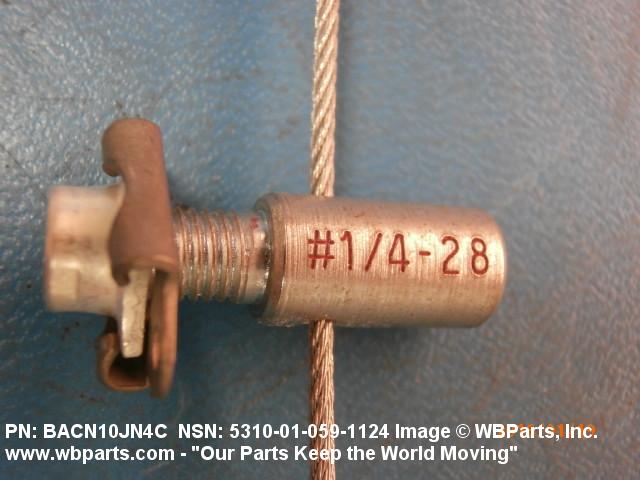

THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
SURFACE TREATMENT	SILVER OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE
NUT LENGTH	0.801 INCHES MAXIMUM

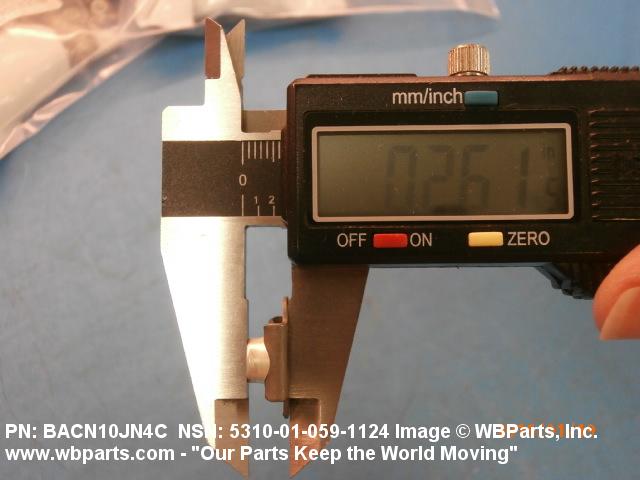

NUT HEIGHT	0.281 INCHES MAXIMUM
PLATE THICKNESS	0.140 INCHES MAXIMUM
PLATE WIDTH	0.500 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT COUNTERBORE DEPTH	0.060 INCHES MINIMUM NUT
COUNTERBORE DIAMETER	0.254 INCHES NOMINAL NUT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES

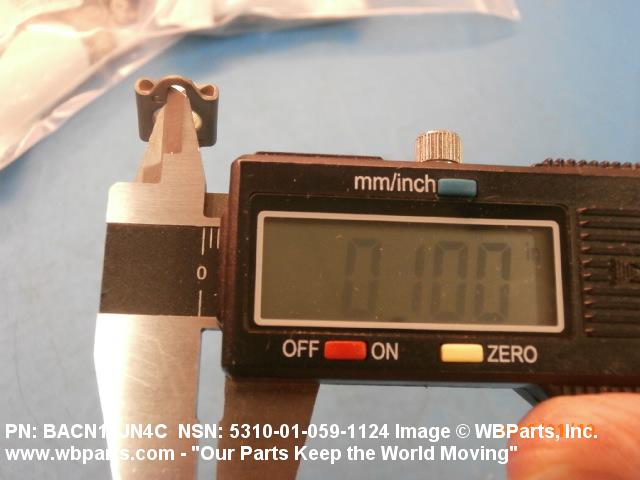

MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.276 INCHES MINIMUM AND 0.286 INCHES MAXIMUM

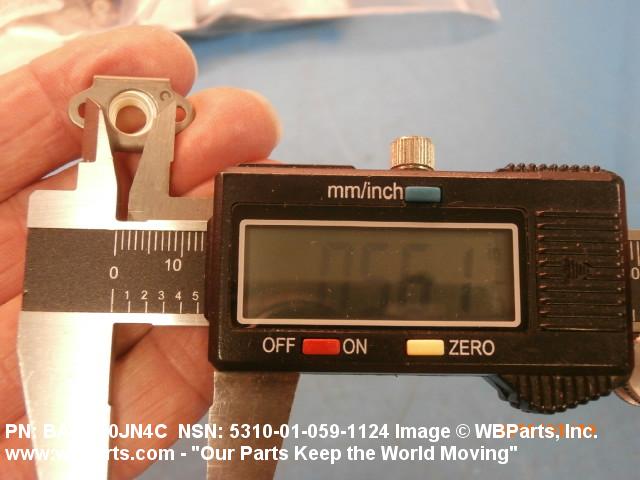

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.560 INCHES MINIMUM AND 0.564 INCHES MAXIMUM
TEMP RATING	900.0 DEG FAHRENHEIT MAXIMUM
FEATURES PROVIDED	FLOATING NUT
III PRECIOUS MATERIAL AND LOCATION	OVERALL SILVER

Restrictions/Controls & Freight Information | NSN 5310-01-059-1124

Restrictions
Freight

Category	Code	Description
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-059-1124

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
