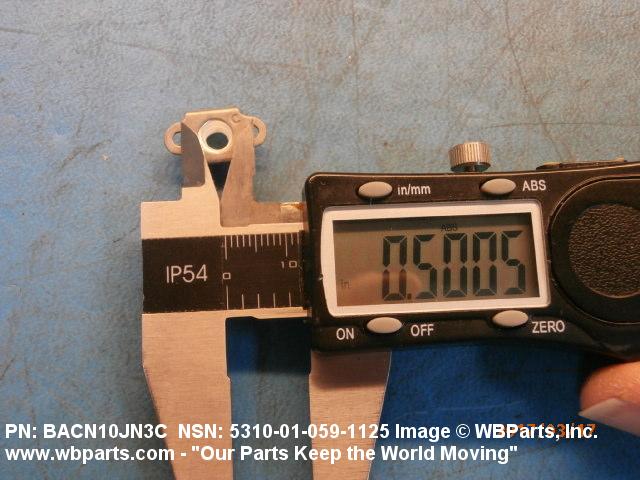

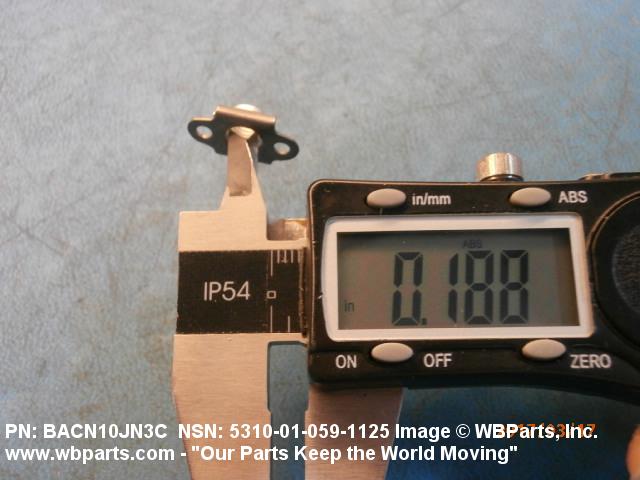

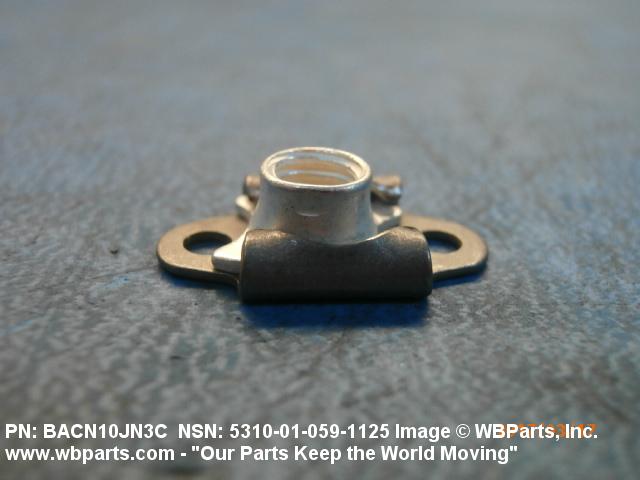

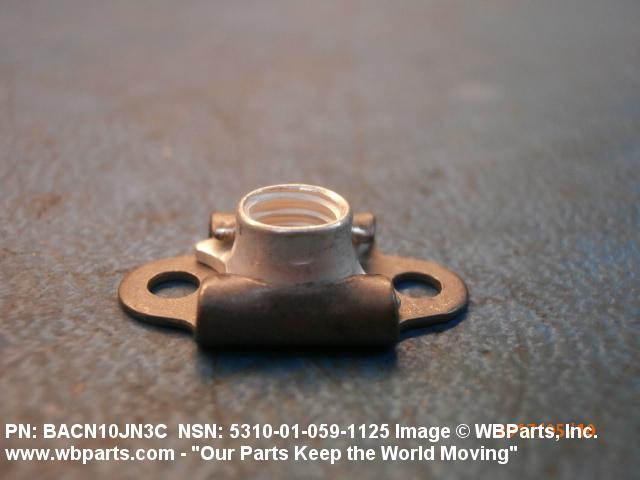

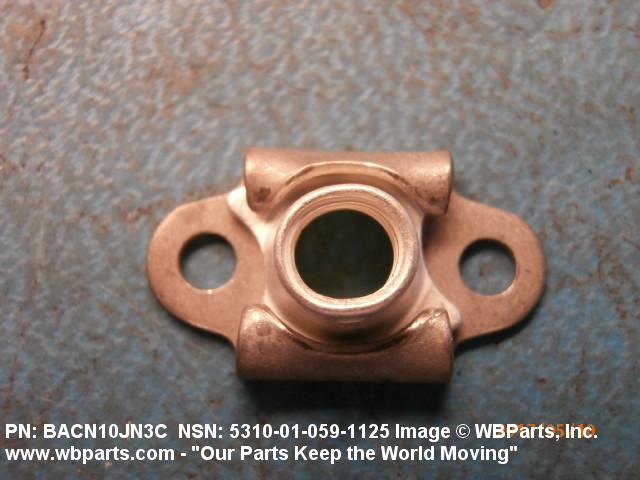

Product Details | PLATE SELF-LOCKING NUT

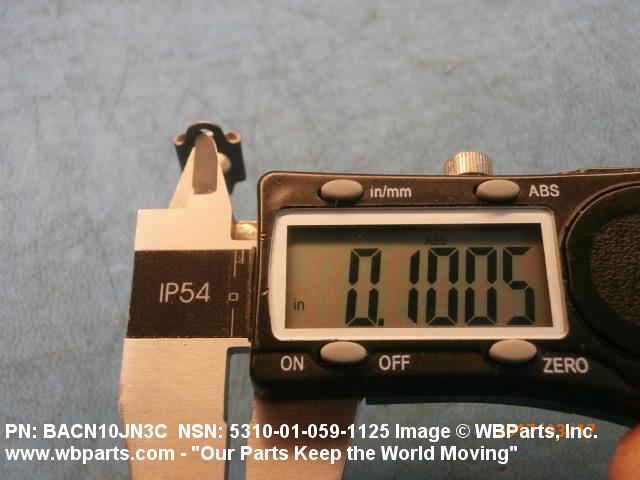

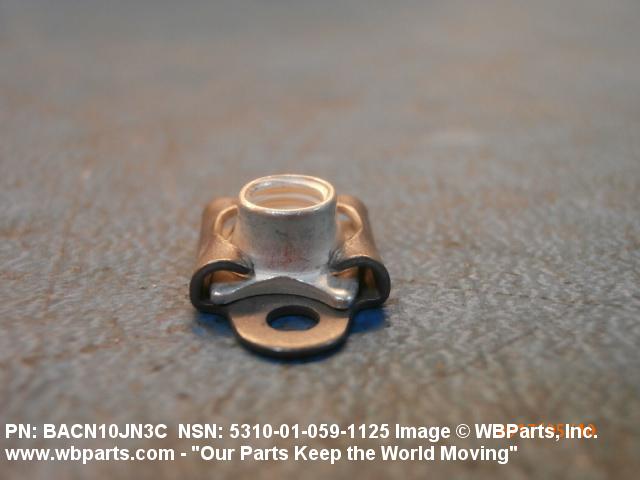

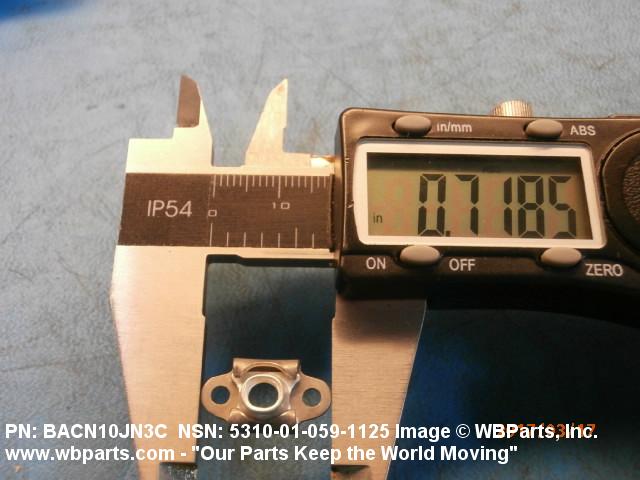

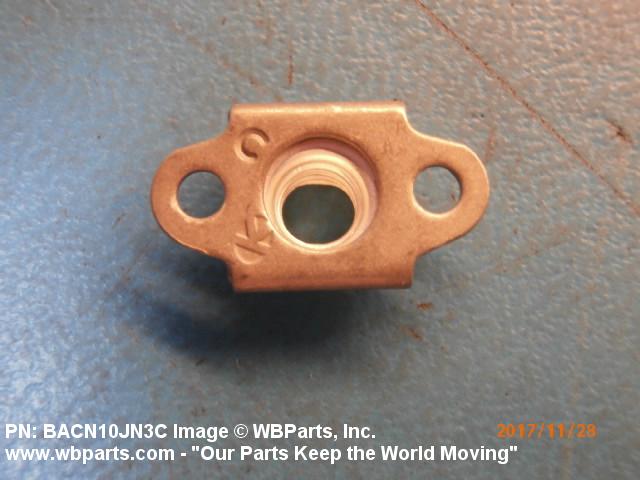

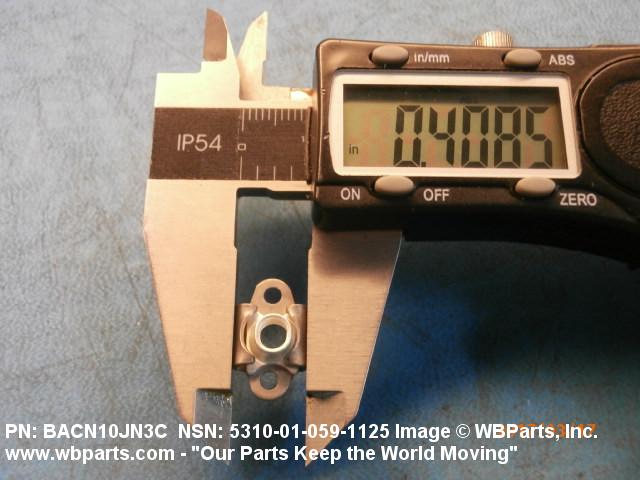

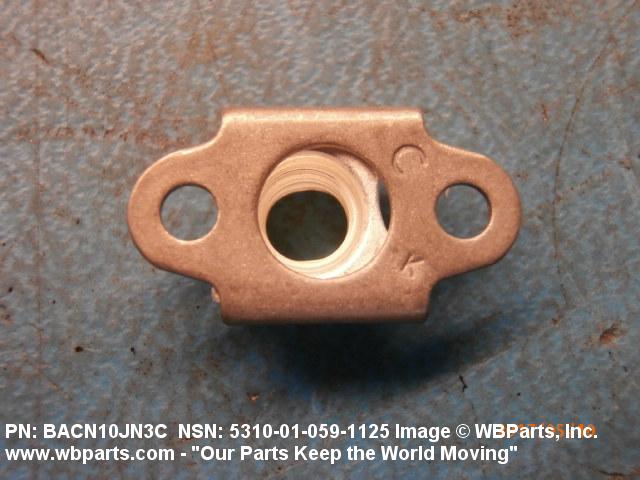

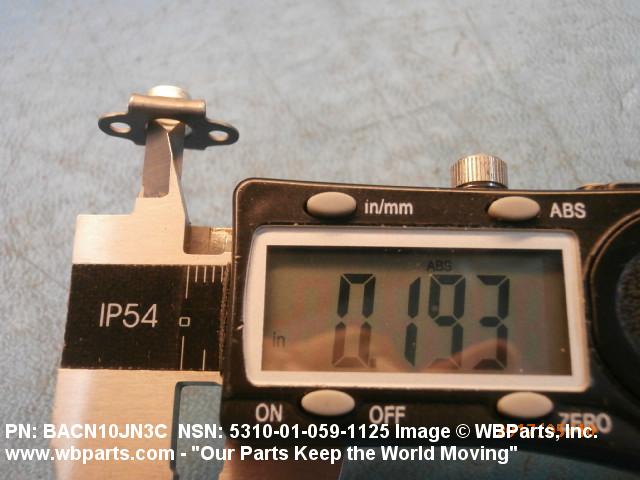

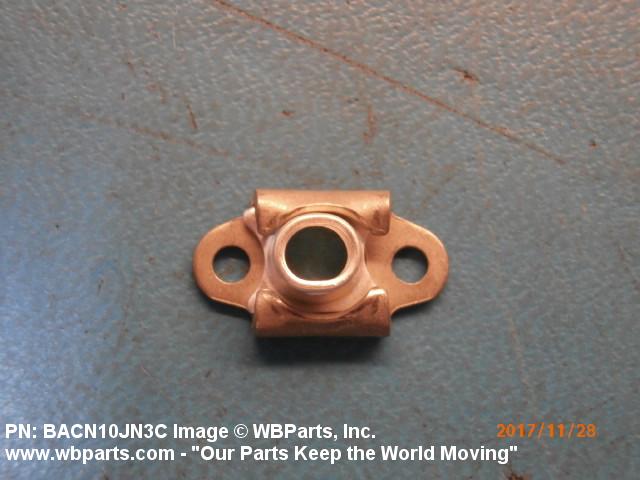

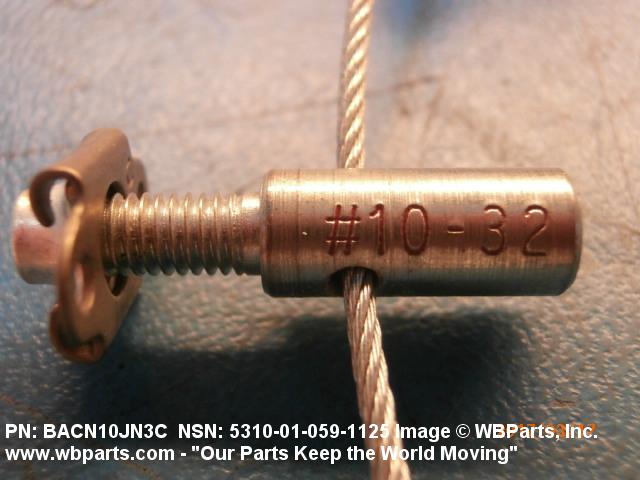

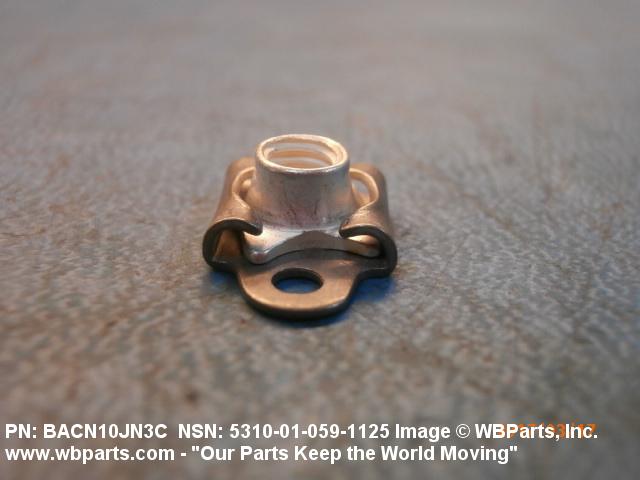

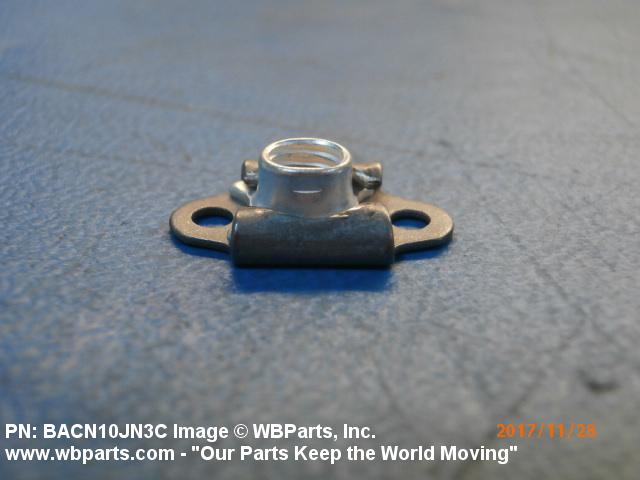

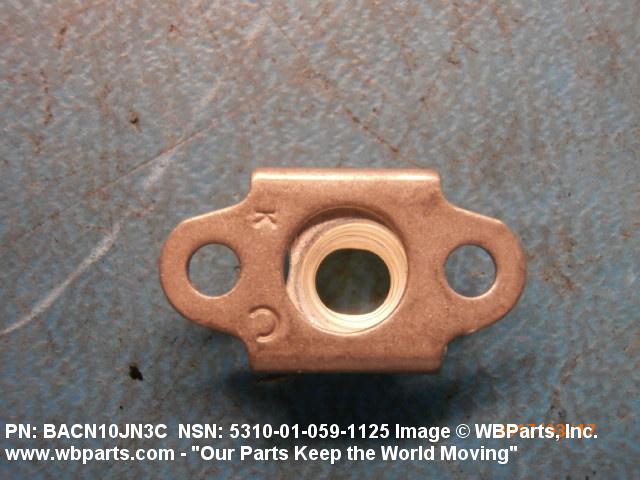

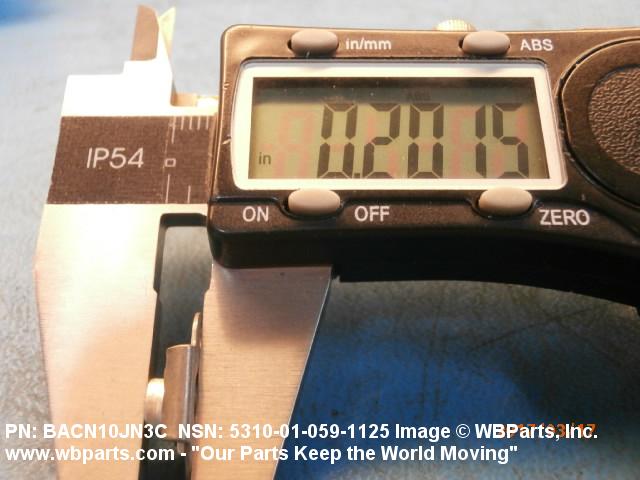

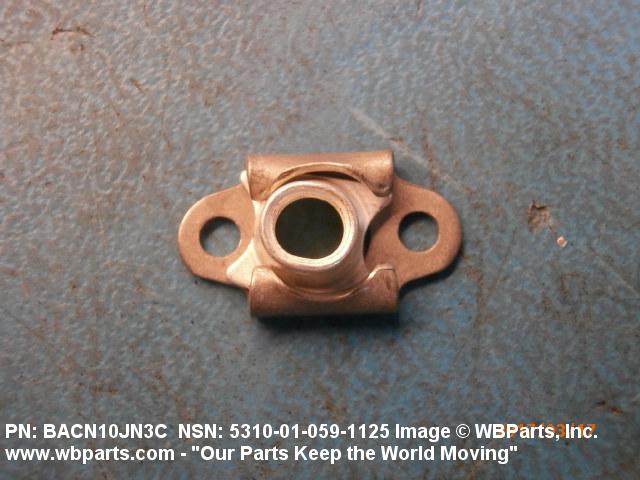

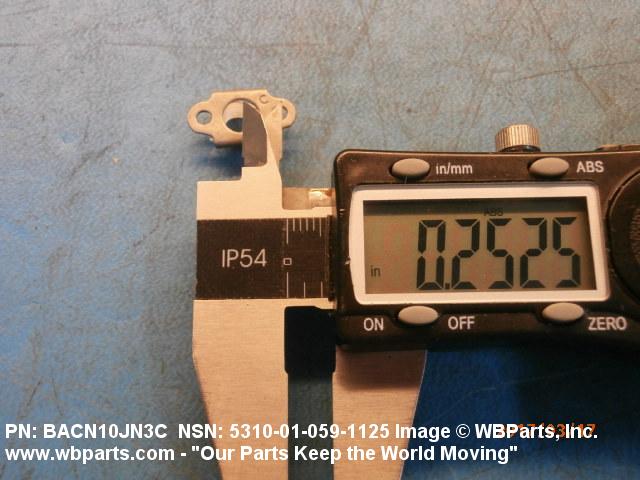

5310-01-059-1125 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
