NSN 5310-01-057-3109 MS14144L8, PHCR358M, PHCR-358M

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-01-057-3109 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS14144L8, PHCR358M, PHCR-358M, RME98688, RME9868-8, 5310-01-057-3109, 01-057-3109, 5310010573109, 010573109

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 MAR 1978	01-057-3109	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

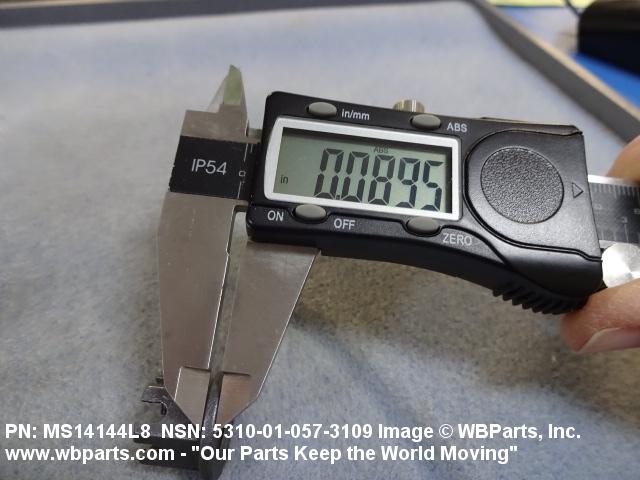

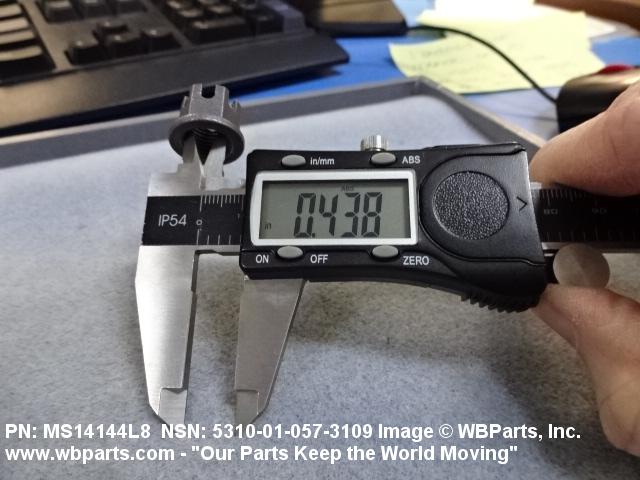

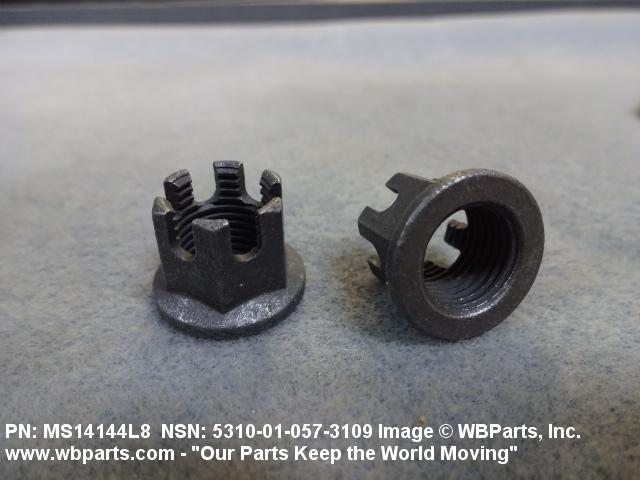

Drawings & Photos | NSN 5310-01-057-3109

Part Number	Request Date	QTY	Origin
MS14144L8	2022-12-356	100	US
MS14144L8	2022-12-354	100	China
MS14144L8	2022-02-54	50	United States
MS14144L8	2020-03-76	200	United States
MS14144L8	2019-08-219	20	Japan
5310-01-057-3109	2019-07-195	2755	DIBBS
5310-01-057-3109	2018-05-130	1	DIBBS-RFPs
5310-01-057-3109	2018-05-126	2500	DIBBS
5310-01-057-3109	2018-04-94	2773	DIBBS
5310-01-057-3109	2018-02-44	2773	United States
5310-01-057-3109	2018-02-36	2773	DIBBS
5310-01-057-3109	2017-02-53	11	MANUAL
5310-01-057-3109	2016-08-229	1720	DIBBS
MS14144L8	2016-06-173	1	United States
MS14144L8	2016-05-132	20	Thailand
5310-01-057-3109	2015-12-341	541	DIBBS
MS14144L8	2015-02-55	500	US
5310-01-057-3109	2015-02-43	2189	DIBBS
MS14144L8	2015-01-20	2	US
5310-01-057-3109	2014-11-327	261	DIBBS
5310-01-057-3109	2014-10-290	1700	DIBBS
MS14144L8	2012-10-282	500	US
MS14144L8	2012-05-131	1	US
5310-01-057-3109	2012-04-114	4	MANUAL
MS14144L8	2011-08-214	5	United States
5310-01-057-3109	2011-07-194	3938	DIBBS
5310-01-057-3109	2010-05-130	50	us
5310-01-057-3109	2009-11-327	2620	DIBBS
5310-01-057-3109	2009-11-309	100	Colombia
5310-01-057-3109	2009-10-278	2871	DIBBS
5310-01-057-3109	2009-09-271	2225	DIBBS
MS14144L8	2009-09-267	30	Colombia
5310-01-057-3109	2009-07-208	637	DIBBS
MS14144L8	2009-05-126	8	United States
5310-01-057-3109	2009-04-105	1265	DIBBS
5310-01-057-3109	2008-06-177	100	DIBBS
5310-01-057-3109	2008-06-177	133	DIBBS
5310-01-057-3109	2008-05-150	3686	DIBBS
MS14144L8	2008-03-78	10	Australia
MS14144L8	2008-03-65	10	China

Cross Reference | NSN 5310-01-057-3109

Part Number	Cage Code	Manufacturer
MS14144L8	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS14144L8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PHCR-358M	62554	ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV
RME9868-8	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RME9868-8	72962	HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-057-3109

Compare

Related Products | NSN 5310-01-057-3109

5310-01-057-3110, 5310-01-057-3111, 5310-01-057-3112, 5310-01-057-3113, 5310-01-057-3114

Technical Data | NSN 5310-01-057-3109

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.500 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A298 SLOTTED HEXAGON
WASHER OUTSIDE DIAMETER	0.770 INCHES MAXIMUM
OVERALL HEIGHT	0.548 INCHES MINIMUM AND 0.578 INCHES MAXIMUM
WASHER THICKNESS	0.070 INCHES NOMINAL
WIDTH ACROSS FLATS	0.554 INCHES MINIMUM AND 0.566 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
III BEARING SURFACE FINISH	125.0 MICROINCHES
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS14144L8

Restrictions/Controls & Freight Information | NSN 5310-01-057-3109

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-057-3109

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	F EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	F EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	F EA : Each
