Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-01-057-3110 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS14144L3, PHCR353M, PHCR-353M, RME98683, RME9868-3, 5310-01-057-3110, 01-057-3110, 5310010573110, 010573110

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 10 MAR 1978 01-057-3110

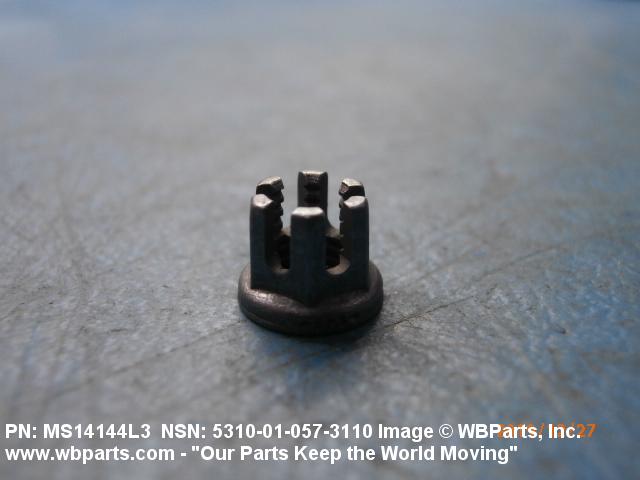

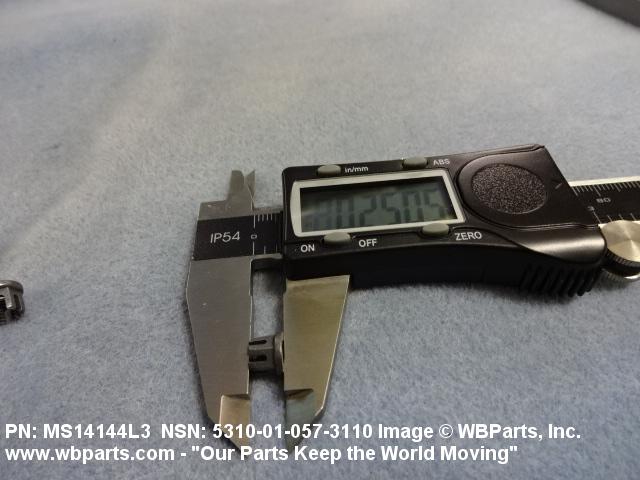

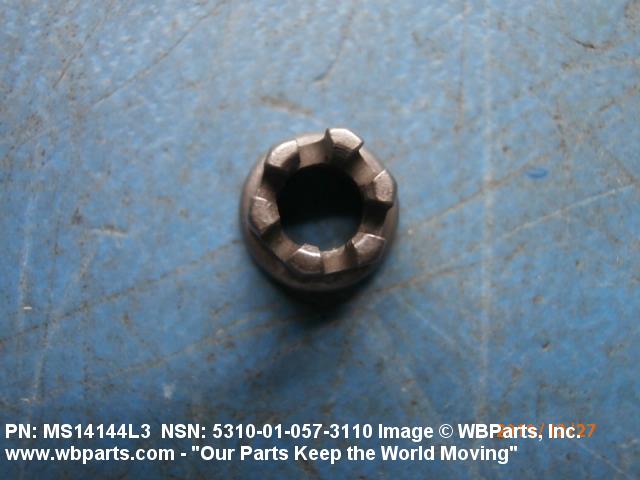

Drawings & Photos | NSN 5310-01-057-3110


Demand History | NSN 5310-01-057-3110

Part Number Request Date QTY Origin
5310-01-057-3110 2024-10-275 1 Taiwan
5310-01-057-3110 2024-03-77 2174 DIBBS
5310-01-057-3110 2023-12-351 1270 DIBBS
5310-01-057-3110 2023-08-236 1727 DIBBS
5310-01-057-3110 2023-04-106 728 DIBBS
MS14144L3 2021-04-112 5629 DIBBS
5310-01-057-3110 2020-11-309 6514 DIBBS
5310-01-057-3110 2020-11-309 1384 DIBBS
MS14144L3 2020-05-143 550 US
5310-01-057-3110 2020-03-76 19827 DIBBS
5310-01-057-3110 2018-10-304 5039 DIBBS
5310-01-057-3110 2017-07-199 14 MX
MS14144L3 2017-07-199 14 MX
5310-01-057-3110 2017-07-187 100 MANUAL
MS14144L3 2017-07-187 100 KR
MS14144L3 2016-05-131 50 Egypt
MS14144L3 2015-10-285 2 US
MS14144L3 2014-01-27 25 United States
5310-01-057-3110 2011-05-136 19177 DIBBS
MS14144L3 2010-12-341 18 Canada
5310-01-057-3110 2010-04-97 4 China
MS14144L3 2010-01-06 25 United States
5310-01-057-3110 2009-10-287 11527 DIBBS
5310-01-057-3110 2009-08-238 1 MX
5310-01-057-3110 2009-08-222 25 United States
MS14144L3 2009-04-103 65 United States
PHCR353M 2009-04-103 65 United States
5310-01-057-3110 2009-03-82 9430 DIBBS
5310-01-057-3110 2009-02-48 25 United States
5310-01-057-3110 2008-11-331 9932 DIBBS
5310-01-057-3110 2008-09-269 7827 DIBBS
5310-01-057-3110 2008-08-243 5000 DIBBS
5310-01-057-3110 2008-08-227 30 US
MS14144L3 2007-08-222 4 Canada

Cross Reference | NSN 5310-01-057-3110

Part Number Cage Code Manufacturer
MS14144L3 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS14144L3 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PHCR-353M 62554 ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV
RME9868-3 019L2 MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RME9868-3 72962 HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-057-3110

Technical Data | NSN 5310-01-057-3110

Characteristic Specifications
THREAD SERIES UNJF
NOMINAL THREAD SIZE 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING NOT RATED
NUT STYLE A298 SLOTTED HEXAGON
WASHER OUTSIDE DIAMETER 0.325 INCHES MAXIMUM
OVERALL HEIGHT 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM
WASHER THICKNESS 0.025 INCHES NOMINAL
WIDTH ACROSS FLATS 0.243 INCHES MINIMUM AND 0.252 INCHES MAXIMUM
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION DRY FILM LUBRICANT
TEMP RATING 450.0 DEG FAHRENHEIT MAXIMUM
III BEARING SURFACE FINISH 125.0 MICROINCHES
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS14144L3

Restrictions/Controls & Freight Information | NSN 5310-01-057-3110

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:FThe item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-01-057-3110

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
