NSN 5310-01-051-5532 BACW10BP6AC, 01-051-5532, 010515532
Product Details | RECESSED WASHER
5310-01-051-5532 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: BACW10BP6AC, 5310-01-051-5532, 01-051-5532, 5310010515532, 010515532
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 DEC 1977 | 01-051-5532 | 15933 ( WASHER, RECESSED ) |

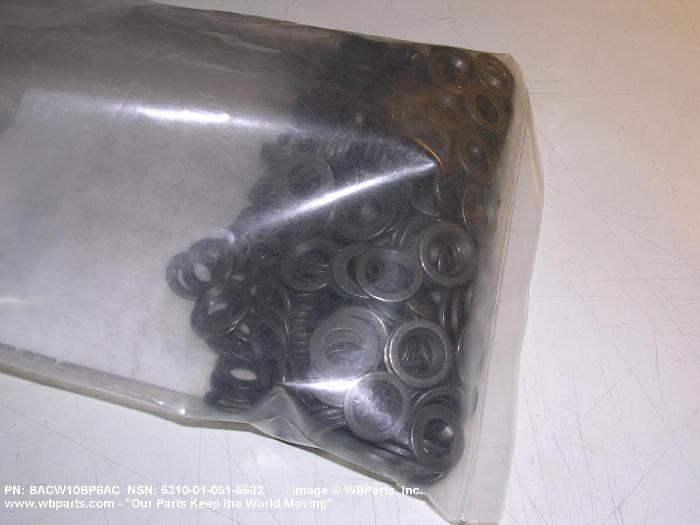

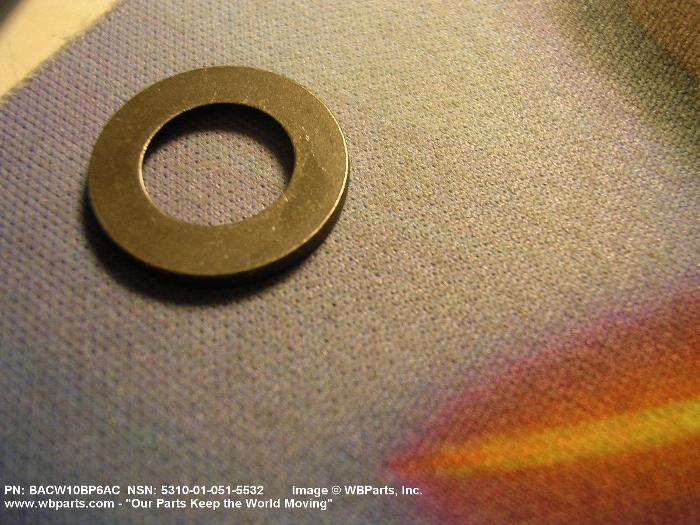

Drawings & Photos | NSN 5310-01-051-5532
Demand History | NSN 5310-01-051-5532
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACW10BP6AC | 2015-09-266 | 100 | United States |
| BACW10BP6AC | 2007-12-354 | 400 | United States |
Cross Reference | NSN 5310-01-051-5532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACW10BP6AC | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-051-5532
Technical Data | NSN 5310-01-051-5532
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | NICKEL AND CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2416 ASSN STD SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | NOT RATED |
| HOLE DIAMETER | 0.376 INCHES MINIMUM AND 0.387 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.649 INCHES MINIMUM AND 0.669 INCHES MAXIMUM |
| RECESS DIAMETER | 0.489 INCHES MINIMUM AND 0.509 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.057 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| RECESS ANGLE | 90.0 DEGREES MINIMUM AND 100.0 DEGREES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 81205-BACW10BP MANUFACTURERS STANDARD |
| III MINIMUM TENSILE STRENGTH | 140000 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 5310-01-051-5532
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
