Product Details | PLATE SELF-LOCKING NUT

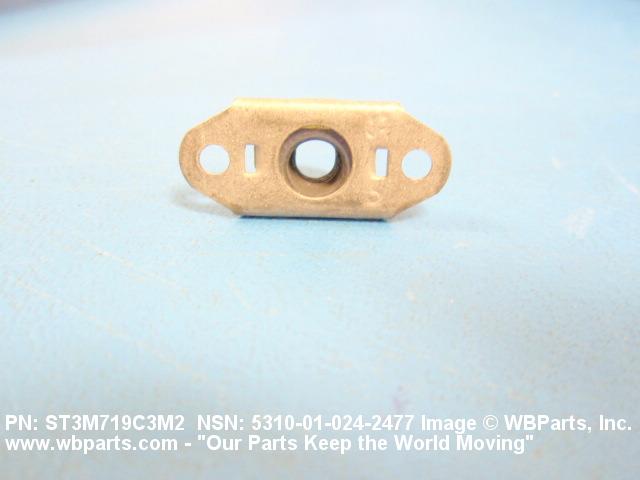

5310-01-024-2477 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MCRF220C3M2 , NS2022110202, NS202211-02-02, NS202211022, NS202211-02-2, ST3M719C3M2, BFN719C3M2, F1209023, F12090-2-3, F5033932, F50339-3-2, 10121986 , 5310-01-024-2477, 01-024-2477, 5310010242477, 010242477
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 JUL 1976 | 01-024-2477 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-01-024-2477
Demand History | NSN 5310-01-024-2477
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BFN719C3M2 | 2024-10-289 | 2223 | DIBBS |
| F50339-3-2 | 2024-10-289 | 2223 | DIBBS |
| MCRF220C3M2 | 2024-10-289 | 2223 | DIBBS |
| NS202211-02-02 | 2024-10-289 | 2223 | DIBBS |
| NS202211-02-2 | 2024-10-289 | 2223 | DIBBS |
| ST3M719C3M2 | 2024-07-194 | 80 | VI |
| ST3M719C3M2 | 2024-07-194 | 48 | VI |
| BFN719C3M2 | 2023-09-260 | 533 | DIBBS |
| F50339-3-2 | 2023-09-260 | 533 | DIBBS |
| MCRF220C3M2 | 2023-09-260 | 533 | DIBBS |
| NS202211-02-02 | 2023-09-260 | 533 | DIBBS |
| NS202211-02-2 | 2023-09-260 | 533 | DIBBS |
| BFN719C3M2 | 2023-06-170 | 663 | DIBBS |
| F50339-3-2 | 2023-06-170 | 663 | DIBBS |
| MCRF220C3M2 | 2023-06-170 | 663 | DIBBS |
| NS202211-02-02 | 2023-06-170 | 663 | DIBBS |
| NS202211-02-2 | 2023-06-170 | 663 | DIBBS |
| BFN719C3M2 | 2023-02-51 | 762 | DIBBS |
| F50339-3-2 | 2023-02-51 | 762 | DIBBS |
| MCRF220C3M2 | 2023-02-51 | 762 | DIBBS |
| NS202211-02-02 | 2023-02-51 | 762 | DIBBS |
| NS202211-02-2 | 2023-02-51 | 762 | DIBBS |
| 5310-01-024-2477 | 2022-03-83 | 24 | US |
| 5310-01-024-2477 | 2020-06-157 | 1 | DIBBS-RFPs |
| 5310-01-024-2477 | 2020-05-122 | 1 | DIBBS-RFPs |
| ST3M719C3M2 | 2018-12-339 | 60 | United States |
| 5310-01-024-2477 | 2013-10-291 | 1 | DIBBS-RFPs |
| 5310-01-024-2477 | 2013-09-246 | 1 | DIBBS-RFPs |
| ST3M719C3M2 | 2012-04-96 | 39 | US |
| ST3M719C3M2 | 2010-03-75 | 40 | United States |
| ST3M719C3M2 | 2009-02-49 | 24 | United States |
Cross Reference | NSN 5310-01-024-2477
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BFN719C3M2 | 27238 | BRISTOL INDUSTRIES |
| F12090-2-3 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F12090-2-3 | 72962 | HARVARD INDUSTRIES INC |
| F50339-3-2 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| MCRF220C3M2 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| NS202211-02-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NS202211-02-2 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M719C3M2 | 76301 | BOEING COMPANY, THE DBA BOEING |
