NSN 5310-01-024-2478 NS202184022, NS202184-02-2, ST3M720C3M2

Product Details | PLATE SELF-LOCKING NUT

5310-01-024-2478 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: NS202184022, NS202184-02-2, ST3M720C3M2, F1208923, F12089-2-3, F5034032, F50340-3-2, 10121987 , 3929AS1229C3M2, 3929AS1229-C3M2 , 5310-01-024-2478, 01-024-2478, 5310010242478, 010242478

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	07 JUL 1976	01-024-2478	05280 ( NUT, SELF-LOCKING, PLATE )

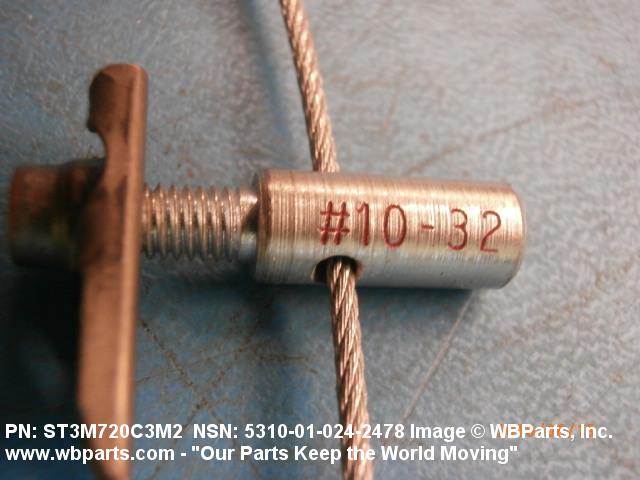

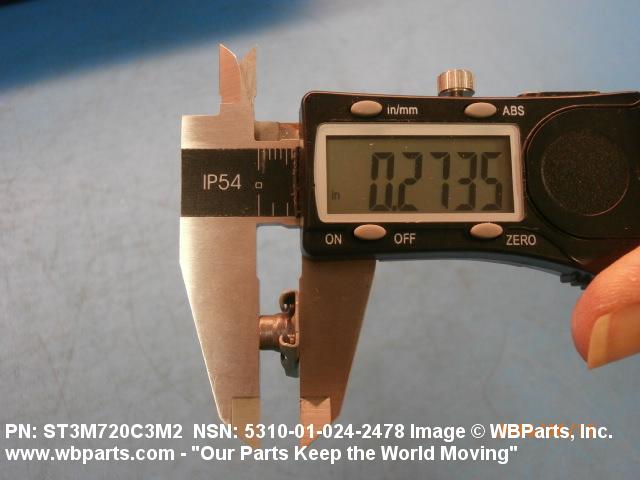

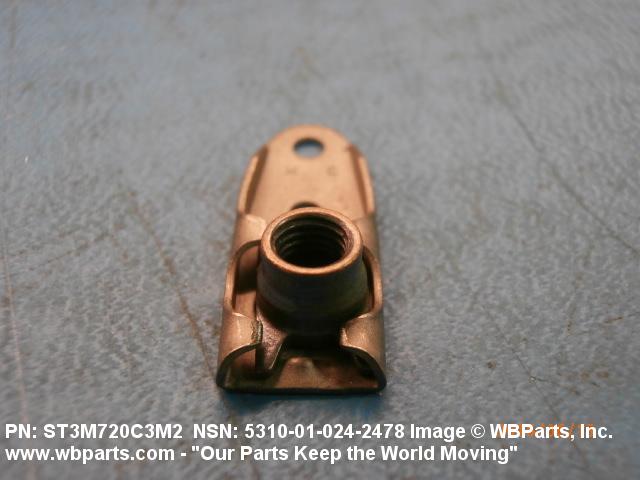

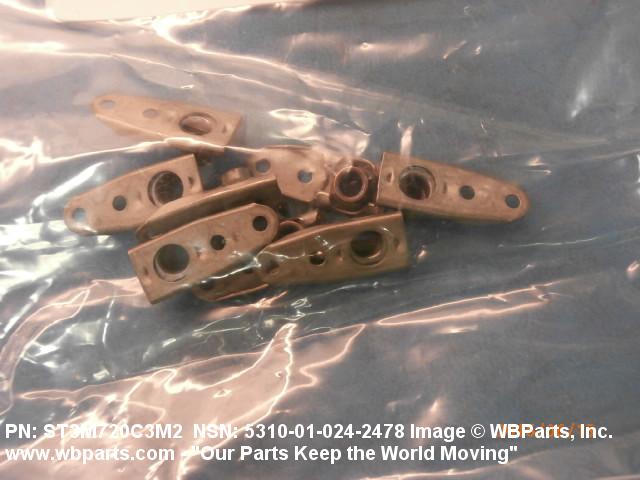

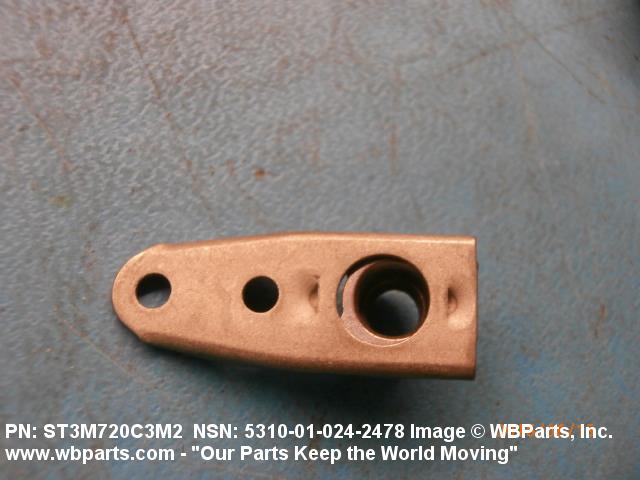

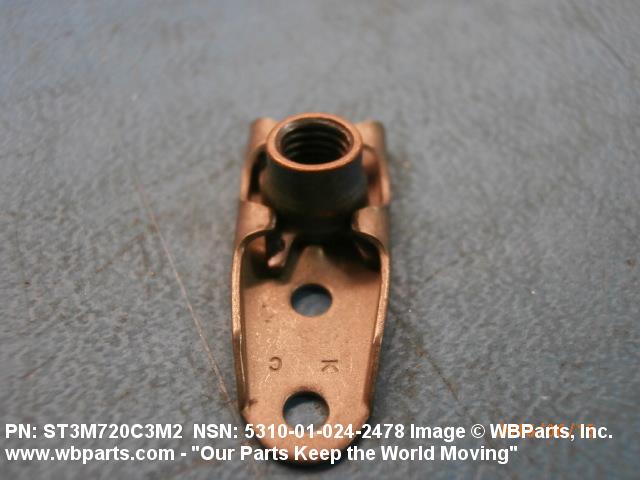

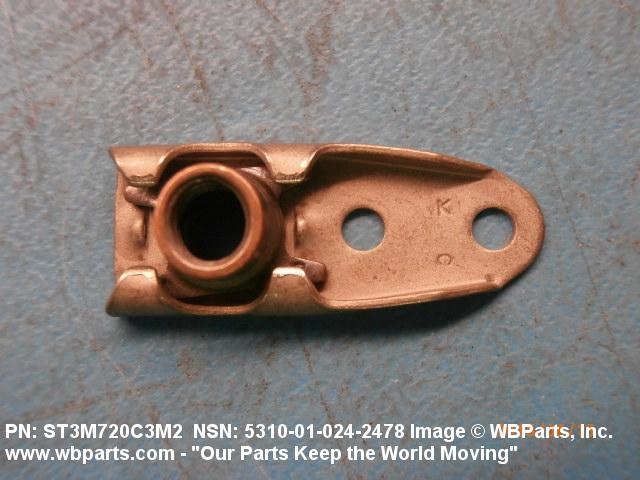

Drawings & Photos | NSN 5310-01-024-2478

Part Number	Request Date	QTY	Origin
F5034032	2021-04-103	20	US
5310-01-024-2478	2018-07-193	200	SA
3929AS1229-C3M2	2018-07-192	200	United States
5310-01-024-2478	2018-07-192	200	MANUAL
ST3M720C3M2	2016-06-161	10	United States
ST3M720C3M2	2015-06-168	8	United States
ST3M720C3M2	2014-01-28	15	United States
ST3M720C3M2	2012-04-101	24	US
ST3M720C3M2	2012-04-96	1	US
5310-01-024-2478	2010-02-34	7305	DIBBS
5310-01-024-2478	2009-07-195	5179	DIBBS
5310-01-024-2478	2008-09-260	3685	DIBBS
5310-01-024-2478	2008-05-133	5311	DIBBS

Cross Reference | NSN 5310-01-024-2478

Part Number	Cage Code	Manufacturer
3929AS1229-C3M2	30003	NAVAL AIR SYSTEMS COMMAND
F12089-2-3	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
F12089-2-3	72962	HARVARD INDUSTRIES INC
F12089-2-3	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
F50340-3-2	15653	ALCOA GLOBAL FASTENERS, INC.
NS202184-02-2	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
ST3M720C3M2	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-024-2478

Compare

Related Products | NSN 5310-01-024-2478

5310-01-024-2480, 5310-01-024-2482, 5310-01-024-2483, 5310-01-024-2485, 5310-01-024-2487

Technical Data | NSN 5310-01-024-2478

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A124 PLATE

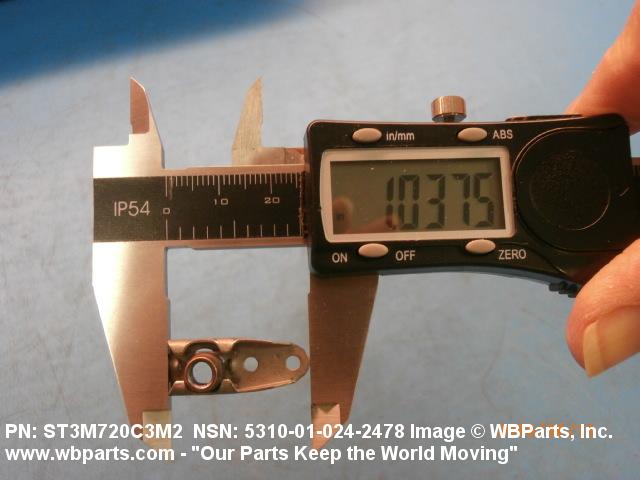

NUT LENGTH	1.051 INCHES MAXIMUM
NUT HEIGHT	0.312 INCHES MAXIMUM

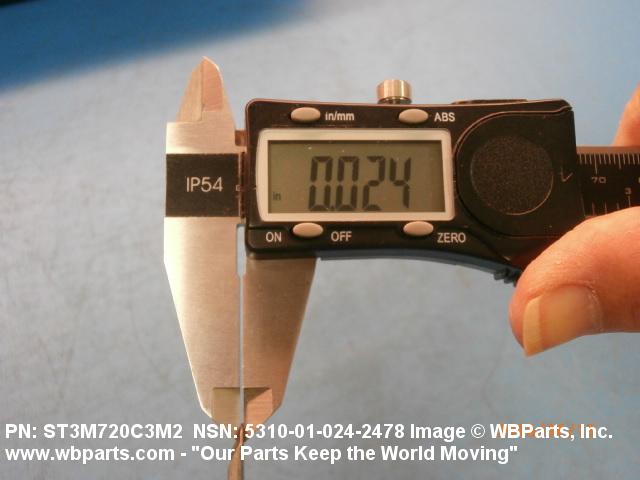

PLATE THICKNESS	0.015 INCHES MINIMUM AND 0.035 INCHES MAXIMUM

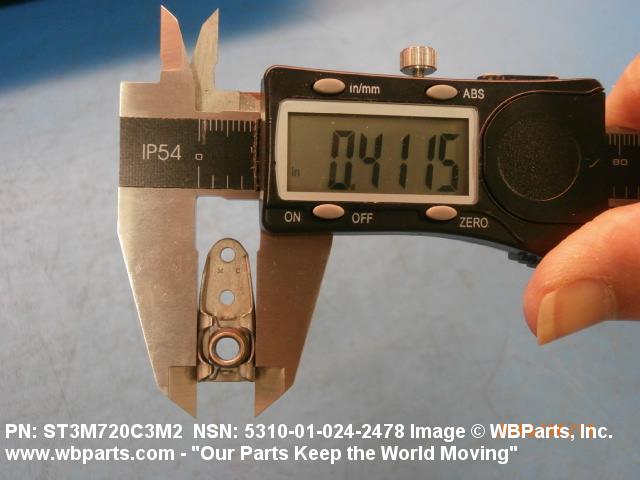

PLATE WIDTH	0.422 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F44 2 HOLES

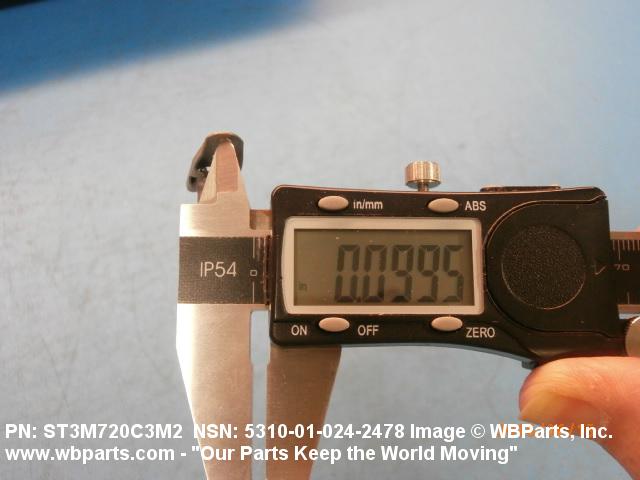

MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM

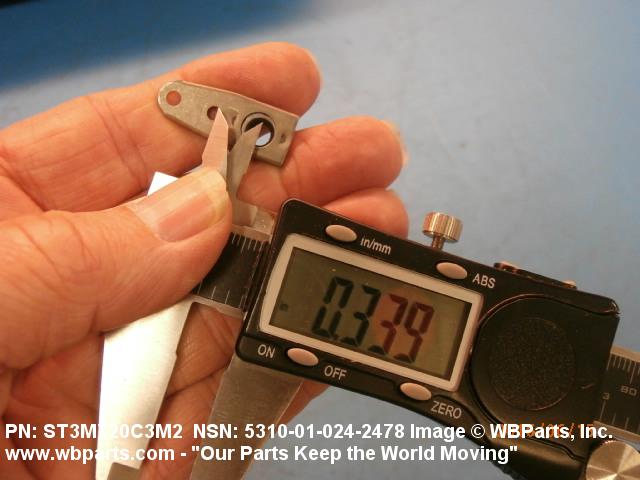

DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM
TEMP RATING	NOT RATED
FEATURES PROVIDED	FLOATING NUT
SPECIAL FEATURES	COLOR YELLOW
SPECIFICATION/STANDARD DATA	76301-ST3M720 MANUFACTURERS STANDARD

Restrictions/Controls & Freight Information | NSN 5310-01-024-2478

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-024-2478

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
