NSN 5310-01-013-9643 M45938/5-3C, M4593853C, MIL-N-45938/5
Product Details | CLINCH SELF-LOCKING NUT
5310-01-013-9643 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: M45938/5-3C, M4593853C, MIL-N-45938/5, MILN459385, 002004261011, 002-004261-011, 25540683, 2554068-3, 5898813, 58988-13, 5310-01-013-9643, 01-013-9643, 5310010139643, 010139643
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 DEC 1975 | 01-013-9643 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

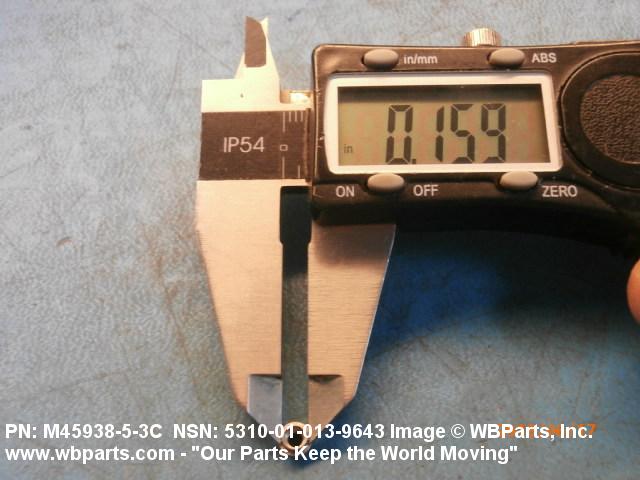

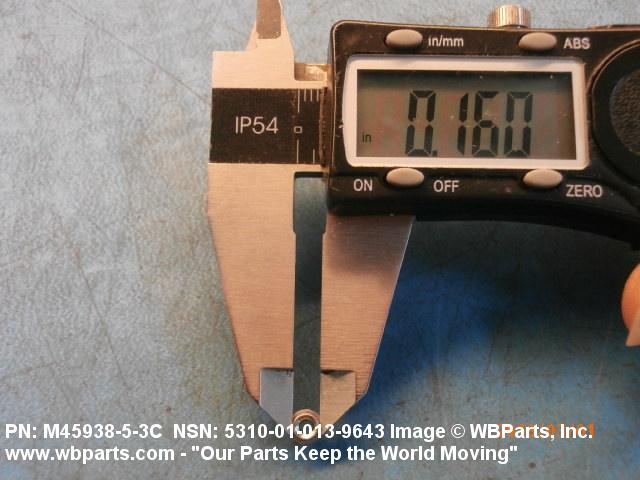

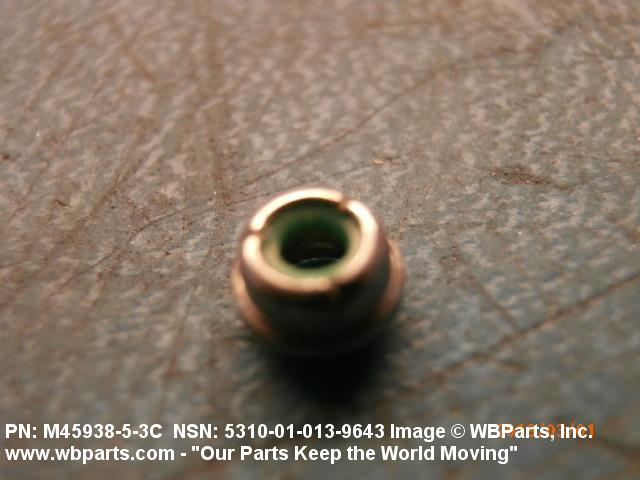

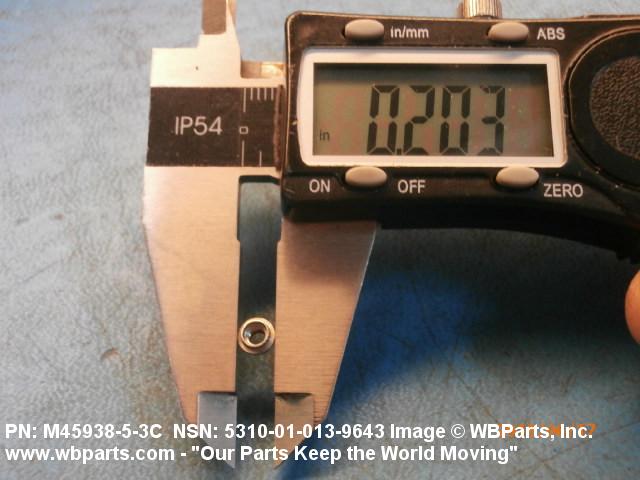

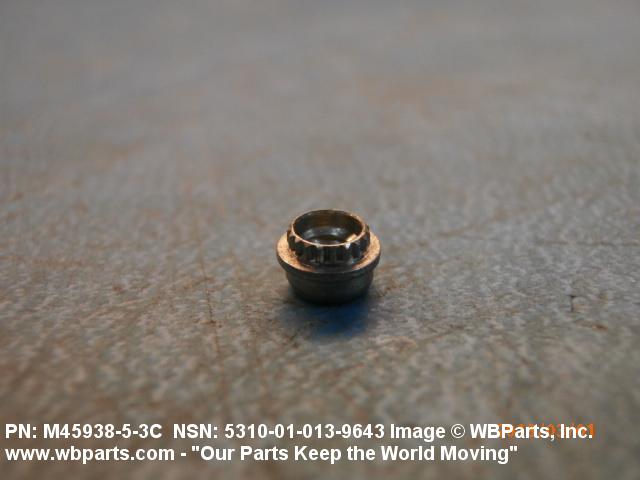

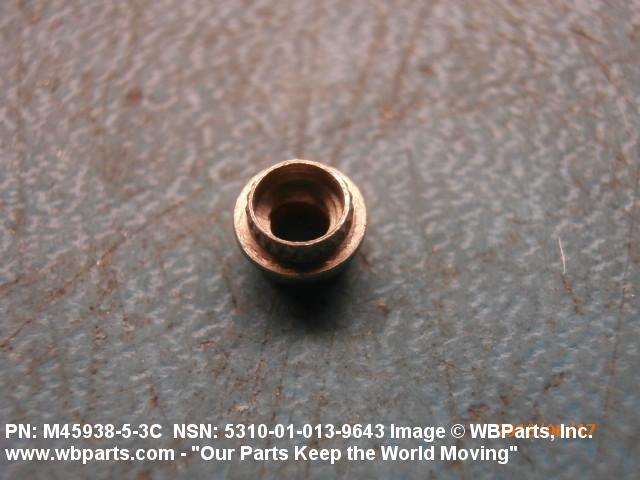

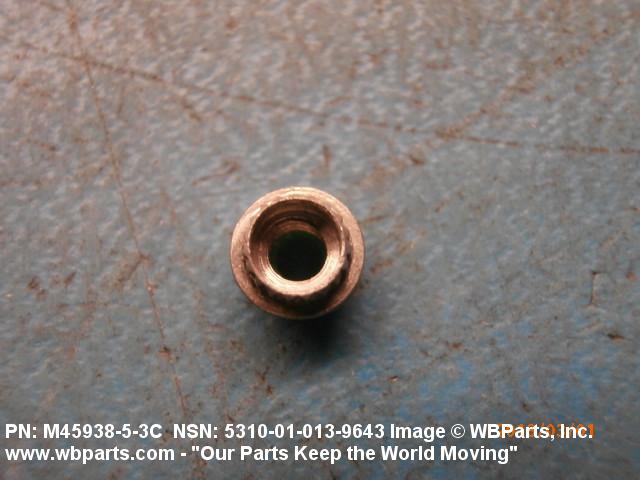

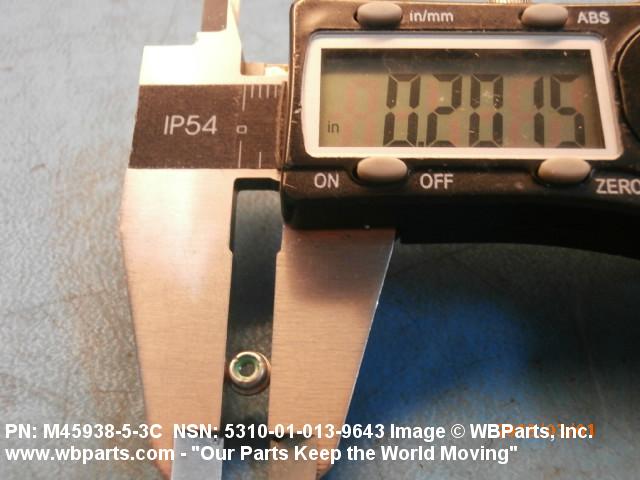

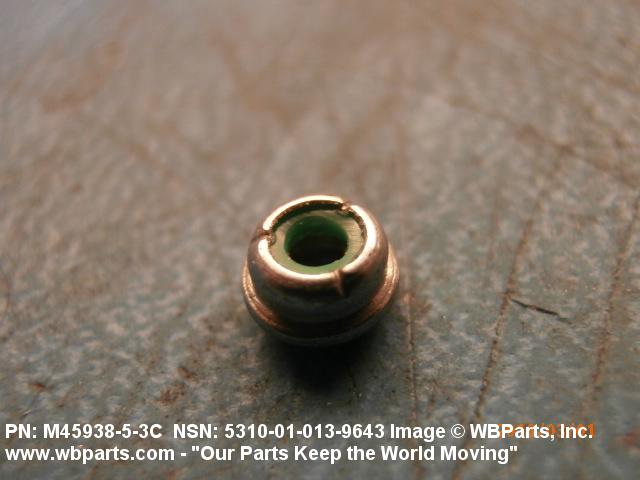

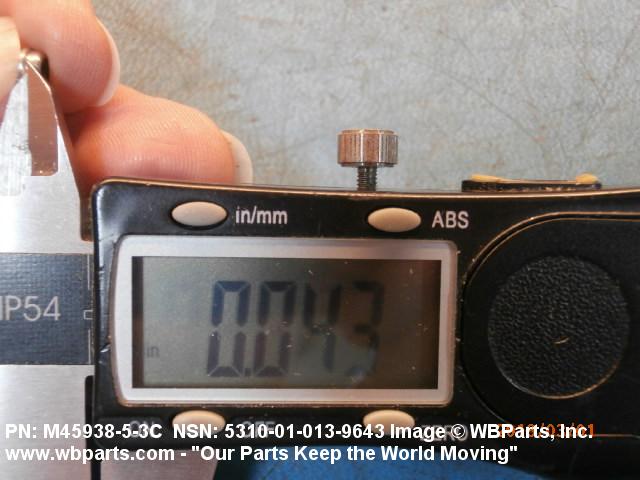

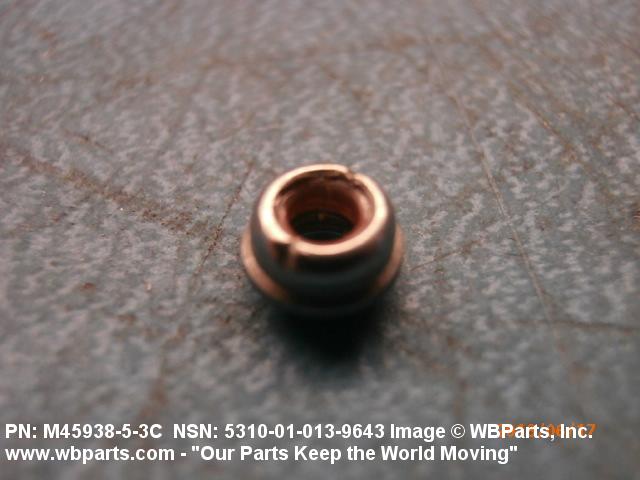

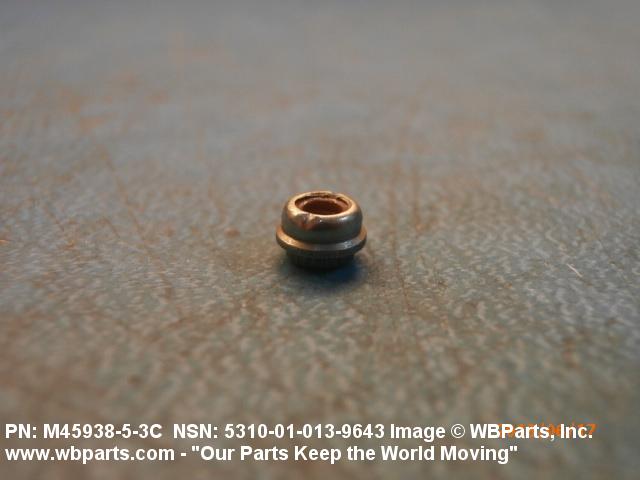

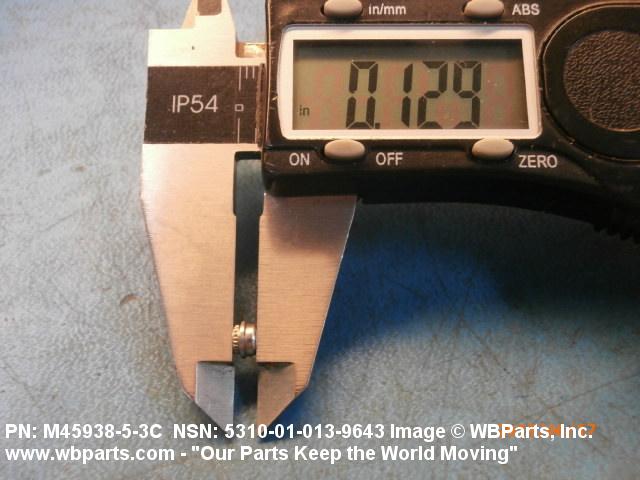

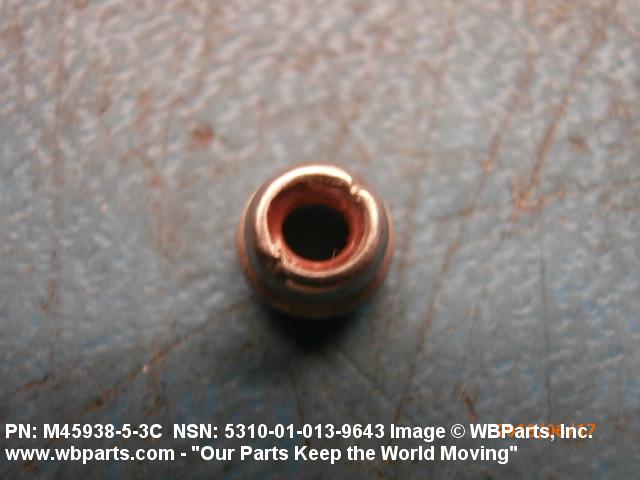

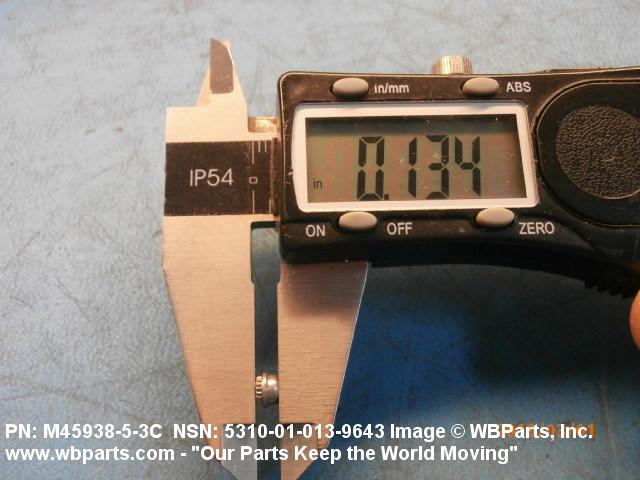

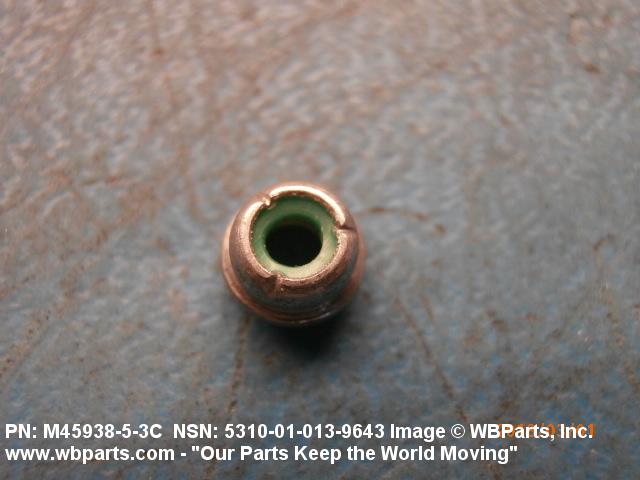

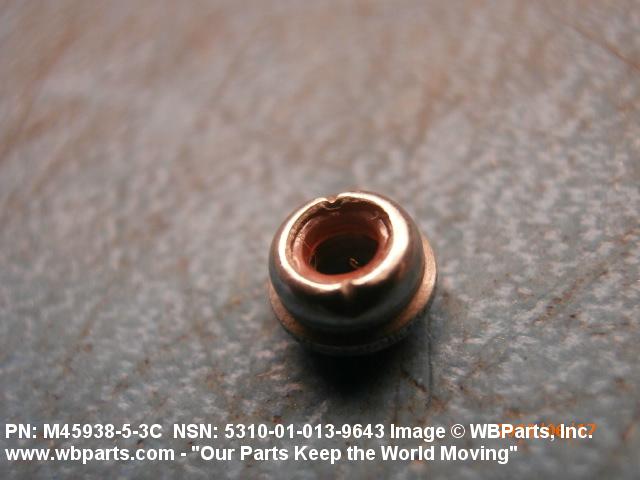

Drawings & Photos | NSN 5310-01-013-9643
Demand History | NSN 5310-01-013-9643
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M4593853C | 2022-04-115 | 500 | US |
| M4593853C | 2022-04-115 | 1000 | US |
| M4593853C | 2022-04-115 | 2500 | US |
| M4593853C | 2018-06-162 | 1000 | US |
| M4593853C | 2018-02-54 | 500 | US |
| 25540683 | 2018-01-31 | 84 | United States |
| 5310-01-013-9643 | 2017-11-314 | 50 | DE |
| M4593853C | 2017-05-131 | 50 | US |
| 5310-01-013-9643 | 2014-06-178 | 5 | US |
| MILN459385 | 2009-01-07 | 850 | US |
| M4593853C | 2008-10-291 | 1500 | Singapore |
| MILN459385 | 2007-10-283 | 75 | US |
Cross Reference | NSN 5310-01-013-9643
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 002-004261-011 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 2554068-3 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 58988-13 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| M45938/5-3C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-N-45938/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-013-9643
Related Products | NSN 5310-01-013-9643
Technical Data | NSN 5310-01-013-9643
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL CORROSION RESISTING NUT |
| SURFACE TREATMENT | PASSIVATE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A66A CLINCH |
| PILOT DIAMETER | 0.158 INCHES MINIMUM AND 0.162 INCHES MAXIMUM |
| PILOT LENGTH | 0.037 INCHES MINIMUM AND 0.043 INCHES MAXIMUM |
| NUT DIAMETER | 0.198 INCHES MINIMUM AND 0.208 INCHES MAXIMUM |
| NUT HEIGHT | 0.117 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-N-45938/5 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M45938/5-3C |
