NSN 5310-01-007-4097 1400072520B3, 140-007-25-20B3, 01-007-4097
Product Details | RECESSED WASHER
5310-01-007-4097 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: 1400072520B3, 140-007-25-20B3, 5310-01-007-4097, 01-007-4097, 5310010074097, 010074097
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 AUG 1975 | 01-007-4097 | 15933 ( WASHER, RECESSED ) |
Drawings & Photos | NSN 5310-01-007-4097
Demand History | NSN 5310-01-007-4097
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 140-007-25-20B3 | 2013-07-207 | 10 | US |
Cross Reference | NSN 5310-01-007-4097
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 140-007-25-20B3 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-007-4097
Technical Data | NSN 5310-01-007-4097
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6485 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

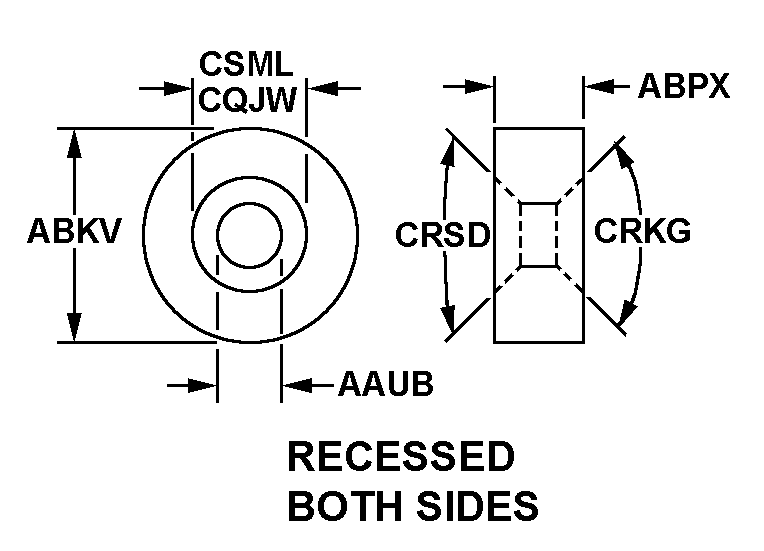

| STYLE DESIGNATOR | 28 RECESSED BOTH SIDES |
