NSN 5310-00-958-5895 N1571875, N157187-5, HW143
Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-00-958-5895 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: N1571875, N157187-5, HW143, HW14-3, B97993, CSP106, FNW121032, FNW12-1032 , PE220053, PE22005-3, RM52LH478602, RM52LH4786-02 , 991410732005, 991-4-10732-005, 2110213, 5310-00-958-5895, 00-958-5895, 5310009585895, 009585895
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-958-5895 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |

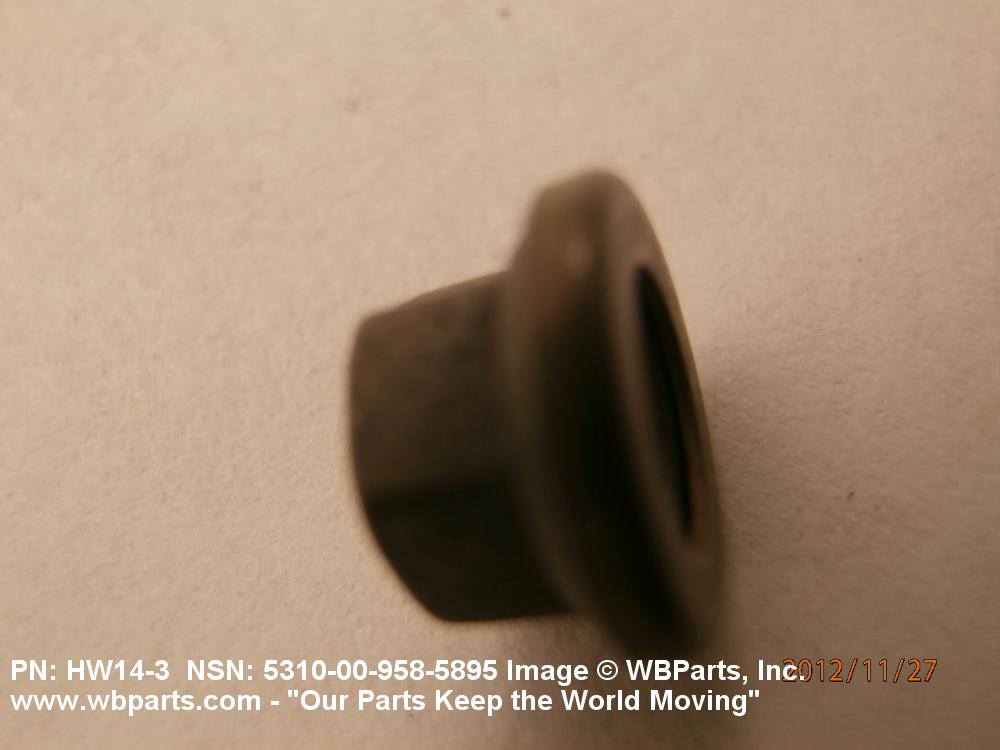

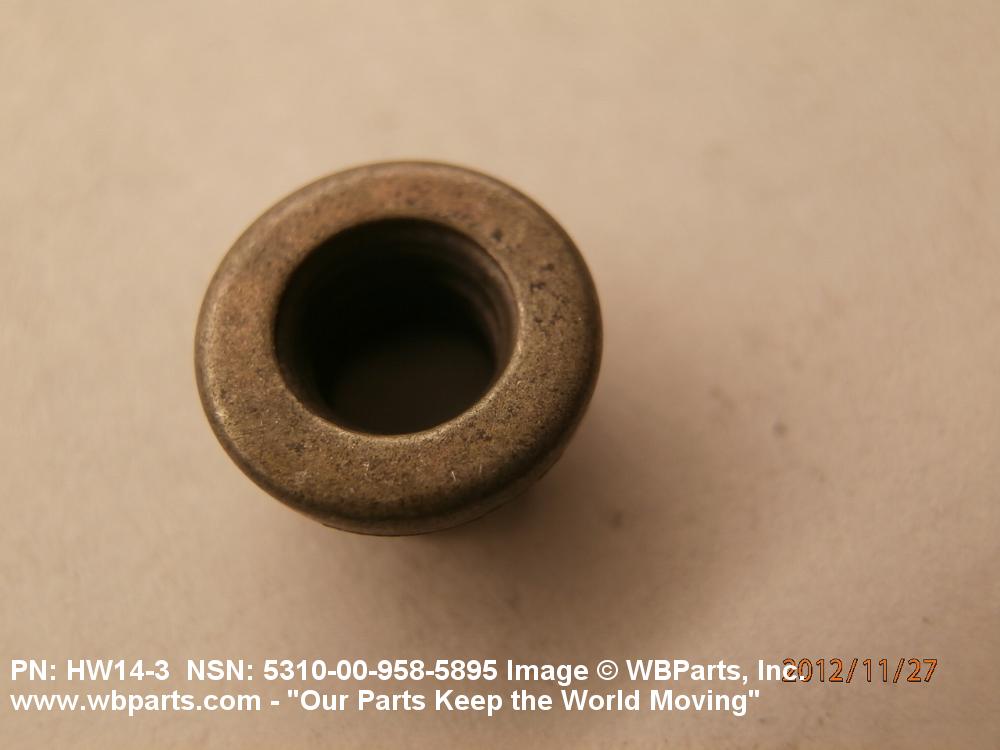

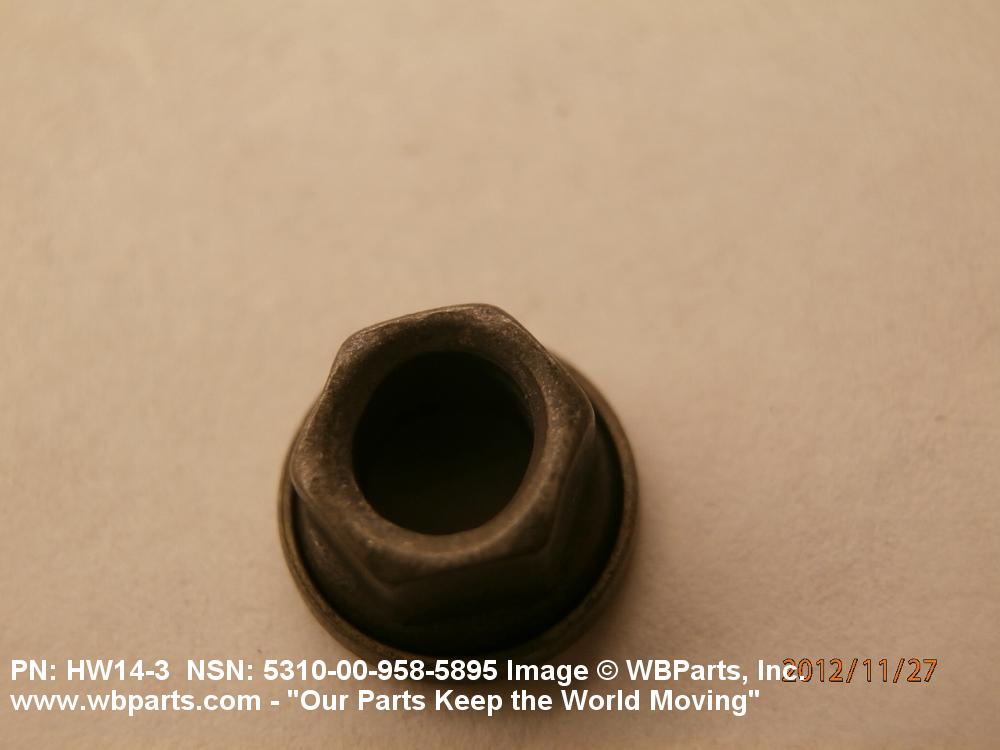

Drawings & Photos | NSN 5310-00-958-5895
Demand History | NSN 5310-00-958-5895
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-958-5895 | 2020-03-62 | 100 | CA |
| 5310-00-958-5895 | 2016-06-181 | 258 | DIBBS |
| 5310-00-958-5895 | 2014-12-345 | 532 | DIBBS |
| 5310-00-958-5895 | 2014-10-287 | 532 | DIBBS |
| 5310-00-958-5895 | 2014-10-275 | 532 | DIBBS |
| HW14-3 | 2012-11-310 | 362 | |
| HW143 | 2010-09-250 | 2000 | Italy |
| 5310-00-958-5895 | 2008-04-103 | 63 | DIBBS |
| 5310-00-958-5895 | 2008-02-48 | 25 | DIBBS |
Cross Reference | NSN 5310-00-958-5895
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2110213 | 001JK | EMBRAER S/A |
| 2110213 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2110213 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 991-4-10732-005 | K2523 | EATON AEROSPACE LTD |
| B97993 | K0967 | MBDA UK LTD |
| CSP106 | K0999 | BAE SYSTEMS |
| FNW12-1032 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HW14-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| HW14-3 | F6033 | TECNOTEC SARL |
| HW14-3 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| HW14-3 | R1120 | SATAIR A/S |
| N157187-5 | K4358 | SAFRAN POWER UK LTD. |
| PE22005-3 | 001JK | EMBRAER S/A |
| PE22005-3 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| RM52LH4786-02 | 13257 | AMERACE LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-958-5895
Related Products | NSN 5310-00-958-5895
Technical Data | NSN 5310-00-958-5895
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.364 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.214 INCHES MAXIMUM |
| WASHER THICKNESS | 0.060 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.219 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 500.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-958-5895
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-958-5895
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
