NSN 5310-00-958-5928 MS2106908, MS21069-08, F52LHTA51M82

Product Details | PLATE SELF-LOCKING NUT

5310-00-958-5928 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS2106908, MS21069-08, F52LHTA51M82, 4860594, 486059-4, 5310-00-958-5928, 00-958-5928, 5310009585928, 009585928

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-958-5928	05280 ( NUT, SELF-LOCKING, PLATE )

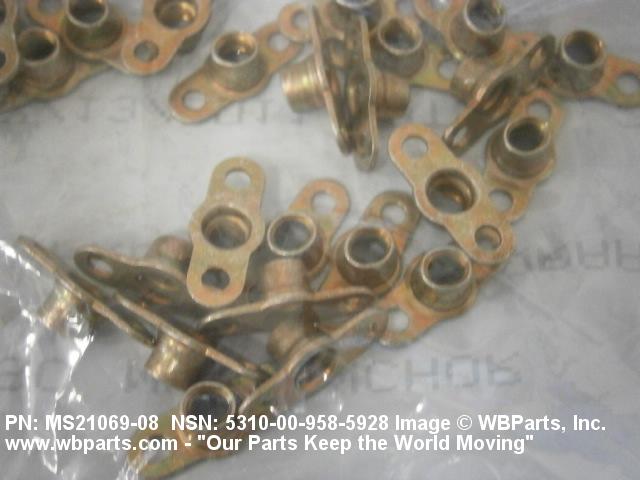

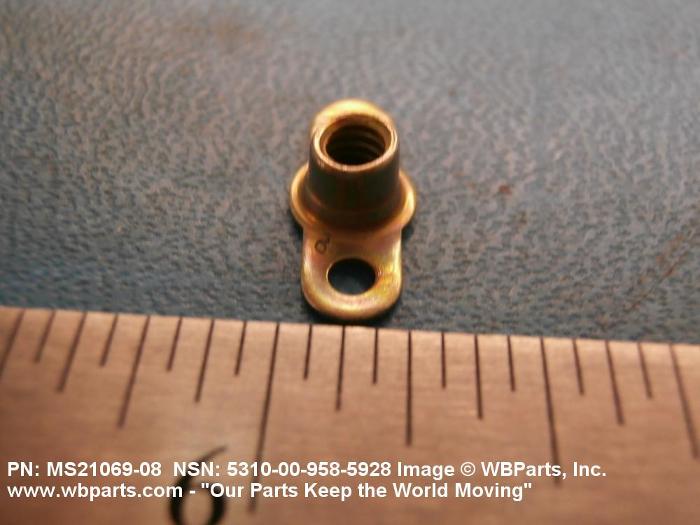

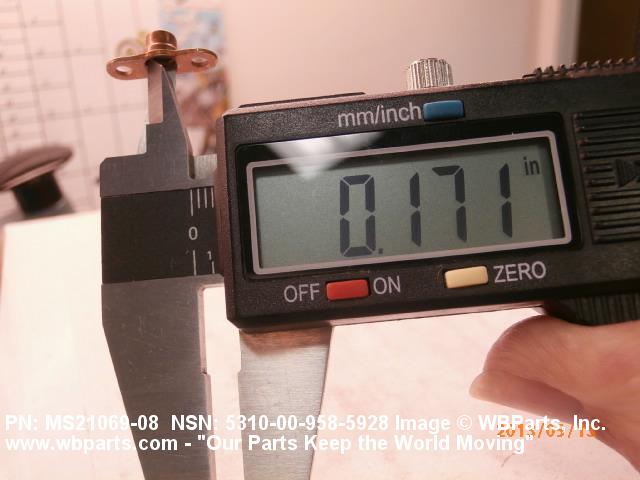

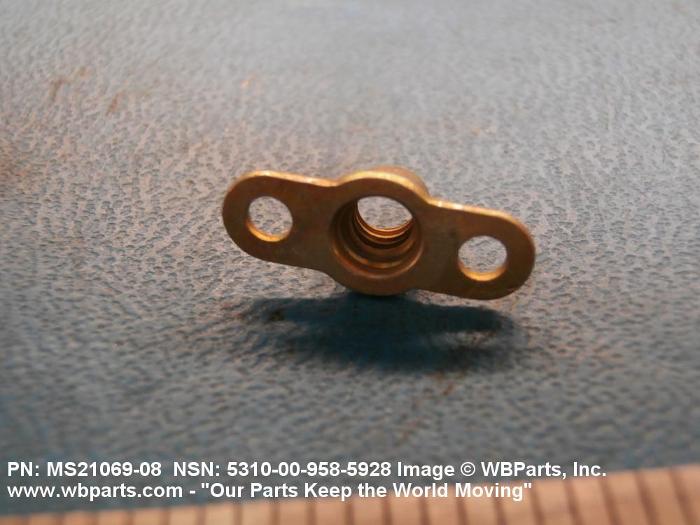

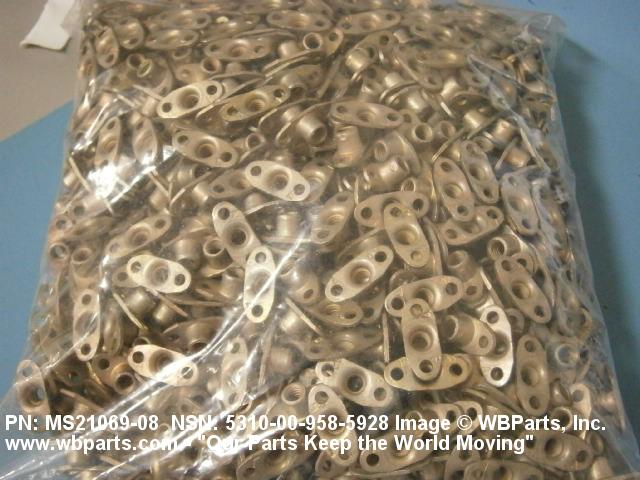

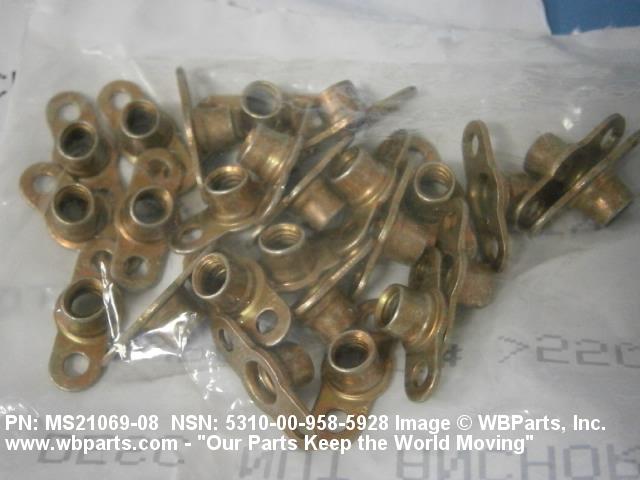

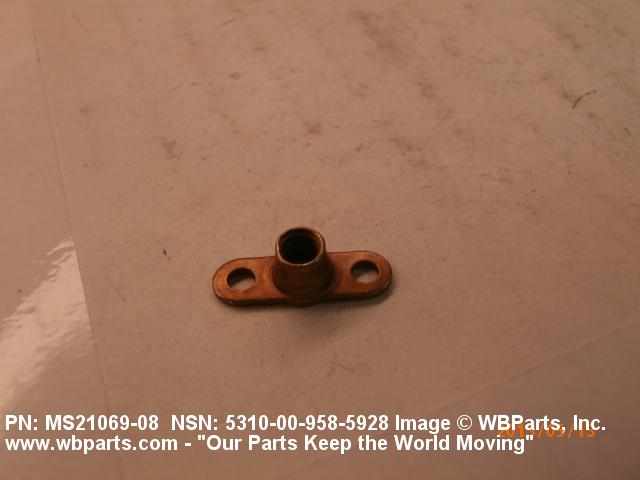

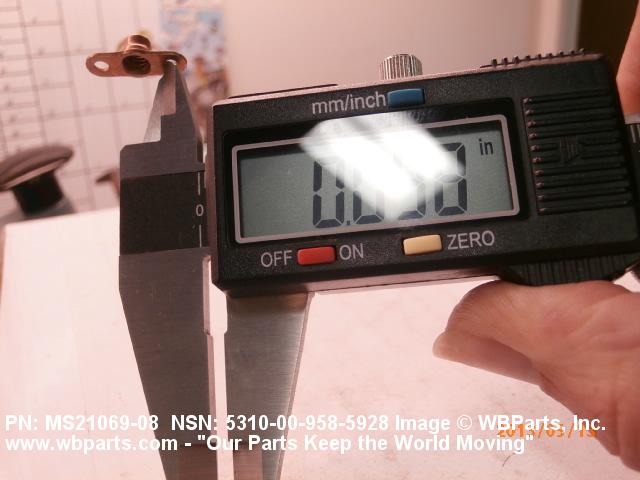

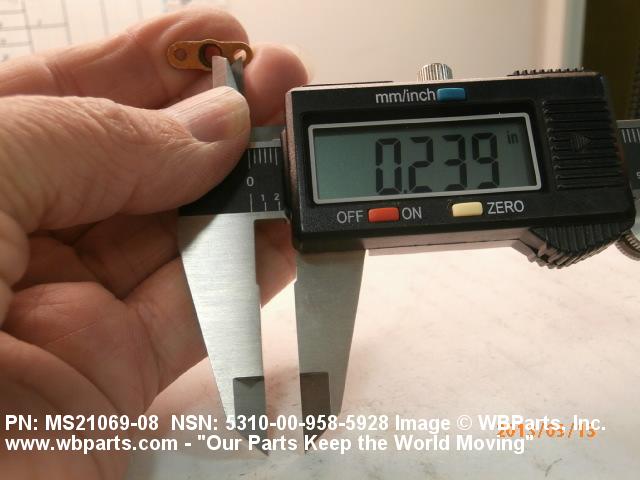

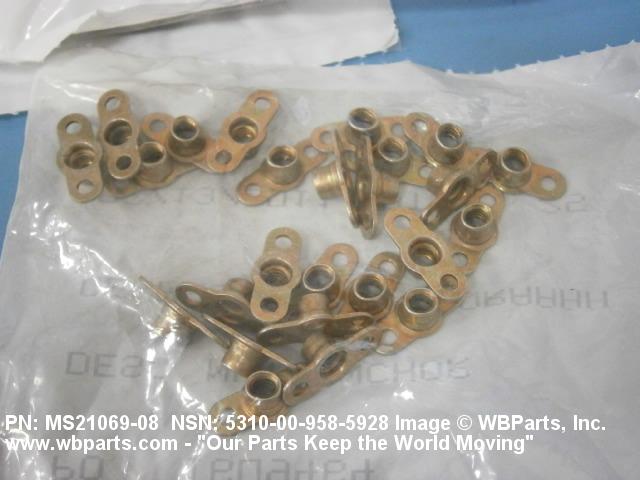

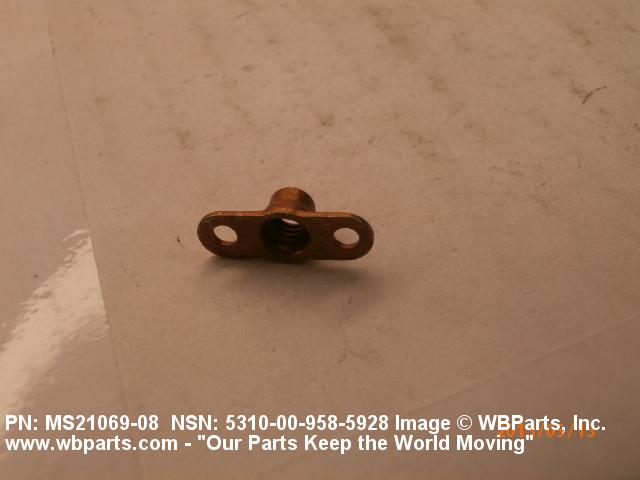

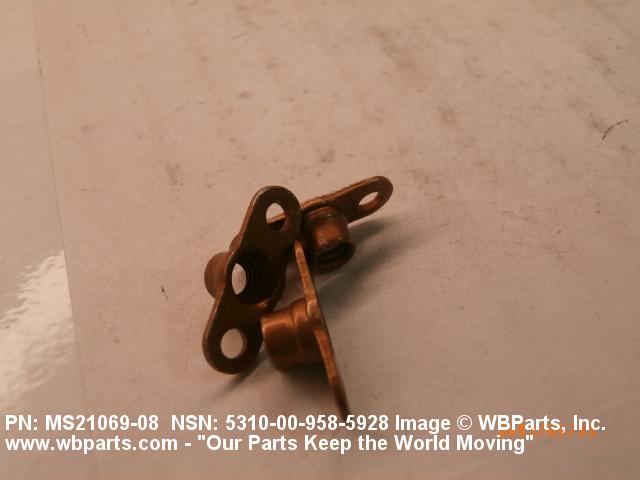

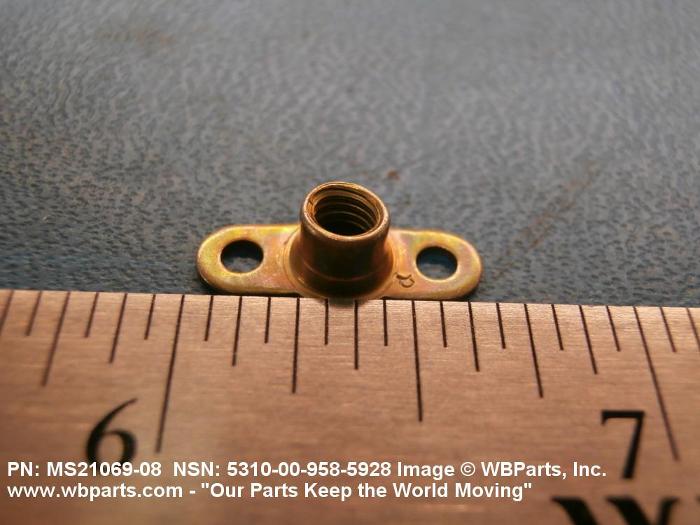

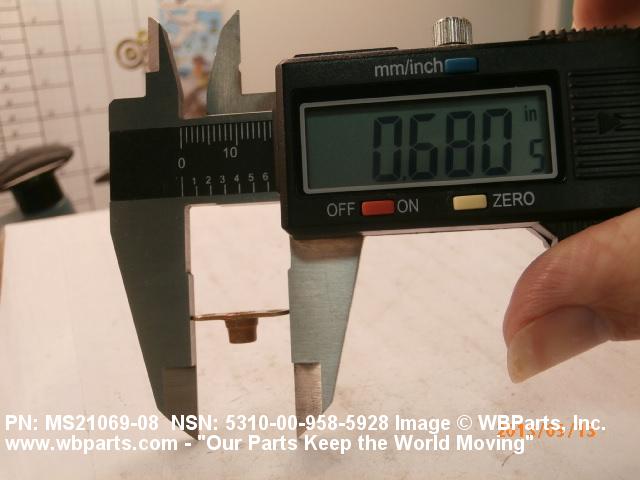

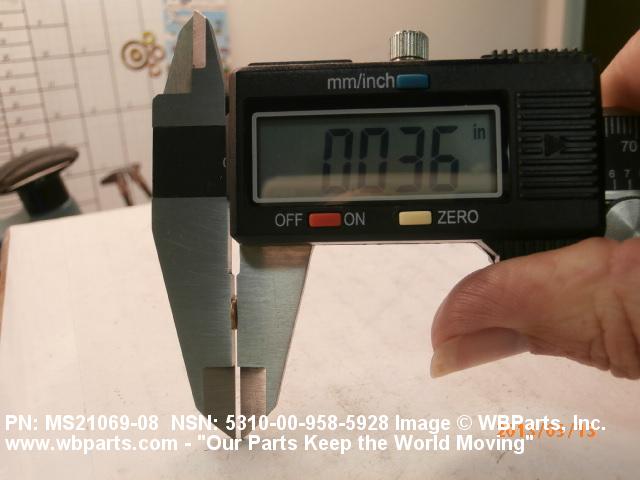

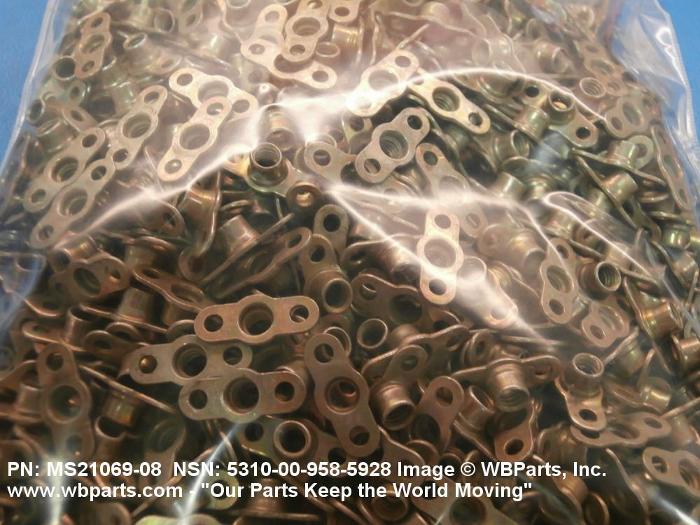

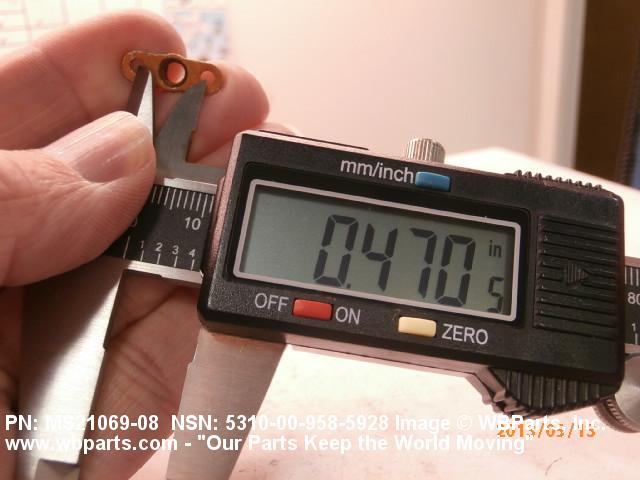

Drawings & Photos | NSN 5310-00-958-5928

Part Number	Request Date	QTY	Origin
MS2106908	2021-02-53	3500	IN
MS2106908	2021-02-53	3500	IN
MS2106908	2019-03-87	5	United States
MS2106908	2019-03-63	40	China
MS2106908	2017-11-319	500	United States
MS2106908	2017-08-228	500	United States
MS2106908	2017-06-158	500	United States
MS2106908	2017-02-34	500	United States
MS2106908	2016-05-141	500	United States
MS2106908	2015-09-252	1800	United States
MS2106908	2015-06-167	2400	United States
MS2106908	2015-06-152	1500	United States
MS2106908	2015-04-93	3600	United States
MS2106908	2015-01-30	2800	United States
MS2106908	2014-12-357	2000	United States
MS2106908	2014-09-273	2000	United States
MS2106908	2014-06-167	1500	United States
MS2106908	2014-04-111	1500	United States
MS2106908	2014-02-50	1500	United States
MS2106908	2013-12-360	1500	United States
MS2106908	2013-10-276	1500	United States
MS2106908	2013-08-219	1500	United States
MS2106908	2013-05-129	1500	United States
MS2106908	2013-04-93	1500	United States
MS2106908	2013-04-93	1500	United States
MS2106908	2013-04-93	1500	United States
MS2106908	2013-02-37	1500	United States
MS2106908	2013-01-28	1500	United States
MS2106908	2012-10-276	1800	United States
MS2106908	2012-08-242	200	United States
MS2106908	2012-07-199	1000	United States
MS2106908	2012-06-158	1025	United States
MS2106908	2012-05-129	1000	United States
MS2106908	2012-03-79	1100	United States
MS2106908	2012-03-66	400	United States
MS2106908	2012-01-12	2000	United States
5310-00-958-5928	2011-11-318	3000	France
MS2106908	2011-10-287	300	US
MS2106908	2011-10-280	3000	United States
MS2106908	2011-02-46	3	United States
MS2106908	2011-02-45	3	United States
MS2106908	2010-01-28	200	Italy
5310-00-958-5928	2010-01-18	132	us
MS2106908	2009-08-238	1600	United States
MS2106908	2009-08-238	1060	United States
5310-00-958-5928	2009-07-191	6	MX
MS2106908	2009-06-153	1120	United States
MS2106908	2009-02-55	1000	US
MS2106908	2009-01-05	500	China
5310-00-958-5928	2008-09-247	4260	United Kingdom

Cross Reference | NSN 5310-00-958-5928

Part Number	Cage Code	Manufacturer
486059-4	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
F52LHTA51M82	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
F52LHTA51M82	72962	HARVARD INDUSTRIES INC
MS21069-08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21069-08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-958-5928

Compare

Related Products | NSN 5310-00-958-5928

5310-00-958-6198, 5310-00-958-6199, 5310-00-958-6221, 5310-00-958-6523, 5310-00-958-6561

Technical Data | NSN 5310-00-958-5928

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE
NUT LENGTH	0.692 INCHES MAXIMUM

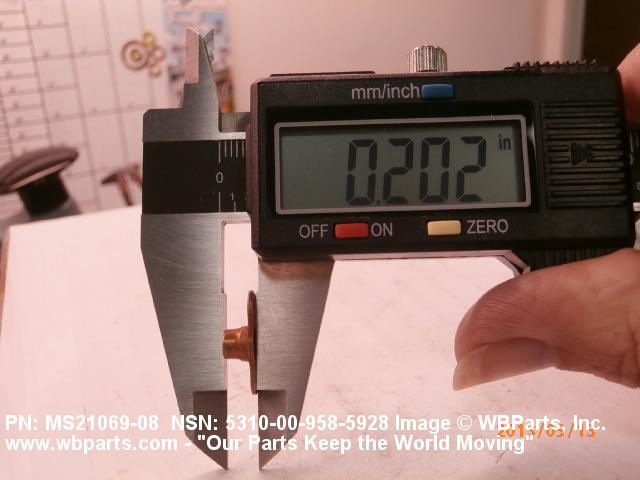

NUT HEIGHT	0.205 INCHES MAXIMUM
PLATE THICKNESS	0.037 INCHES NOMINAL

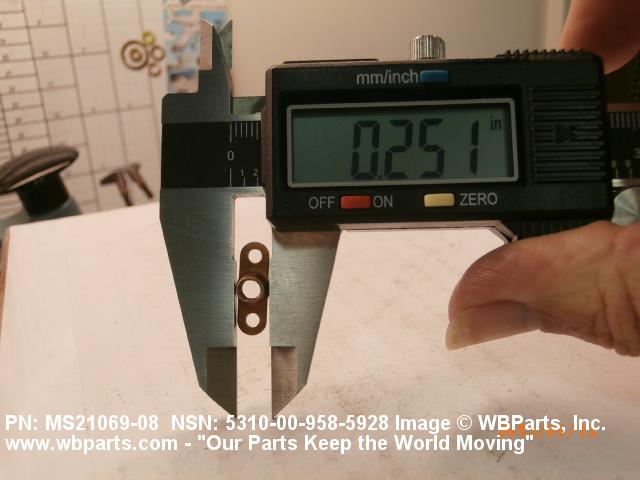

PLATE WIDTH	0.255 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT COUNTERBORE DEPTH	0.062 INCHES MINIMUM NUT
COUNTERBORE DIAMETER	0.168 INCHES MINIMUM NUT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.229 INCHES MINIMUM AND 0.239 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.466 INCHES MINIMUM AND 0.470 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-958-5928

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-958-5928

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
