NSN 5310-00-946-2813 65652-11161-101, 00-946-2813, 6565211161101
Product Details | SHOULDERED AND RECESSED WASHER
5310-00-946-2813 A washer, round in shape, having a centrally located hole. One bearing surface is flat, the other surface is in the form of a raised shoulder (boss) having a flat bearing surface. Either or both of the bearing surfaces must be broken by a counterbore, countersink, or similar shaped recess. The thickness of the shoulder (boss) must not exceed 25 percent of the shoulder (boss) diameter. For items having a shoulder (boss) of greater thickness, use BEARING, SLEEVE; BUSHING, SLEEVE; or SPACER, SLEEVE. Excludes INSULATOR, WASHER and thrust type washers.
Part Alternates: 65652-11161-101, 5310-00-946-2813, 00-946-2813, 5310009462813, 6565211161101, 009462813
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAR 1966 | 00-946-2813 | 15935 ( WASHER, SHOULDERED AND RECESSED ) |

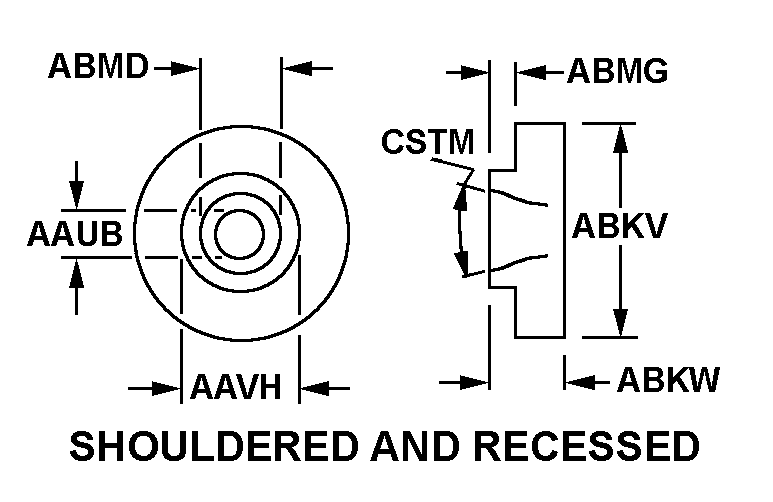

Drawings & Photos | NSN 5310-00-946-2813
Cross Reference | NSN 5310-00-946-2813
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65652-11161-101 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-946-2813
Technical Data | NSN 5310-00-946-2813
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758,COND F MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 13 SHOULDERED AND RECESS |
| HOLE DIAMETER | 0.200 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.346 INCHES MINIMUM AND 0.347 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.450 INCHES NOMINAL |
| RECESS DIAMETER | 0.270 INCHES NOMINAL |
| SHOULDER HEIGHT | 0.265 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.075 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| RECESS ANGLE | 90.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 65652-11161-101 |
