NSN 5310-00-915-7970 MS21063L38, MS21063L3-8, NAS689P82
Product Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY
5310-00-915-7970 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Part Alternates: MS21063L38, MS21063L3-8, NAS689P82, NAS689P8-2, 10121821 , 3M150N383F, 5310-00-915-7970, 00-915-7970, 5310009157970, 009157970
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JAN 1966 | 00-915-7970 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |

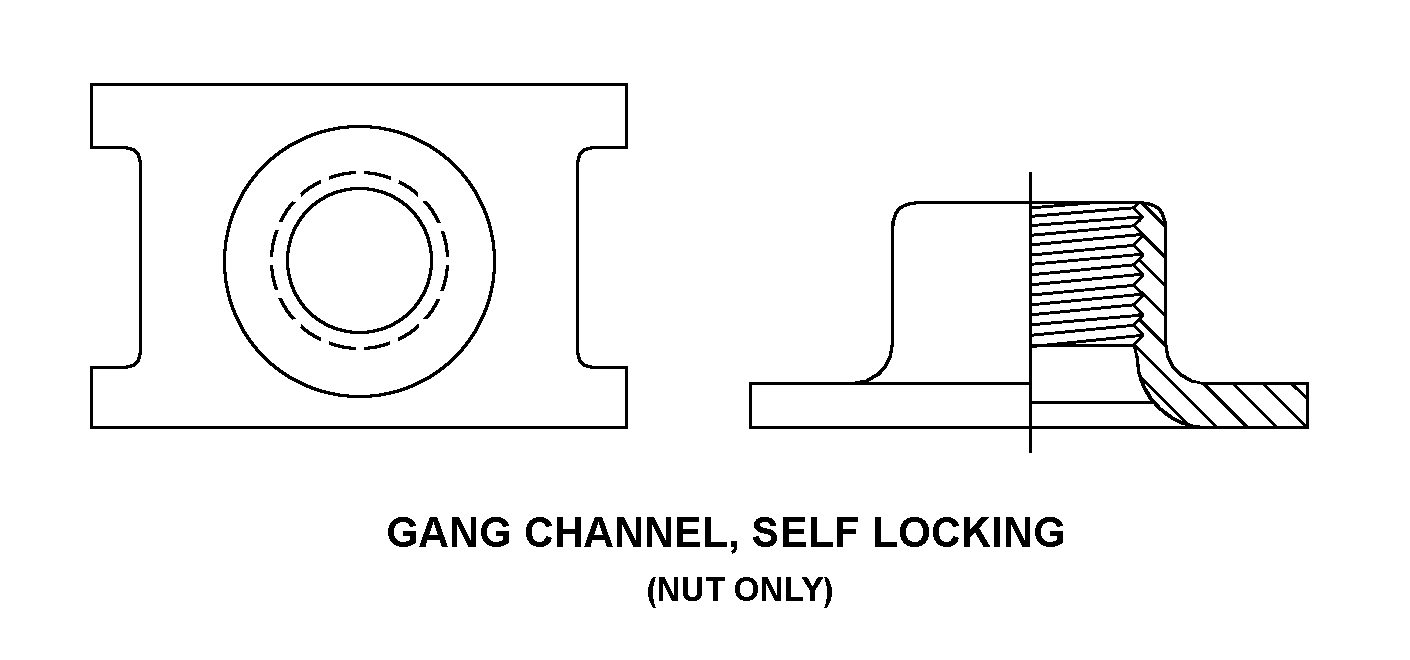

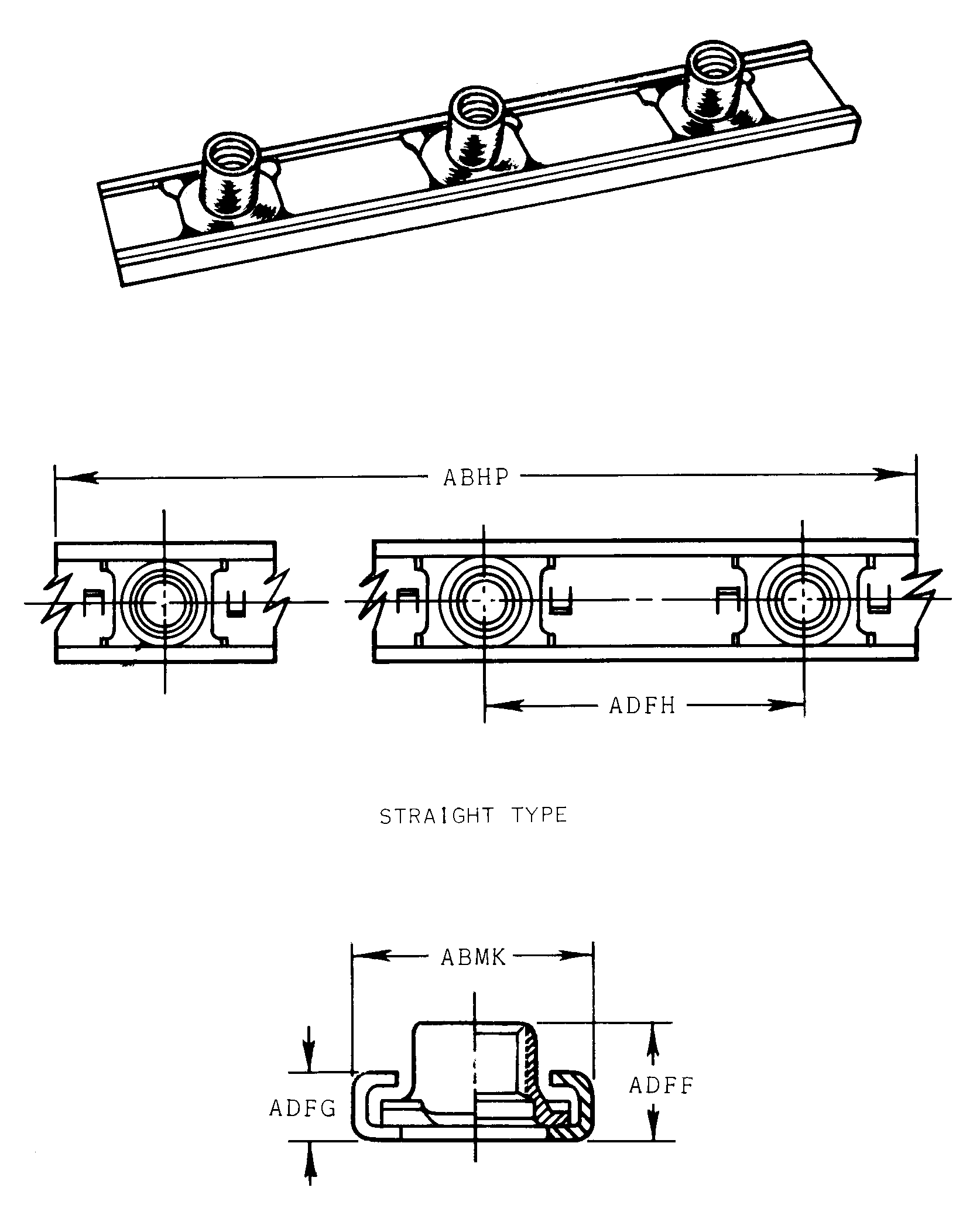

Drawings & Photos | NSN 5310-00-915-7970
Demand History | NSN 5310-00-915-7970
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-915-7970 | 2018-02-39 | 4 | US |
| MS21063L38 | 2012-08-243 | 55 | US |
| 5310-00-915-7970 | 2009-06-168 | 14 | United States |
| MS21063L38 | 2009-06-162 | 5 | Italy |
| MS21063L38 | 2008-11-309 | 50 | Canada |
| MS21063L38 | 2008-10-303 | 50 | Canada |
Cross Reference | NSN 5310-00-915-7970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M150N3+8+3F | 76301 | BOEING COMPANY, THE DBA BOEING |
| MS21063L3-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21063L3-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS689P8-2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
