NSN 5310-00-878-3291 MS21043, MS2104304, MS2104306

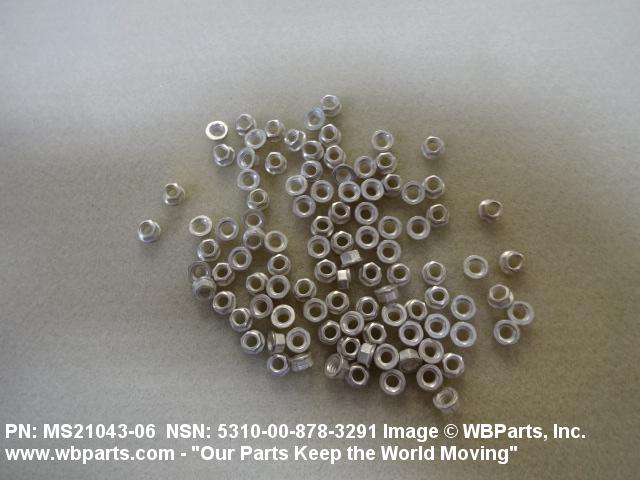

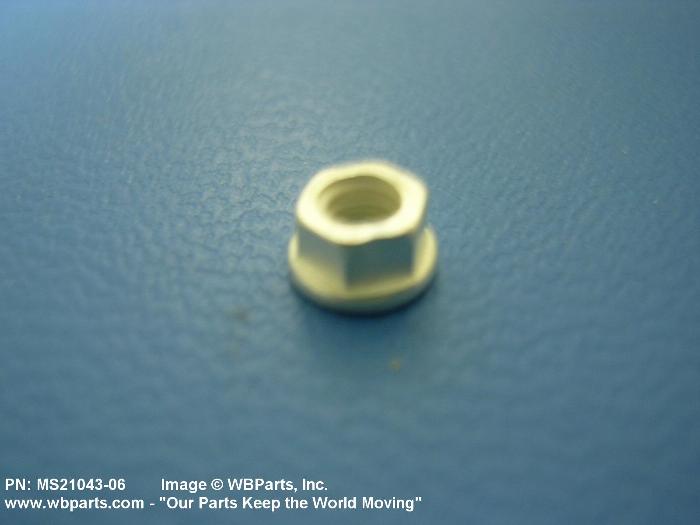

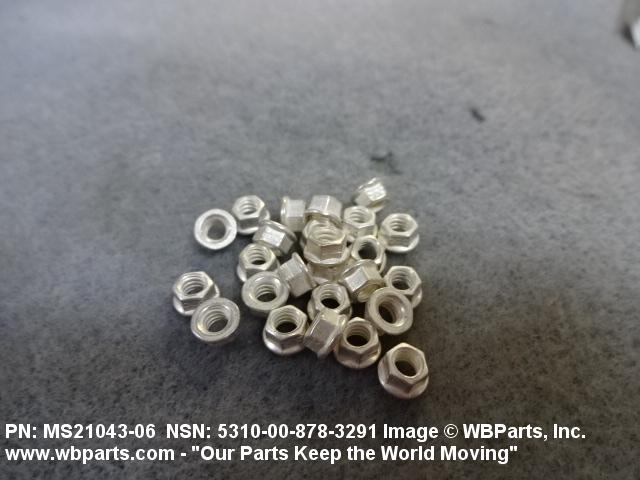

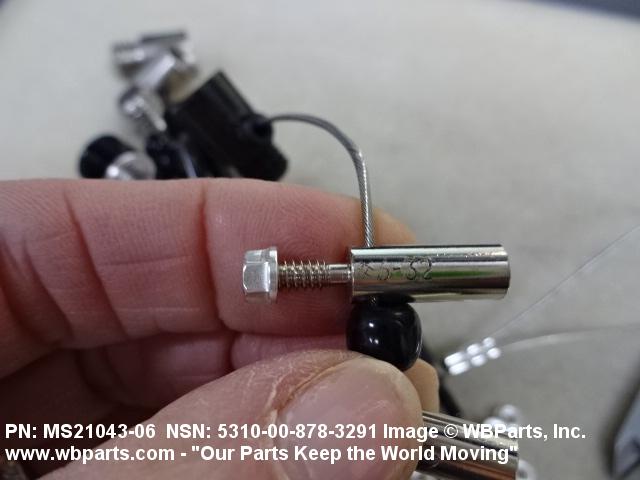

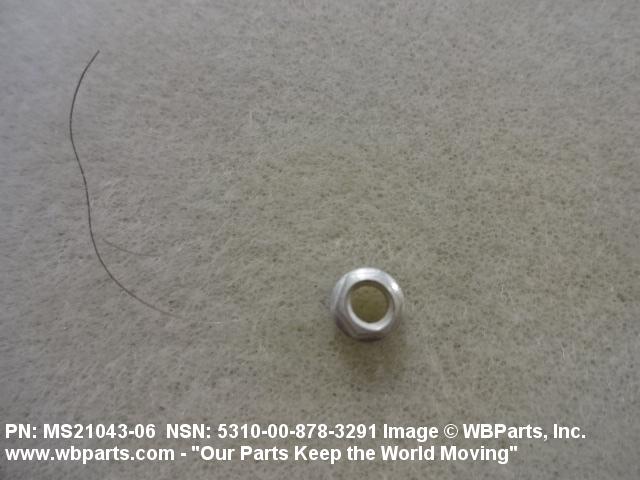

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

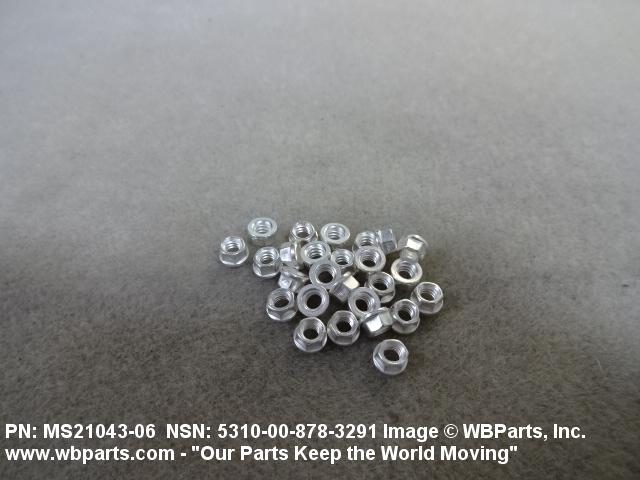

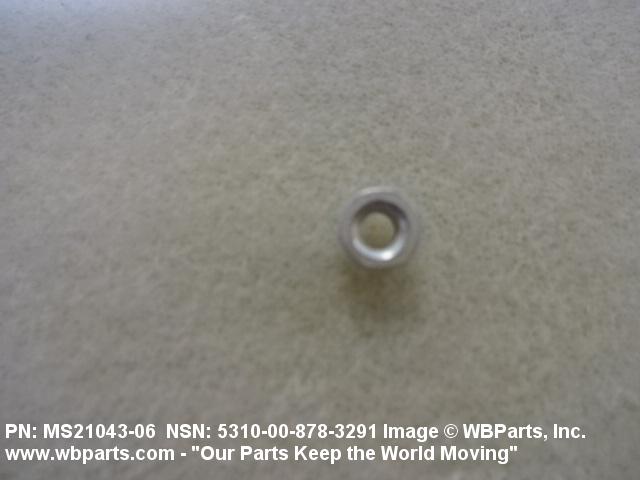

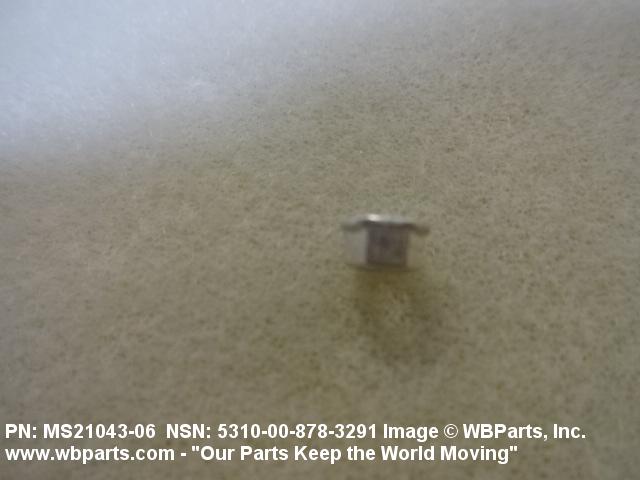

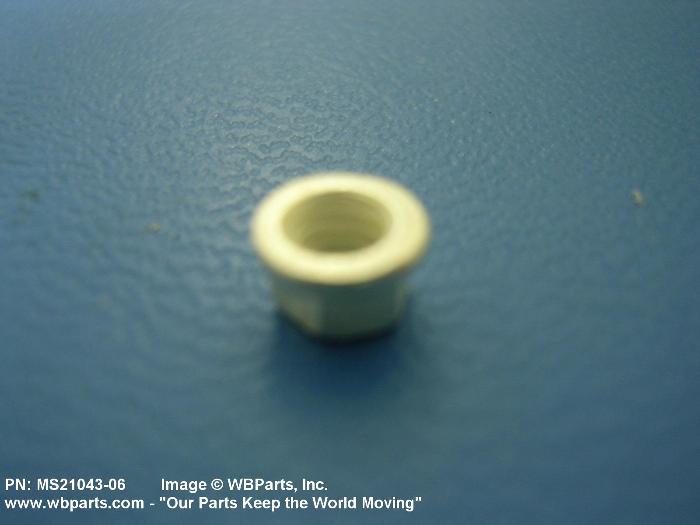

5310-00-878-3291 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21043, MS2104304, MS2104306, MS21043-06, MS21043L04 , MN1906, MN19-06, NAS1291A04, NAS1291C04 , NAS679C04, NAS697C04 , H41L06, ST.16126, ST16126, T99C440, T99C632, FN1014632, FN1014-632, P146007001, P146007002, 048424-001 , 10121786 , 10172743, 102A901779 , 206419, 2486500001, 24865-00001 , 2523333, 3M129C440, 59FM400, 59FM440 , 70LH166040, 70LH1660-40 , 7383858PL70878255, 7383858-PL708782-55 , 7550480PL70878255, 7550480-PL708782-55 , 85200636, 938.07.68.402, 9380768402, 5310-00-878-3291, 00-878-3291, 5310008783292 , 5310008783291 , 048424001, 008783291
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1962 | 00-878-3291 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |
Demand History | NSN 5310-00-878-3291
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5310-00-878-3291 | 2024-04-116 | 7936 | DIBBS |
H41L06 | 2024-03-87 | 1 | US |
5310-00-878-3291 | 2024-03-81 | 4880 | DIBBS |
MS2104304 | 2024-02-44 | 15240 | us |
MS2104304 | 2023-10-283 | 50 | Thailand |
MS2104304 | 2023-09-269 | 900 | US |
MS2104304 | 2023-09-269 | 5100 | US |
MS2104304 | 2023-09-269 | 15400 | US |
5310-00-878-3291 | 2023-08-230 | 4544 | US |
5310-00-878-3291 | 2023-08-229 | 4544 | DIBBS |
5310-00-878-3291 | 2023-08-214 | 11327 | DIBBS |
5310-00-878-3291 | 2023-07-211 | 13108 | DIBBS |
5310-00-878-3291 | 2023-04-109 | 11538 | DIBBS |
5310-00-878-3291 | 2023-04-95 | 15 | United States |
5310-00-878-3291 | 2023-03-89 | 13475 | DIBBS |
5310-00-878-3291 | 2023-03-81 | 13475 | DIBBS |
MS2104304 | 2022-06-180 | 525 | United States |
MS2104306 | 2022-06-180 | 725 | United States |
MS2104304 | 2022-06-173 | 4 | United States |
5310-00-878-3292 | 2022-04-111 | 100 | US |
MS2104304 | 2022-04-96 | 500 | IN |
MS2104304 | 2022-04-96 | 11000 | IN |
MS2104306 | 2021-10-286 | 25 | United States |
5310-00-878-3292 | 2021-02-49 | 12 | US |
MS2104304 | 2020-06-177 | 15980 | IN |
NAS1291C04 | 2019-12-351 | 100 | United States |
MS2104306 | 2019-12-345 | 100 | IN |
MS2104306 | 2019-11-311 | 50 | US |
MS2104304 | 2019-09-255 | 16 | United States |
MS2104306 | 2019-02-49 | 50 | United States |
MS2104306 | 2018-04-99 | 2500 | US |
MS2104306 | 2018-04-93 | 10 | US |
5310-00-878-3292 | 2018-02-44 | 24627 | United States |
MS2104304 | 2017-06-177 | 8 | United States |
MS2104304 | 2017-05-131 | 50 | US |
MS2104304 | 2017-04-109 | 1200 | United States |
5310-00-878-3292 | 2017-04-104 | 100 | US |
MS2104306 | 2017-03-89 | 25 | Korea |
MS2104304 | 2016-11-319 | 8 | US |
NAS679C04 | 2016-04-96 | 207 | US |
MS2104304 | 2016-03-68 | 1 | us |
MS2104304 | 2015-10-300 | 5 | us |
MS2104304 | 2015-06-153 | 1 | NL |
MS2104304 | 2014-02-49 | 75 | US |
MS2104306 | 2013-10-304 | 5 | China |
MS2104304 | 2013-10-281 | 3000 | United States |
MS2104304 | 2013-10-280 | 3000 | United States |
MS2104304 | 2013-03-85 | 4 | US |
MS2104304 | 2012-10-305 | 36 | Taiwan |
MS2104304 | 2012-07-212 | 2040 | United States |
MS21043-06 | 2012-07-195 | 15 | United States |
MS2104304 | 2012-06-173 | 20 | India |
MS2104304 | 2012-06-157 | 200 | Mexico |
MS2104306 | 2012-04-110 | 8 | United States |
MS2104304 | 2012-04-104 | 40 | US |
MS2104304 | 2012-02-52 | 5000 | CN |
MS2104304 | 2012-01-26 | 12 | us |
MS2104304 | 2011-10-290 | 5000 | US |
MS2104304 | 2011-09-257 | 66 | United States |
5310-00-878-3292 | 2011-08-225 | 100 | US |
MS2104304 | 2011-07-200 | 900 | TR |
MS2104306 | 2011-07-200 | 1200 | TR |
MS21043-06 | 2011-06-157 | 20 | Spain |
MS2104304 | 2011-05-146 | 3000 | United States |
5310-00-878-3291 | 2011-05-145 | 10 | US |
5310-00-878-3292 | 2011-05-138 | 36 | United States |
5310-00-878-3291 | 2011-05-130 | 26 | US |
5310-00-878-3292 | 2011-02-54 | 20 | US |
5310-00-878-3291 | 2011-02-52 | 1000 | TH |
NAS1291C04 | 2011-02-46 | 450 | US |
NAS679C04 | 2011-02-46 | 1000 | US |
MS2104306 | 2011-01-19 | 200 | Canada |
MS2104306 | 2011-01-17 | 50 | US |
5310-00-878-3292 | 2011-01-12 | 4 | US |
5310-00-878-3291 | 2010-12-340 | 100 | US |
5310-00-878-3292 | 2010-12-340 | 100 | US |
MS2104304 | 2010-10-299 | 50 | United States |
5310-00-878-3292 | 2010-09-260 | 50 | US |
5310-00-878-3292 | 2010-09-252 | 10 | US |
5310-00-878-3292 | 2010-07-210 | 40 | US |
5310-00-878-3292 | 2010-07-196 | 400 | Greece |
5310-00-878-3292 | 2010-05-139 | 600 | IT |
5310-00-878-3292 | 2010-02-47 | 100 | US |
5310-00-878-3291 | 2009-12-356 | 1000 | Netherlands |
NAS679C04 | 2009-12-335 | 20 | Canada |
5310-00-878-3291 | 2009-11-319 | 920 | India |
5310-00-878-3291 | 2009-11-316 | 1 | India |
MS2104304 | 2009-11-316 | 15 | United States |
5310-00-878-3291 | 2009-07-208 | 200 | United States |
MS21043L04 | 2009-06-155 | 100 | Italy |
MS2104306 | 2009-04-118 | 400 | US |
MS2104306 | 2009-04-111 | 400 | US |
5310-00-878-3292 | 2009-01-07 | 260 | United States |
MS2104306 | 2009-01-05 | 600 | US |
NAS679C04 | 2008-12-339 | 50 | US |
5310-00-878-3291 | 2008-11-316 | 2200 | France |
5310-00-878-3291 | 2008-08-240 | 1600 | United States |
MS2104304 | 2008-08-228 | 10000 | US |
NAS679C04 | 2008-05-136 | 1105 | US |
MS2104304 | 2008-05-135 | 25000 | US |
MS2104304 | 2008-05-133 | 300 | United States |
MS2104306 | 2008-05-129 | 5000 | United States |
MS2104304 | 2008-05-127 | 100 | United States |
5310-00-878-3291 | 2008-05-127 | 100 | us |
5310-00-878-3292 | 2008-05-127 | 100 | us |
MS2104304 | 2008-04-115 | 200 | US |
MS2104304 | 2007-12-346 | 25000 | US |
MS2104304 | 2007-11-305 | 30 | US |
MS2104304 | 2007-08-241 | 10400 | Spain |
Cross Reference | NSN 5310-00-878-3291
Part Number | Cage Code | Manufacturer |
---|---|---|
206419 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
2523333 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
2523333 | 59501 | UNISON INDUSTRIES, LLC |
7383858-PL708782-55 | 53711 | NAVAL SEA SYSTEMS COMMAND |
7550480-PL708782-55 | 53711 | NAVAL SEA SYSTEMS COMMAND |
938.07.68.402 | S4080 | PILATUS AIRCRAFT LTD |
FN1014-632 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
H41L06 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
H41L06 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
H41L06 | F6033 | TECNOTEC SARL |
H41L06 | R1120 | SATAIR A/S |
MN19-06 | 73197 | HI-SHEAR CORPORATION |
MN19-06 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
MN19-06 | R1120 | SATAIR A/S |
MS21043 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS21043-06 | 59501 | UNISON INDUSTRIES, LLC |
MS21043-06 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
MS21043-06 | 8K112 | FREUNDLICH SUPPLY COMPANY, INC. |
MS21043-06 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
P146007002 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
ST.16126 | K0400 | BAE SYSTEMS ASSET MANAGEMENT |
T99C632 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
T99C632 | 71087 | REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging. |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5310-00-878-3291
Technical Data | NSN 5310-00-878-3291
Characteristic | Specifications |
---|---|
THREAD SERIES | UNJC |
NOMINAL THREAD SIZE | 0.138 INCHES |
THREAD QUANTITY PER INCH | 32 |
THREAD CLASS | 3B |
THREAD DIRECTION | RIGHT-HAND |
MATERIAL | IRON ALLOY 660 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
SURFACE TREATMENT | SILVER OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE OR AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
HARDNESS RATING | NOT RATED |
NUT STYLE | A294 HEXAGON |

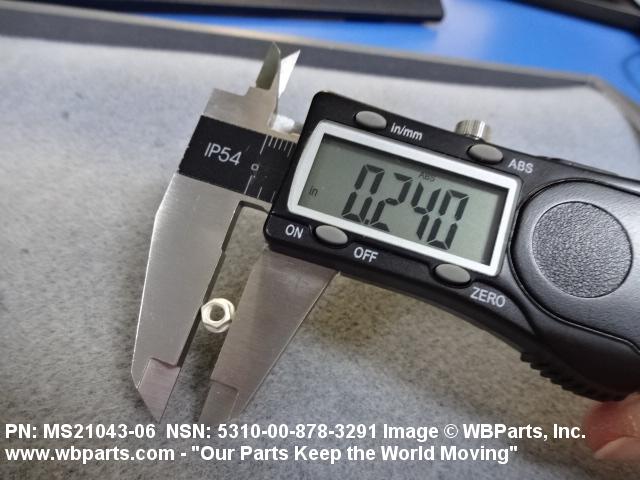

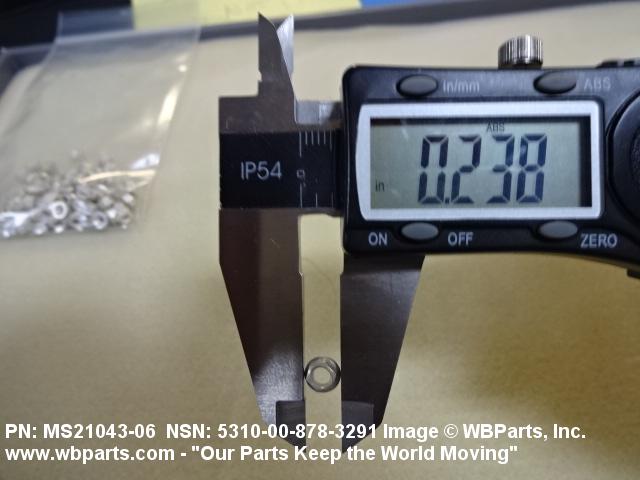

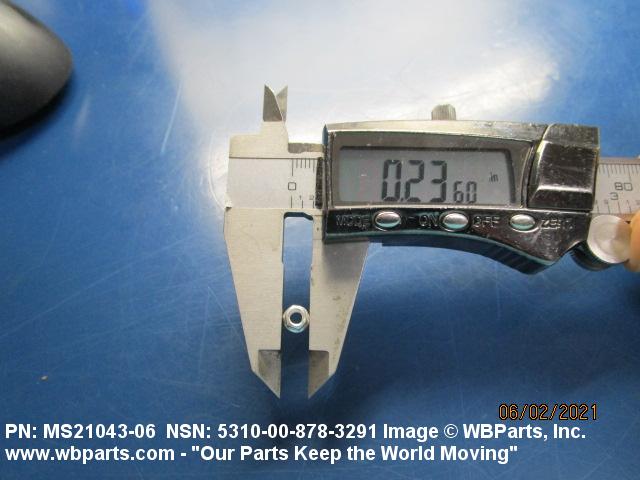

WASHER OUTSIDE DIAMETER | 0.244 INCHES MAXIMUM |

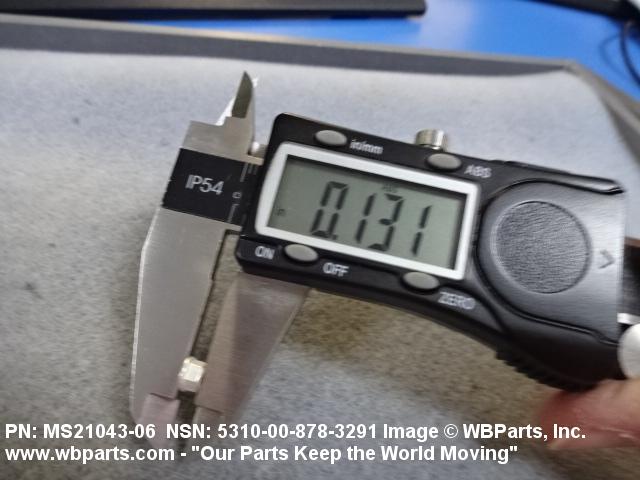

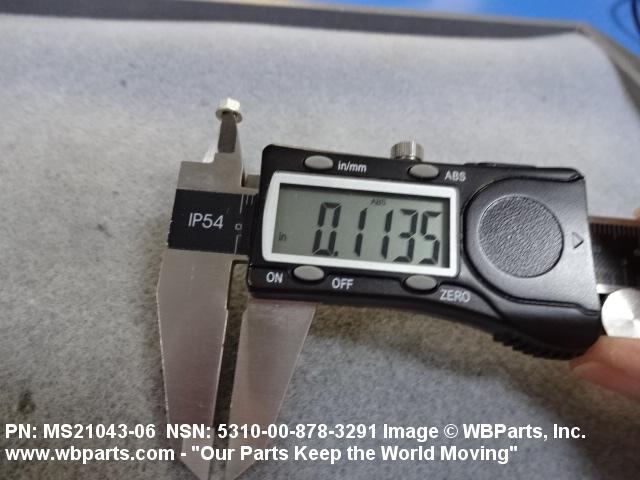

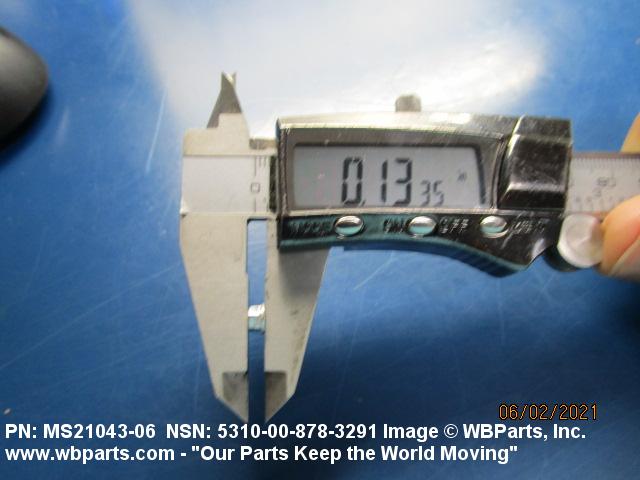

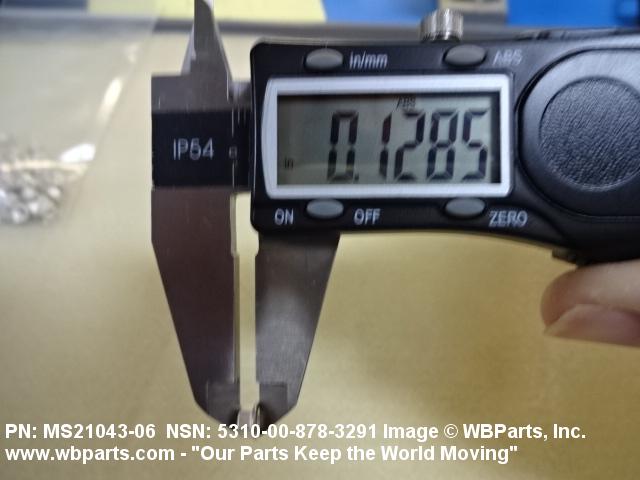

OVERALL HEIGHT | 0.115 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |

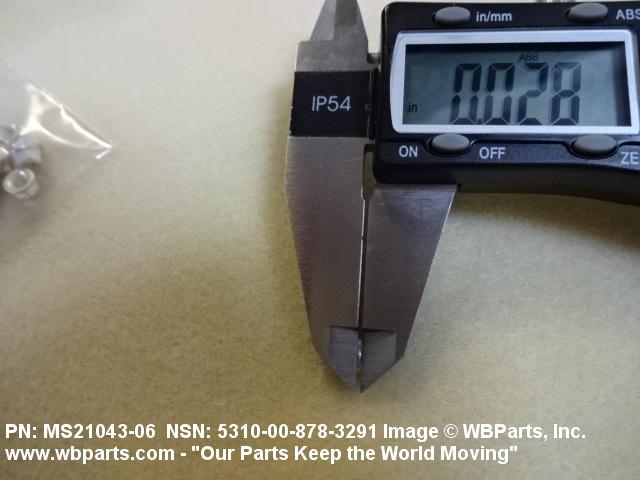

WASHER THICKNESS | 0.010 INCHES MINIMUM |

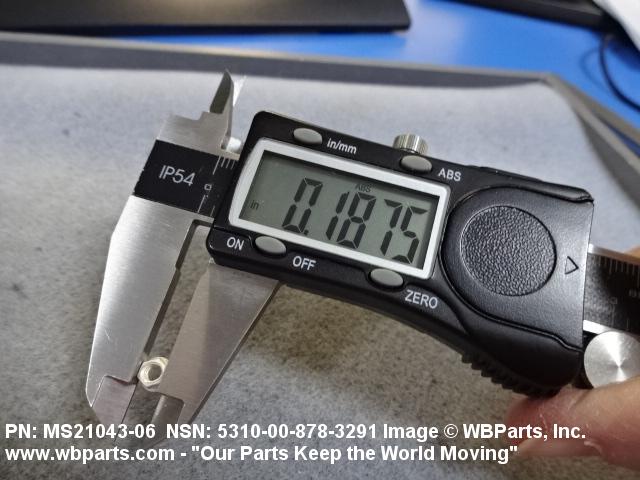

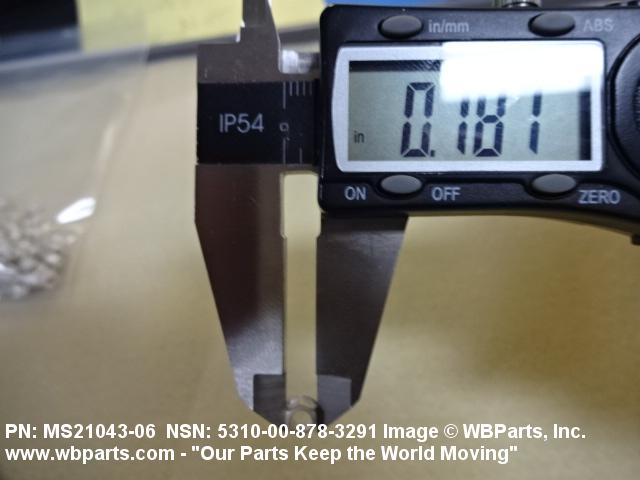

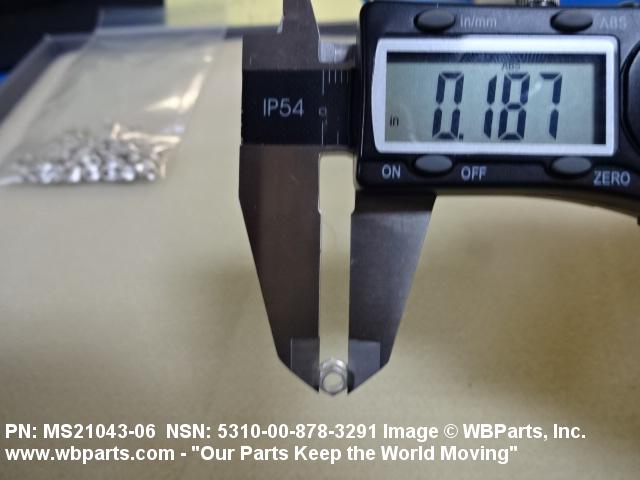

WIDTH ACROSS FLATS | 0.181 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
LUBRICATION | SOLUBLE LUBRICANT |
TEMP RATING | 800.0 DEG FAHRENHEIT NOMINAL |
III PRECIOUS MATERIAL AND LOCATION | EXTERNAL SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5310-00-878-3291
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | S | Item contains silver |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 573 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-878-3291
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | B | Rotary Wing Aircraft |
Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
Q EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
Q EA : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Echelon Identification Code | B | Consumable Repair Parts |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
Q EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
Q EA : Each |
