Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

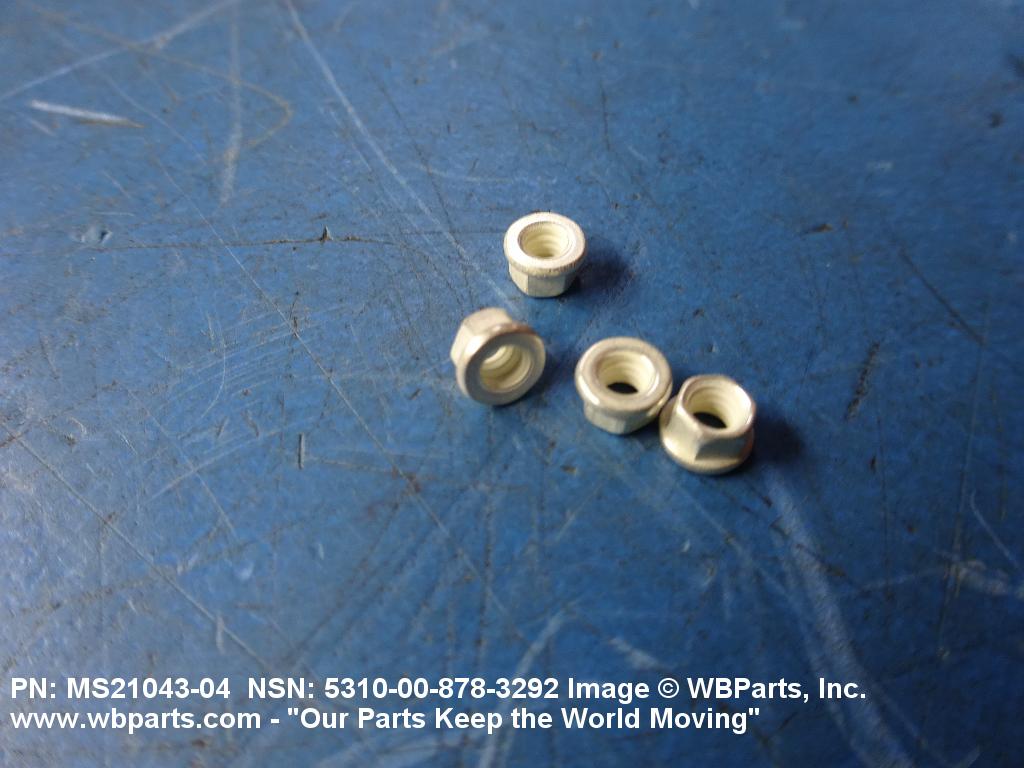

5310-00-878-3292 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS201434, MS20143-4, MS2104304, MS210-43-04, MS21043-04, MS21043C04, MS21043D4, MS21043L04, MN1904, MN19-04, NAS1291A04, NAS1291C04, NAS679C04, NAS697C04, H41L04, LH385840, LH3858-40, P146007001, T99C440, FN1014440, FN1014-440, 102A901779, 2486500001, 24865-00001, 3M129C440, 59FM400, 59FM440, 70LH166040, 70LH1660-40, 7383858PL70878254, 7383858-PL708782-54 , 74443136001, 7550480PL70878254, 7550480-PL708782-54 , 5310-00-878-3292, 00-878-3292, 5310008783292, 008783292

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-878-3292

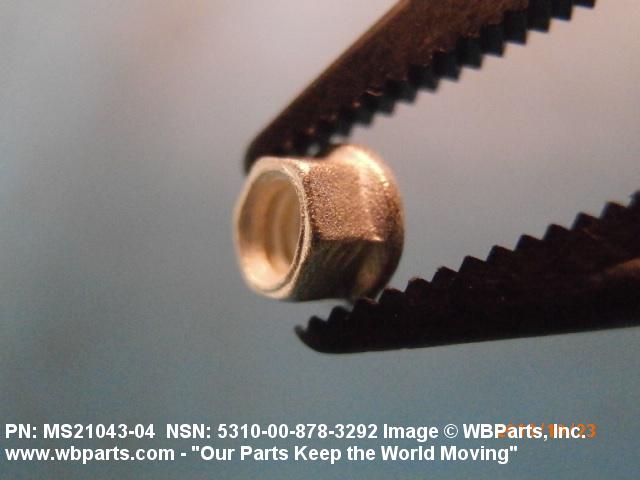

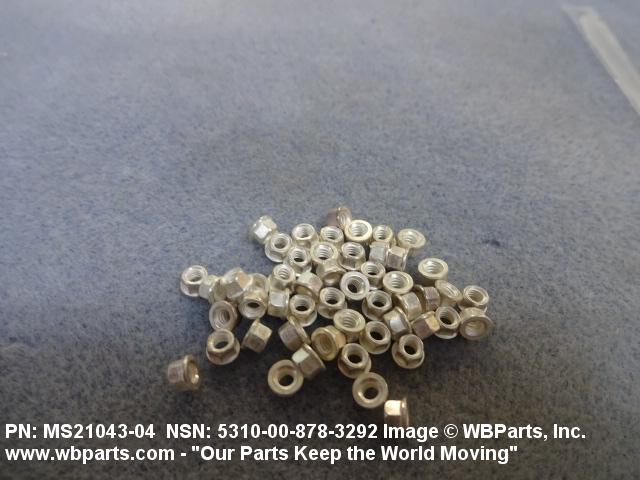

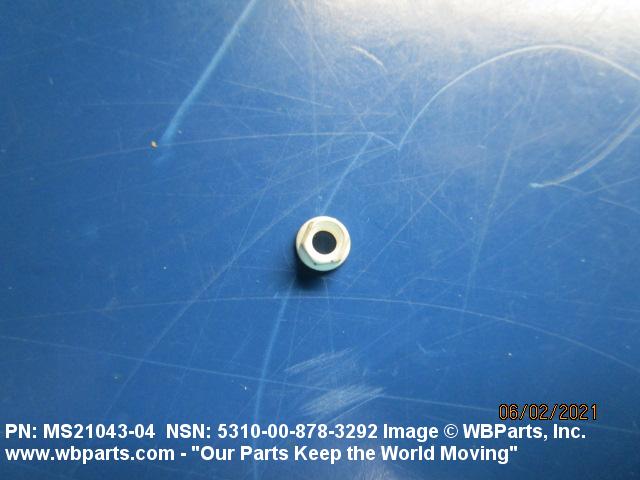

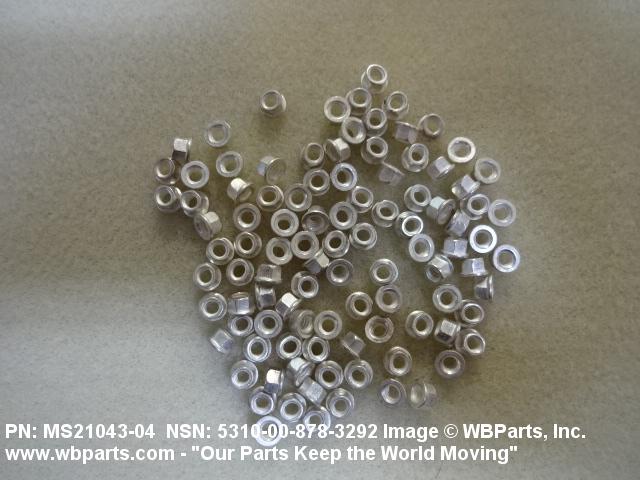

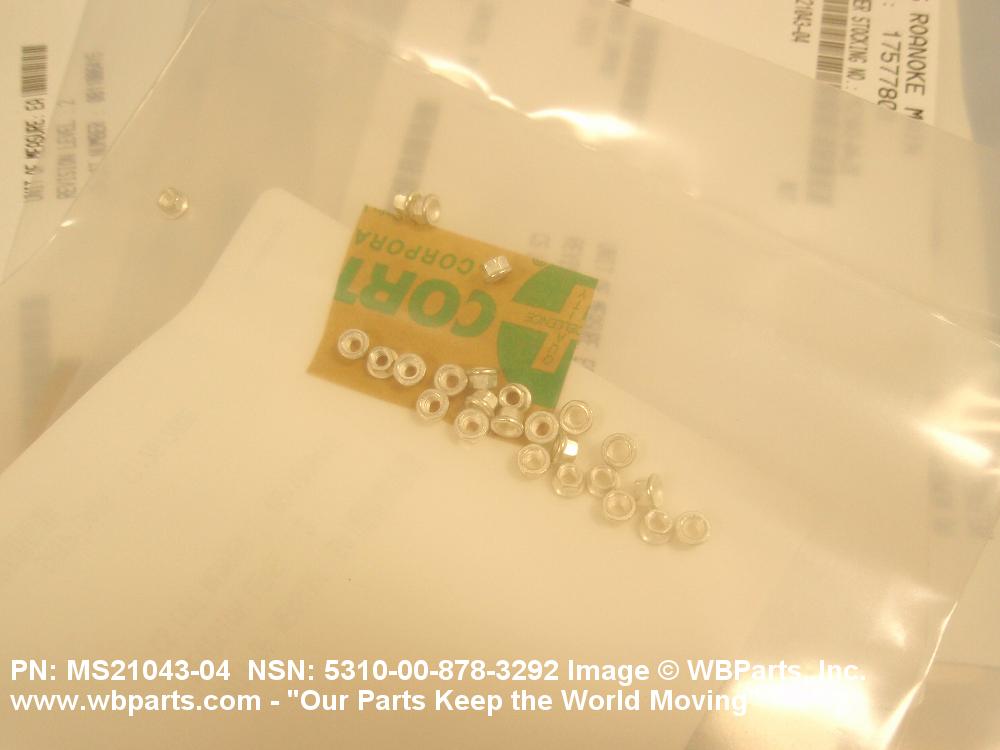

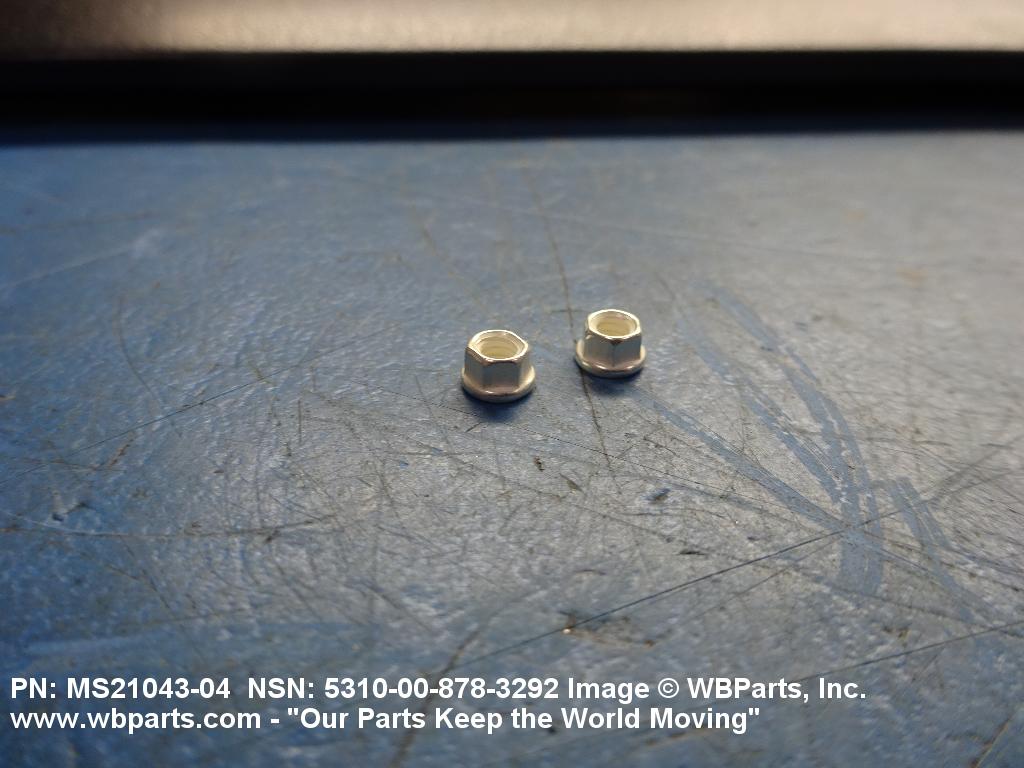

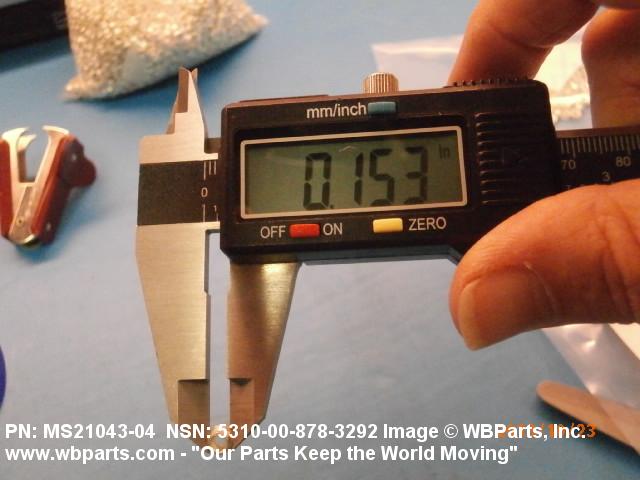

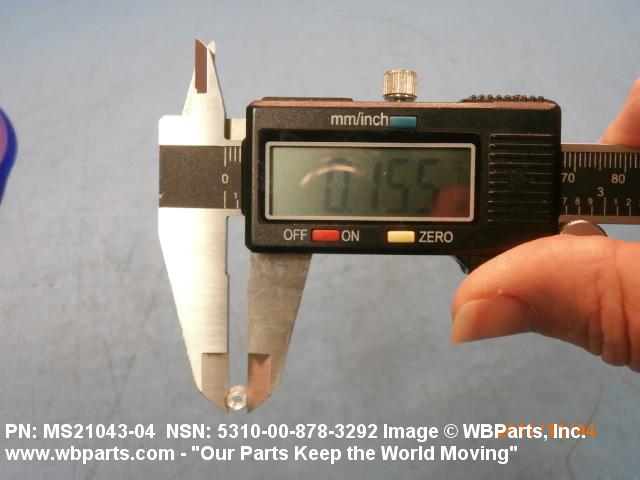

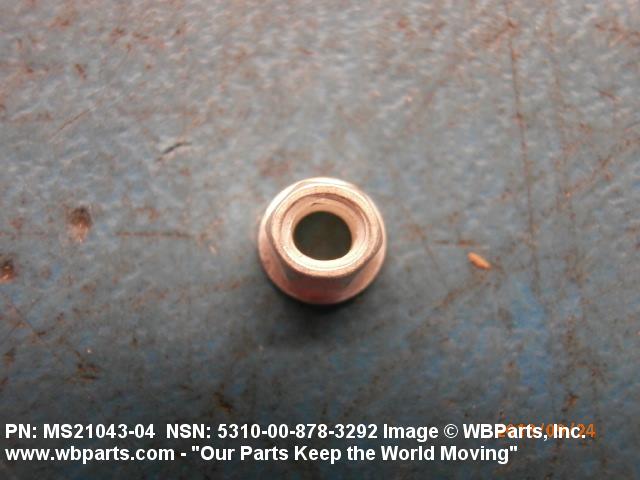

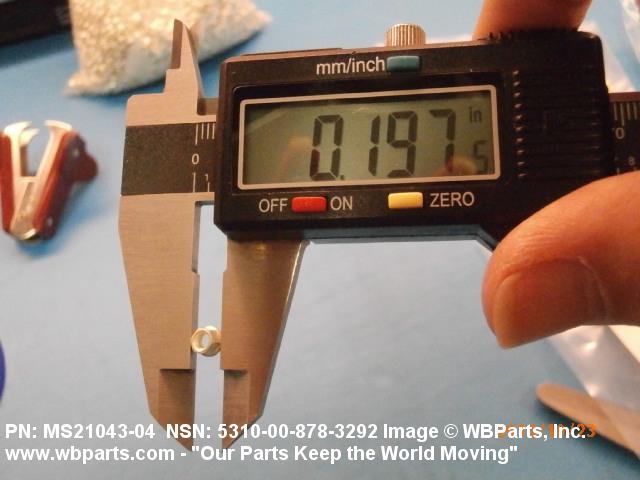

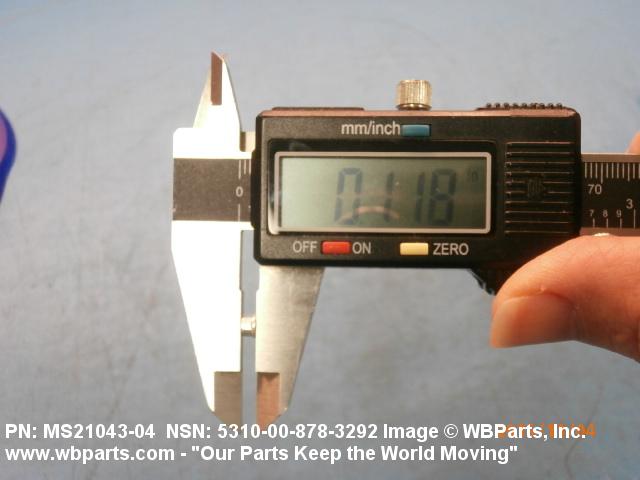

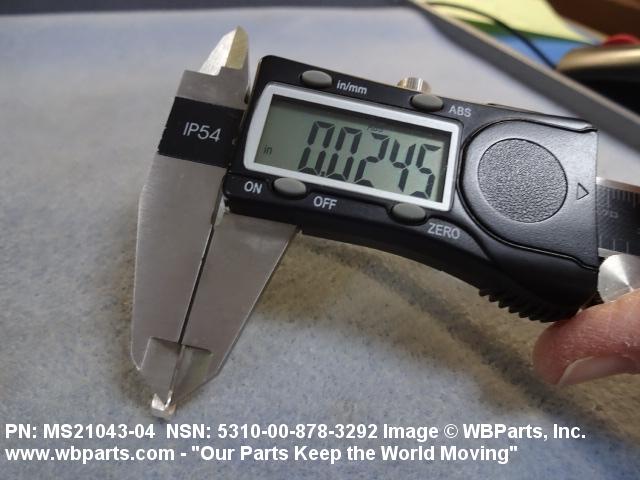

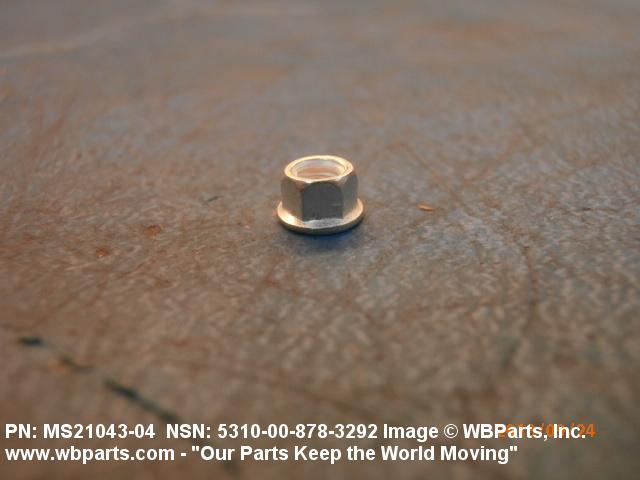

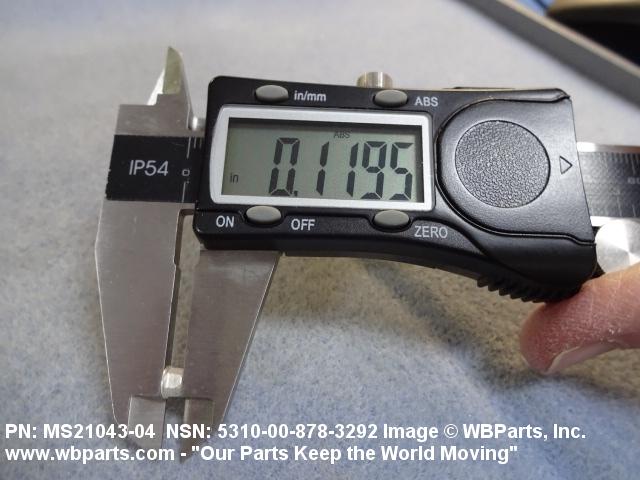

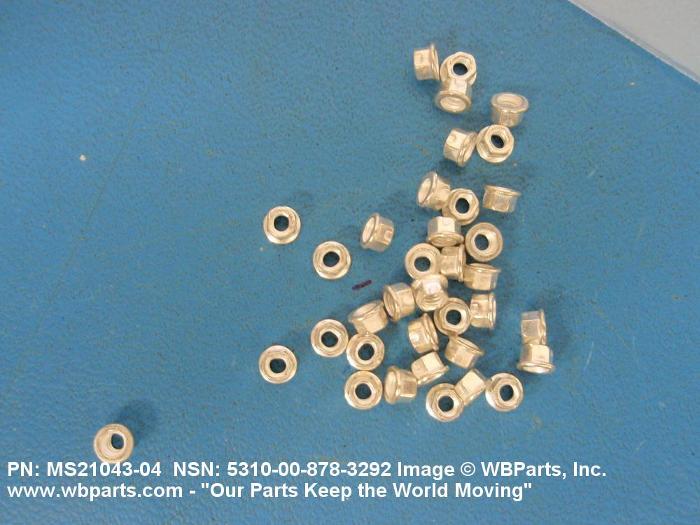

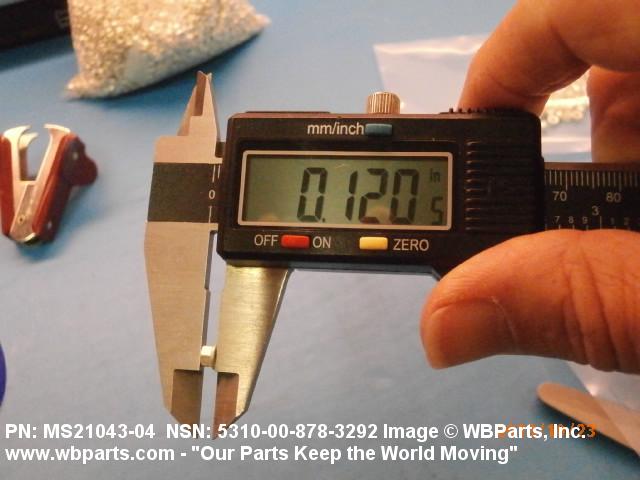

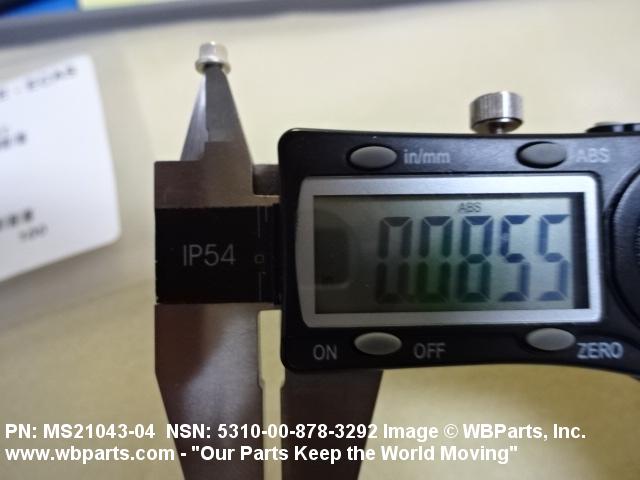

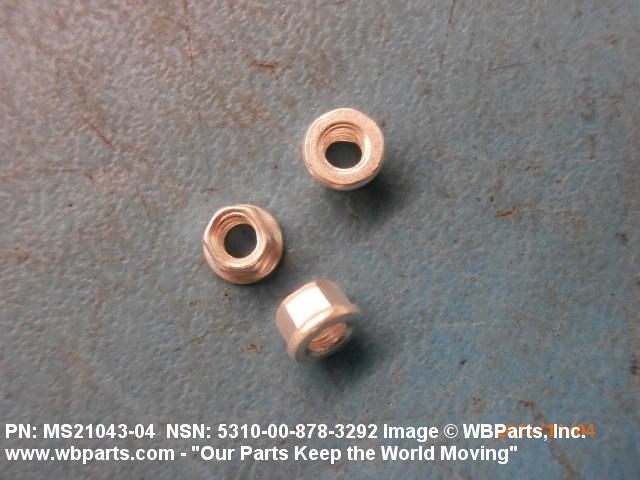

Drawings & Photos | NSN 5310-00-878-3292


Demand History | NSN 5310-00-878-3292

Part Number Request Date QTY Origin
MS2104304 2024-02-44 15240 us
MS2104304 2023-10-283 50 Thailand
MS2104304 2023-09-269 900 US
MS2104304 2023-09-269 5100 US
MS2104304 2023-09-269 15400 US
5310-00-878-3292 2023-01-11 17844 DIBBS
MS2104304 2022-06-180 525 United States
MS2104304 2022-06-173 4 United States
5310-00-878-3292 2022-04-111 100 US
MS2104304 2022-04-96 500 IN
MS2104304 2022-04-96 11000 IN
5310-00-878-3292 2021-11-313 15402 DIBBS
5310-00-878-3292 2021-02-49 12 US
MS2104304 2020-06-177 15980 IN
NAS1291C04 2019-12-351 100 United States
MS2104304 2019-09-255 16 United States
MS21043C04 2019-02-49 400 United States
MS21043C04 2019-02-46 400 United States
5310-00-878-3292 2018-10-296 2190 DIBBS
MS21043C04 2018-09-253 18 United States
MS21043C04 2018-08-242 18 United States
5310-00-878-3292 2018-08-235 31712 DIBBS
5310-00-878-3292 2018-06-156 50000 DIBBS
5310-00-878-3292 2018-03-80 16925 DIBBS
5310-00-878-3292 2018-02-44 24627 United States
5310-00-878-3292 2018-01-11 24627 DIBBS
MS2104304 2017-06-177 8 United States
MS2104304 2017-05-131 50 US
MS2104304 2017-04-109 1200 United States
5310-00-878-3292 2017-04-104 100 US
5310-00-878-3292 2017-01-31 24034 DIBBS
MS2104304 2016-11-319 8 US
5310-00-878-3292 2016-11-318 15208 DIBBS
NAS679C04 2016-04-96 207 US
MS2104304 2016-03-68 1 us
MS2104304 2015-10-300 5 us
5310-00-878-3292 2015-08-242 20000 DIBBS
MS2104304 2015-06-153 1 NL
5310-00-878-3292 2015-05-124 100 DIBBS
5310-00-878-3292 2015-05-123 19714 DIBBS
5310-00-878-3292 2015-03-78 200 DIBBS
MS21043-04 2015-03-71 10000 TH
5310-00-878-3292 2014-06-166 16801 DIBBS
5310-00-878-3292 2014-03-71 7542 DIBBS
MS2104304 2014-02-49 75 US
MS2104304 2013-10-281 3000 United States
MS2104304 2013-10-280 3000 United States
MS2104304 2013-03-85 4 US
MS2104304 2012-10-305 36 Taiwan
5310-00-878-3292 2012-08-216 14201 DIBBS
MS2104304 2012-07-212 2040 United States
5310-00-878-3292 2012-07-206 14988 DIBBS
MS2104304 2012-06-173 20 India
MS21043-04 2012-06-158 200 Mexico
MS2104304 2012-06-157 200 Mexico
MS2104304 2012-04-104 40 US
MS2104304 2012-02-52 5000 CN
MS2104304 2012-01-26 12 us
MS2104304 2011-10-290 5000 US
MS2104304 2011-09-257 66 United States
5310-00-878-3292 2011-08-225 100 US
MS2104304 2011-07-200 900 TR
MS2104304 2011-05-146 3000 United States
5310-00-878-3292 2011-05-138 36 United States
5310-00-878-3292 2011-02-54 20 US
NAS1291C04 2011-02-46 450 US
NAS679C04 2011-02-46 1000 US
5310-00-878-3292 2011-01-12 4 US
5310-00-878-3292 2010-12-340 100 US
MS2104304 2010-10-299 50 United States
5310-00-878-3292 2010-09-260 50 US
5310-00-878-3292 2010-09-252 10 US
5310-00-878-3292 2010-07-210 40 US
5310-00-878-3292 2010-07-196 400 Greece
5310-00-878-3292 2010-07-182 2984 DIBBS
5310-00-878-3292 2010-05-139 600 IT
5310-00-878-3292 2010-02-47 100 US
5310-00-878-3292 2009-12-336 11987 DIBBS
NAS679C04 2009-12-335 20 Canada
MS2104304 2009-11-316 15 United States
5310-00-878-3292 2009-09-264 39995 DIBBS
MS21043L04 2009-06-155 100 Italy
5310-00-878-3292 2009-04-106 7490 DIBBS
5310-00-878-3292 2009-01-07 260 United States
NAS679C04 2008-12-339 50 US
MS201434 2008-08-232 10 US
MS2104304 2008-08-228 10000 US
NAS679C04 2008-05-136 1105 US
MS2104304 2008-05-135 25000 US
MS2104304 2008-05-133 300 United States
MS2104304 2008-05-127 100 United States
5310-00-878-3292 2008-05-127 100 us
MS2104304 2008-04-115 200 US
MS2104304 2007-12-346 25000 US
MS2104304 2007-11-305 30 US
MS2104304 2007-08-241 10400 Spain

Cross Reference | NSN 5310-00-878-3292

Part Number Cage Code Manufacturer
048424-001 89305 SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED
102A901779 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
24865-00001 19397 BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
3M129C440 76301 BOEING COMPANY, THE DBA BOEING
5310008783292 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
59FM400 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
59FM440 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
70LH1660-40 019L2 MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
70LH1660-40 72962 HARVARD INDUSTRIES INC
7383858-PL708782-54 53711 NAVAL SEA SYSTEMS COMMAND
74443136001 89944 KOLLSMAN, INC.
7550480-PL708782-54 53711 NAVAL SEA SYSTEMS COMMAND
FN1014-440 56878 SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
H41L04 15653 ALCOA GLOBAL FASTENERS, INC.
H41L04 75237 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H41L04 F6033 TECNOTEC SARL
H41L04 R1120 SATAIR A/S
LH3858-40 46384 PENN ENGINEERING & MANUFACTURING CORP.
MN19-04 73197 HI-SHEAR CORPORATION
MN19-04 C4293 ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
MN19-04 R1120 SATAIR A/S
MS20143-4 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS210-43-04 5M696 UFC AEROSPACE CORP.
MS21043-04 0178B INDRA SISTEMAS SA - ARANJUEZ
MS21043-04 2N335 PATTONAIR USA, INC. DBA PATTONAIR
MS21043-04 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21043-04 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS2104304 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21043C04 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21043D4 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21043L04 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1291A04 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1291C04 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS679C04 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS697C04 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
P146007001 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
T99C440 05693 CHERRY TEXTRON INC CHERRY COMMERCIAL FASTENERS PRODUCTS
T99C440 11815 SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T99C440 71087 REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-878-3292

Technical Data | NSN 5310-00-878-3292

Characteristic Specifications
THREAD SERIES UNJC
NOMINAL THREAD SIZE 0.112 INCHES
THREAD QUANTITY PER INCH 40
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT SILVER OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE OR AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING NOT RATED
NUT STYLE A294 HEXAGON

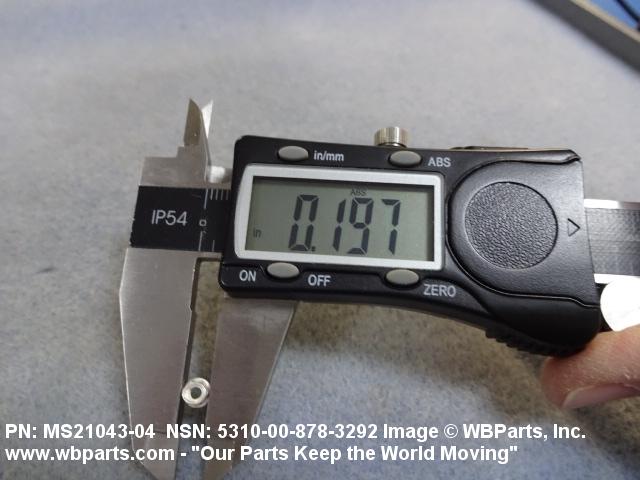

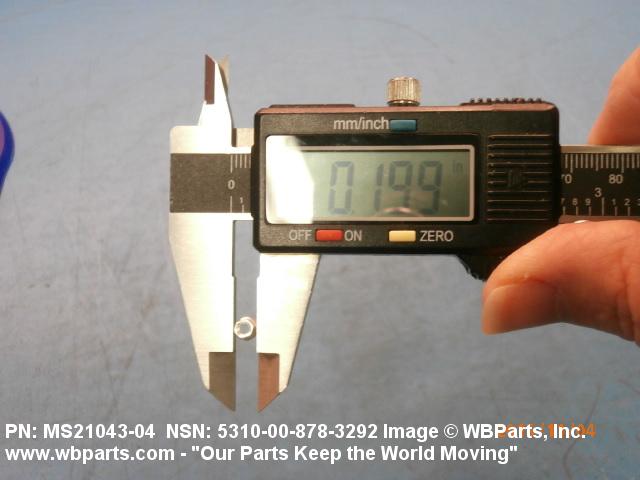

WASHER OUTSIDE DIAMETER 0.206 INCHES MAXIMUM

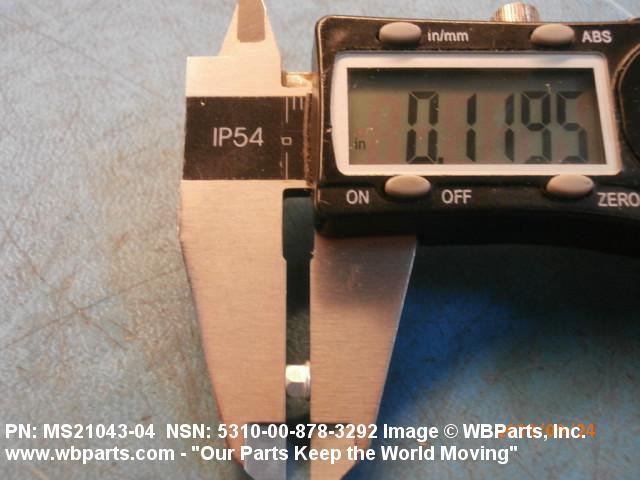

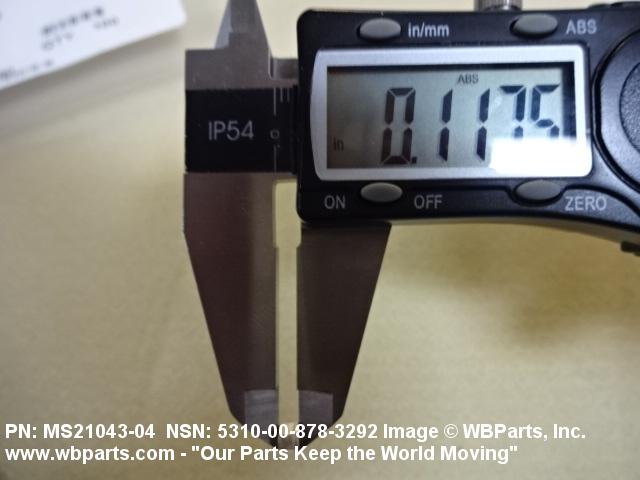

OVERALL HEIGHT 0.103 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
WASHER THICKNESS 0.010 INCHES MINIMUM

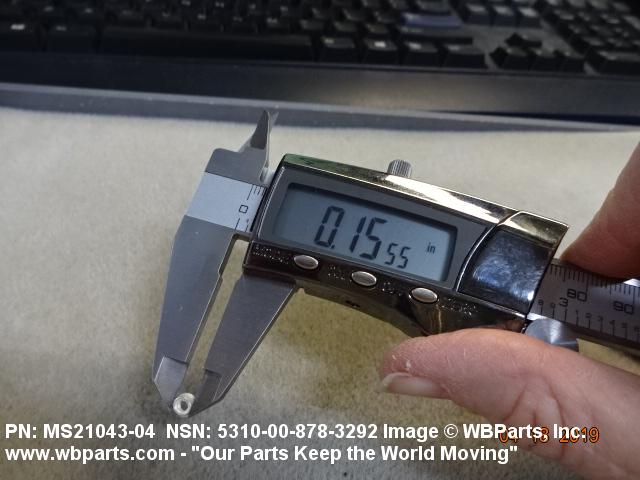

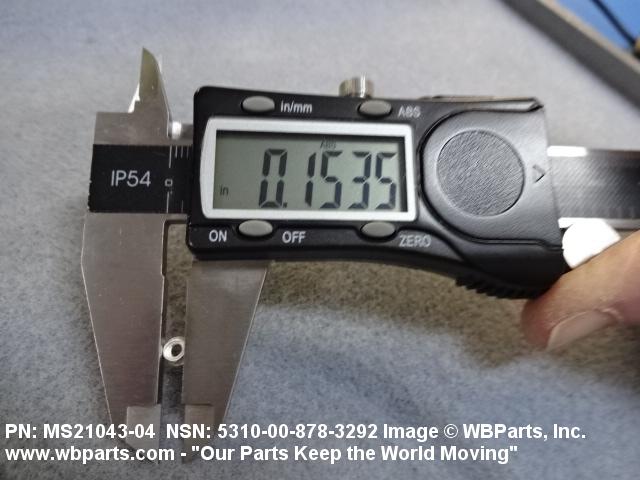

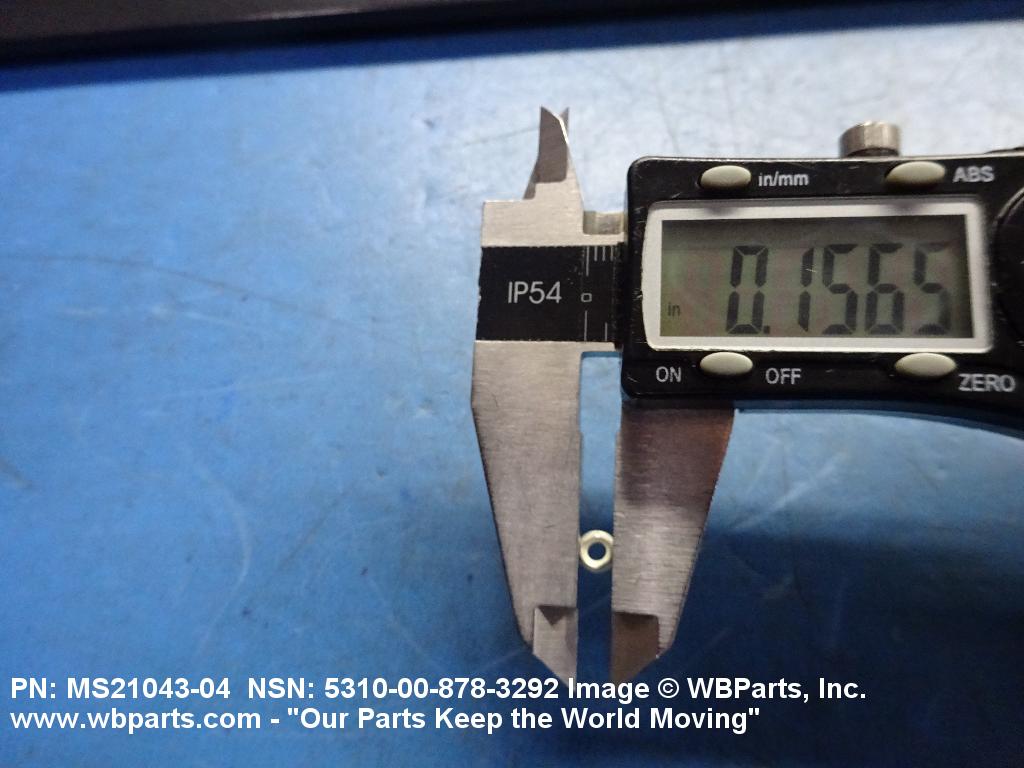

WIDTH ACROSS FLATS 0.150 INCHES MINIMUM AND 0.158 INCHES MAXIMUM
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION SOLUBLE LUBRICANT
TEMP RATING 800.0 DEG FAHRENHEIT NOMINAL
III PRECIOUS MATERIAL SILVER
III PRECIOUS MATERIAL AND LOCATION OVERALL SILVER

Restrictions/Controls & Freight Information | NSN 5310-00-878-3292

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:SItem contains silver
Criticality Code:FThe item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-00-878-3292

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityAItem requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification CodeBConsumable Repair Parts
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
