NSN 5310-00-841-7633 FPN832SCL, FPN8-32SCL, FPN832SCLM
Product Details | CLINCH SELF-LOCKING NUT
5310-00-841-7633 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: FPN832SCL, FPN8-32SCL, FPN832SCLM, FPN8-32SCLM, 1470036000, 147-0036-000, 20886270003, 2088627-0003, 21775023, 2177502-3, 788C08H02, 5310-00-841-7633, 00-841-7633, 5310008417633, 008417633
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-841-7633 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

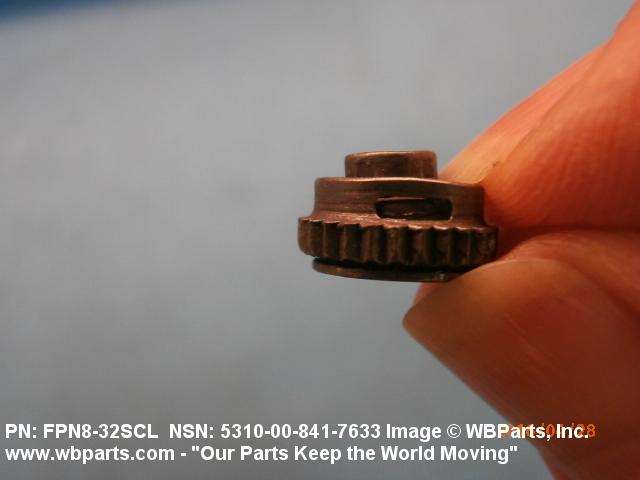

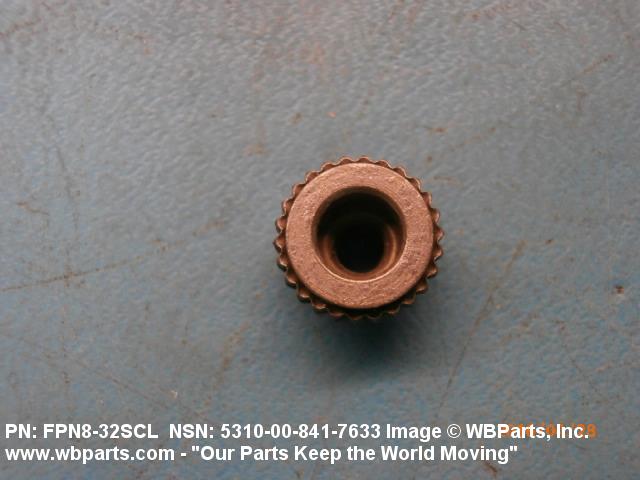

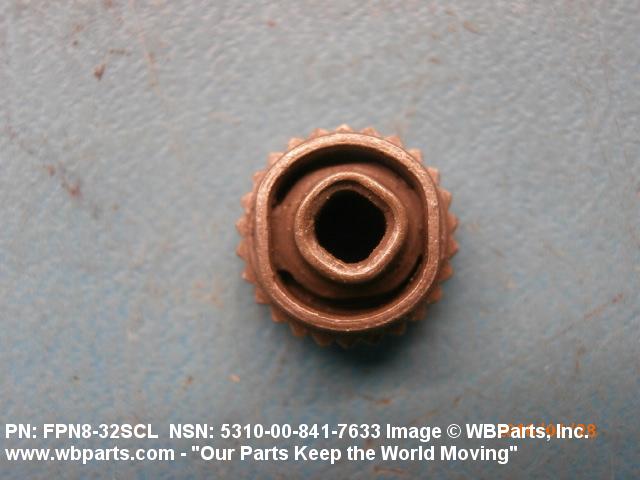

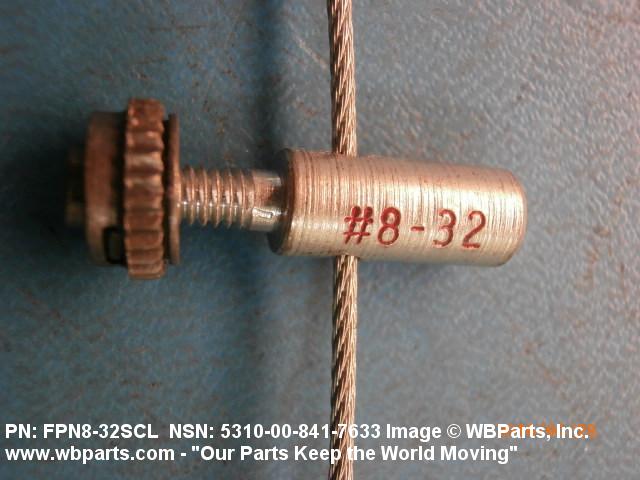

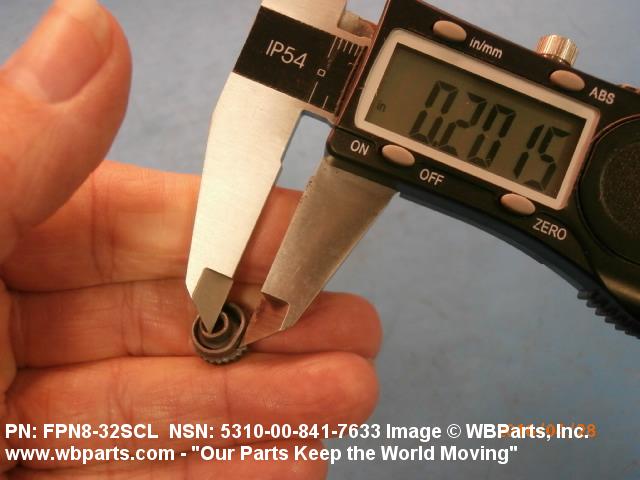

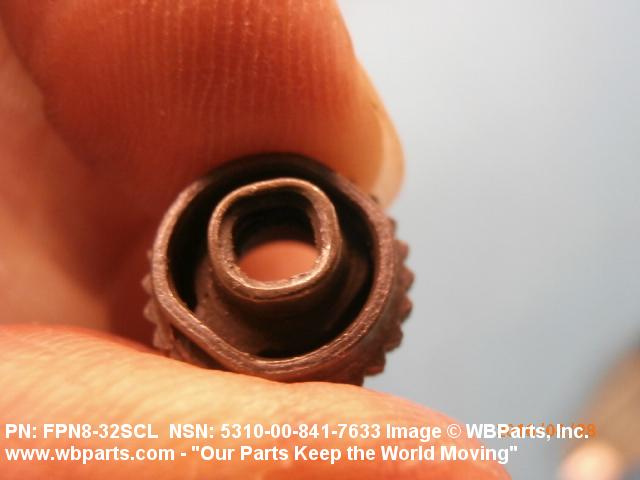

Drawings & Photos | NSN 5310-00-841-7633
Demand History | NSN 5310-00-841-7633
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-841-7633 | 2021-06-174 | 10 | United States |
| FPN832SCL | 2021-06-172 | 25 | United States |
| 5310-00-841-7633 | 2019-02-32 | 24 | US |
| FPN832SCL | 2017-06-160 | 5 | United States |
| FPN832SCL | 2016-03-89 | 10 | United States |
| 5310-00-841-7633 | 2014-12-349 | 25 | United States |
| 5310-00-841-7633 | 2010-08-221 | 10 | US |
| FPN832SCL | 2010-08-218 | 10 | US |
| 5310-00-841-7633 | 2007-10-303 | 2 | us |
Cross Reference | NSN 5310-00-841-7633
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 147-0036-000 | 97871 | RAYTHEON COMPANY DBA RAYTHEON |
| 2088627-0003 | 27914 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 2177502-3 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 788C08H02 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| FPN8-32SCL | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| FPN8-32SCLM | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-841-7633
Related Products | NSN 5310-00-841-7633
Technical Data | NSN 5310-00-841-7633
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A48 CLINCH |
| DISTANCE FROM CENTERLINE TO FLAT | 0.225 INCHES NOMINAL |

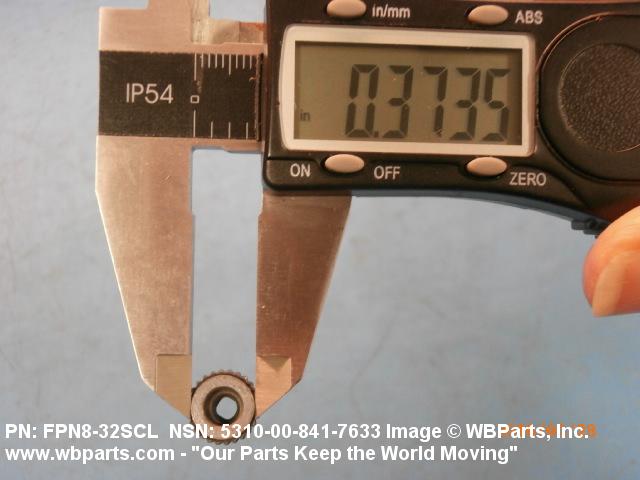

| PILOT DIAMETER | 0.373 INCHES NOMINAL |

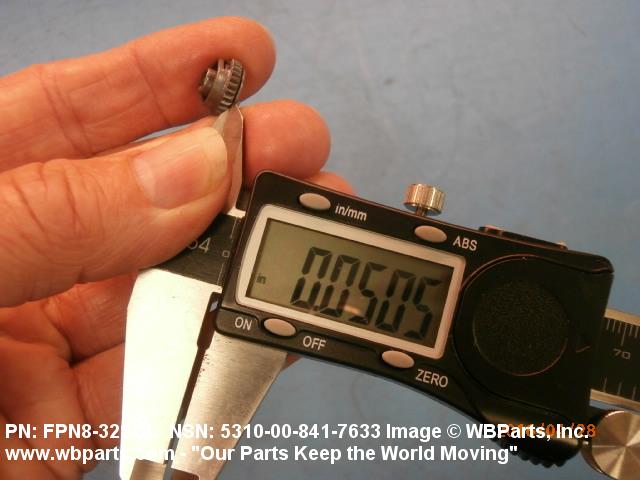

| PILOT LENGTH | 0.050 INCHES NOMINAL |

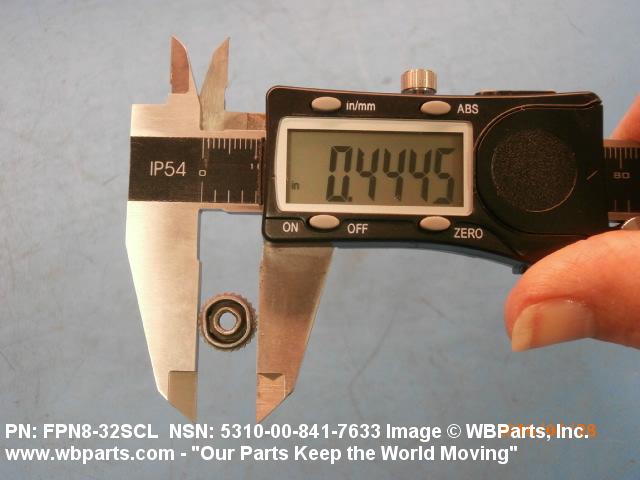

| NUT DIAMETER | 0.450 INCHES NOMINAL |

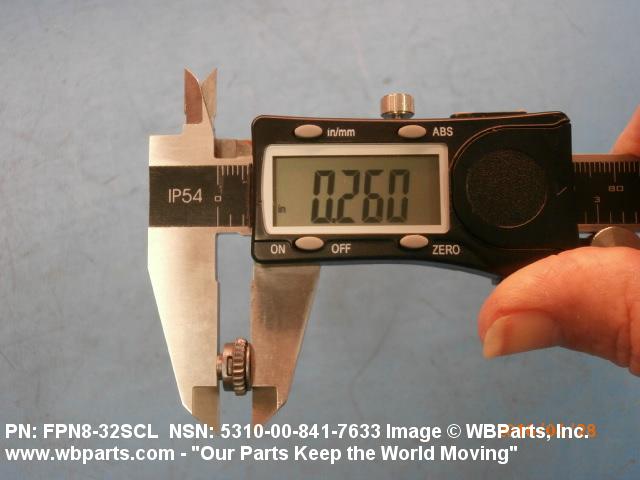

| NUT HEIGHT | 0.240 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-841-7633
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
