NSN 5310-00-809-7443 M45938/1-29C, M45938129C, NGX1712455

Product Details | CLINCH PLAIN NUT

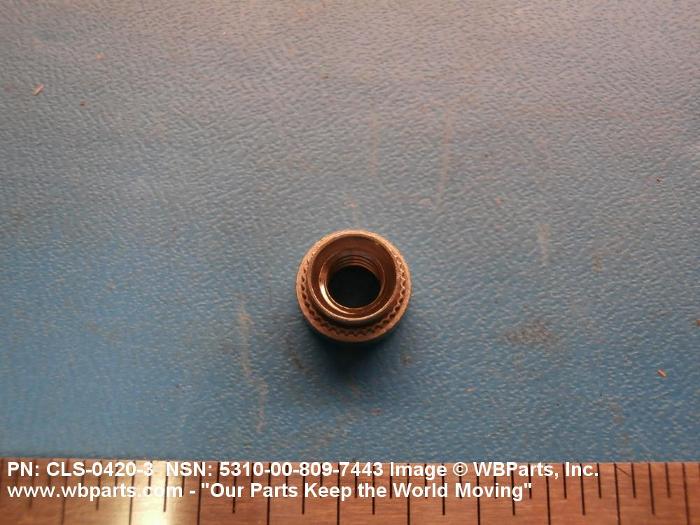

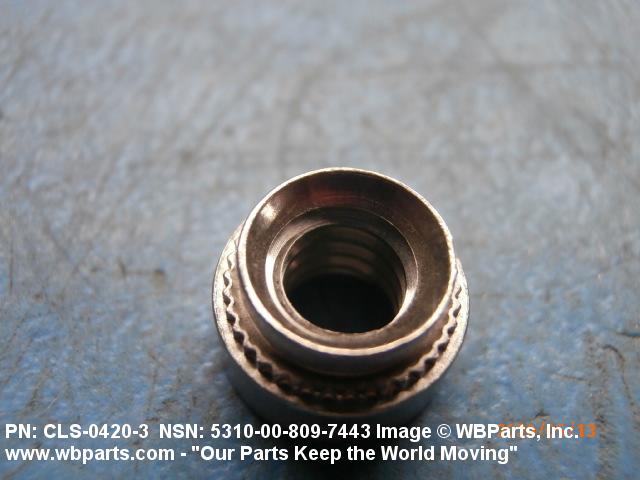

5310-00-809-7443 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole.

Part Alternates: M45938/1-29C, M45938129C, NGX1712455, NGX17124-55, CLS04203, CLS-0420-3, DRA341378, DRA34137-8, 720NKS0125, 90635932, 9063593-2, 99952902, 9995290-2, 1034D22019, 1034-D220-19, 18010ESS2520, 18010E-SS-2520, 400003-253, 5310-00-809-7443, 00-809-7443, 5310008097443, 008097443, 400003253

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-809-7443	01860 ( NUT, PLAIN, CLINCH )

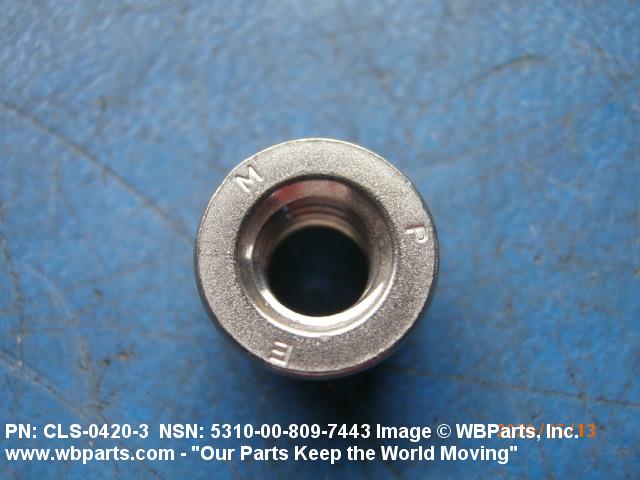

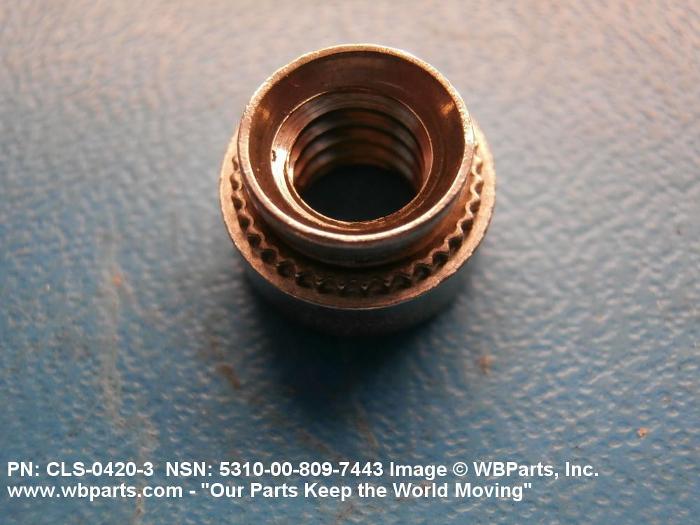

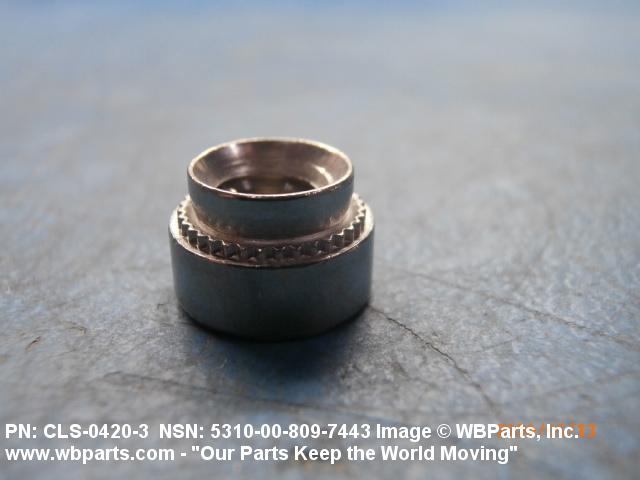

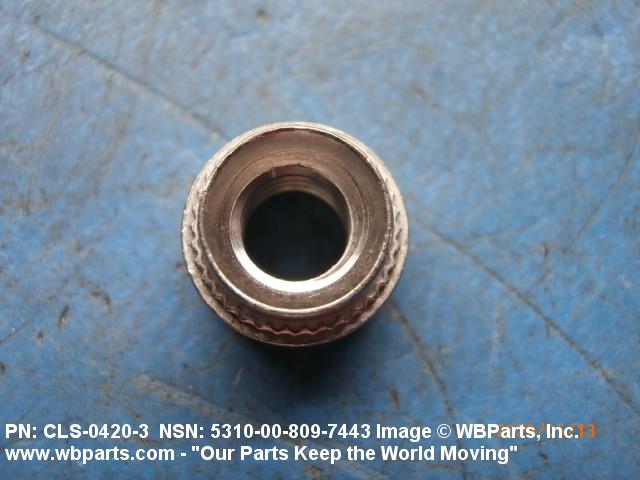

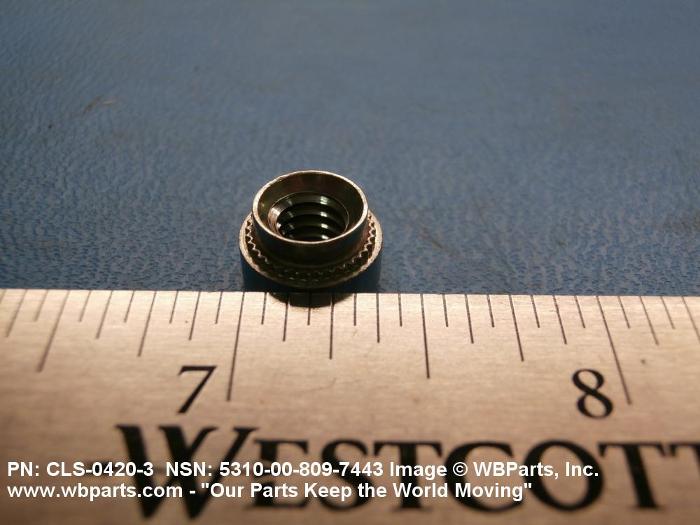

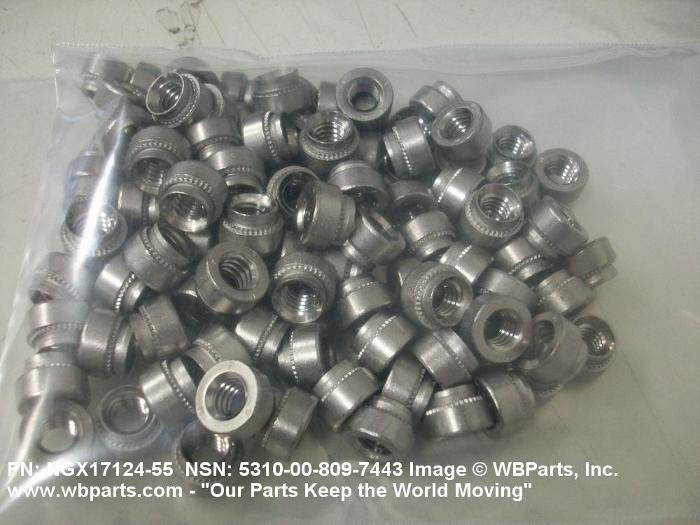

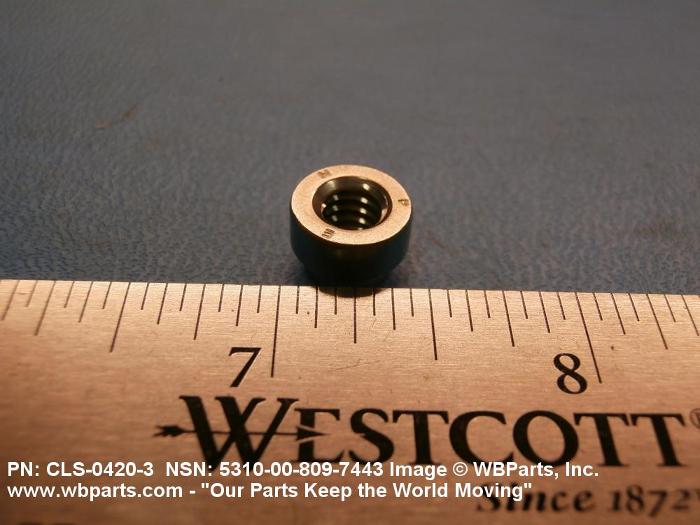

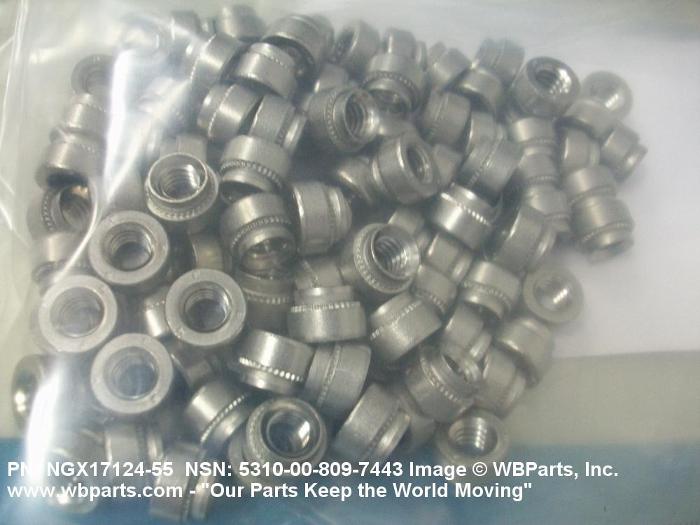

Drawings & Photos | NSN 5310-00-809-7443

Part Number	Request Date	QTY	Origin
5310-00-809-7443	2021-03-62	40	us
5310-00-809-7443	2021-02-41	4	US
5310-00-809-7443	2021-01-12	100	United States
5310-00-809-7443	2020-10-280	400	CA
5310-00-809-7443	2020-05-148	50	US
5310-00-809-7443	2020-05-127	130	United States
CLS04203	2019-03-86	10	US
M45938129C	2018-09-263	480	United States
M45938129C	2015-05-149	12	United States
5310-00-809-7443	2014-07-196	11114	US
5310-00-809-7443	2014-07-195	300	US
5310-00-809-7443	2014-07-184	8000	United States
5310-00-809-7443	2014-06-163	1000	US
CLS04203	2012-10-283	100	Canada
M45938129C	2012-10-283	100	Canada
5310-00-809-7443	2012-06-163	300	US
CLS04203	2012-06-160	100	United States
CLS04203	2012-02-34	200	United States
M45938129C	2012-01-26	160	Canada
5310-00-809-7443	2011-09-249	100	us
5310-00-809-7443	2011-06-178	100	us
CLS04203	2011-05-143	1000	US
M45938129C	2009-08-229	100	US
5310-00-809-7443	2009-05-127	30840	DIBBS
5310-00-809-7443	2009-03-72	17378	DIBBS
5310-00-809-7443	2009-03-69	17378	DIBBS
M45938129C	2008-08-232	100	us
M45938129C	2008-06-158	200	US
CLS04203	2008-02-49	12	US

Cross Reference | NSN 5310-00-809-7443

Part Number	Cage Code	Manufacturer
1034-D220-19	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
18010E-SS-2520	06540	NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV
400003-253	96214	RAYTHEON COMPANY DBA RAYTHEON
720NKS-(0.125)	86577	PRECISION METAL PRODUCTS CO
9063593-2	18876	U S ARMY AVIATION AND MISSILE COMMAND
9995290-2	18876	U S ARMY AVIATION AND MISSILE COMMAND
CLS-0420-3	46384	PENN ENGINEERING & MANUFACTURING CORP.
DRA34137-8	09975	UNISYS CORPORATION
M45938/1-29C	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NGX17124-55	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-809-7443

Compare

Related Products | NSN 5310-00-809-7443

5310-00-809-7447, 5310-00-809-7449, 5310-00-809-7616, 5310-00-809-7629, 5310-00-809-7632

Technical Data | NSN 5310-00-809-7443

Characteristic	Specifications
THREAD SERIES	UNC

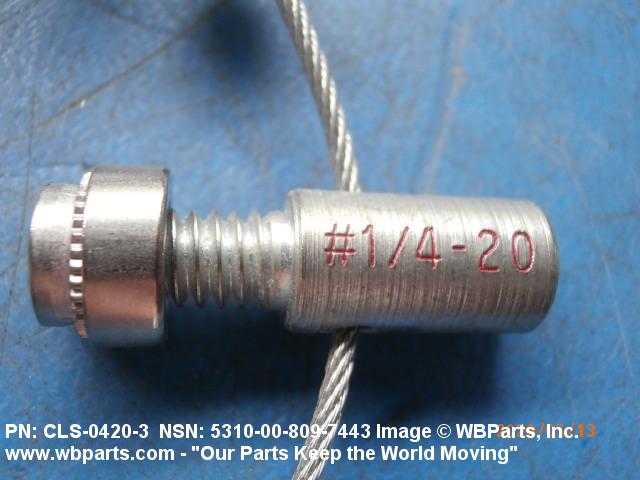

NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 303S OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL=S-7720 COND B MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A54 CLINCH

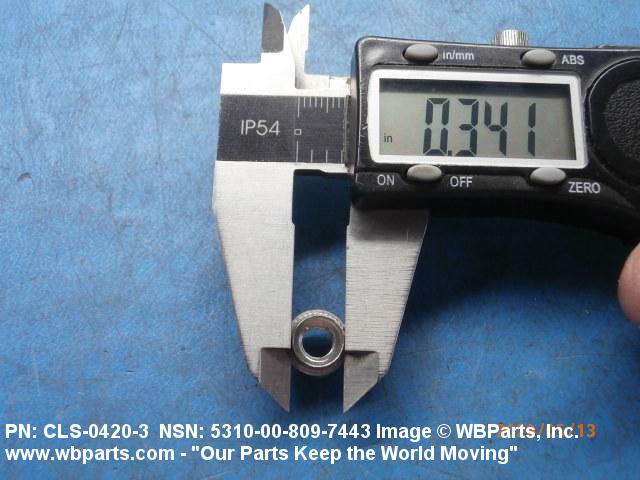

PILOT DIAMETER	0.342 INCHES MAXIMUM
PILOT LENGTH	0.120 INCHES MAXIMUM

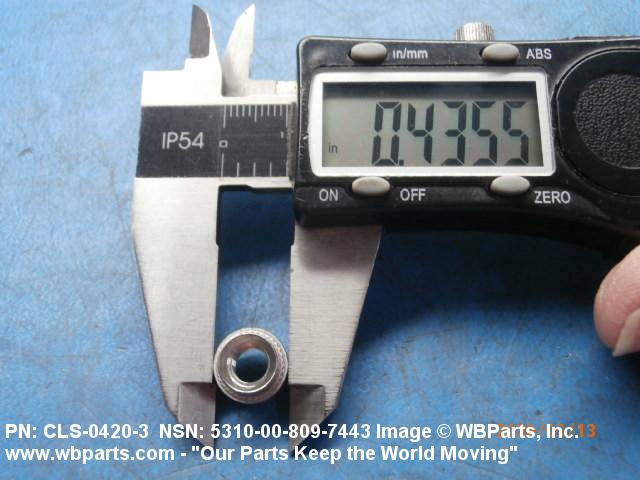

NUT DIAMETER	0.469 INCHES NOMINAL

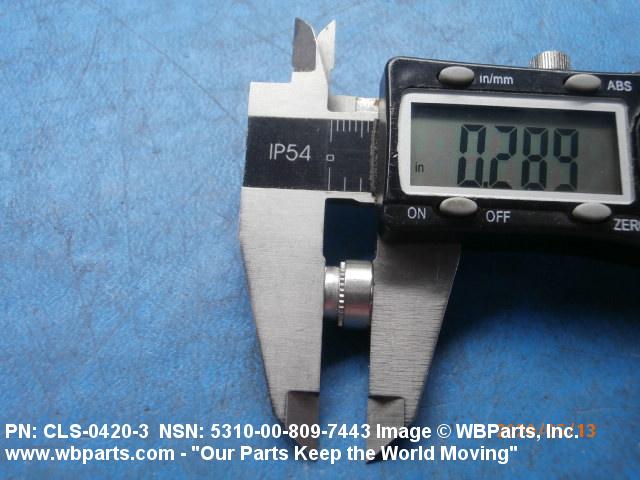

NUT HEIGHT	0.291 INCHES NOMINAL
