NSN 5310-00-798-4847 M45938/14-3, M45938143, SC531000032
Product Details | CLINCH SELF-LOCKING NUT

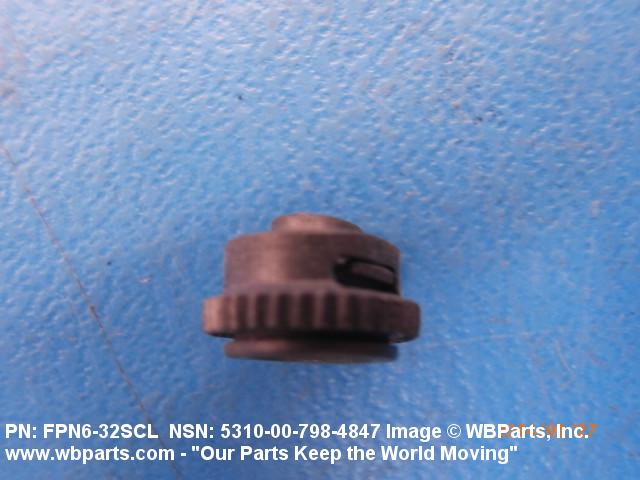

5310-00-798-4847 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: M45938/14-3, M45938143, SC531000032, SC5310-0003-2, PPN632SCL, PPN6-32SCL, F720006, F7200-06, FPN 6-32SCL, FPN632, FPN6-32, FPN632SCL, FPN6-32SCL, 6017633, 788C218H03, 84477031, 8447703-1, 89834463, 8983446-3, 9176528, 01260181, 0126018-1, 10545463-4, 23611002, 23611-002, 3341152000, 334-1152-000, 5310-00-798-4847, 00-798-4847, 5310007984847, 007984847, 105454634
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-798-4847 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

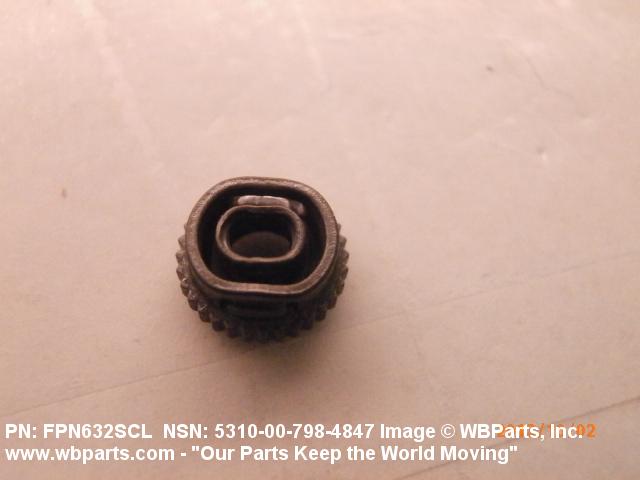

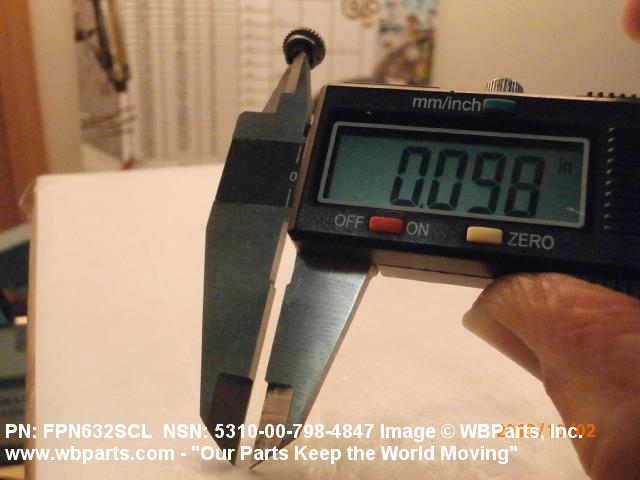

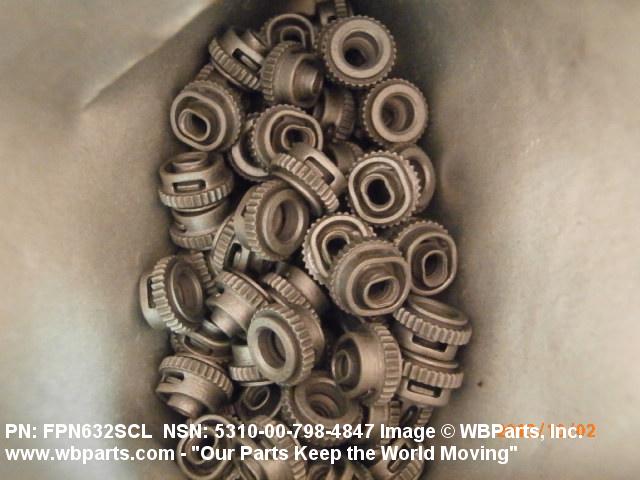

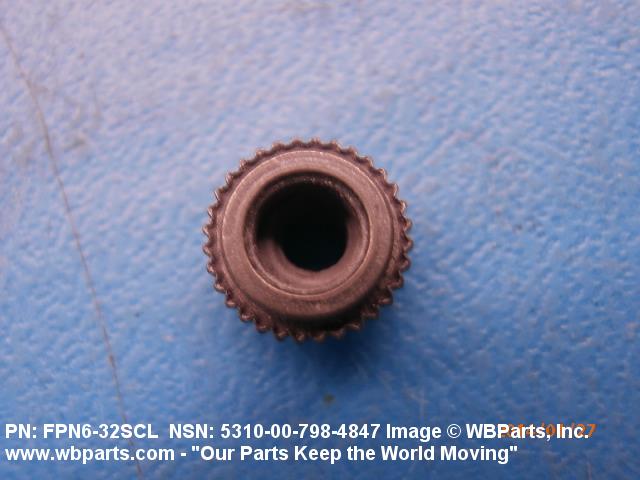

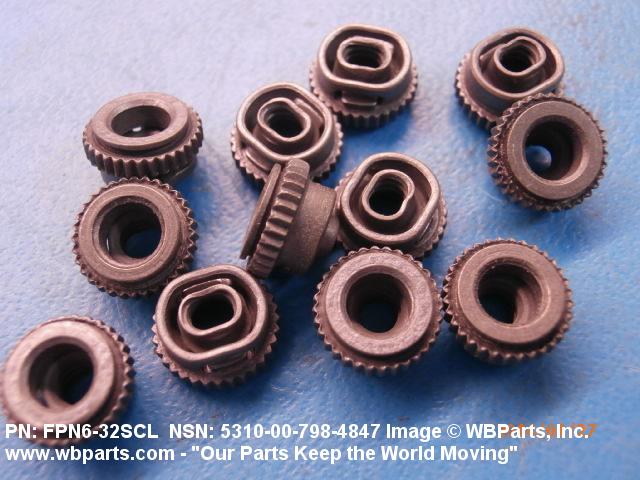

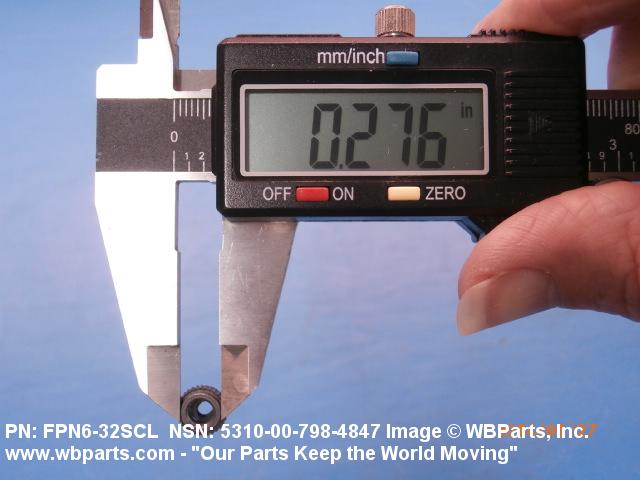

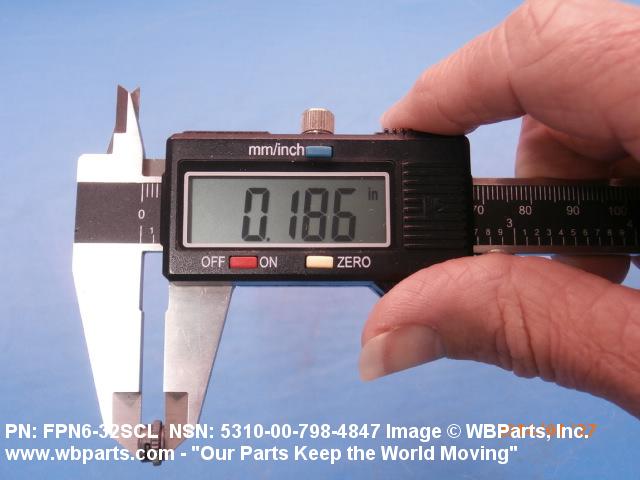

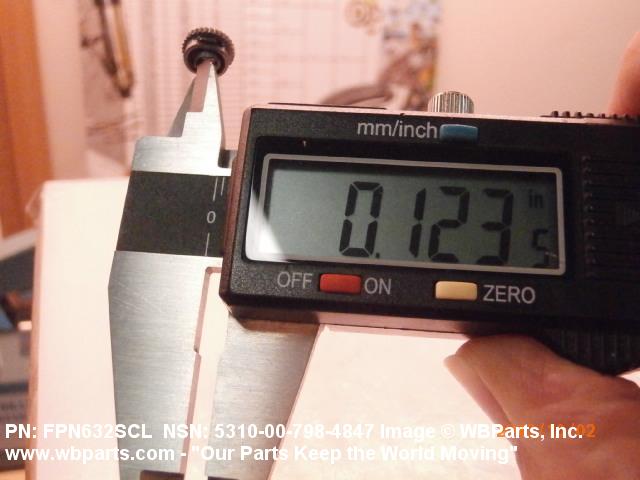

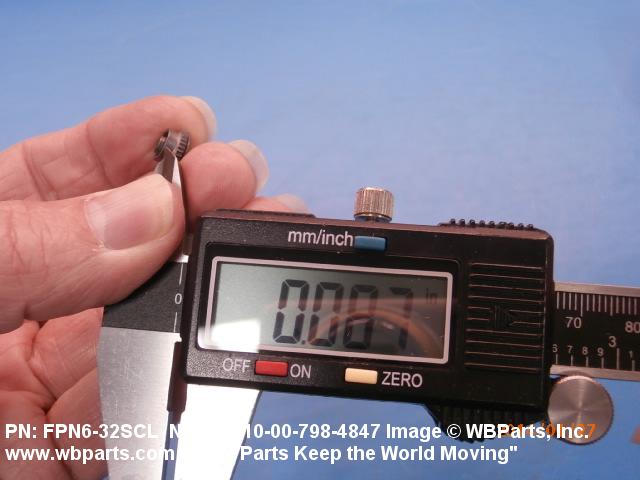

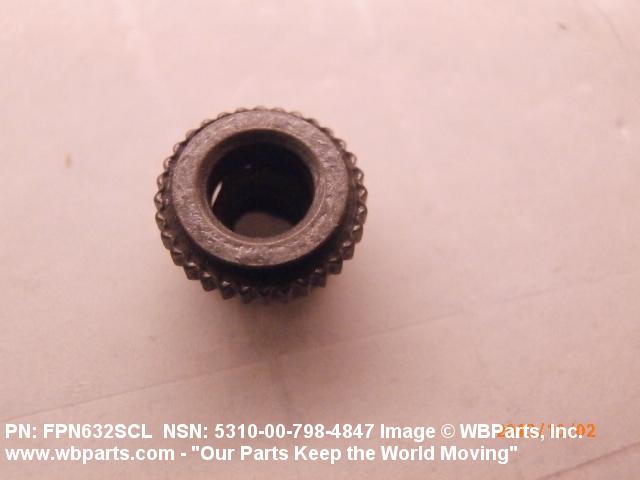

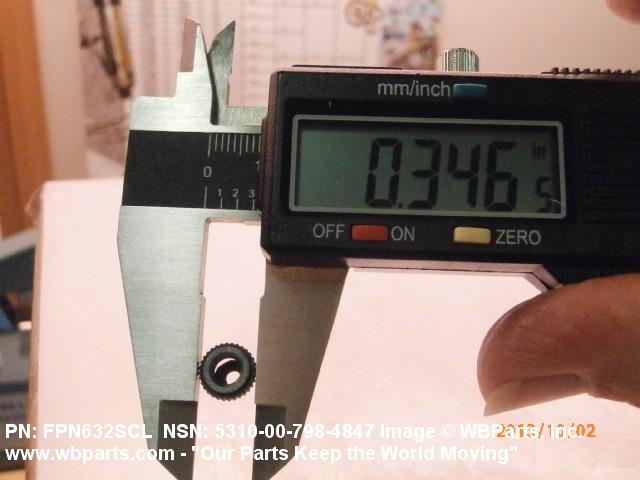

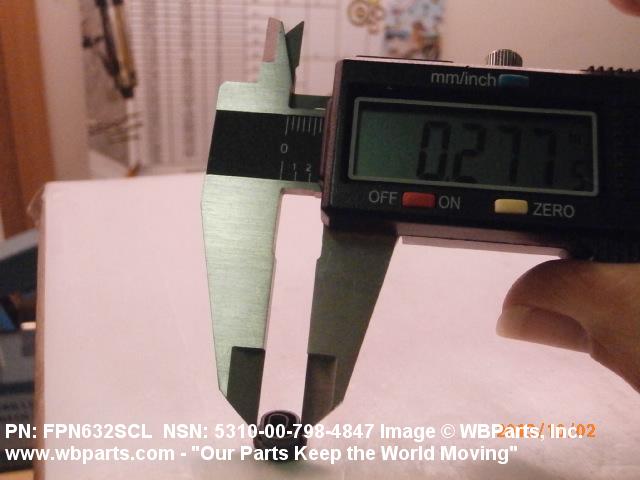

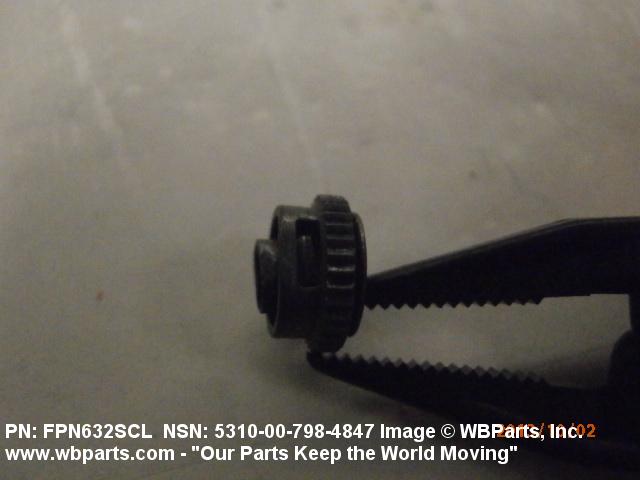

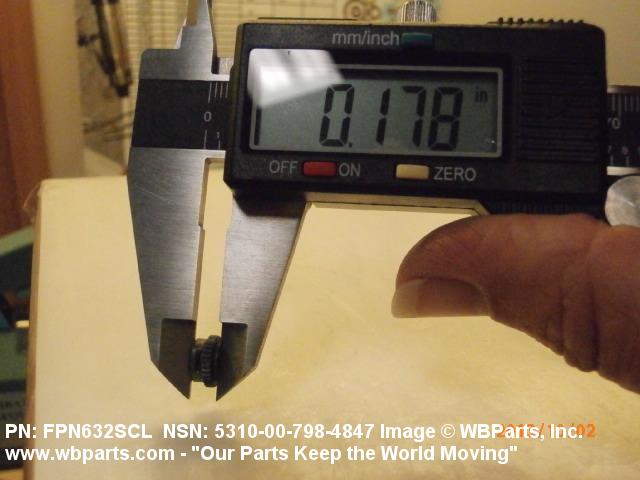

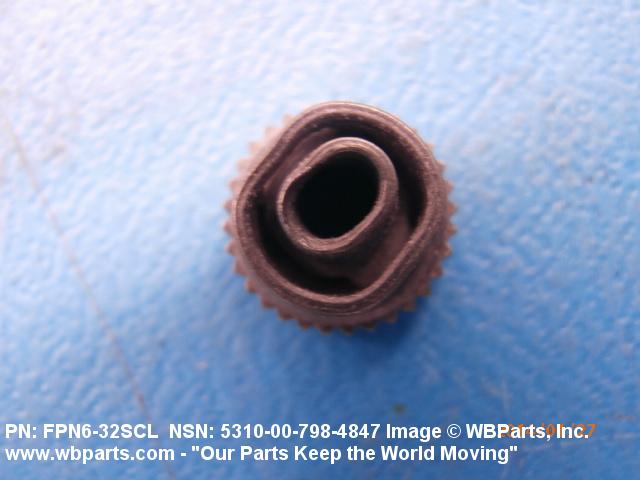

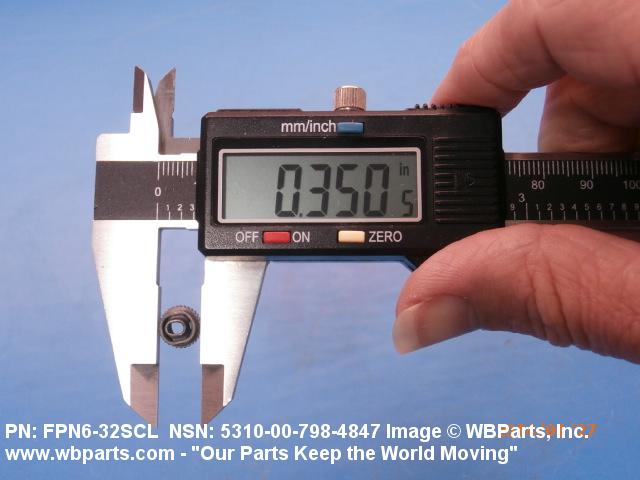

Drawings & Photos | NSN 5310-00-798-4847
Demand History | NSN 5310-00-798-4847
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-798-4847 | 2021-09-14 | 10 | US |
| 5310-00-798-4847 | 2019-04-18 | 50 | US |
| 5310-00-798-4847 | 2017-07-06 | 9 | United States |
| FPN632SCL | 2016-12-20 | 65 | United States |
| FPN632SCL | 2015-08-21 | 500 | US |
| FPN632SCL | 2015-08-21 | 1000 | US |
| FPN632SCL | 2014-01-21 | 1000 | United States |
| FPN632SCL | 2014-01-13 | 800 | United States |
| FPN632SCL | 2014-01-13 | 1000 | United States |
| M45938/14-3 | 2013-08-17 | 68 | Canada |
| FPN632SCL | 2013-07-09 | 200 | Hong Kong |
| FPN6-32SCL | 2012-12-06 | 200 | US |
| 5310-00-798-4847 | 2010-08-23 | 90 | US |
| F720006 | 2009-09-22 | 14 | US |
| SC531000032 | 2009-09-22 | 14 | US |
| FPN632SCL | 2008-07-24 | 148 | US |
Cross Reference | NSN 5310-00-798-4847
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0126018-1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 10545463-4 | 19200 | US ARMY ARDEC RDECOM |
| 23611-002 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 334-1152-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 6017633 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 788C218H03 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 8447703-1 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 8983446-3 | 02734 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8983446-3 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 9176528 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| F7200-06 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| FPN 6-32SCL | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| FPN6-32 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| FPN6-32SCL | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| FPN632SCL | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| M45938/14-3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PPN6-32SCL | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SC5310-0003-2 | 12115 | DRS ICAS, LLC |
