NSN 5310-00-786-4562 F12NKCFM262, F12NKCFM2-62, 176133
Product Details | CLINCH SELF-LOCKING NUT

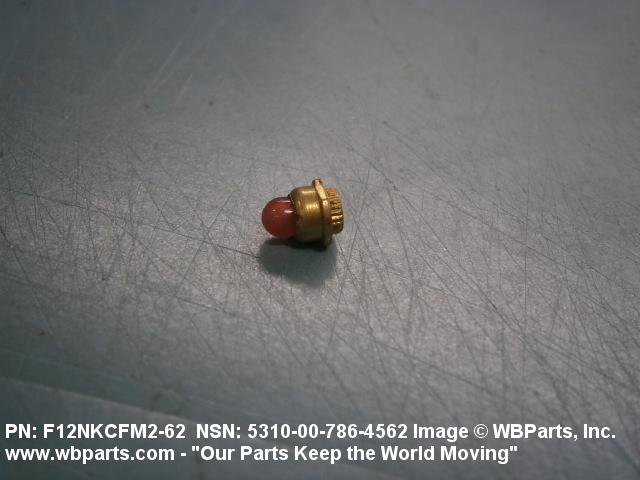

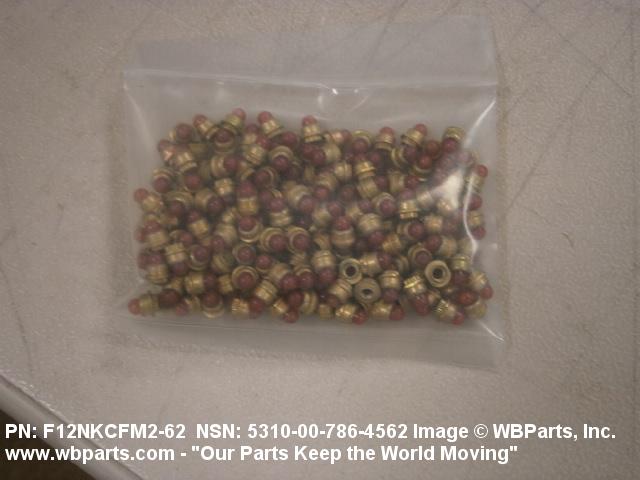

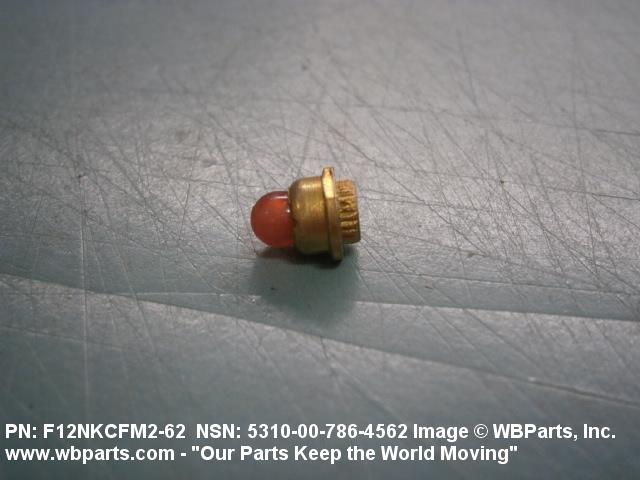

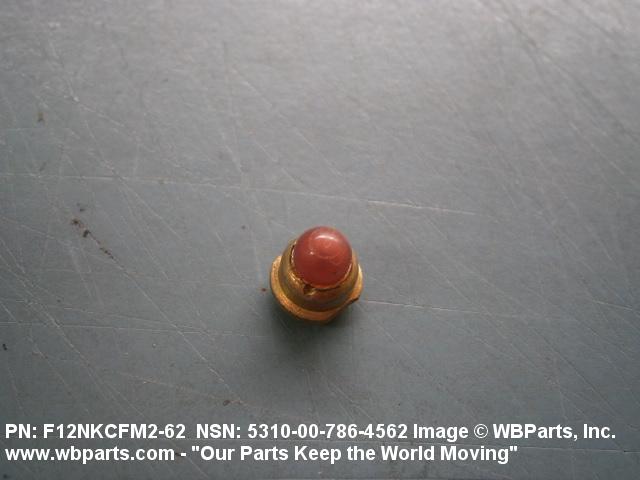

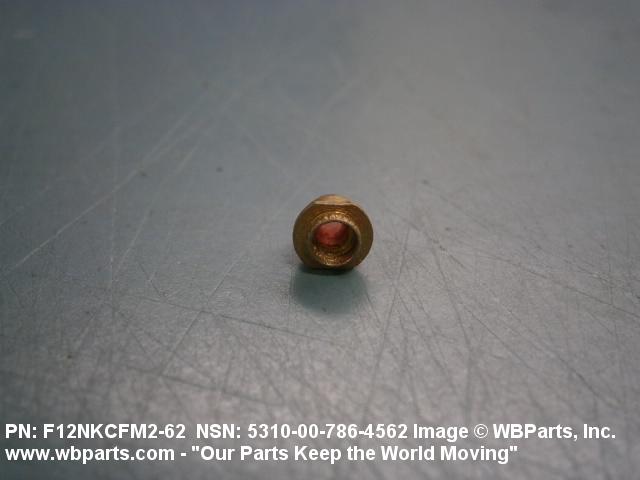

5310-00-786-4562 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: F12NKCFM262, F12NKCFM2-62, 176133, 17613-3, 333-0986-00, 3330986000, 333-0986-000, 5310-00-786-4562, 00-786-4562, 5310007864562, 007864562, 333098600
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 1968 | 00-786-4562 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |
Drawings & Photos | NSN 5310-00-786-4562
Demand History | NSN 5310-00-786-4562
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F12NKCFM262 | 2013-09-252 | 200 | United States |
Cross Reference | NSN 5310-00-786-4562
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17613-3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 333-0986-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 333-0986-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 333-0986-000 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| F12NKCFM2-62 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-786-4562
Related Products | NSN 5310-00-786-4562
Technical Data | NSN 5310-00-786-4562
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYHEXAMETHYLENE AMIDE OR PLASTIC POLYCAPROLACTAM CAP PLASTIC POLYHEXAMETHYLENE AMIDE OR PLASTIC POLYCAPROLACTAM LOCKING INSERT STEEL NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-20693 MIL SPEC 1ST MATERIAL RESPONSE CAP MIL-M-2693 MIL SPEC 2ND MATERIAL RESPONSE LOCKING INSERT |
| SURFACE TREATMENT | CADMIUM NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A57 CLINCH |
| PILOT DIAMETER | 0.190 INCHES MINIMUM AND 0.194 INCHES MAXIMUM |
| PILOT LENGTH | 0.057 INCHES MINIMUM AND 0.063 INCHES MAXIMUM |
| NUT DIAMETER | 0.276 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |
| NUT HEIGHT | 0.308 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| NUT COUNTERBORE DEPTH | 0.060 INCHES NOMINAL NUT |
| COUNTERBORE DIAMETER | 0.152 INCHES MINIMUM AND 0.157 INCHES MAXIMUM NUT |
| TEMP RATING | 350.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-786-4562
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
