NSN 5310-00-779-6651 MS21060L4 , MS21060L4K, NAS686C4M
Product Details | PLATE SELF-LOCKING NUT
5310-00-779-6651 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21060L4 , MS21060L4K, NAS686C4M , RF200C4M, RF200C4MK, RMLHTA52128600, RMLHTA521-2860-0 , RMLHTA5212860048, RMLHTA521-2860-048 , RMLHTA5212860048BC, RMLHTA521-2860-048BC, T65C428CBCM, T65C428CM, F50014, F5001-4 , F50014BC, F5001-4BC, 10121692, 13705E-048 , 13705E048BC, 13705E-048BC, 5310-00-779-6651, 00-779-6651, 5310007796651, 007796651, 13705E048
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-779-6651 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

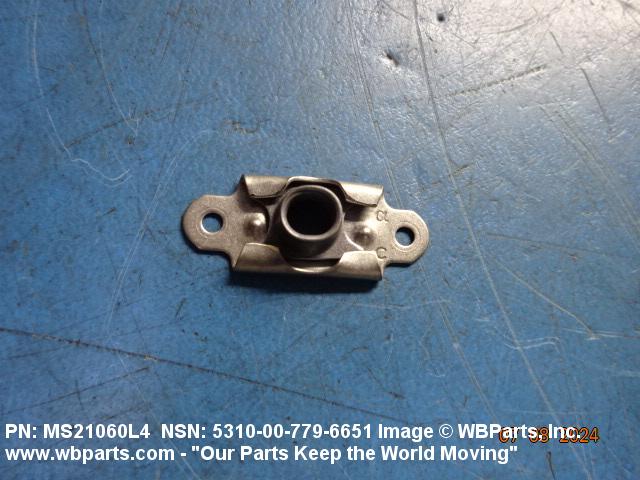

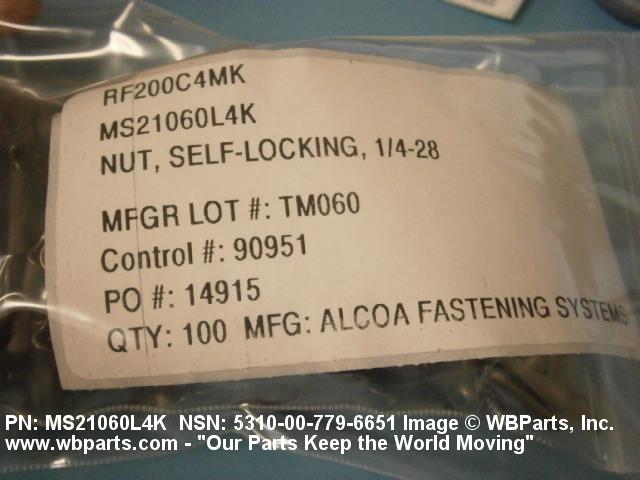

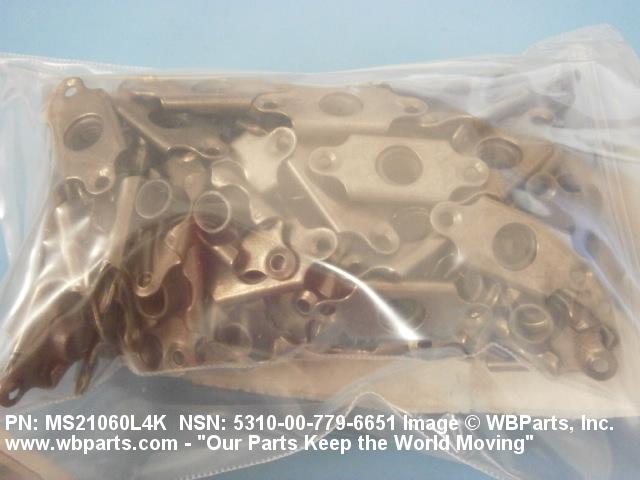

Drawings & Photos | NSN 5310-00-779-6651
Demand History | NSN 5310-00-779-6651
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21060L4 | 2024-11-330 | 1 | Japan |
| 5310-00-779-6651 | 2024-07-184 | 400 | United States |
| 5310-00-779-6651 | 2024-07-184 | 50 | United States |
| 5310-00-779-6651 | 2024-06-158 | 450 | United States |
| MS21060L4 | 2024-05-135 | 410 | United States |
| MS21060L4 | 2024-05-123 | 1110 | United States |
| 5310-00-779-6651 | 2024-03-67 | 100 | United States |
| MS21060L4 | 2022-07-193 | 10 | US |
| MS21060L4 | 2020-07-204 | 100 | us |
| MS21060L4 | 2020-04-115 | 40 | United States |
| MS21060L4 | 2019-09-261 | 30 | us |
| MS21060L4 | 2019-09-261 | 100 | us |
| MS21060L4 | 2019-06-162 | 100 | US |
| MS21060L4 | 2018-10-278 | 16 | United States |
| MS21060L4 | 2018-10-278 | 4 | United States |
| MS21060L4 | 2017-04-114 | 3500 | US |
| MS21060L4 | 2016-05-124 | 10 | us |
| MS21060L4 | 2015-03-67 | 50 | US |
| MS21060L4 | 2015-03-67 | 100 | US |
| MS21060L4 | 2015-03-67 | 250 | US |
| MS21060L4 | 2014-11-322 | 250 | US |
| MS21060L4 | 2014-09-252 | 2 | US |
| MS21060L4 | 2013-12-338 | 12 | United States |
| MS21060L4 | 2013-08-239 | 100 | TR |
| MS21060L4 | 2013-03-64 | 365 | China |
| MS21060L4 | 2012-04-101 | 300 | United States |
| MS21060L4 | 2011-12-363 | 2260 | CN |
| MS21060L4K | 2011-12-340 | 100 | United States |
| MS21060L4K | 2011-12-340 | 100 | United States |
| MS21060L4K | 2011-11-313 | 4 | US |
| MS21060L4 | 2011-02-41 | 10 | us |
| MS21060L4 | 2009-10-288 | 40 | Malaysia |
| MS21060L4K | 2009-07-187 | 500 | us |
| MS21060L4 | 2008-07-192 | 1100 | IL |
| MS21060L4K | 2008-01-22 | 50 | US |
Cross Reference | NSN 5310-00-779-6651
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13705E-048BC | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 13705E-048BC | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| F5001-4BC | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F5001-4BC | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21060L4K | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RF200C4MK | 52828 | REPUBLIC FASTENER MFG. CORP. |
| RMLHTA521-2860-048BC | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RMLHTA521-2860-048BC | 72962 | HARVARD INDUSTRIES INC |
| T65C428CBCM | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-779-6651
Related Products | NSN 5310-00-779-6651
Technical Data | NSN 5310-00-779-6651
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 1.292 INCHES MAXIMUM |
| NUT HEIGHT | 0.281 INCHES MAXIMUM |
| PLATE THICKNESS | 0.032 INCHES MAXIMUM |
| PLATE WIDTH | 0.350 INCHES MINIMUM AND 0.516 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.062 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.254 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | COUNTERSUNK HOLES |
| MOUNTING HOLE COUNTERSINK ANGLE | 98.0 DEGREES MINIMUM AND 102.0 DEGREES MAXIMUM |
| MOUNTING PROVISION LOCATION | OPPOSITE NUT PROJECTION SIDE |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21060L4K |
Restrictions/Controls & Freight Information | NSN 5310-00-779-6651
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-779-6651
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | H | Reparable item. When uneconomically reparable, condemn and dispose at fourth echelon level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
