Product Details | PLATE SELF-LOCKING NUT

5310-00-779-6689 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21055L3 , MS21059L3, MS21060L4, NAS686C4M, R3000A3 , RF200C4M, RM52LHTA5502, RM52LHTA55-02 , RMLHTA52128600, RMLHTA521-2860-0, RMLHTA5212860048, RMLHTA521-2860-048, T65C428CM, F50014, F5001-4, 13705E-048, 1262002, 12620-02 , 5310-00-779-6689, 00-779-6689, 5310007796689, 007796689, 13705E048

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1960 00-779-6689

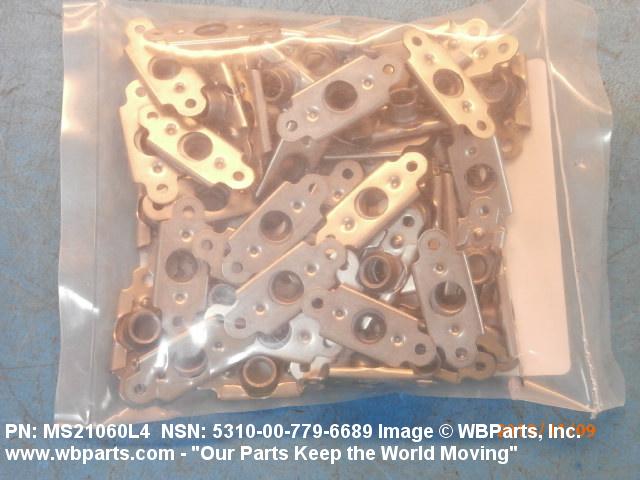

Drawings & Photos | NSN 5310-00-779-6689


Demand History | NSN 5310-00-779-6689

Part Number Request Date QTY Origin
MS21060L4 2024-11-330 1 Japan
MS21059L3 2024-11-319 2400 IN
MS21055L3 2024-09-256 172 US
MS21059L3 2024-08-236 500 United States
MS21059L3 2024-08-236 1000 United States
MS21059L3 2024-08-236 1500 United States
MS21059L3 2024-08-236 2000 United States
MS21059L3 2024-05-142 30 us
MS21060L4 2024-05-135 410 United States
MS21059L3 2024-05-134 100 US
MS21059L3 2024-05-134 1000 US
MS21060L4 2024-05-123 1110 United States
MS21059L3 2024-02-40 168 United States
MS21059L3 2023-11-314 209 us
MS21059L3 2023-10-296 3000 US
MS21059L3 2023-09-265 10 United States
MS21059L3 2023-09-254 5000 US
MS21059L3 2023-09-249 10 United Arab Emirates
MS21059L3 2023-07-199 3000 TR
MS21059L3 2023-07-195 100 US
MS21059L3 2023-03-75 300 US
MS21059L3 2022-11-333 2166 US
MS21059L3 2022-09-265 24 United States
MS21059L3 2022-09-252 70 United States
MS21060L4 2022-07-193 10 US
MS21059L3 2022-05-137 120 United States
MS21059L3 2022-01-21 100 United States
MS21059L3 2022-01-10 95 United States
MS21059L3 2021-10-281 8 United States
MS21059L3 2021-08-238 500 US
MS21059L3 2021-07-194 16 BD
MS21059L3 2020-09-261 4 US
MS21060L4 2020-07-204 100 us
MS21055L3 2020-06-163 100 US
MS21059L3 2020-06-163 200 US
MS21059L3 2020-05-136 100 Poland
MS21060L4 2020-04-115 40 United States
MS21059L3 2020-04-92 84 United States
MS21059L3 2020-02-42 40 United States
MS21059L3 2020-01-06 50 United States
MS21059L3 2019-11-322 240 United States
MS21059L3 2019-11-312 200 United States
MS21060L4 2019-09-261 30 us
MS21060L4 2019-09-261 100 us
MS21059L3 2019-07-191 1000 CA
MS21060L4 2019-06-162 100 US
MS21059L3 2019-04-106 135 United States
MS21059L3 2019-04-95 200 US
MS21059L3 2019-03-66 30 United States
MS21059L3 2019-03-63 75 China
MS21059L3 2019-02-52 2500 United States
MS21059L3 2018-12-360 200 TR
MS21060L4 2018-10-278 16 United States
MS21060L4 2018-10-278 4 United States
MS21059L3 2018-09-247 3 United States
MS21059L3 2018-09-247 6 United States
MS21059L3 2018-09-247 18 United States
MS21059L3 2018-09-247 30 United States
MS21059L3 2018-09-247 60 United States
MS21059L3 2018-09-247 120 United States
MS21059L3 2018-09-247 225 United States
MS21055L3 2018-02-57 45 United States
MS21059L3 2018-01-23 1000 United States
MS21059L3 2017-12-349 35 US
MS21059L3 2017-07-208 1000 US
MS21059L3 2017-05-130 2 US
MS21060L4 2017-04-114 3500 US
MS21059L3 2017-03-82 60 US
MS21059L3 2017-01-19 250 us
MS21059L3 2016-10-291 6 United States
MS21059L3 2016-09-246 680 United States
MS21059L3 2016-05-140 1 CN
MS21059L3 2016-05-126 30 India
MS21059L3 2016-05-125 6500 US
MS21060L4 2016-05-124 10 us
MS21059L3 2016-04-117 50 India
MS21059L3 2016-04-95 500 United States
MS21059L3 2016-02-34 10 US
MS21059L3 2015-12-341 150 Spain
MS21059L3 2015-10-278 220 us
MS21059L3 2015-07-195 1500 us
MS21059L3 2015-06-176 320 Turkey
MS21059L3 2015-05-142 1000 China
MS21059L3 2015-05-141 10 us
MS21059L3 2015-05-138 3000 us
MS21059L3 2015-05-126 400 Spain
MS21059L3 2015-03-85 3500 United States
MS21060L4 2015-03-67 50 US
MS21060L4 2015-03-67 100 US
MS21060L4 2015-03-67 250 US
MS21059L3 2015-03-63 50 United States
MS21059L3 2015-02-35 24 United States
MS21059L3 2015-01-21 80 United States
MS21059L3 2014-11-329 3000 United States
MS21060L4 2014-11-322 250 US
MS21059L3 2014-11-314 10 IN
MS21060L4 2014-09-252 2 US
MS21059L3 2014-08-234 3000 United States
MS21059L3 2014-08-220 60 Spain
MS21059L3 2014-06-163 20 United States
MS21059L3 2014-04-114 3000 United States
MS21059L3 2014-04-113 500 US
MS21059L3 2014-04-104 129 Brazil
MS21059L3 2014-04-91 100 Canada
MS21059L3 2014-03-85 3000 United States
MS21059L3 2014-03-79 2247 United States
MS21059L3 2014-03-66 300 United Arab Emirates
MS21059L3 2014-02-58 85 UM
MS21059L3 2014-02-44 3000 United States
MS21060L4 2013-12-338 12 United States
MS21059L3 2013-11-326 960 United States
MS21059L3 2013-10-276 2 US
MS21059L3 2013-10-274 160 LK
MS21059L3 2013-09-261 12 United States
MS21059L3 2013-09-261 1380 United States
MS21059L3 2013-09-255 3000 United States
MS21059L3 2013-09-248 86 United States
MS21059L3 2013-09-246 90 United States
MS21060L4 2013-08-239 100 TR
MS21059L3 2013-08-238 3200 US
MS21059L3 2013-08-238 1600 US
MS21059L3 2013-08-213 130 US
MS21059L3 2013-05-142 3000 United States
MS21059L3 2013-05-134 50 CZ
MS21059L3 2013-04-100 3000 United States
MS21060L4 2013-03-64 365 China
MS21059L3 2013-02-35 1400 United States
MS21059L3 2013-01-15 400 China
MS21059L3 2013-01-15 1600 China
MS21059L3 2013-01-02 3000 United States
MS21059L3 2012-12-345 20 US
MS21059L3 2012-12-339 150 United States
MS21059L3 2012-11-310 100
MS21059L3 2012-09-254 50 United States
MS21059L3 2012-06-173 10 India
MS21059L3 2012-06-173 100 India
MS21059L3 2012-06-173 200 India
MS21059L3 2012-06-157 50 United States
MS21059L3 2012-05-142 80 France
MS21059L3 2012-04-109 1000 United States
MS21060L4 2012-04-101 300 United States
MS21059L3 2012-03-82 6 US
MS21059L3 2012-01-25 200 Brazil
MS21059L3 2012-01-25 300 Brazil
MS21060L4 2011-12-363 2260 CN
MS21059L3 2011-10-277 160 United States
MS21059L3 2011-09-267 200 US
MS21059L3 2011-09-257 100 United States
MS21059L3 2011-04-117 120 United States
MS21059L3 2011-04-94 7 United States
MS21059L3 2011-03-77 120 BR
MS21059L3 2011-03-66 400 United States
MS21059L3 2011-02-53 100 United States
MS21059L3 2011-02-53 400 United States
MS21059L3 2011-02-50 10000 UK
MS21059L3 2011-02-47 2800 United States
MS21060L4 2011-02-41 10 us
MS21059L3 2011-01-19 500 US
MS21059L3 2011-01-18 36 US
MS21059L3 2010-12-350 1000 United States
MS21059L3 2010-10-293 6 US
MS21059L3 2010-09-259 400 United States
MS21059L3 2010-06-174 35 United States
MS21059L3 2010-06-166 1000 United States
MS21059L3 2009-12-337 42 Canada
MS21059L3 2009-10-302 24 United States
MS21060L4 2009-10-288 40 Malaysia
5310-00-779-6689 2009-10-287 40 Malaysia
5310-00-779-6689 2009-06-154 60 UM
MS21059L3 2009-05-141 20 United States
MS21059L3 2009-05-132 20 US
MS21059L3 2009-05-127 450 United States
MS21059L3 2009-04-91 28 US
MS21059L3 2009-03-89 20 US
MS21059L3 2009-03-86 100 United States
MS21059L3 2009-03-86 250 United States
MS21059L3 2009-03-86 450 United States
MS21059L3 2009-03-72 710 US
MS21059L3 2009-02-54 1 US
MS21059L3 2009-02-44 1200 EC
MS21059L3 2009-02-43 1 EC
MS21059L3 2009-02-43 1 EC
MS21059L3 2009-02-42 150 US
MS21059L3 2009-01-29 4 US
MS21059L3 2009-01-07 200 US
MS21059L3 2008-09-253 1000 us
MS21059L3 2008-08-241 100 PA
MS21059L3 2008-08-214 1000 US
MS21059L3 2008-07-211 25 US
MS21060L4 2008-07-192 1100 IL
MS21059L3 2008-06-177 100 US
MS21059L3 2008-06-175 60 US
MS21059L3 2008-04-113 500 us
MS21059L3 2008-04-108 2000 United States
MS21059L3 2008-03-87 200 United States
MS21059L3 2008-03-86 250 US
MS21059L3 2008-03-79 300 us
MS21059L3 2008-03-65 6 China
MS21059L3 2008-03-64 1000 US
MS21059L3 2008-02-59 800 United States
MS21059L3 2008-02-58 1000 us
MS21059L3 2008-02-51 1 US
MS21059L3 2008-02-49 80 US
MS21059L3 2008-01-09 50 United States
MS21059L3 2008-01-09 100 United States
MS21059L3 2008-01-09 250 United States
MS21059L3 2008-01-09 50 United States
MS21059L3 2008-01-09 100 United States
MS21059L3 2008-01-09 250 United States
MS21059L3 2008-01-09 50 United States
MS21059L3 2008-01-09 100 United States
MS21059L3 2008-01-09 250 United States
MS21059L3 2008-01-07 1000 us
MS21059L3 2007-12-353 5000 us
MS21059L3 2007-12-339 10000 us
MS21059L3 2007-03-82 1000 Canada
MS21059L3 2007-03-71 415 US
MS21059L3 2006-08-216 5000 Brazil

Cross Reference | NSN 5310-00-779-6689

Part Number Cage Code Manufacturer
13705E-048 56878 SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
13705E-048 80539 SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
F5001-4 75237 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
MS21060L4 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21060L4 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS686C4M 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
RF200C4M 52828 REPUBLIC FASTENER MFG. CORP.
RMLHTA521-2860-0 72962 HARVARD INDUSTRIES INC
RMLHTA521-2860-048 72962 HARVARD INDUSTRIES INC
T65C428CM 11815 SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-779-6689

Technical Data | NSN 5310-00-779-6689

Characteristic Specifications
THREAD SERIES UNJF
NOMINAL THREAD SIZE 0.250 INCHES
THREAD QUANTITY PER INCH 28
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
HARDNESS RATING 49.0 ROCKWELL C MAXIMUM
NUT STYLE A116 PLATE
NUT LENGTH 1.292 INCHES MAXIMUM
NUT HEIGHT 0.281 INCHES MAXIMUM
PLATE THICKNESS 0.032 INCHES MAXIMUM
PLATE WIDTH 0.350 INCHES MINIMUM AND 0.516 INCHES MAXIMUM
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION DRY FILM LUBRICANT
NUT MOUNTING PROVISION STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE F38 2 HOLES
MOUNTING HOLE DIAMETER 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER 0.500 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM
TEMP RATING 450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-00-779-6689

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-00-779-6689

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
