NSN 5310-00-779-5485 1368082, 13680-82, 00-779-5485
Product Details | CLINCH SELF-LOCKING NUT
5310-00-779-5485 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: 1368082, 13680-82, 5310-00-779-5485, 00-779-5485, 5310007795485, 007795485
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-779-5485 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

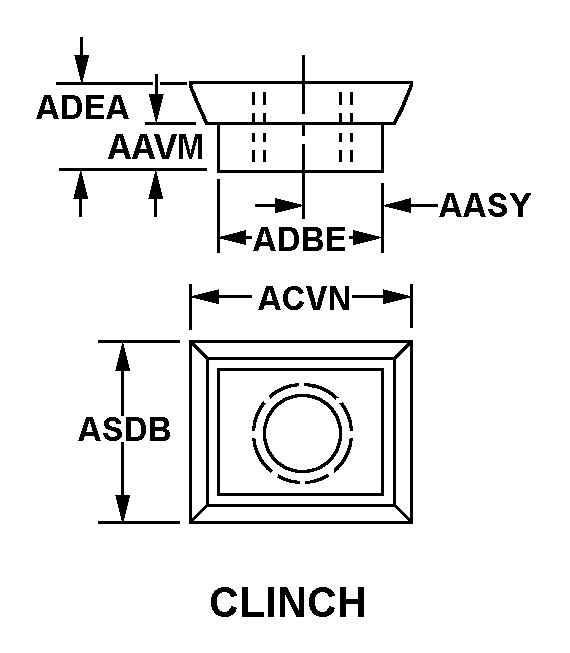

Drawings & Photos | NSN 5310-00-779-5485
Cross Reference | NSN 5310-00-779-5485
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13680-82 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-779-5485
Related Products | NSN 5310-00-779-5485
Technical Data | NSN 5310-00-779-5485
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A49 CLINCH |
| DISTANCE FROM CENTERLINE TO FLAT | 0.200 INCHES NOMINAL |
| PILOT LENGTH | 0.067 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |
| NUT LENGTH | 0.485 INCHES NOMINAL |
| PILOT WIDTH | 0.400 INCHES NOMINAL |
| NUT HEIGHT | 0.304 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.395 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.062 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.249 INCHES MINIMUM AND 0.259 INCHES MAXIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| MANUFACTURERS CODE | 80539 |
| DESIGN CONTROL REFERENCE | 13680-82 |
Restrictions/Controls & Freight Information | NSN 5310-00-779-5485
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
