NSN 5310-00-778-9160 MS21062L3, NAS687C3M, NS103185SE02

Product Details | PLATE SELF-LOCKING NUT

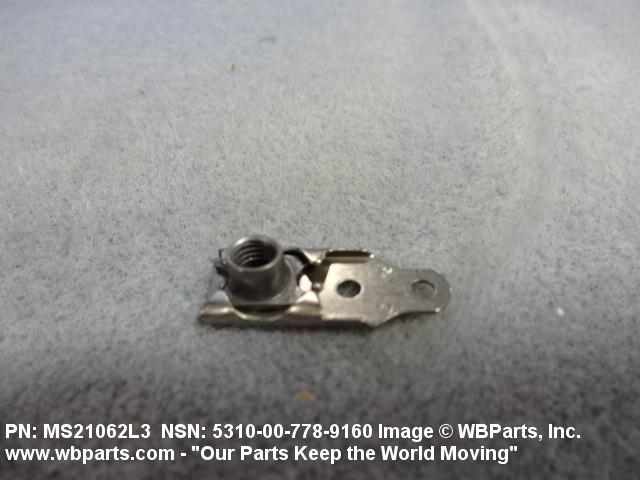

5310-00-778-9160 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21062L3, NAS687C3M, NS103185SE02, NS103185SE-02, BACN10KB3CFM, BRF100C3M, F20013, F2001-3, RF100C3M, RMLHTA517286002, RMLHTA517-2860-02, T66C1032CM, T8113C1032C, VN151D102, VN151D1-02, Z00.N5435392225, Z00N5435392225, 109F92073, 109F9207-3, 13715E02, 4575580, 457-5580 , 9666M44P01, 5310-00-778-9160, 00-778-9160, 5310007789160 , 007789160, 13715E-02

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-778-9160	05280 ( NUT, SELF-LOCKING, PLATE )

Drawings & Photos | NSN 5310-00-778-9160

Part Number	Request Date	QTY	Origin
5310-00-778-9160	2022-04-103	160	United States
5310-00-778-9160	2022-04-103	8	United States
5310-00-778-9160	2022-03-75	11924	DIBBS
MS21062L3	2022-01-26	4	us
MS21062L3	2021-02-43	400	US
MS21062L3	2020-01-06	50	United States
MS21062L3	2020-01-06	50	United States
5310-00-778-9160	2019-07-185	60	CA
5310-00-778-9160	2018-07-207	6073	DIBBS
5310-00-778-9160	2018-06-156	13803	DIBBS
5310-00-778-9160	2018-04-105	5388	DIBBS
5310-00-778-9160	2018-03-72	1706	DIBBS
5310-00-778-9160	2017-12-347	5929	DIBBS
MS21062L3	2017-04-94	1	United States
MS21062L3	2016-12-348	28	US
MS21062L3	2016-11-315	28	United States
MS21062L3	2016-05-126	20	India
MS21062L3	2016-04-117	50	India
MS21062L3	2016-04-96	100	Spain
MS21062L3	2016-04-95	250	United States
MS21062L3	2016-02-42	2	United States
MS21062L3	2015-12-341	25	Spain
5310-00-778-9160	2015-05-126	20	Spain
MS21062L3	2015-04-120	1	CA
MS21062L3	2015-04-120	100	CA
MS21062L3	2014-11-322	250	US
MS21062L3	2014-11-314	2	IN
MS21062L3	2014-08-225	1	Thailand
MS21062L3	2014-08-218	10	United States
5310-00-778-9160	2014-04-117	6585	DIBBS
MS21062L3	2014-04-97	100	UK
MS21062L3	2013-09-259	500	US
MS21062L3	2013-05-134	50	CZ
MS21062L3	2012-10-299	100	India
MS21062L3	2012-02-52	223	SG
MS21062L3	2011-12-363	1292	CN
5310-00-778-9160	2011-10-301	40	US
5310-00-778-9160	2011-10-301	100	US
5310-00-778-9160	2011-10-301	200	US
MS21062L3	2011-08-220	200	Malaysia
MS21062L3	2010-12-356	1	Italy
MS21062L3	2010-11-319	117	United States
5310-00-778-9160	2010-10-281	160	US
5310-00-778-9160	2010-08-231	23627	DIBBS
5310-00-778-9160	2010-08-217	28	US
MS21062L3	2010-01-29	576	US
5310-00-778-9160	2009-12-338	72	Italy
MS21062L3	2009-07-197	100	United States
5310-00-778-9160	2008-12-358	1549	DIBBS
5310-00-778-9160	2008-11-311	1	Colombia
5310-00-778-9160	2008-05-129	2131	DIBBS

Cross Reference | NSN 5310-00-778-9160

Part Number	Cage Code	Manufacturer
109F9207-3	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
109F9207-3	72962	HARVARD INDUSTRIES INC
13715E-02	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
13715E-02	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
5310007789160	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
9666M44P01	07482	GENERAL ELECTRIC COMPANY DBA GE
BACN10KB3CFM	82918	THE BOEING COMPANY DBA BOEING
BRF100C3M	52878	C-100 CORP THE
F2001-3	15653	ALCOA GLOBAL FASTENERS, INC.
F2001-3	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
F2001-3	R1120	SATAIR A/S
MS21062L3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21062L3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS687C3M	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NS103185SE-02	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
RF100C3M	52828	REPUBLIC FASTENER MFG. CORP.
RMLHTA517-2860-02	72962	HARVARD INDUSTRIES INC
T66C1032CM	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T66C1032CM	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
T8113C1032C	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
VN151D1-02	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VN151D1-02	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
Z00.N5435392225	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-778-9160

Compare

Related Products | NSN 5310-00-778-9160

5310-00-778-9161, 5310-00-778-9166, 5310-00-778-9167, 5310-00-778-9186, 5310-00-778-9199

Technical Data | NSN 5310-00-778-9160

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A124 PLATE

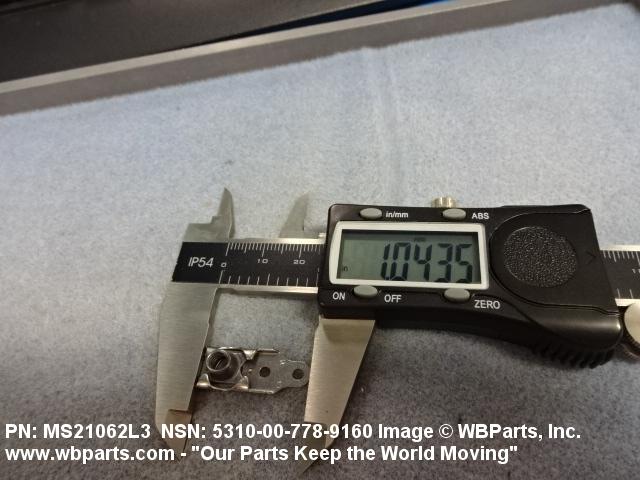

NUT LENGTH	1.051 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM

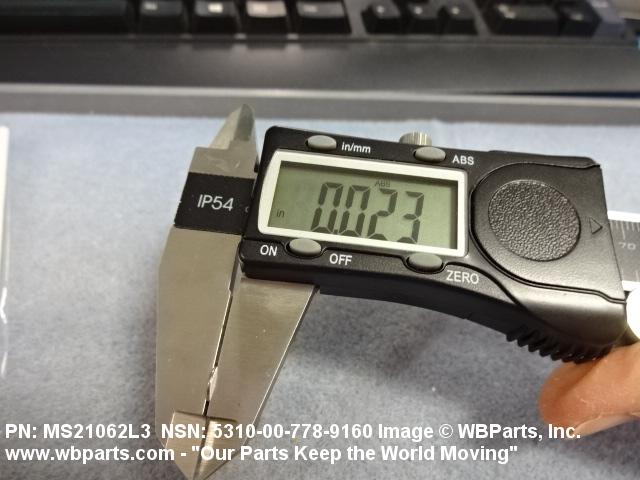

PLATE THICKNESS	0.032 INCHES MAXIMUM

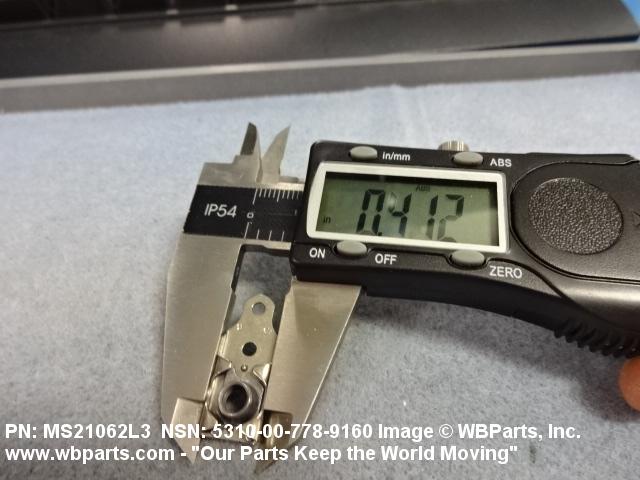

PLATE WIDTH	0.290 INCHES MINIMUM AND 0.422 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F44 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM

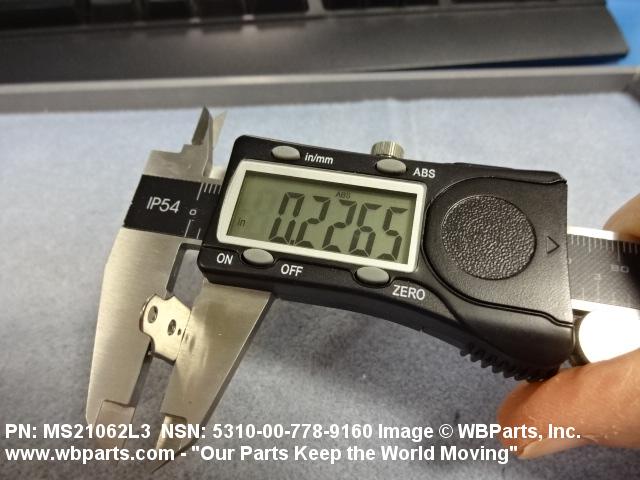

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT
