Product Details | PLATE SELF-LOCKING NUT

5310-00-778-9167 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21062L04, MS21062-L04, RF100C04M, T66C440CM, F200104, F2001-04, 10121679 , 13715E40, 5310-00-778-9167, 00-778-9167, 5310007789167, 007789167, 13715E-40

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1960 00-778-9167

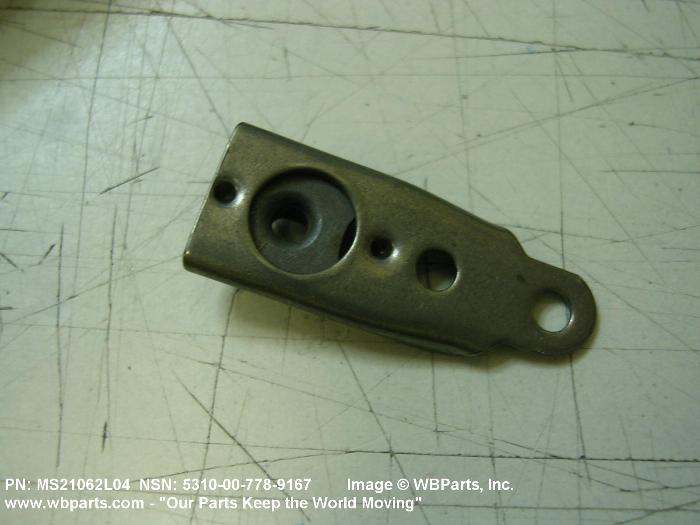

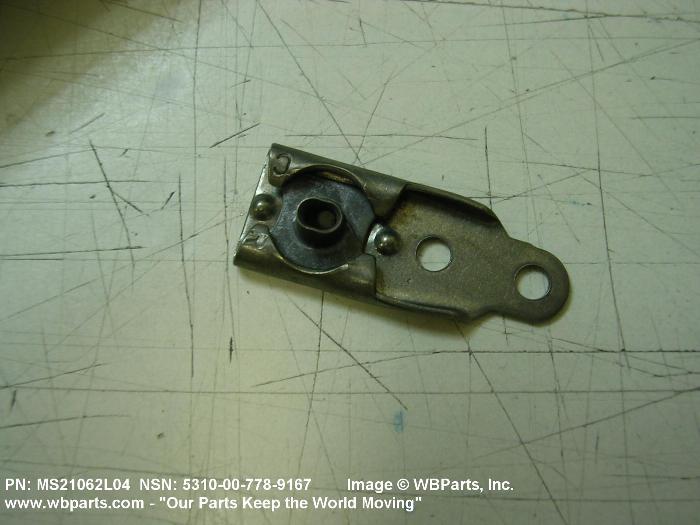

Drawings & Photos | NSN 5310-00-778-9167


Demand History | NSN 5310-00-778-9167

Part Number Request Date QTY Origin
MS21062L04 2015-09-259 50 United States
MS21062L04 2008-04-102 250 United States
5310-00-778-9167 2008-03-81 24 United States

Cross Reference | NSN 5310-00-778-9167

Part Number Cage Code Manufacturer
13715E-40 56878 SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
13715E-40 80539 SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
F2001-04 15653 ALCOA GLOBAL FASTENERS, INC.
F2001-04 75237 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
MS21062-L04 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21062L04 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21062L04 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
RF100C04M 52828 REPUBLIC FASTENER MFG. CORP.
T66C440CM 11815 SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T66C440CM 71087 REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-778-9167

Technical Data | NSN 5310-00-778-9167

Characteristic Specifications
THREAD SERIES UNJC
NOMINAL THREAD SIZE 0.112 INCHES
THREAD QUANTITY PER INCH 40
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
HARDNESS RATING 49.0 ROCKWELL C MAXIMUM
NUT STYLE A124 PLATE
NUT LENGTH 1.051 INCHES MAXIMUM
NUT HEIGHT 0.175 INCHES MAXIMUM
PLATE THICKNESS 0.032 INCHES MAXIMUM
PLATE WIDTH 0.290 INCHES MINIMUM AND 0.422 INCHES MAXIMUM
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
COUNTERSINK ANGLE ANY ACCEPTABLE NUT
LUBRICATION DRY FILM LUBRICANT
NUT MOUNTING PROVISION STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE F44 2 HOLES
MOUNTING HOLE DIAMETER 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH 0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM
TEMP RATING 450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED FLOATING NUT
