NSN 5310-00-772-3720 MS21075L3, MS21075L3E, M1497678109
Product Details | PLATE SELF-LOCKING NUT
5310-00-772-3720 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21075L3, MS21075L3E, M1497678109, M1497-678109 , MA 13600-02, MA1360002, MA13600-02, MF10003, MF1000-3, MF1000312, MF1000-312, MF10003T2, MF1000-3T2, MF10013, MF1001-3, MF50003, MF5000-3, NAS1068A3, NAS1068A5, NAS1068A8, NAS106BA3, NAS1738MW54, NAS1738MW5-4, RFM20A3, RM52LHTA521M02, LAM93M, LAM-93M, 0214051A04, 02-14051A04, 107213-104, 5906187, 5310-00-772-3720, 00-772-3720, 5310007723720, 007723720, 107213104
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-772-3720 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

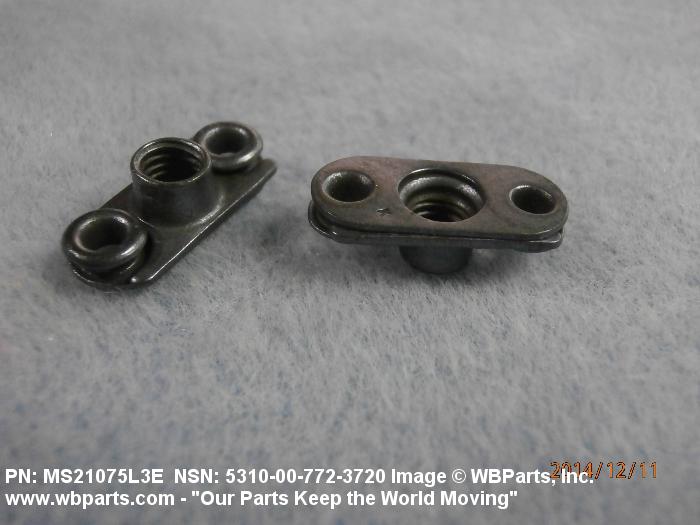

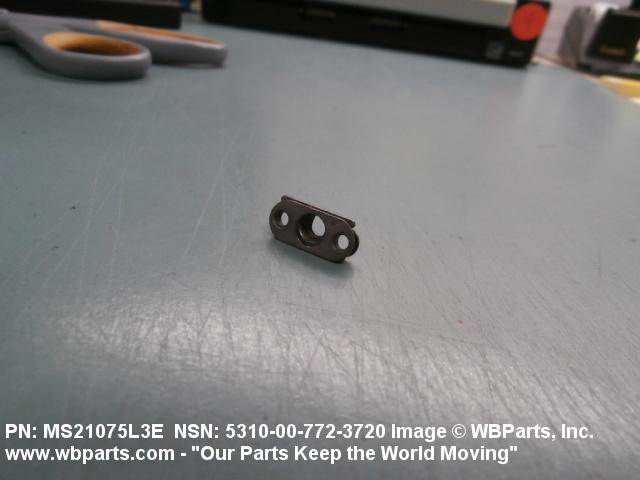

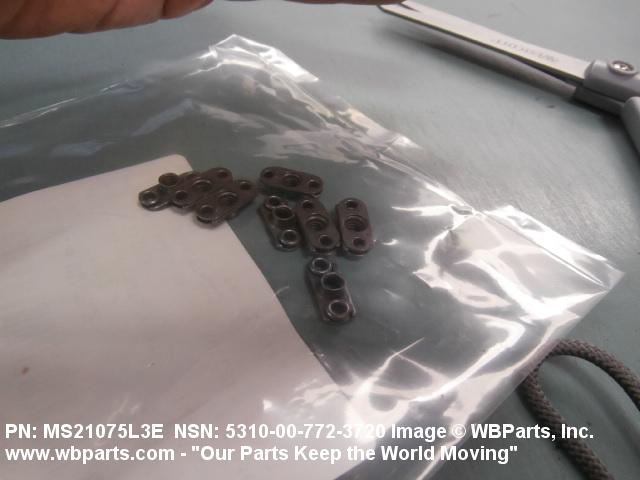

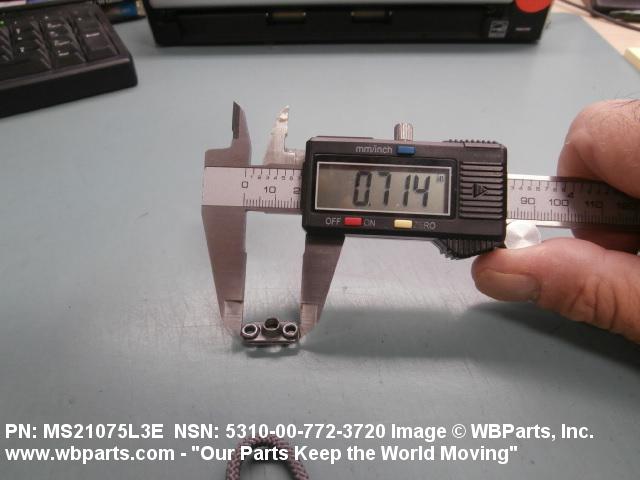

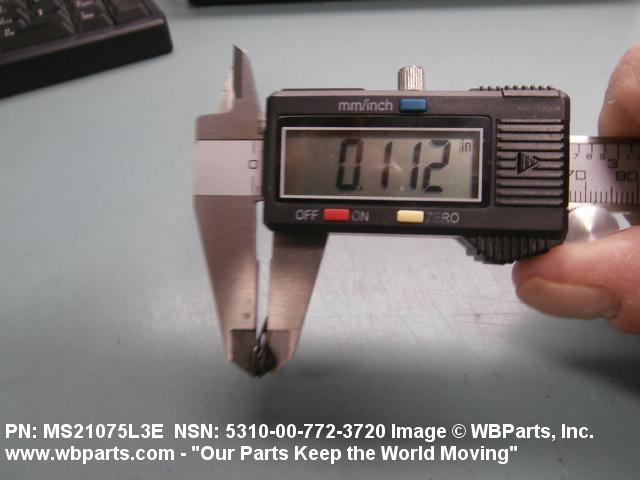

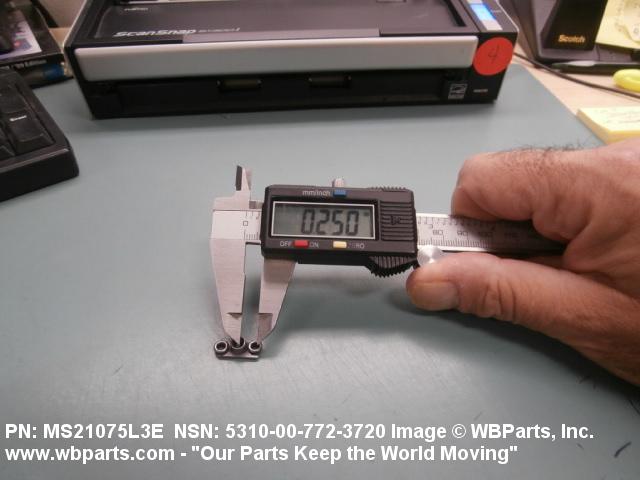

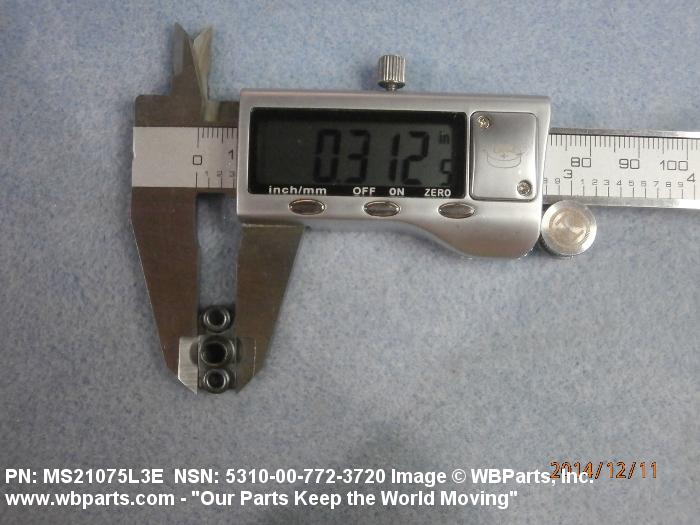

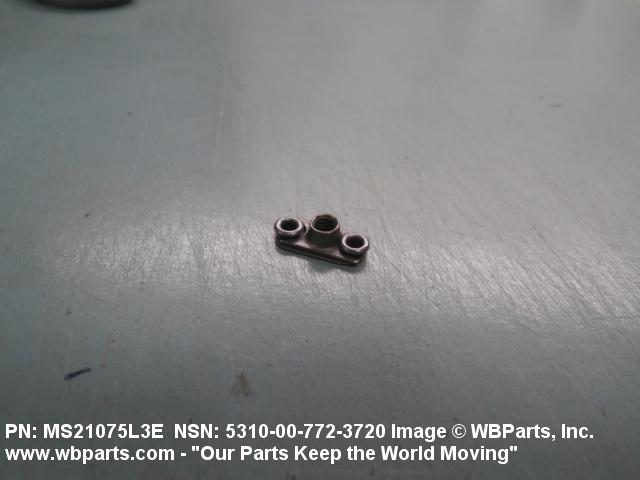

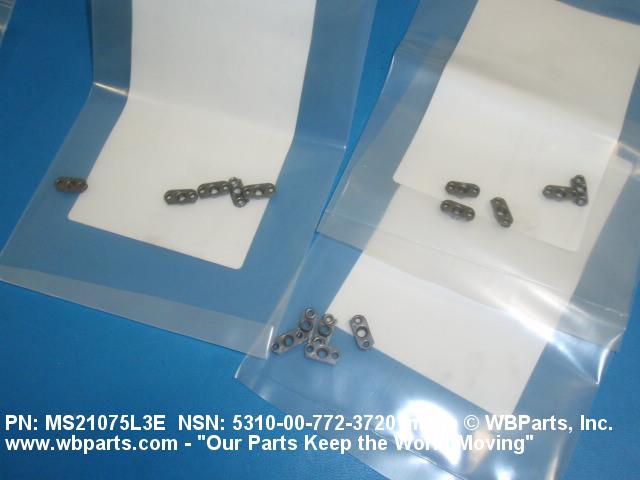

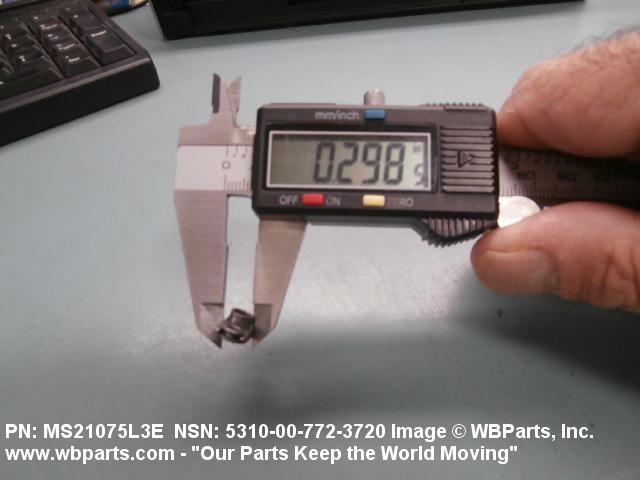

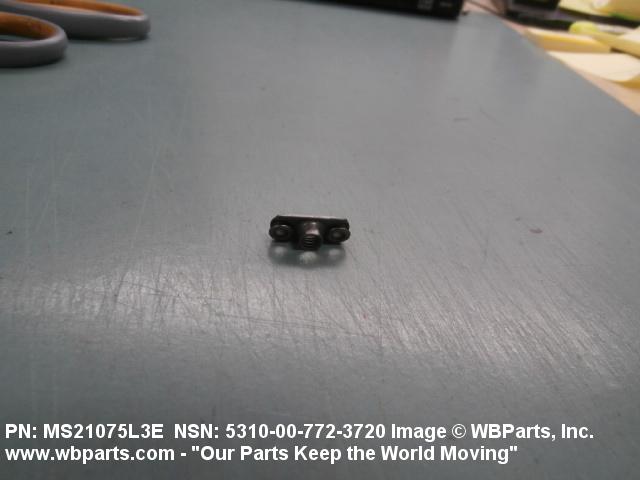

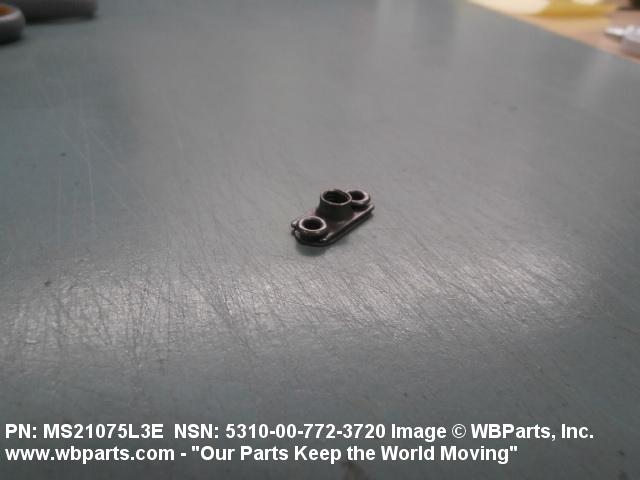

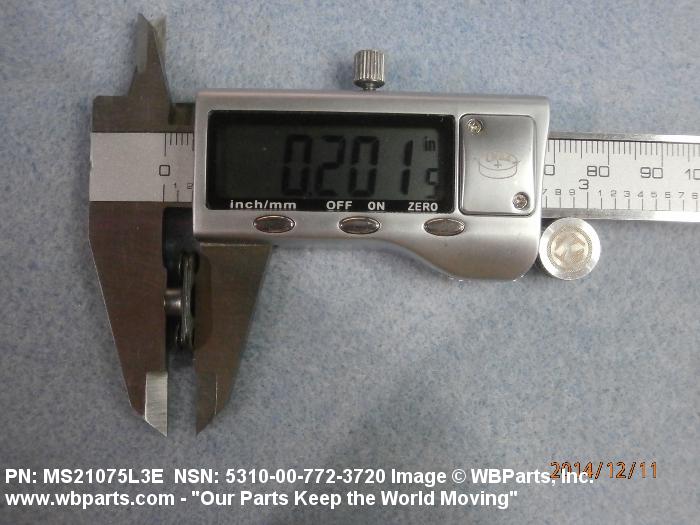

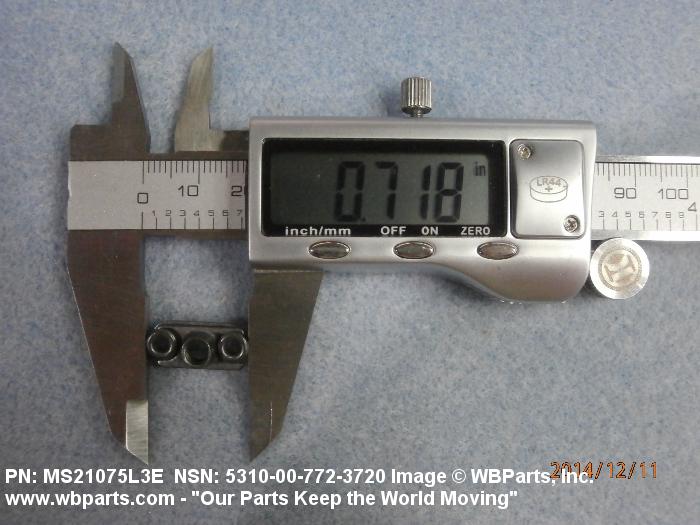

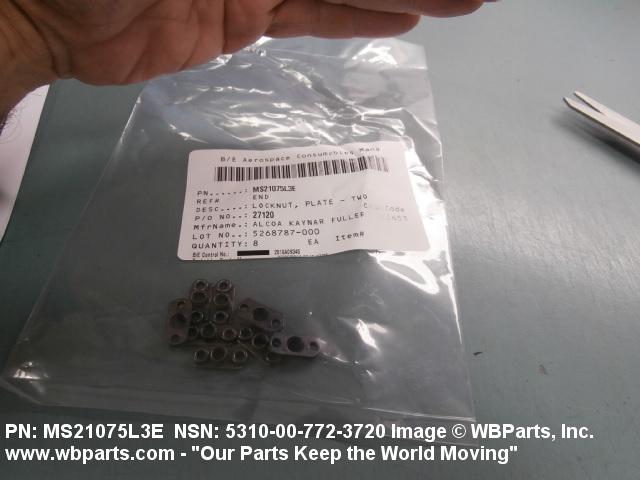

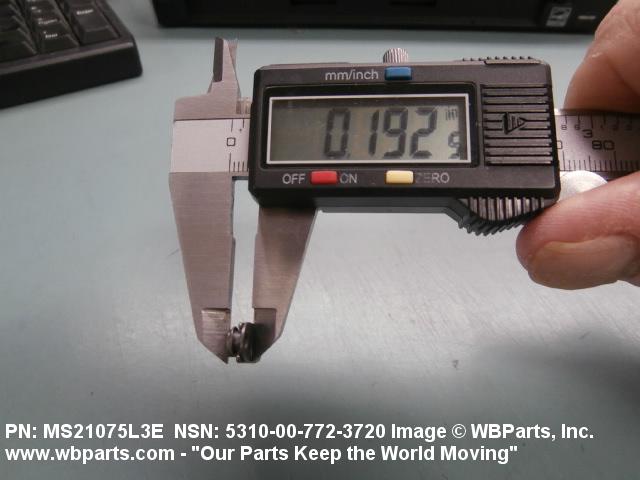

Drawings & Photos | NSN 5310-00-772-3720
Demand History | NSN 5310-00-772-3720
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-772-3720 | 2024-08-239 | 9 | DIBBS |
| NAS1068A3 | 2024-08-229 | 100 | US |
| MS21075L3 | 2024-05-129 | 100 | US |
| MS21075L3 | 2024-04-117 | 100 | United States |
| MS21075L3 | 2024-02-43 | 80 | US |
| MF10003 | 2023-10-285 | 350 | United States |
| MS21075L3 | 2023-08-222 | 15 | United States |
| MS21075L3E | 2022-12-347 | 48 | United States |
| MS21075L3 | 2022-10-276 | 3740 | TR |
| MS21075L3 | 2022-09-265 | 1200 | United States |
| MS21075L3E | 2022-09-252 | 4 | United States |
| 5310-00-772-3720 | 2022-06-167 | 33335 | DIBBS |
| 5310-00-772-3720 | 2022-06-156 | 33335 | DIBBS |
| MS21075L3 | 2022-05-151 | 200 | United States |
| MA1360002 | 2022-04-108 | 25 | United States |
| MS21075L3 | 2022-02-48 | 200 | United States |
| MS21075L3 | 2021-07-190 | 14 | United States |
| MS21075L3 | 2020-11-308 | 1 | Taiwan |
| MS21075L3 | 2020-09-269 | 50 | us |
| MS21075L3 | 2020-09-260 | 4 | United States |
| MS21075L3 | 2020-05-143 | 800 | TW |
| MS21075L3 | 2020-05-139 | 75 | US |
| 5310-00-772-3720 | 2019-09-247 | 650 | United States |
| MS21075L3 | 2019-02-52 | 30 | United States |
| 5310-00-772-3720 | 2018-11-308 | 19611 | DIBBS |
| MS21075L3 | 2018-08-240 | 816 | US |
| 5310-00-772-3720 | 2018-02-44 | 15640 | United States |
| NAS1068A3 | 2018-01-23 | 20 | United States |
| 5310-00-772-3720 | 2018-01-16 | 15640 | DIBBS |
| MS21075L3 | 2018-01-09 | 1000 | United States |
| 5310-00-772-3720 | 2017-07-208 | 22 | US |
| 5310-00-772-3720 | 2017-02-53 | 54 | MANUAL |
| MS21075L3 | 2017-01-19 | 4 | United States |
| MS21075L3 | 2016-12-348 | 140 | US |
| MS21075L3 | 2016-12-344 | 12 | United States |
| MS21075L3 | 2016-12-344 | 25 | United States |
| MS21075L3 | 2016-04-118 | 100 | Thailand |
| MS21075L3 | 2016-02-42 | 108 | Turkey |
| MS21075L3 | 2016-02-42 | 352 | Turkey |
| MS21075L3 | 2015-10-286 | 40 | United States |
| MS21075L3 | 2015-09-259 | 25 | United States |
| MS21075L3 | 2015-08-226 | 644 | United States |
| NAS1068A3 | 2015-08-224 | 1 | India |
| MS21075L3E | 2015-06-168 | 800 | AE |
| 5310-00-772-3720 | 2015-06-156 | 500 | United States |
| MS21075L3 | 2015-04-101 | 65 | US |
| MS21075L3 | 2015-03-65 | 100 | us |
| MS21075L3 | 2014-10-295 | 160 | China |
| MS21075L3 | 2014-10-287 | 1500 | Israel |
| 5310-00-772-3720 | 2014-09-257 | 42205 | DIBBS |
| MS21075L3 | 2014-07-202 | 530 | Spain |
| MS21075L3 | 2014-07-196 | 530 | Spain |
| MS21075L3E | 2014-06-157 | 8 | United States |
| MS21075L3 | 2014-04-113 | 500 | US |
| NAS1068A3 | 2014-04-97 | 100 | UK |
| 5310-00-772-3720 | 2014-04-91 | 340 | TW |
| 5310-00-772-3720 | 2014-04-91 | 340 | TW |
| MS21075L3 | 2014-02-56 | 60000 | US |
| MS21075L3 | 2014-01-10 | 100 | us |
| MS21075L3 | 2014-01-03 | 115 | US |
| MS21075L3 | 2013-10-298 | 12 | United States |
| NAS1068A3 | 2013-10-276 | 755 | United States |
| MS21075L3 | 2013-09-266 | 162 | United States |
| MS21075L3 | 2013-08-239 | 100 | TR |
| MS21075L3 | 2013-08-239 | 200 | TR |
| MS21075L3 | 2013-08-235 | 4 | MX |
| MS21075L3 | 2013-08-219 | 850 | United States |
| MS21075L3 | 2013-08-213 | 118 | United States |
| MS21075L3 | 2013-07-198 | 250 | US |
| MS21075L3 | 2013-07-190 | 560 | United States |
| MS21075L3 | 2013-04-99 | 117 | US |
| MS21075L3 | 2013-03-63 | 50 | United States |
| MS21075L3 | 2013-02-44 | 50 | United States |
| MS21075L3 | 2013-01-07 | 111 | IN |
| NAS1068A3 | 2012-12-353 | 20 | US |
| MS21075L3 | 2012-11-311 | 93 | Taiwan |
| MS21075L3 | 2012-10-283 | 10 | US |
| MS21075L3 | 2012-10-278 | 111 | IN |
| NAS1068A3 | 2012-08-240 | 125 | United States |
| 5310-00-772-3720 | 2012-08-228 | 68 | US |
| MS21075L3 | 2012-08-214 | 30 | China |
| MS21075L3 | 2012-07-209 | 30 | China |
| MF10003 | 2012-06-170 | 10 | US |
| MS21075L3 | 2012-05-135 | 5350 | UA |
| MS21075L3 | 2012-02-53 | 1000 | United States |
| MS21075L3 | 2011-12-353 | 100 | United States |
| MS21075L3 | 2011-09-264 | 100 | CA |
| MS21075L3 | 2011-05-133 | 120 | Spain |
| NAS1068A3 | 2011-04-96 | 100 | |
| MS21075L3 | 2011-02-49 | 12 | US |
| MS21075L3 | 2010-11-320 | 50 | US |
| MS21075L3 | 2010-10-277 | 100 | US |
| MF50003 | 2010-09-263 | 500 | KW |
| MS21075L3E | 2010-09-256 | 30 | Taiwan |
| MS21075L3 | 2010-09-250 | 600 | United States |
| MS21075L3 | 2010-08-238 | 1 | US |
| 5310-00-772-3720 | 2010-08-236 | 8 | US |
| 5310-00-772-3720 | 2010-08-221 | 33742 | DIBBS |
| MS21075L3E | 2010-07-200 | 50 | US |
| 5310-00-772-3720 | 2010-07-182 | 2 | US |
| 5310-00-772-3720 | 2010-06-176 | 33 | US |
| MF10003 | 2010-04-109 | 2 | United Kingdom |
| 5310-00-772-3720 | 2010-04-91 | 121600 | DIBBS |
| MF10003 | 2009-11-323 | 200 | United Kingdom |
| MS21075L3 | 2009-11-320 | 202 | US |
| MS21075L3E | 2009-09-253 | 10 | United States |
| 5310-00-772-3720 | 2009-07-189 | 121600 | DIBBS |
| MS21075L3 | 2009-05-126 | 70 | United States |
| MS21075L3 | 2009-04-111 | 60 | KH |
| MS21075L3E | 2009-03-86 | 125 | US |
| MS21075L3E | 2009-02-34 | 100 | United States |
| 5310-00-772-3720 | 2009-01-28 | 89000 | DIBBS |
| MS21075L3 | 2008-11-330 | 1600 | Italy |
| 5310-00-772-3720 | 2008-11-322 | 90000 | DIBBS |
| MS21075L3 | 2008-11-312 | 1200 | Greece |
| 5310-00-772-3720 | 2008-10-289 | 63481 | DIBBS |
| MS21075L3 | 2008-08-225 | 2500 | United States |
| NAS1068A3 | 2008-08-214 | 1000 | IT |
| NAS1738MW54 | 2008-07-190 | 12 | US |
| NAS1738MW54 | 2008-07-190 | 12 | US |
| MS21075L3E | 2008-06-154 | 63481 | US |
| 5310-00-772-3720 | 2008-05-148 | 63481 | DIBBS |
| MS21075L3 | 2008-04-115 | 4100 | Taiwan |
| MS21075L3E | 2008-04-114 | 100 | Canada |
| MS21075L3E | 2008-03-85 | 100 | US |
| MS21075L3E | 2008-02-39 | 50 | United States |
| NAS1068A3 | 2008-02-35 | 2 | us |
| MS21075L3E | 2008-01-22 | 500 | US |
| MS21075L3E | 2007-07-207 | 2 | United States |
| MS21075L3E | 2007-04-94 | 480 | US |
Cross Reference | NSN 5310-00-772-3720
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02-14051A04 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 02-14051A04 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 107213-104 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
| 53107723720 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5906187 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| LAM-93M | 62554 | ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV |
| M1497-678109 | SZ003 | FORSVARETS MATERIELVERK DEFENCEMATERIEL ADMINISTRATION |
| MA 13600-02 | 57878 | BOR-CA MACHINE TOOL CO |
| MA13600-02 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MF1000-3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MF1000-312 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| MF1000-3T2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MF1001-3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MF5000-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| MF5000-3 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MF5000-3 | R1120 | SATAIR A/S |
| MS21075L3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21075L3E | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21075L3E | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS1068A3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS1068A5 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS1068A8 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS106BA3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS1738MW5-4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| RFM20A3 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| RM52LHTA521M02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RM52LHTA521M02 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-772-3720
Related Products | NSN 5310-00-772-3720
Technical Data | NSN 5310-00-772-3720
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.739 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |
| PLATE THICKNESS | 0.140 INCHES MAXIMUM |
| PLATE WIDTH | 0.290 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.498 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
Restrictions/Controls & Freight Information | NSN 5310-00-772-3720
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
