NSN 5310-00-772-3728 MS2107608, MS21076-08, MS2107608N

Product Details | PLATE SELF-LOCKING NUT

5310-00-772-3728 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS2107608, MS21076-08, MS2107608N, MS21076-08N, MT65C832C, MTPH65C832C, MA 13700-82, MA1370082, MF503108, MF5031-08, NASM21076, RFM20C08, LHTA330082, LHTA3300-82, 71785048, 717850-48, 99029333, 990293-33, 5310-00-772-3728, 00-772-3728, 5310007723728, 007723728

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-772-3728	05280 ( NUT, SELF-LOCKING, PLATE )

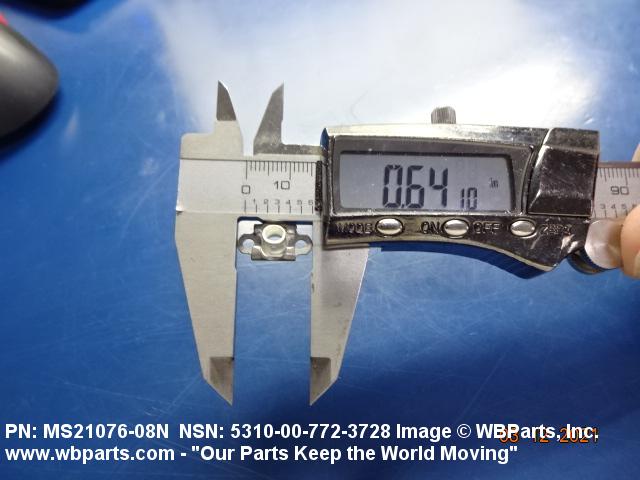

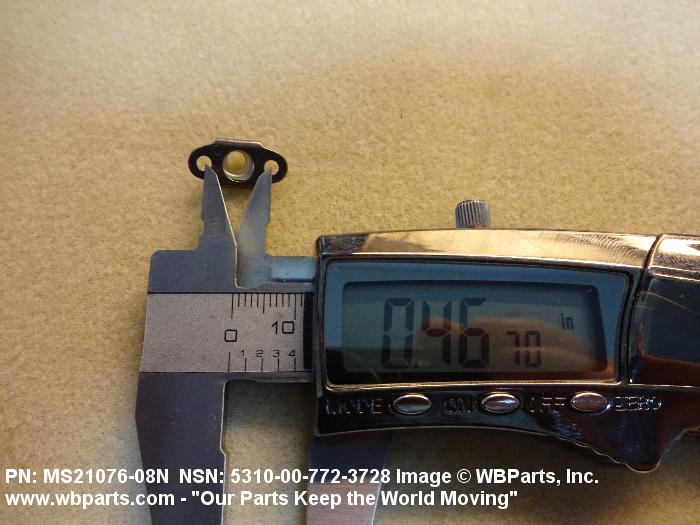

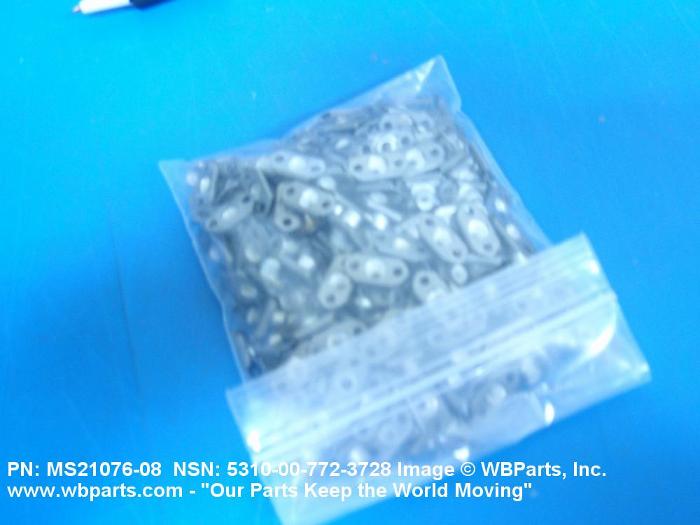

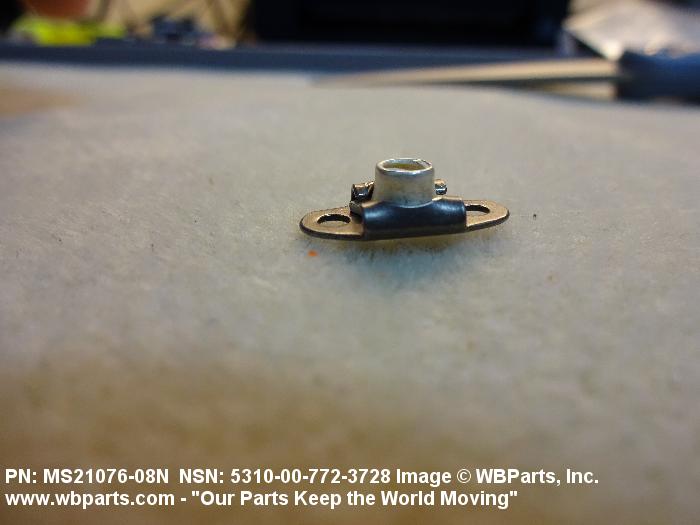

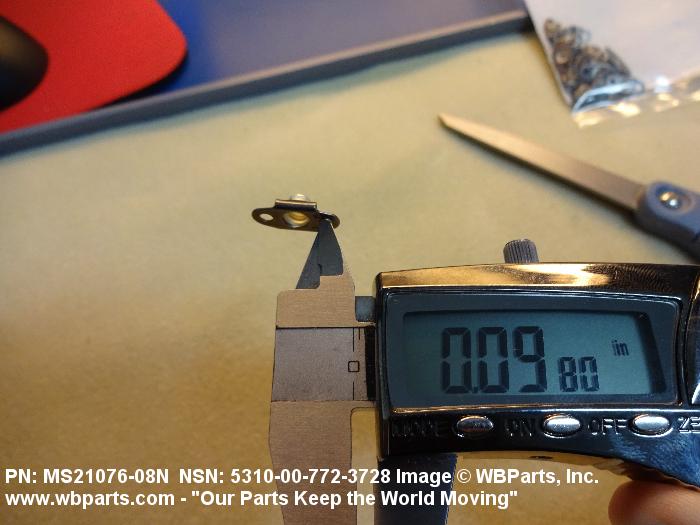

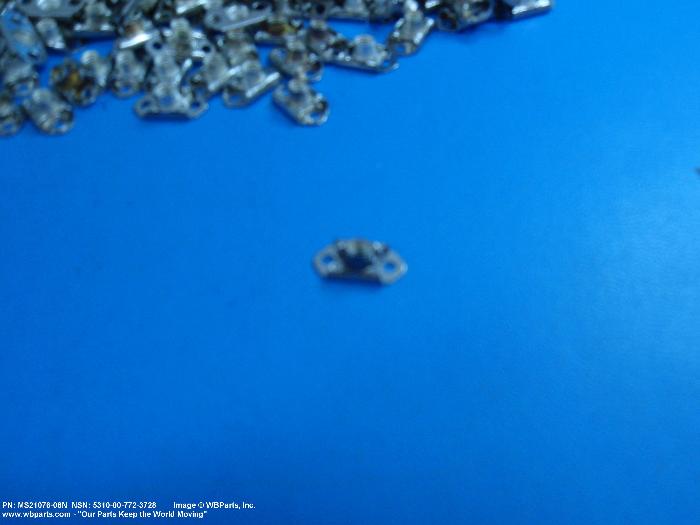

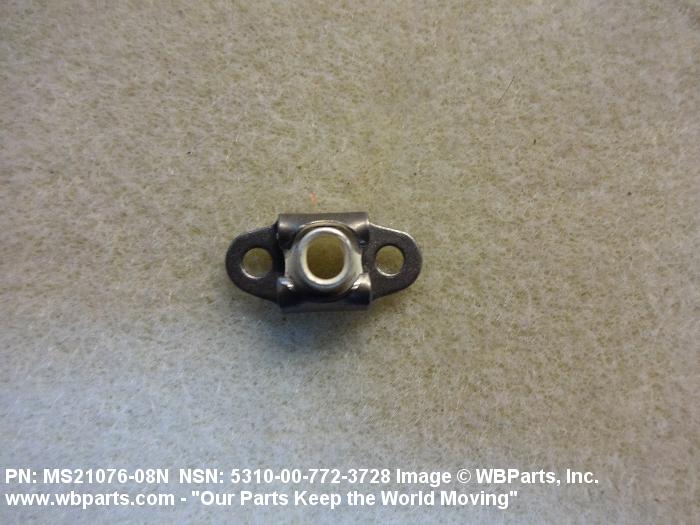

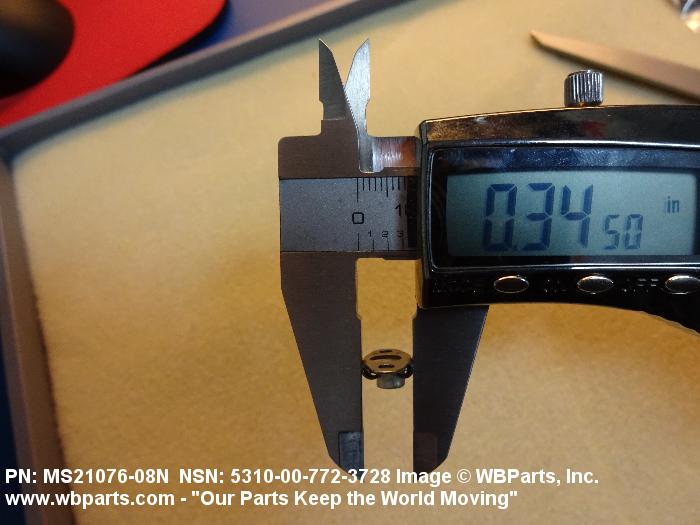

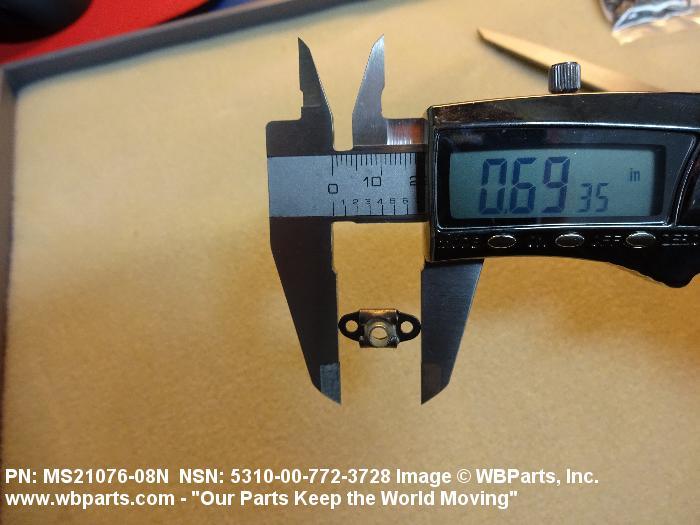

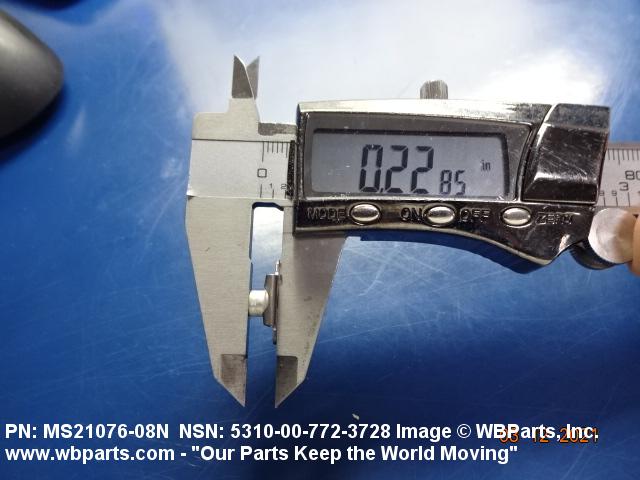

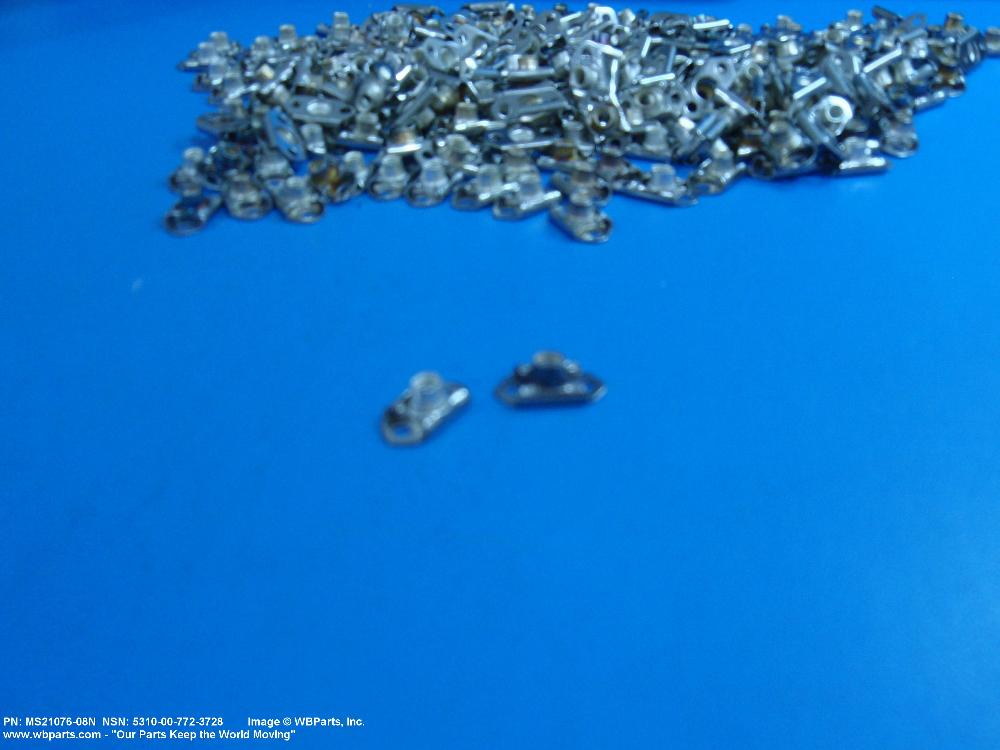

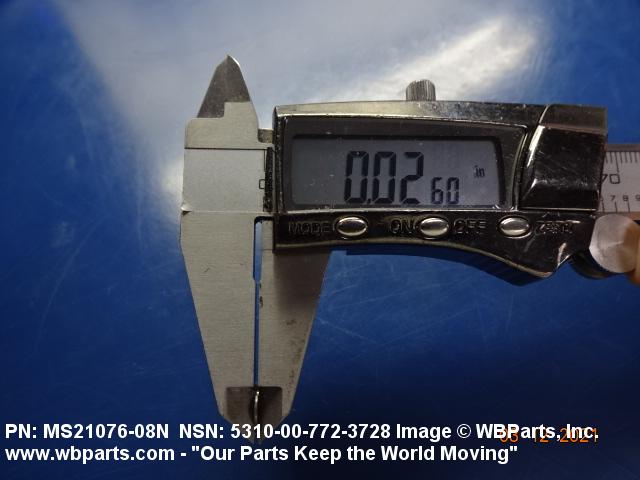

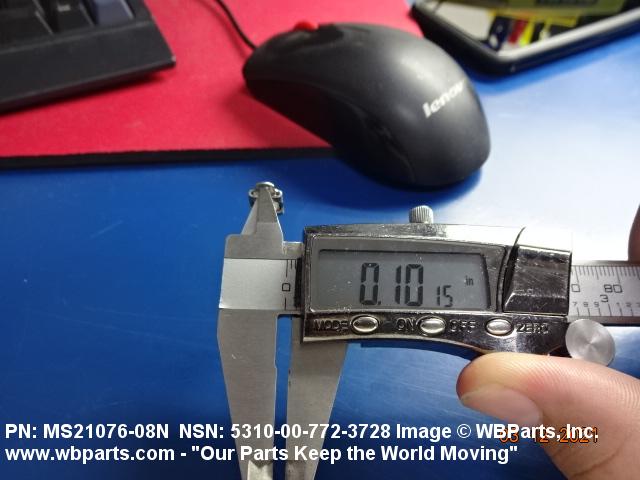

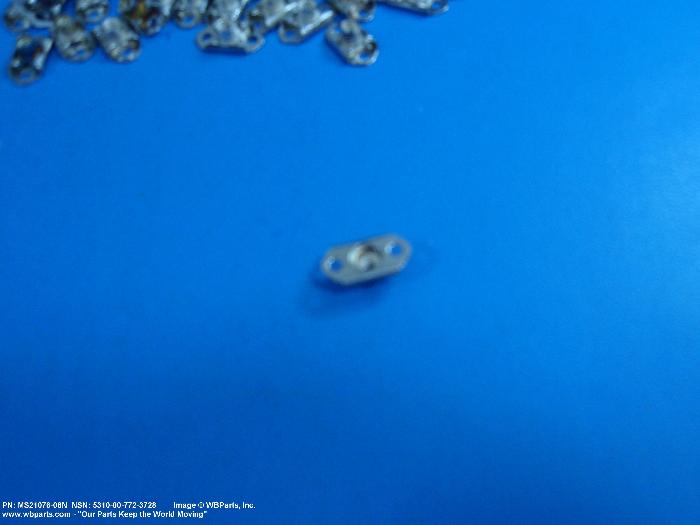

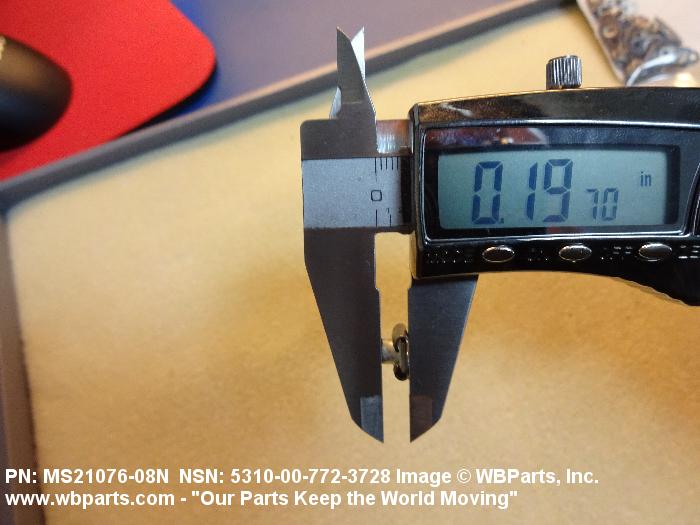

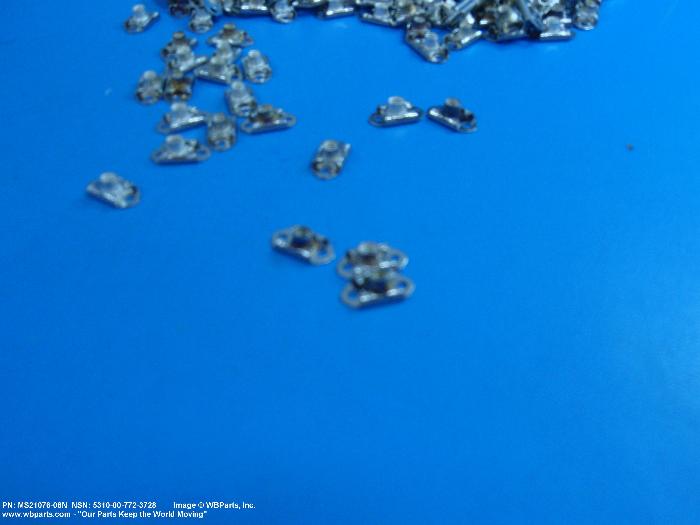

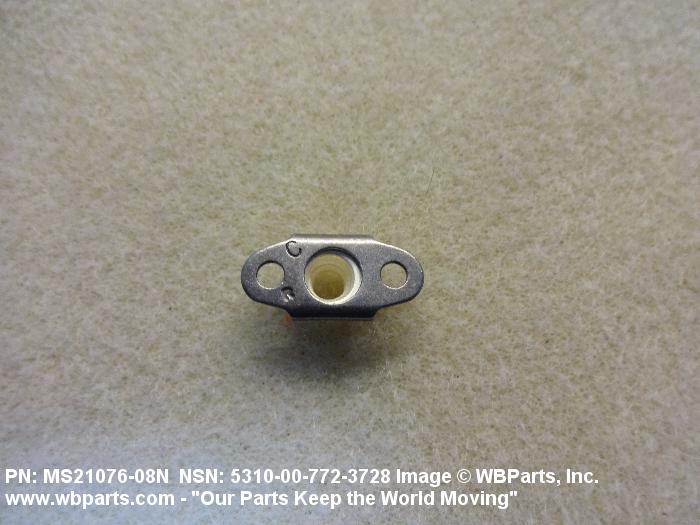

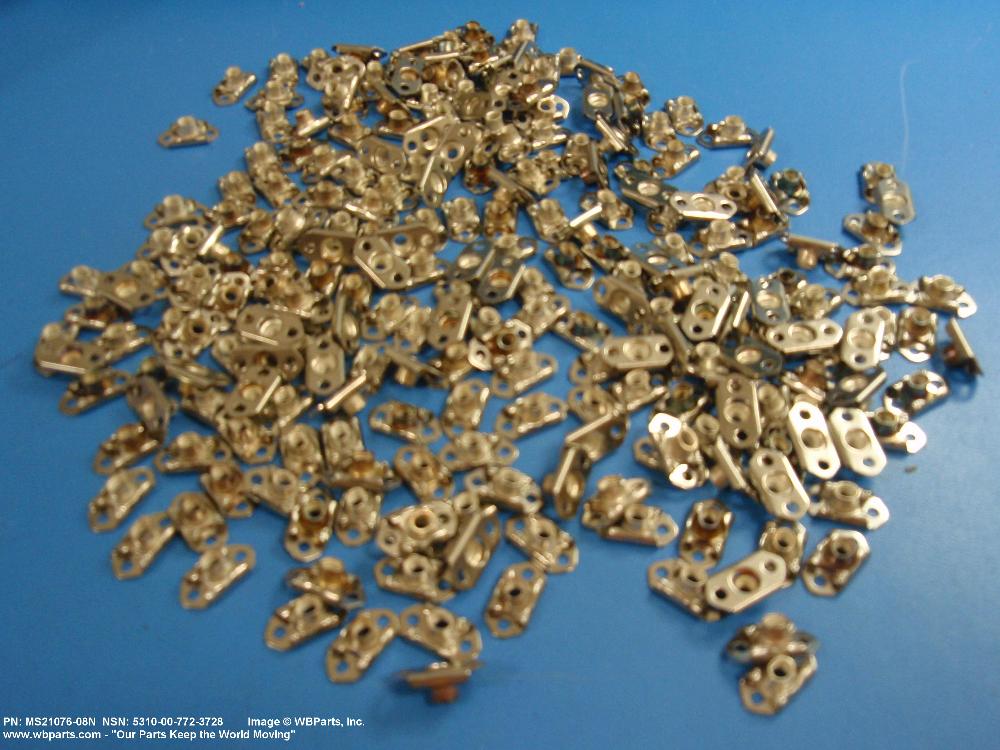

Drawings & Photos | NSN 5310-00-772-3728

Part Number	Request Date	QTY	Origin
MS2107608	2024-09-270	140	us
MS2107608N	2024-05-142	215	us
MS2107608N	2019-12-345	100	IN
MS2107608N	2019-04-114	80	Canada
MS2107608N	2018-05-149	50	United States
MS2107608	2013-12-353	18	US
5310-00-772-3728	2013-11-326	336	United States
MS2107608	2013-08-239	100	TR
MS2107608	2012-12-347	4	US
MS2107608	2012-12-347	4	US
LHTA3300-82	2012-05-145	280	US
MS2107608	2011-11-319	300	United States
MS2107608	2011-11-312	10	US
MS2107608N	2011-05-123	88	US
5310-00-772-3728	2011-03-76	6	US
MS2107608	2010-09-265	30	United States
MS2107608	2010-09-265	50	United States
NASM21076	2010-07-197	286	US
NASM21076	2010-04-117	2200	US
5310-00-772-3728	2010-01-26	30	US
5310-00-772-3728	2010-01-08	2	US
5310-00-772-3728	2009-11-323	25	United States
NASM21076	2009-10-285	1000	IL
MS2107608N	2009-08-217	56	United States
5310-00-772-3728	2009-06-177	100	US
MS2107608	2009-05-134	1000	United States
5310-00-772-3728	2008-11-330	3000	US
MS2107608	2008-10-298	250	United States
5310-00-772-3728	2008-10-291	150	US
MS2107608	2008-10-288	250	United States
5310-00-772-3728	2008-09-274	70	United States
MS2107608	2008-09-273	600	us
5310-00-772-3728	2008-09-254	250	United States
5310-00-772-3728	2008-08-241	20	United States
MS2107608N	2008-07-213	3	US
71785048	2008-07-197	1000	US
99029333	2008-07-197	1000	US
NASM21076	2008-06-155	100	US
5310-00-772-3728	2008-03-85	1000	US
MA1370082	2008-02-44	50	United Kingdom
MS2107608	2007-11-330	2000	United States
LHTA330082	2007-10-297	10	US
NASM21076	2007-09-255	165	US

Cross Reference | NSN 5310-00-772-3728

Part Number	Cage Code	Manufacturer
717850-48	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
990293-33	00752	EDO CORPORATION DIV EDO CORPORATION AP&T
LHTA3300-82	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
LHTA3300-82	72962	HARVARD INDUSTRIES INC
MA 13700-82	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
MA 13700-82	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
MF5031-08	15653	ALCOA GLOBAL FASTENERS, INC.
MF5031-08	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
MF5031-08	R1120	SATAIR A/S
MS21076-08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21076-08N	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21076-08N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MT65C832C	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
MTPH65C832C	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
MTPH65C832C	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
NASM21076	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
RFM20C08	52828	REPUBLIC FASTENER MFG. CORP.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-772-3728

Compare

Related Products | NSN 5310-00-772-3728

5310-00-772-3887, 5310-00-772-3952, 5310-00-772-3962, 5310-00-772-3964, 5310-00-772-4066

Technical Data | NSN 5310-00-772-3728

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	SILVER OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE
NUT LENGTH	0.707 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM
PLATE THICKNESS	0.140 INCHES MAXIMUM
PLATE WIDTH	0.290 INCHES MINIMUM AND 0.367 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.229 INCHES MINIMUM AND 0.239 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.466 INCHES MINIMUM AND 0.470 INCHES MAXIMUM
TEMP RATING	800.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT
III PRECIOUS MATERIAL	SILVER

Restrictions/Controls & Freight Information | NSN 5310-00-772-3728

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-772-3728

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
