NSN 5310-00-770-3856 BACN10GH34, BACN10GH3-4, WSI324

Product Details | PLATE SELF-LOCKING NUT

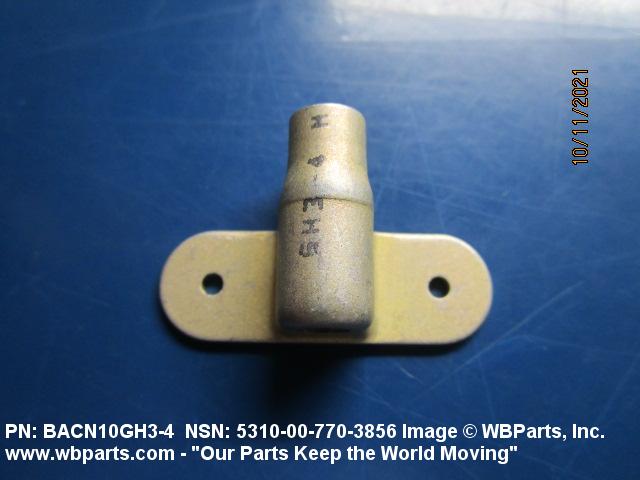

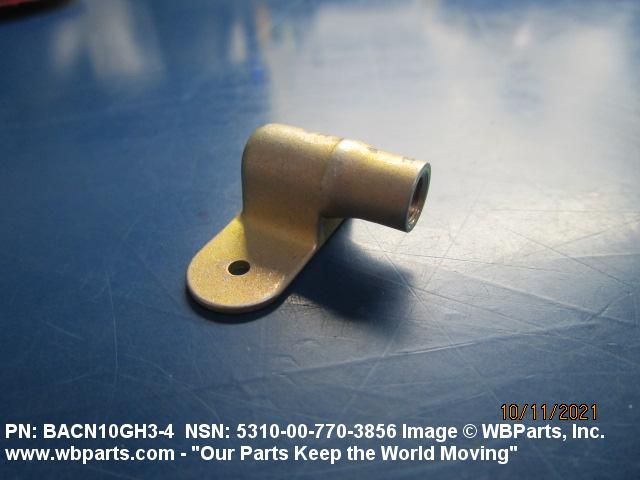

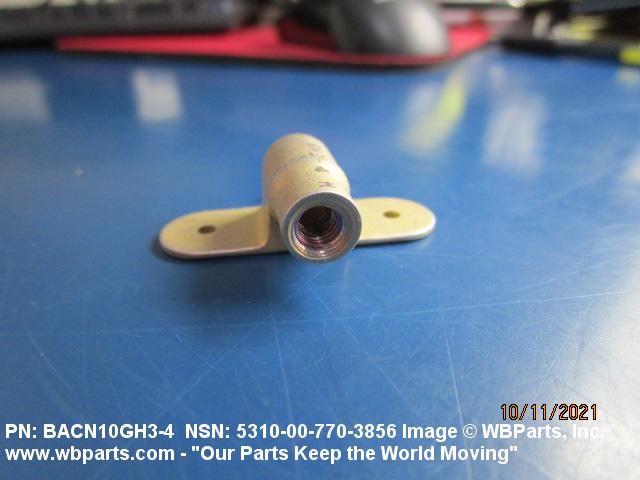

5310-00-770-3856 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: BACN10GH34, BACN10GH3-4, WSI324, WSI-32-4 , WSI3324, WSI332-4, 5310-00-770-3856, 00-770-3856, 5310007703856, 007703856

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-770-3856	05280 ( NUT, SELF-LOCKING, PLATE )

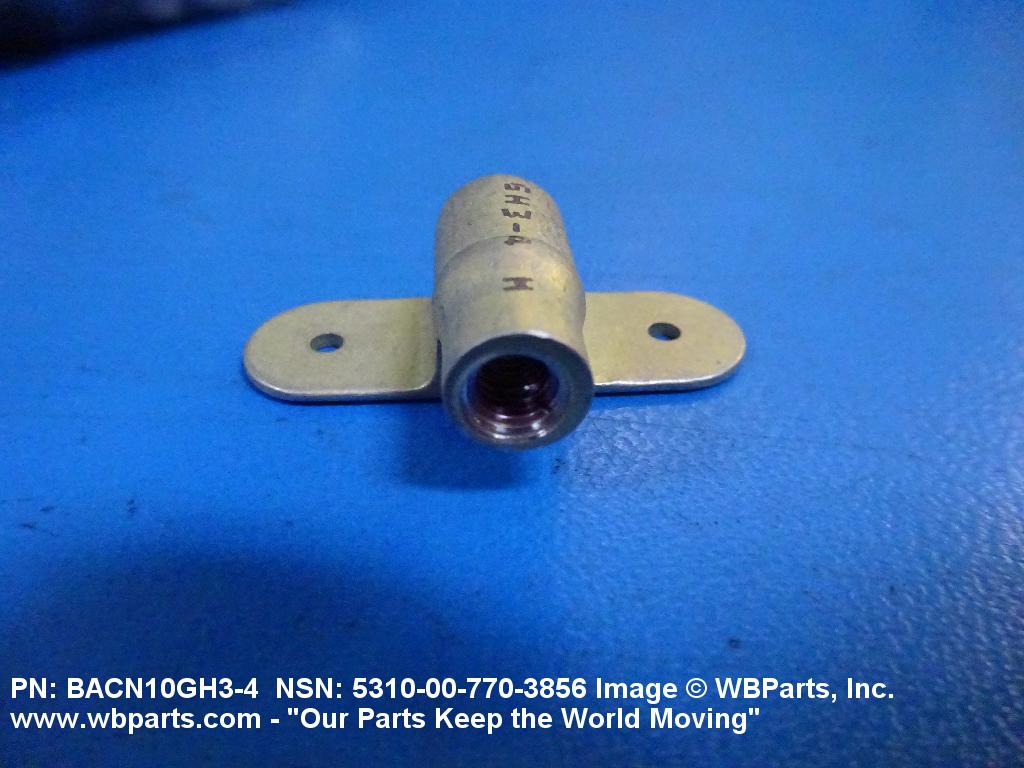

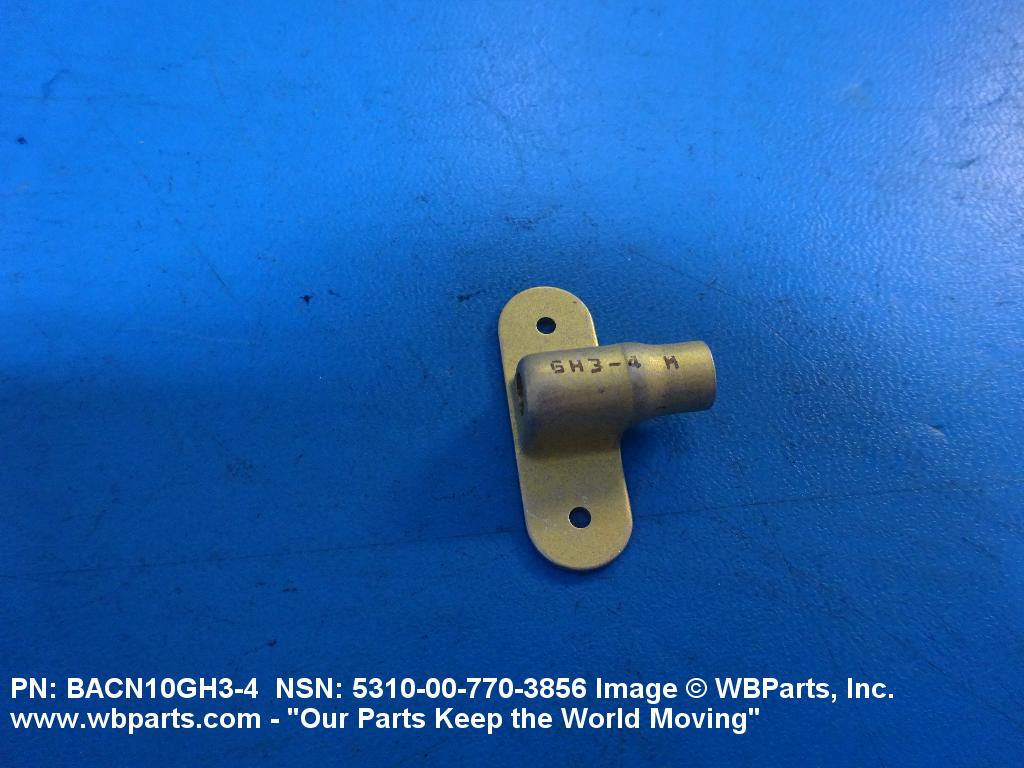

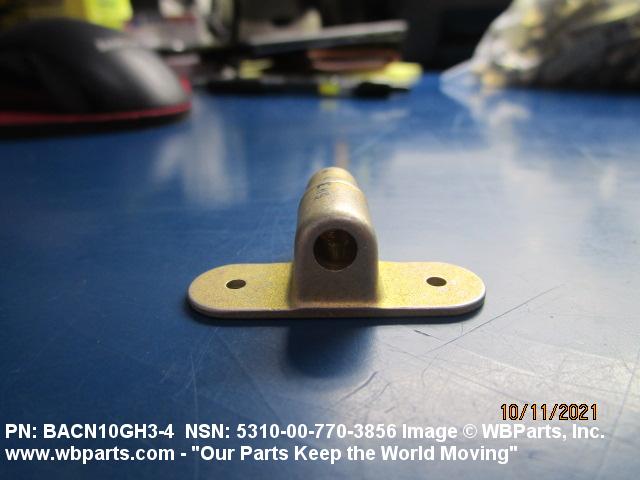

Drawings & Photos | NSN 5310-00-770-3856

Part Number	Request Date	QTY	Origin
WSI3324	2024-07-199	20	Israel
BACN10GH34	2023-11-310	100	Malta
BACN10GH34	2023-10-298	100	Malta
BACN10GH34	2023-06-173	70	Malta
BACN10GH34	2023-05-145	180	Malta
BACN10GH34	2023-05-137	180	Malta
5310-00-770-3856	2023-05-129	1	United States
BACN10GH34	2023-05-128	60	Malta
BACN10GH34	2023-02-59	85	Malta
BACN10GH34	2023-02-58	85	Malta
BACN10GH34	2023-02-53	6	Malta
BACN10GH34	2022-11-334	40	Malta
BACN10GH34	2022-10-287	180	Malta
BACN10GH3-4	2022-09-248	599	DIBBS
WSI-32-4	2022-09-248	599	DIBBS
BACN10GH34	2022-08-237	90	Malta
BACN10GH34	2022-08-231	90	Malta
BACN10GH34	2022-08-220	45	Malta
BACN10GH34	2022-05-136	50	Malta
5310-00-770-3856	2022-05-133	50	Malta
5310-00-770-3856	2022-05-133	100	Malta
5310-00-770-3856	2022-05-133	150	Malta
5310-00-770-3856	2022-05-131	100	Malta
5310-00-770-3856	2022-04-111	50	Malta
5310-00-770-3856	2022-02-55	80	Malta
5310-00-770-3856	2022-02-54	80	Malta
5310-00-770-3856	2022-01-17	30	US
BACN10GH34	2022-01-11	16	Malta
BACN10GH34	2021-10-279	145	United States
BACN10GH34	2021-02-42	50	United States
BACN10GH34	2019-06-165	100	United States
BACN10GH34	2019-05-129	25	United States
5310-00-770-3856	2018-06-176	822	DIBBS
5310-00-770-3856	2018-06-168	822	DIBBS
5310-00-770-3856	2018-03-74	50	IL
5310-00-770-3856	2018-03-74	150	IL
BACN10GH34	2015-06-180	50	United States
BACN10GH34	2012-09-260	60	US
WSI3324	2009-08-224	1000	Canada
BACN10GH34	2008-10-298	300	US

Cross Reference | NSN 5310-00-770-3856

Part Number	Cage Code	Manufacturer
BACN10GH3-4	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
BACN10GH3-4	6D154	HARTWELL CORPORATION
BACN10GH3-4	77272	THE BOEING COMPANY DBA BOEING
BACN10GH3-4	81205	THE BOEING COMPANY DBA BOEING
WSI-32-4	84955	KAMAN AEROSPACE CORPORATION DBA AIR VEHICLES & MRO DIVISION
WSI332-4	04169	ATLAS CORP WESTERN SKY INDUSTRIES DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-770-3856

Compare

Related Products | NSN 5310-00-770-3856

5310-00-770-3864, 5310-00-770-3881, 5310-00-770-3893, 5310-00-770-3894, 5310-00-770-3895

Technical Data | NSN 5310-00-770-3856

Characteristic	Specifications

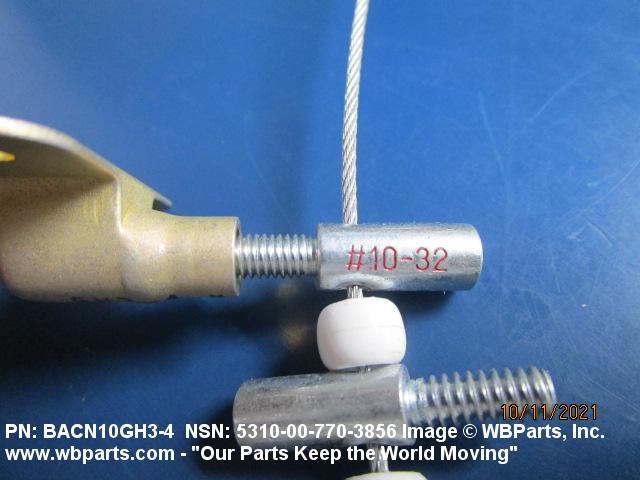

THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL CORROSION RESISTING LOCKING INSERT ALUMINUM ALLOY 2024 OVERALL EXCEPT INSERT
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 7245 ASSN STD SINGLE MATERIAL RESPONSE LOCKING INSERT QQA-367 T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL EXCEPT INSERT
SURFACE TREATMENT	CHROMATE OVERALL EXCEPT INSERT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT
HARDNESS RATING	NOT RATED
NUT STYLE	A129 PLATE

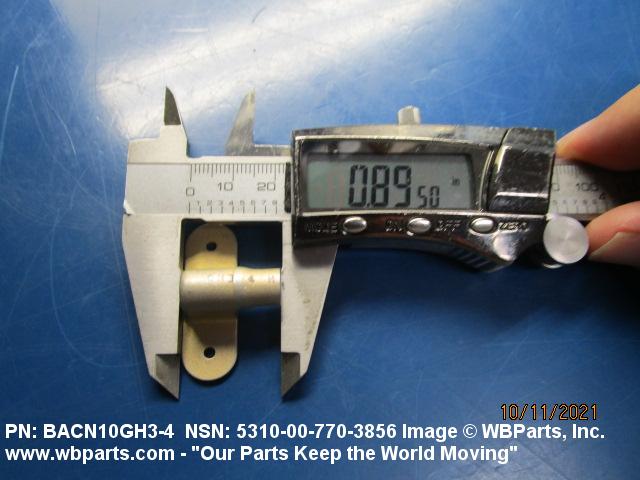

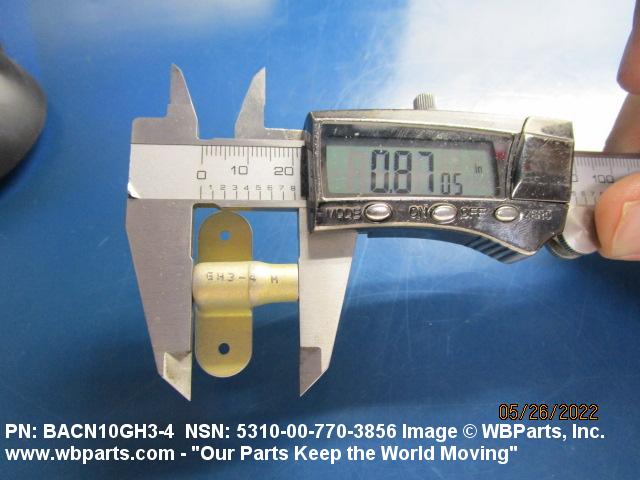

NUT LENGTH	0.900 INCHES NOMINAL

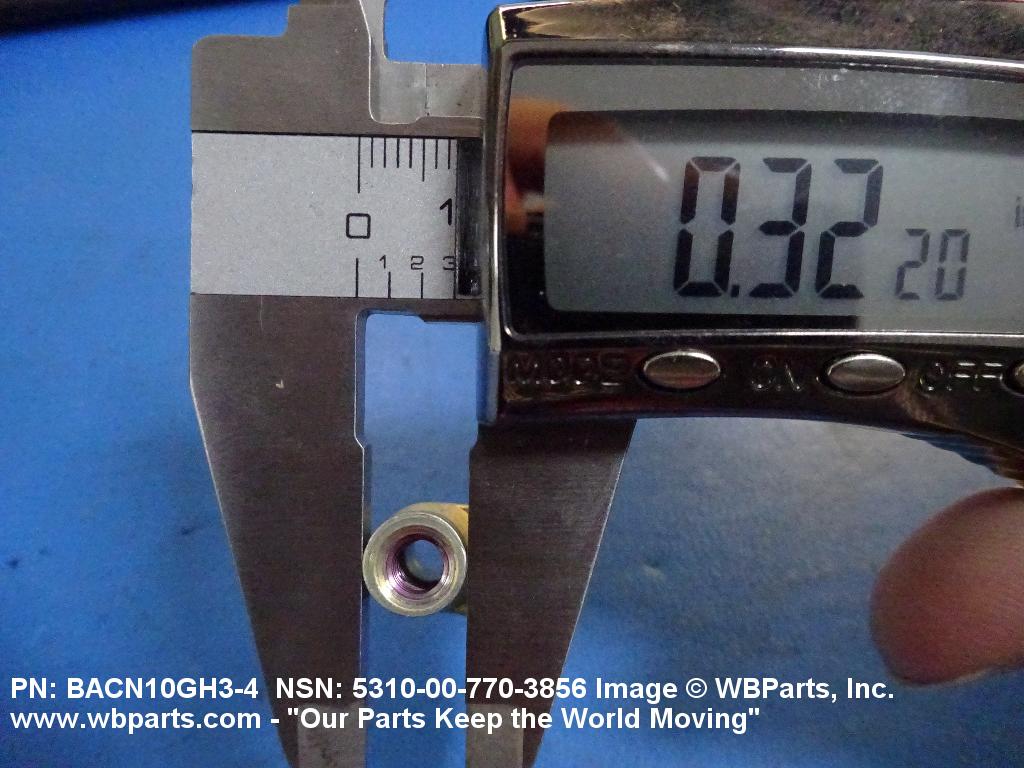

DISTANCE FROM BASE TO CENTER OF APERTURE	0.310 INCHES NOMINAL

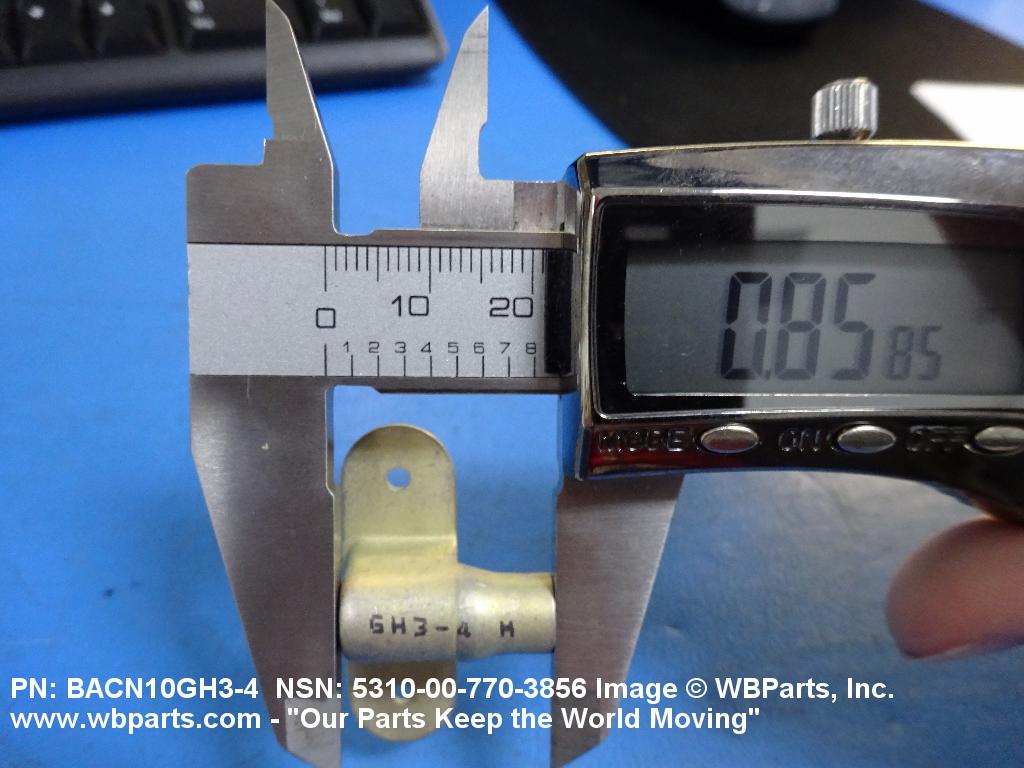

NUT HEIGHT	0.840 INCHES NOMINAL

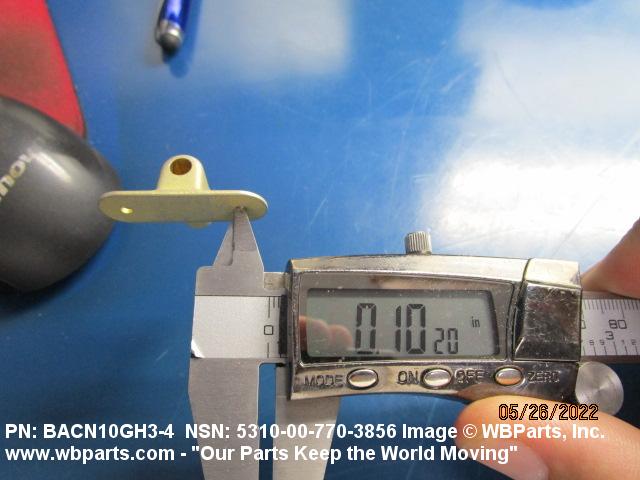

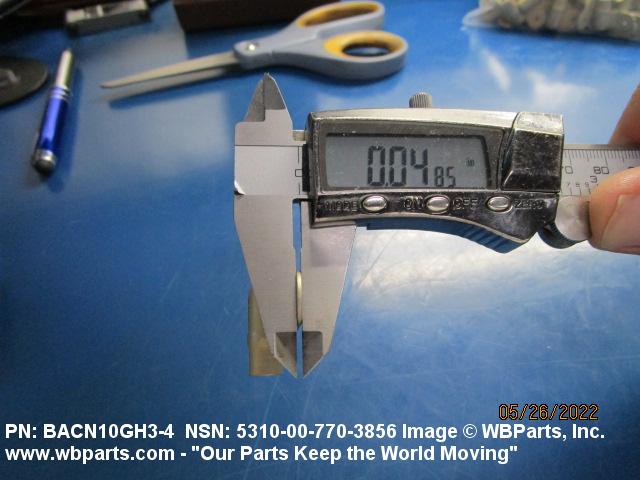

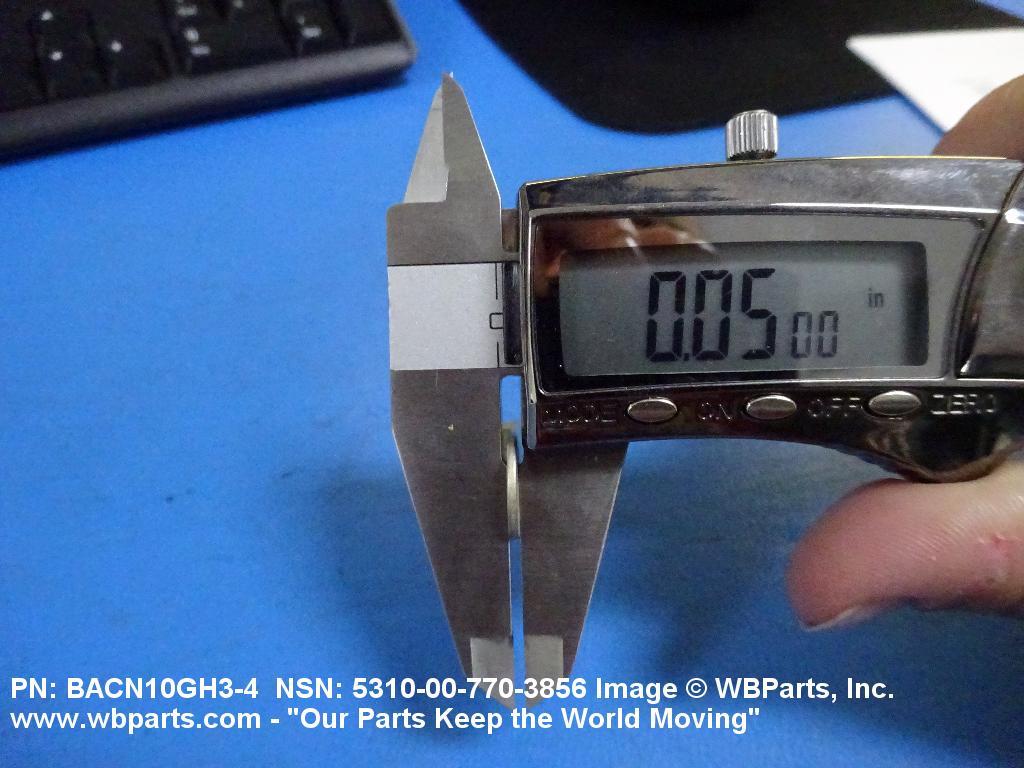

PLATE THICKNESS	0.050 INCHES NOMINAL

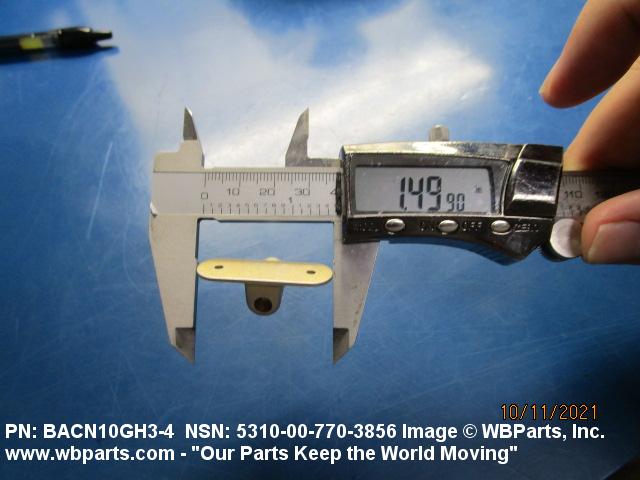

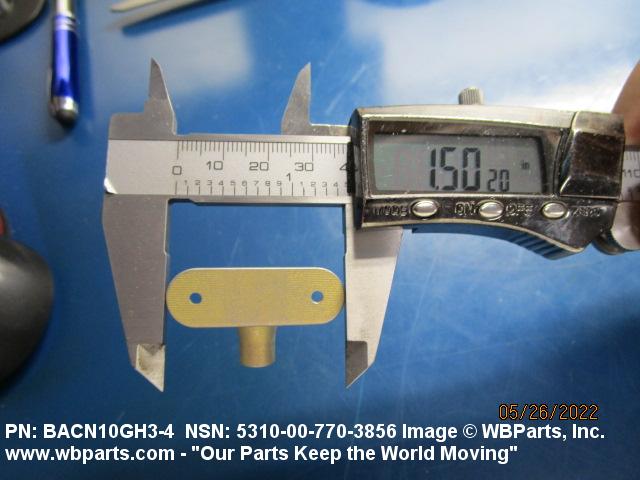

PLATE WIDTH	1.500 INCHES NOMINAL
LOCKING FEATURE	PREVAILING TORQUE WITH METALLIC INSERT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES

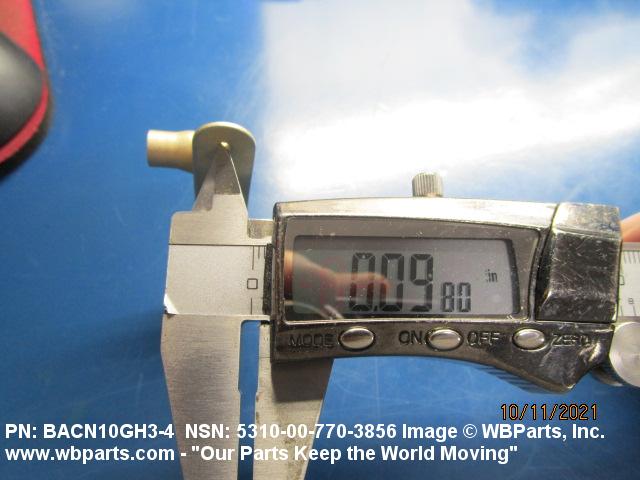

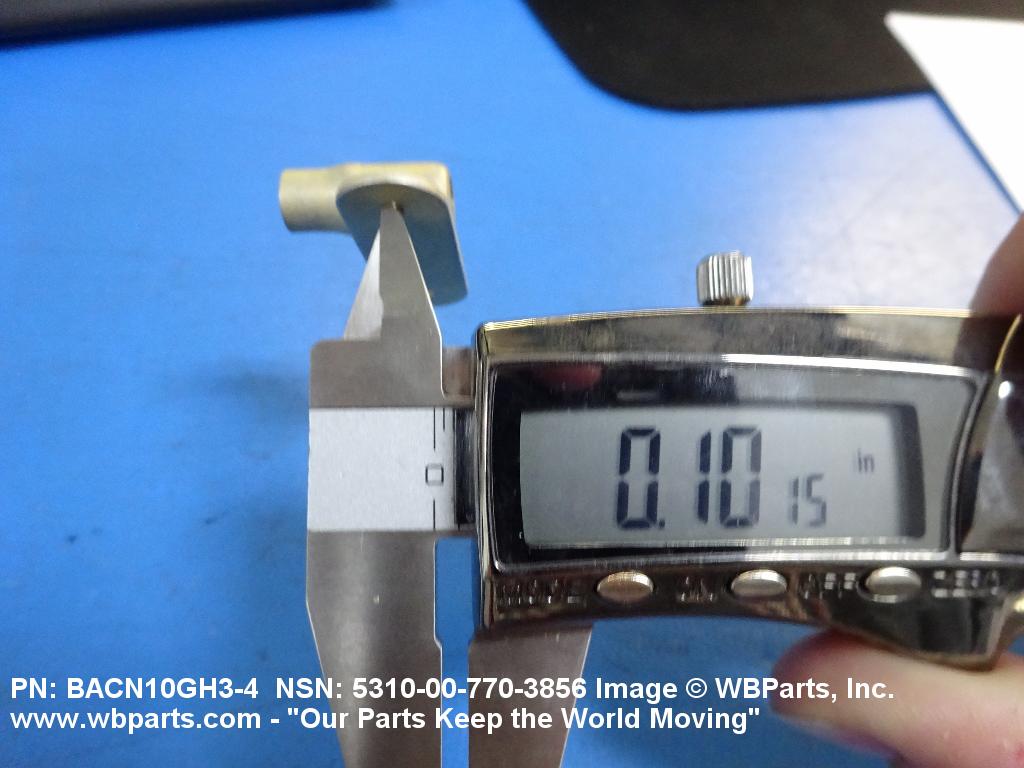

MOUNTING HOLE DIAMETER	0.098 INCHES NOMINAL

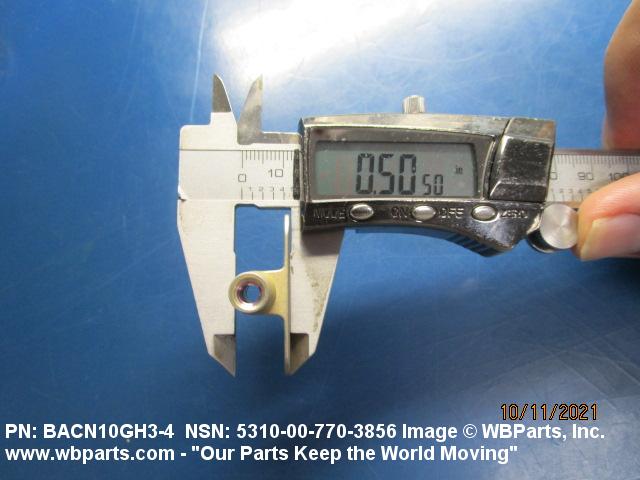

DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.500 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	1.000 INCHES NOMINAL
TEMP RATING	NOT RATED
SPECIFICATION/STANDARD DATA	81205-BACN10GH MANUFACTURERS STANDARD
MANUFACTURERS CODE	81205
DESIGN CONTROL REFERENCE	BACN10GH3-4
