Product Details | PLATE SELF-LOCKING NUT

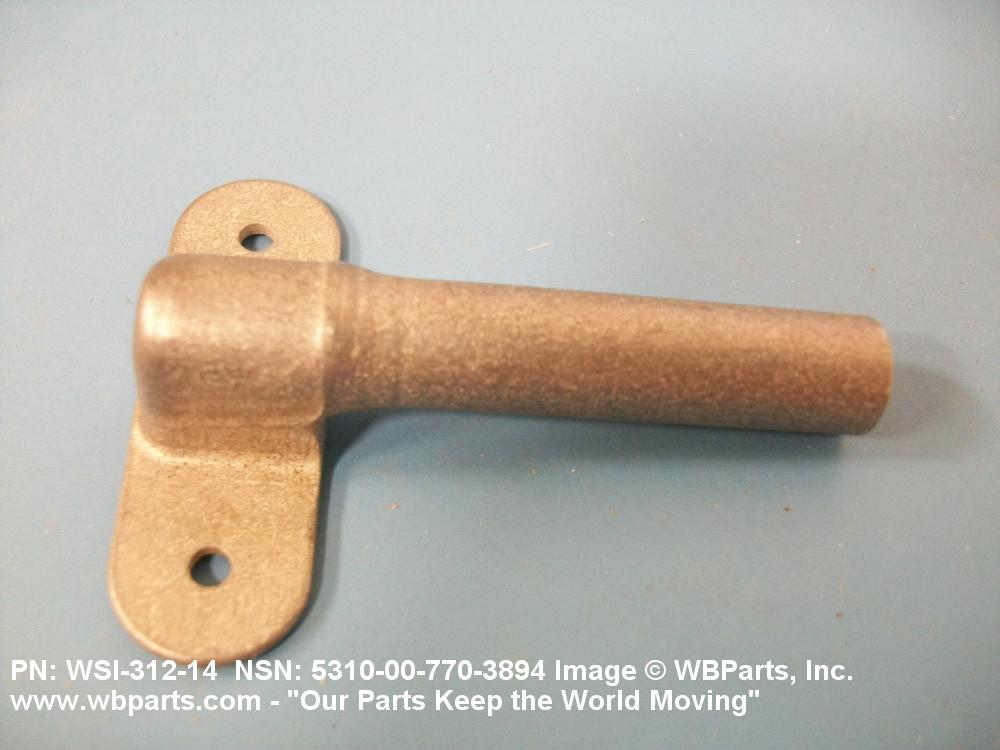

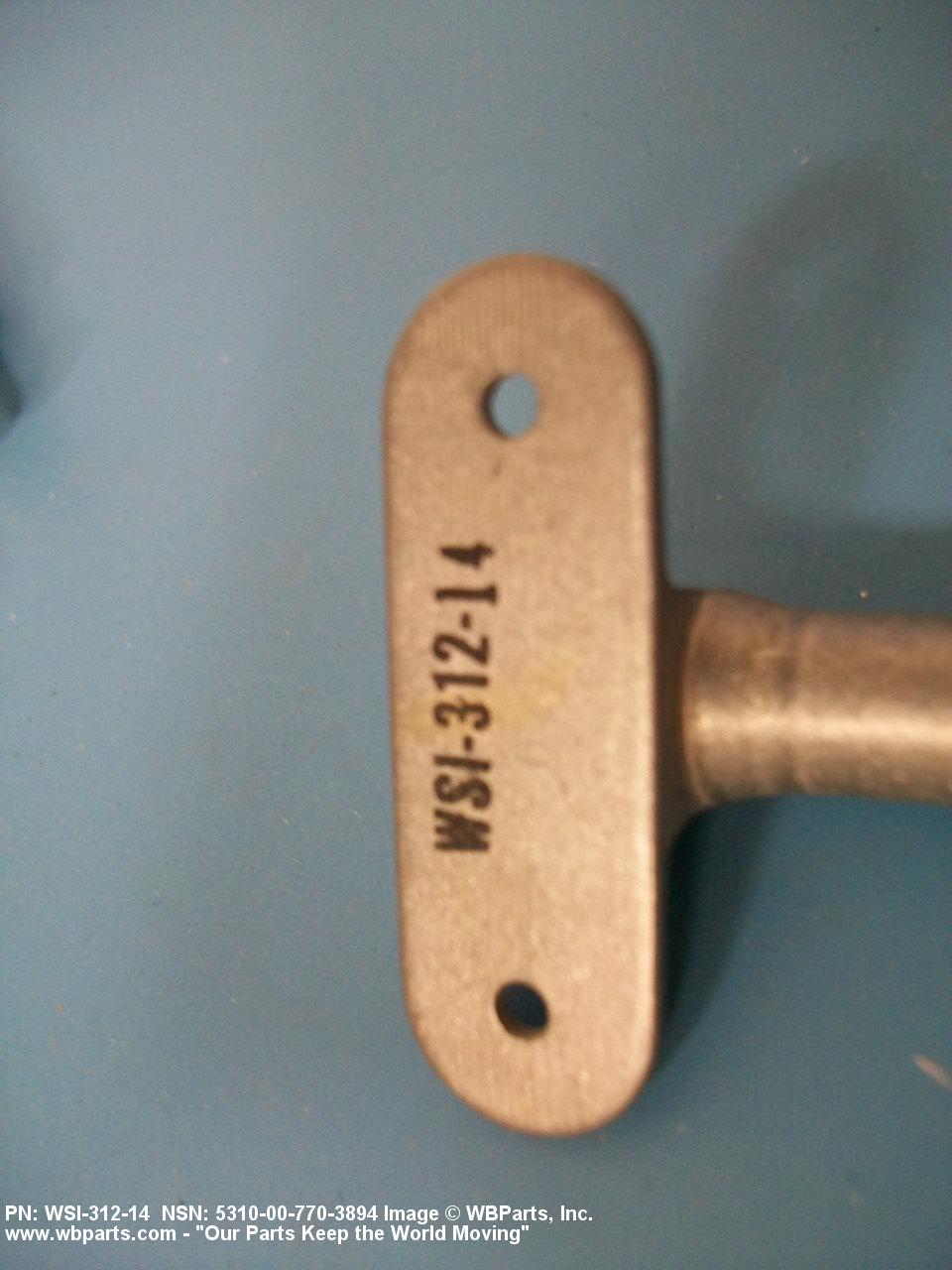

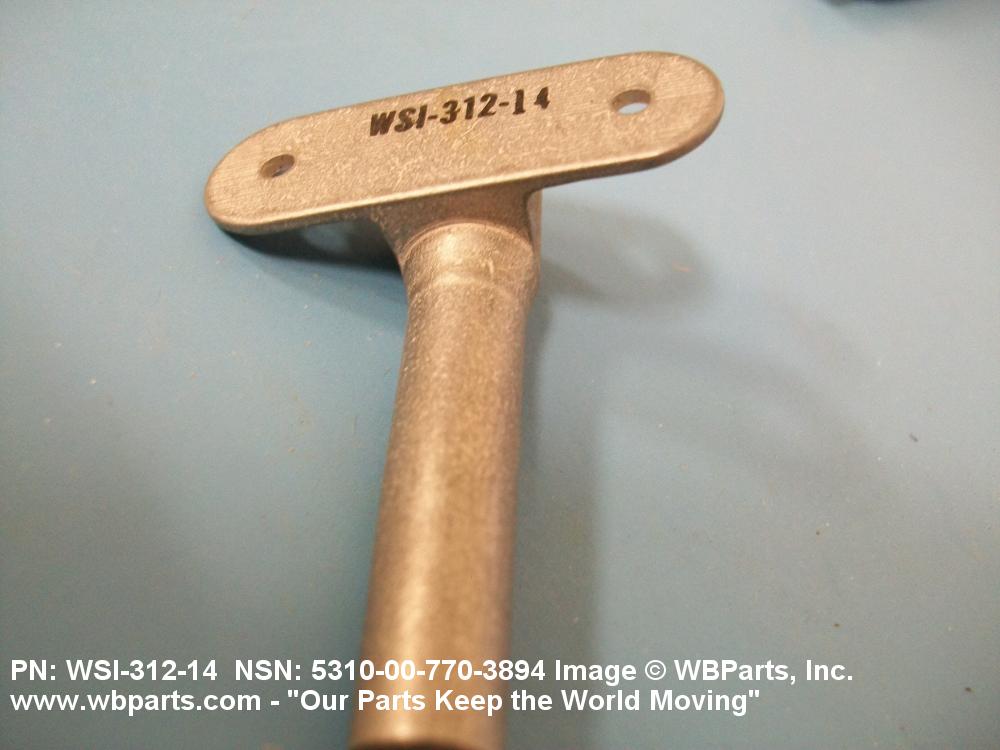

5310-00-770-3894 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: WSI31214, WSI312-14, 5310-00-770-3894, 00-770-3894, 5310007703894, 007703894
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-770-3894 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-00-770-3894
Demand History | NSN 5310-00-770-3894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-770-3894 | 2013-02-52 | 250 | United States |
| 5310-00-770-3894 | 2013-02-52 | 500 | United States |
| 5310-00-770-3894 | 2010-07-193 | 10 | United States |
| 5310-00-770-3894 | 2010-07-193 | 250 | United States |
Cross Reference | NSN 5310-00-770-3894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WSI312-14 | 04169 | ATLAS CORP WESTERN SKY INDUSTRIES DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-770-3894
Related Products | NSN 5310-00-770-3894
Technical Data | NSN 5310-00-770-3894
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING LOCKING INSERT ALUMINUM ALLOY 2024 OVERALL EXCEPT INSERT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 7245 ASSN STD SINGLE MATERIAL RESPONSE LOCKING INSERT QQ-A-367 T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT | OXIDE FILM OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A129 PLATE |
| NUT LENGTH | 1.900 INCHES NOMINAL |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.310 INCHES NOMINAL |
| NUT HEIGHT | 1.840 INCHES NOMINAL |
| PLATE THICKNESS | 0.050 INCHES NOMINAL |
| PLATE WIDTH | 1.500 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE WITH METALLIC INSERT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES NOMINAL |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.000 INCHES NOMINAL |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 04169 |
| DESIGN CONTROL REFERENCE | WSI312-14 |
